Product Family

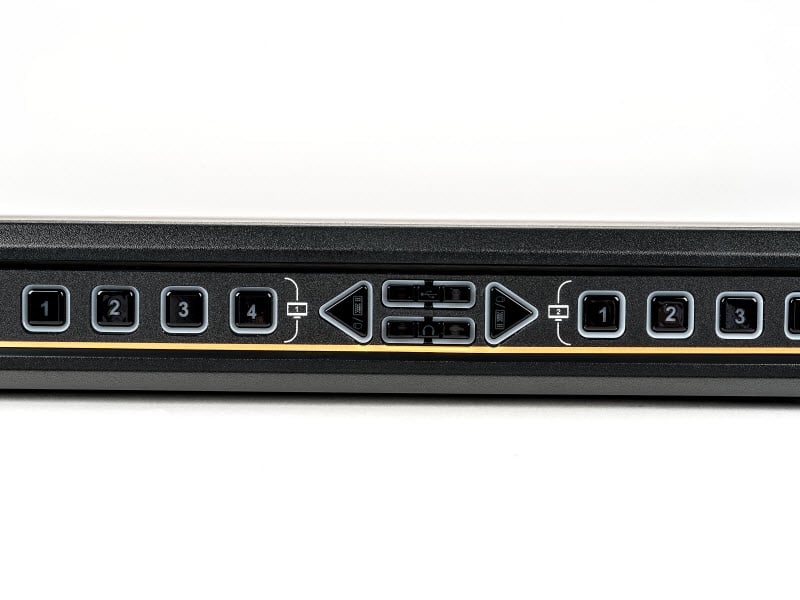

Vertiv™ Cybex™ SCM100 Series Secure Desktop Matrix

The Vertiv™ Cybex™ Secure Desktop Matrix allows users to securely interact with multiple computers and observe two active computers simultaneously. Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0, the Cybex Secure Desktop Matrix is ideal for environments where monitoring and managing of multiple computers, covering various degrees of secure data is required.

Find Sales Contact Get Brochure Get Manual
Login to Save for Later
Best Suited For:
  • Government
  • Healthcare
Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Model Specifications Overview
Cybex™ SCM145DPH Secure Desktop Matrix
(4) DP/HDMI Universal Port   (2) DP/HDMI Universal Ports   UHD 4K (3840x2160) @ 60Hz   1.7 in   13.7 in   5 in   3 lbs

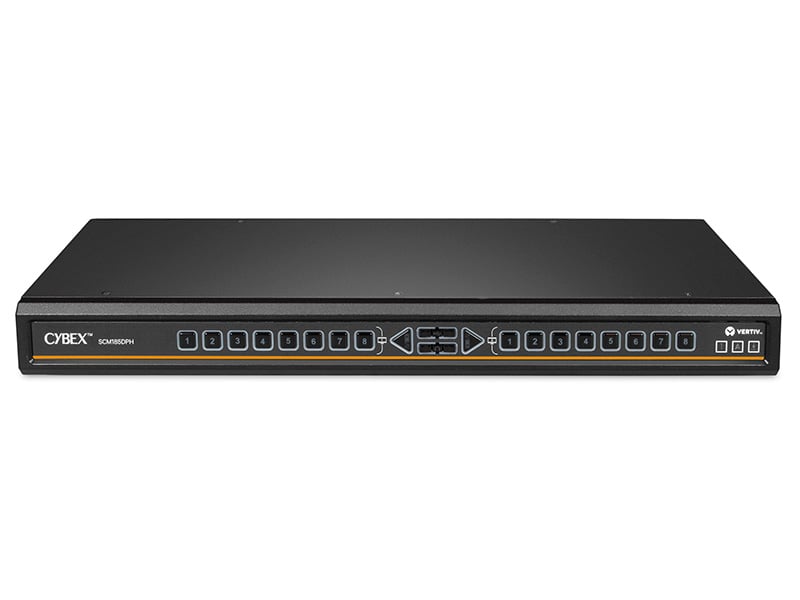

Cybex™ SCM185DPH Secure Desktop Matrix
(8) DP/HDMI Universal Port   (2) DP/HDMI Universal Ports   UHD 4K (3840x2160) @ 60Hz   1.7 in   17.3 in   7.3 in   5.4 lbs

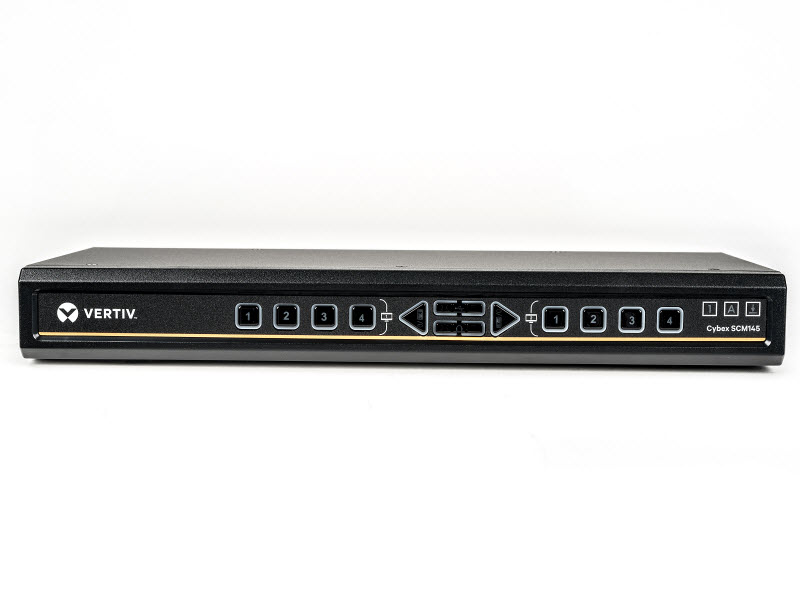

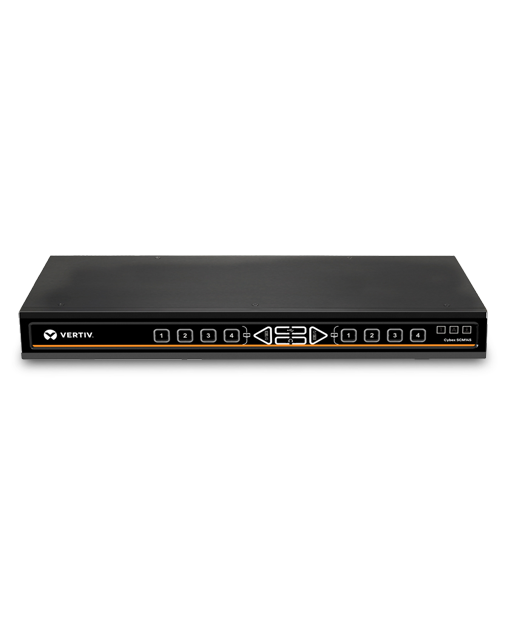

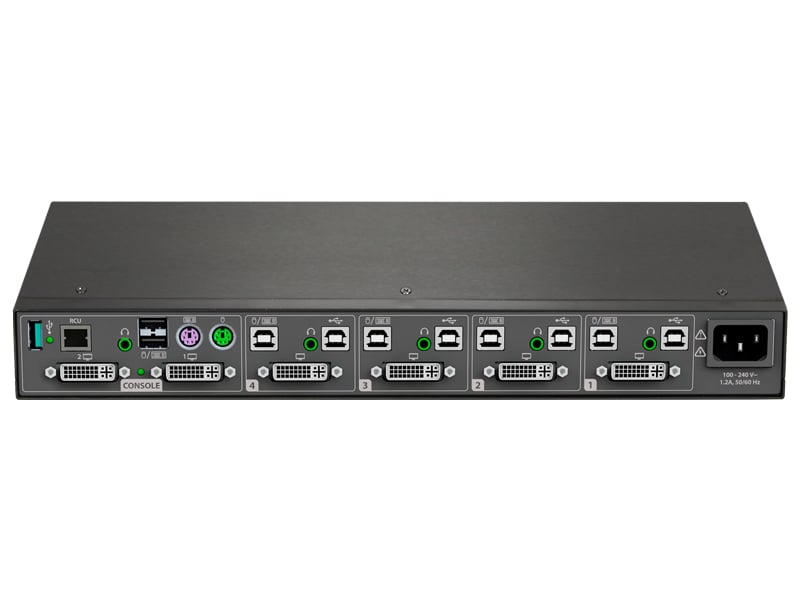

Cybex™ SCM145 Secure Desktop Matrix
(4) DVI-I dual-link   (2) DVI-I dual-link   DVI-I dual-link - 2560 x 1600 @ 60Hz   1.7 in   13.7 in   5 in   3 lbs
Cybex™ SCM145DP Secure Desktop Matrix
(4) DisplayPort 1.2   (2) DisplayPort 1.2   DVI-I dual-link - 2560 x 1600 @ 60Hz   1.7 in   13.7 in   5 in   3 lbs

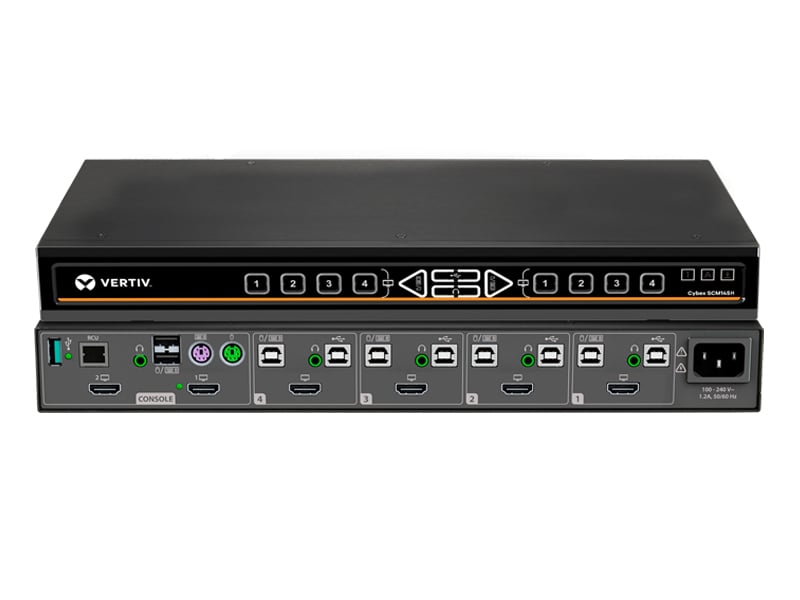

Cybex™ SCM145H Secure Desktop Matrix
(4) HDMI 1.4   (2) HDMI 1.4   4K UHD 3840 x 2160 @ 30 Hz   1.7 in   13.7 in   5 in   3 lbs
Cybex™ SCM185 Secure Desktop Matrix
(8) DVI-I, dual-link   (2) DVI-I, dual-link   DVI-I dual-link - 2560 x 1600 @ 60Hz   1.7 in   17.3 in   7.3 in   5.4 lbs
Cybex™ SCM185DP Secure Desktop Matrix
(8) DisplayPort 1.2   (2) DisplayPort 1.2   4K UHD 3840 x 2160 @ 30 Hz   1.7 in   17.3 in   7.3 in   5.4 lbs

Benefits

Independently switched display connections - situational awareness of any two connected systems
Hardware-based peripheral isolation loads all firmware on ROM with no keyboard buffering or memory
Dedicated Peripheral Port permits a secure connection to external USB devices, including CAC smart card readers, fingerprint readers, and face recognition devices

Features

Certified to NIAP Common Criteria Protection Profile for Peripheral Sharing Switch, version 3.0
Use for two monitors, or pair with Vertiv™ extension technology to send to a central display
Always-on active anti-tampering system
Unidirectional Optical Data Diodes assure USB peripheral isolation enabling data flow from devices to host only
