Product Model

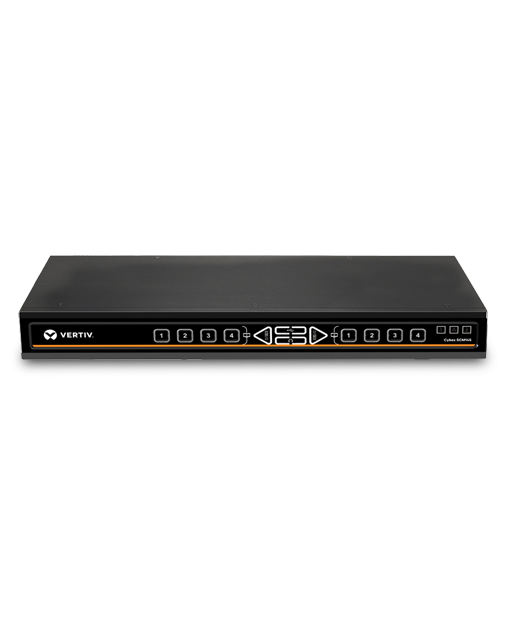

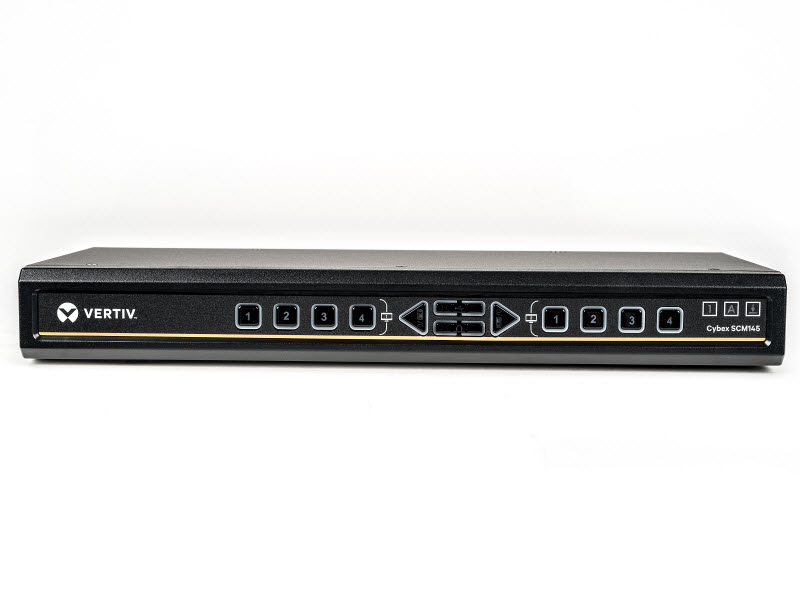

Cybex™ SCM145 Secure Desktop Matrix

The Vertiv™ Cybex™ SCM145 secure desktop Matrix KVM switches offer a proven dual monitor solution for guarding against cyber intrusion at the desktop. These switches, that allow you to switch between up to four networks at the push of a button or switch between two networks with your cursor, are certified to meet the NIAP Protection Profile for Peripheral Sharing Devices ver. 3.0. The SCM145 switch also provides users with high resolution compatibility utilizing HDMI and traditional DVI technology.

Login to Save for Later
Best Suited For:
  • Government
  • Healthcare
  • Banking, Financial and Insurance
  • Military, Defense, Aerospace and Missile
Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available


Independently switched display connections - situational awareness of any two connected systems
Hardware-based peripheral isolation loads all firmware on ROM with no keyboard buffering or memory
Dedicated Peripheral Port permits a secure connection to external USB devices, including CAC smart card readers, fingerprint readers, and face recognition devices


Certified to NIAP Common Criteria Protection Profile for Peripheral Sharing Switch, version 3.0
Use for two monitors, or pair with Vertiv™ extension technology to send to a central display
Always-on active anti-tampering system
Unidirectional Optical Data Diodes assure USB peripheral isolation enabling data flow from devices to host only

Cybex™ SCM145 Secure Desktop Matrix
Product Overview
Input Ports
(4) DVI-I dual-link
Output Ports
(2) DVI-I dual-link
Video Resolution
DVI-I dual-link - 2560 x 1600 @ 60Hz
Power Description
Power Supply(s)
Input Power (Maximum)
35W (100V-240V AC)
Operational Conditions
Operating Temperature
32° to 104° F (0° to 40° C)
0-80% RH, non-condensing
Storage Temperature
-4° to 140° F (-20° to 60° C)
Physical Characteristics
3 lbs
1.5 kgs
1.7 in
42 mm
13.7 in
342 mm
5 in
Agency Approvals
CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
