Product Model

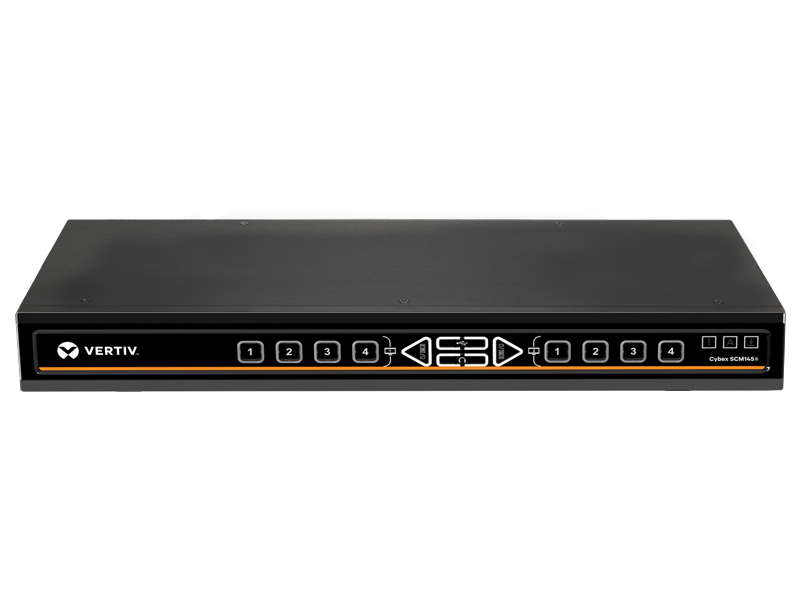

Cybex™ SCM145H Secure Desktop Matrix

The Cybex™ SCM145H secure desktop Matrix KVM switch offers a proven solution for guarding against cyber intrusion at the desktop. These switches are certified to meet the requirements of the latest NIAP Protection Profile for Peripheral Sharing Devices version 3.0. And they also provide users with high resolution compatibility utilizing HDMI and traditional DVI technology.

Login to Save for Later
Best Suited For:
  • Government
  • Healthcare
Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available


Independently switched display connections - situational awareness of any two connected systems
Hardware-based peripheral isolation loads all firmware on ROM with no keyboard buffering or memory
Dedicated Peripheral Port permits a secure connection to external USB devices, including CAC smart card readers, fingerprint readers, and face recognition devices


Certified to NIAP Common Criteria Protection Profile for Peripheral Sharing Switch, version 3.0
Use for two monitors, or pair with Vertiv™ extension technology to send to a central display
Always-on active anti-tampering system
Unidirectional Optical Data Diodes assure USB peripheral isolation enabling data flow from devices to host only

Cybex™ SCM145H Secure Desktop Matrix
Product Overview
Input Ports
(4) HDMI 1.4
Output Ports
(2) HDMI 1.4
Video Resolution
4K UHD 3840 x 2160 @ 30 Hz
Power Description
Power Supply(s)
Input Power (Maximum)
35W (100V-240V AC)
Operational Conditions
0-80% RH, non-condensing
Storage Temperature
-4° to 140° F; -20° to 60° C
Physical Characteristics
3 lbs
1.5 kgs
1.7 in
42 mm
13.7 in
342 mm
5 in
Agency Approvals
CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
