Product Model

Cybex SCM185DP Secure Desktop Matrix

The Cybex™ SCM185DP secure desktop Matrix KVM switch offers a proven solution for guarding against cyber intrusion at the desktop. These switches are certified to meet the requirements of the latest NIAP Protection Profile for Peripheral Sharing Devices version 3.0. And they also provide users with high resolution compatibility utilizing HDMI and traditional DVI technology.

Get Brochure Get Manual
Best Suited For:
  • Government
  • Healthcare
Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Benefits

Independently switched display connections - situational awareness of any two connected systems
Hardware-based peripheral isolation loads all firmware on ROM with no keyboard buffering or memory
Dedicated Peripheral Port permits a secure connection to external USB devices, including CAC smart card readers, fingerprint readers, and face recognition devices

Features

Certified to NIAP Protection Profile for Peripheral Switching Switches, version 3.0
Use for two monitors, or pair with Vertiv™ extension technology to send to a central display
Always-on active anti-tampering system
Unidirectional Optical Data Diodes assure USB peripheral isolation enabling data flow from devices to host only

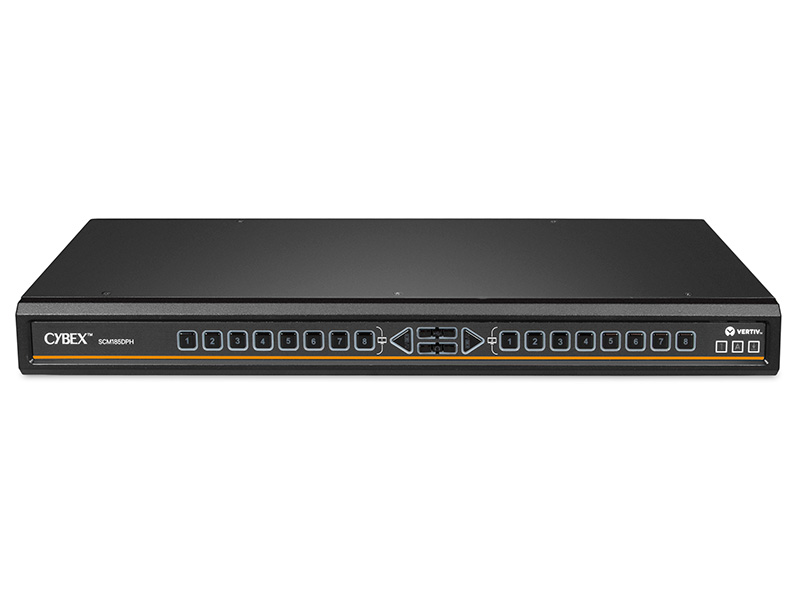

Cybex SCM185DP Secure Desktop Matrix
Product Overview
Input Ports
(8) DisplayPort 1.2
Output Ports
(2) DisplayPort 1.2
Video Resolution
4K UHD 3840 x 2160 @ 30 Hz
Power Description
Power Supply(s)
Internal
Input Power (Maximum)
45W (100V-240V AC)
Interfaces/Ports
USB ports
USB Type-A
Operational Conditions
Operating Temperature
32° to 104° F (0° to 40° C)
Humidity
0-80% RH, non-condensing
Storage Temperature
-4° to 140° F (-20° to 60° C)
Physical Characteristics
Weight
5.4 lbs
Weight
2.5 kgs
Height
1.7 in
Height
43 mm
Width
17.3 in
Width
439 mm
Depth
7.3 in
Miscellaneous
Agency Approvals
FCC class B, CE, ICES class B, RCM, VCCI
