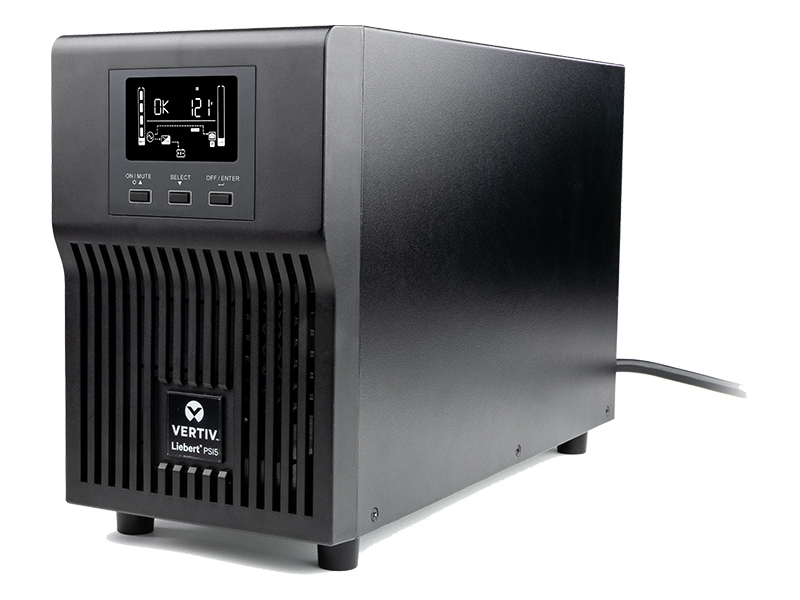

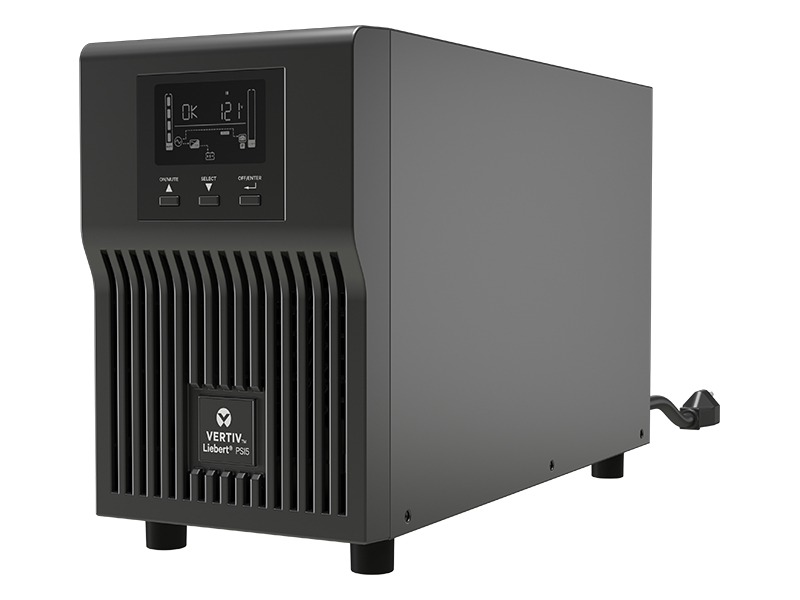

PSI5-750MT120
The Vertiv™ Liebert® PSI5-750MT120 is a 750VA/675W, 120V line-interactive UPS built for edge and distributed IT environments. This compact mini tower chassis is 14.8 inches deep with a 0.9 output power factor (PF) and under 6ms transfer time. An LCD display enables quick status checks, and a programmable outlet segment reboots unresponsive devices or prioritizes critical loads. Add an optional network management card for remote monitoring, management, and firmware updates.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
PSI5-750MT120
The Vertiv™ Liebert® PSI5-750MT120 is a 750VA/675W, 120V line-interactive UPS built for edge and distributed IT environments. This compact mini tower chassis is 14.8 inches deep with a 0.9 output power factor (PF) and under 6ms transfer time. An LCD display enables quick status checks, and a programmable outlet segment reboots unresponsive devices or prioritizes critical loads. Add an optional network management card for remote monitoring, management, and firmware updates.
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
Benefits
Features
Specifications
The Vertiv™ Liebert® PSI5 UPS family is available in tower (MT), 1U Rack Mount (RM), and rack/tower convertible (RT) models, with capacities ranging from 750VA to 5000VA in 120V and 208V configurations. Select models support external battery cabinets for extended runtime, while optional network communication cards enable remote monitoring and management. With a broad range of power capacities, form factors, and runtime options, the Liebert PSI5 portfolio provides flexible power protection for distributed IT, edge computing, network closets, and business-critical applications. Models with a capacity of 1500VA and below are not for sale in Vermont, Colorado, Washington.
- Product Overview
- Power Rating
- 750 VA / 675 W
- Input Voltage Range
- Nominal: 120VAC / Range: 75-146VAC
- Output Voltage Range
- 120VAC (100/110/115/125VAC user-configurable)
- Efficiency
- Up to 97% (Normal Mode)
- Wiring

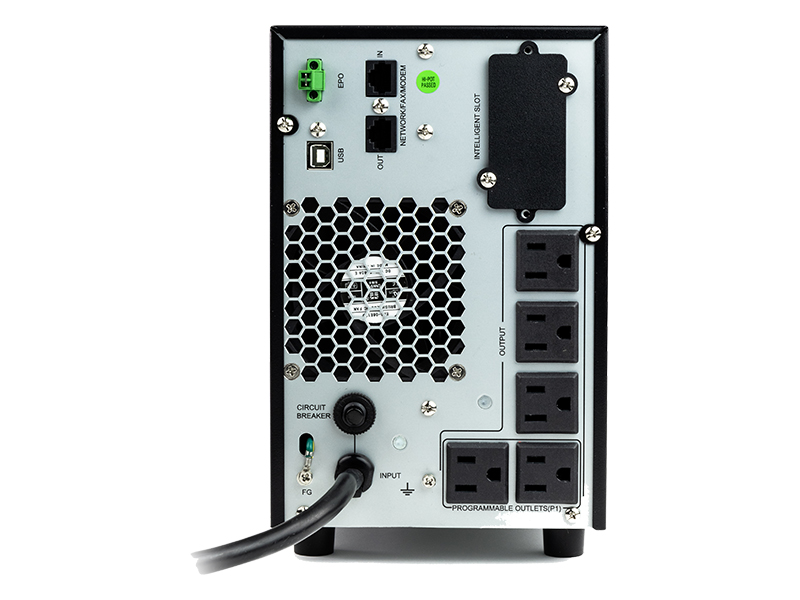

- Input: 5-15P; Ouput: 5 x 5-15R
- Weight
- 24.7 lb
- Weight
- 11.2 kg
- Height
- 9.4 in
- Height
- 239 mm
- Width
- 5.7 in
- Width
- 145 mm
- Depth
- 14.8 in
- Depth
- 376 mm
- Interfaces/Ports
- Interface Options
- Optional communications card (Vertiv™ Liebert® IntelliSlot™ RDU120 Card), USB, RJ-45, EPO Terminals
- Protocols
- SNMP and web management enabled with optional Vertiv™ Liebert® IntelliSlot™ RDU120 Card; serial connection for out-of-band management
- Control Panel
- LCD display, provides insight to UPS status for easy installation, configuration and operation
- Operational Conditions
- Operating Temperature
- +32 to +104 °F (0 to 40 °C)
- Listings
- ANSI C62.41 Category A, Level 3, UL 1778, RoHS2, REACH
- Topology
- Line-Interactive AVR UPS; compact mini tower form factor
- Miscellaneous
- Listings
- ANSI C62.41 Category A, Level 3, UL 1778, RoHS2, REACH
- Topology
- Line-Interactive AVR UPS; compact mini tower form factor
