Product Model

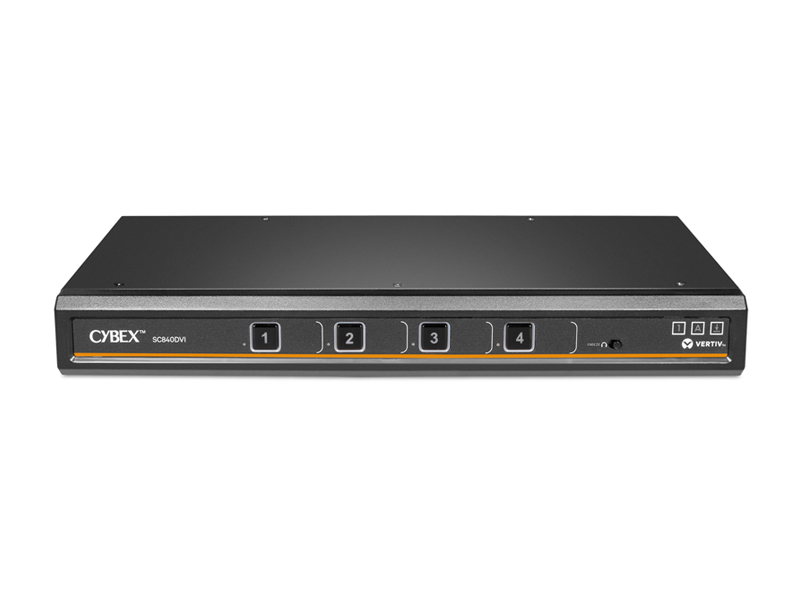

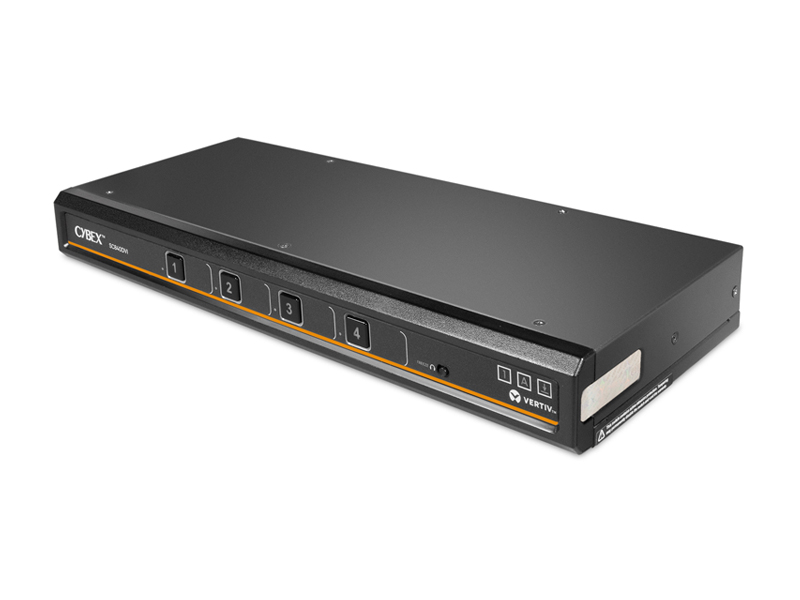

Cybex SC 840 Secure Desktop KVM

The Cybex™ SC840 secure desktop KVM is designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NIAP protection profile for peripheral sharing devices version 3.0.

Get Brochure Get Manual
Best Suited For:
  • Banking, Financial and Insurance
  • Government
  • Healthcare
  • Military, Defense, Aerospace and Missile
Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Benefits

Outstanding Security: Designed to meet the specifications of NIAP Protection Profile for Peripheral Switching Devices, version 3.0. system
Access:  Access multiple computers or networks using a single keyboard, monitor and mouse
Advanced Video Support: Support for DVI-I, HDMI 1.4 and DP1.2 in single and dual head models supporting high resolutions up to UHD 4K
Zero Delay Switching: Mouse and keyboard switching via emulation assures zero delay in switching time between connected sources

Features

NIAP Protection Profile for Peripheral Switching Devices v. 3.0
Four secure, isolated channels
Single Head display connections with DVI-I support, providing resolutions up to 2560 X 1600
Advanced Isolation between computers and shared peripherals
CAC/DPP option available
Always-on active anti-tampering system

Cybex SC 840 Secure Desktop KVM
Product Overview
Input Ports
(4) DVI-I single-link/dual-link
Video Connection
DVI-I, single-link/dual-link
Video Resolution
DVI-I dual-link - 2560 x 1600 @ 60Hz
Power Description
Power Supply(s)
Internal
Input Power (Maximum)
35W (120V)
Interfaces/Ports
USB ports
(8) USB Type-B, (2) USB Type-A
Operational Conditions
Operating Temperature
32° to 104° F (0° to 40° C)
Humidity
0-80% RH, non-condensing
Storage Temperature
-4° to 140° F (-20° to 60° C)
Physical Characteristics
Weight
3.2 lbs
Weight
1.6 kgs
Height
1.7 in
Height
42 mm
Width
13.7 in
Width
342 mm
Depth
​5 in
Miscellaneous
Agency Approvals
CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
