Product Family

Cybex SC800 Series Secure Desktop KVM Switches

The Cybex SC800 series secure desktop KVM switching portfolio offers a proven solution for guarding against desktop cyber intrusion. These switches, that switch between networks at the push of a button, are certified to meet the NIAP Protection Profile for Peripheral Sharing Devices ver. 3.0. They provide high resolution compatibility utilizing HDMI, DisplayPort, and DVI technology. The SC800 series models support 2, 4, or 8 networks, a single monitor, and CAC through a dedicated port.

Get Brochure Get Manual
Best Suited For:
  • Banking, Financial and Insurance
  • Government
  • Healthcare
Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Model Specifications Overview
Cybex SC 820 Secure Desktop KVM
(2) DVI-I, single-link/dual-link   DVI-I, single-link/dual-link   DVI dual-link - 2560 x 1600 @60Hz   1.7 in   7 in   2.4 in   1.0 lbs

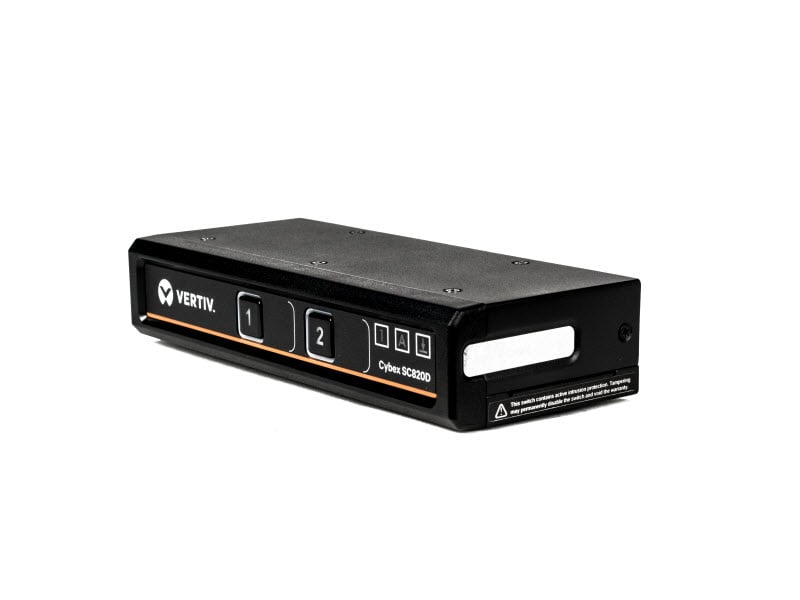

Cybex SC 820D Secure Desktop KVM
(2) DisplayPort 1.2   HDMI 1.4   UHD 4K - 3840 x 2160 @30Hz   1.7 in   7 in   2.4 in   1.0 lbs
Cybex SC820H Secure Desktop KVM
(2) DisplayPort 1.2   HDMI 1.4   UHD 4K - 3840 x 2160 @30Hz   1.7 in   7 in   2.4 in   1.0 lbs
Cybex SC 840 Secure Desktop KVM
(4) DVI-I single-link/dual-link   DVI-I, single-link/dual-link   DVI-I dual-link - 2560 x 1600 @ 60Hz   1.7 in   13.7 in   ​5 in   3.2 lbs
Cybex SC 840D Secure Desktop KVM
(4) DisplayPort 1.2   HDMI 1.4   UHD 4K - 3840 x 2160 @30Hz   1.7 in   13.7 in   ​5 in   3.2 lbs
Cybex SC 840H Secure Desktop KVM
(4) HDMI 1.4   HDMI 1.4   UHD 4K - 3840 x 2160 @30Hz   1.7 in   13.7 in   ​5 in   3.2 lbs
Cybex SC 845 Secure Desktop KVM
(4) DVI-I single-link/dual-link   DVI-I, single-link/dual-link   DVI dual-link - 2560 x 1600 @60Hz   1.7 in   13.7 in   ​5 in   3.2 lbs
Cybex SC 845D Secure Desktop KVM
(4) DisplayPort 1.2   HDMI 1.4   UHD 4K - 3840 x 2160 @30Hz   1.7 in   13.7 in   ​5 in   3.2 lbs
Cybex SC 845H Secure Desktop KVM
(8) HDMI 1.4   HDMI 1.4   UHD 4K - 3840 x 2160 @30Hz   1.7 in   13.7 in   ​5 in   3.2 lbs

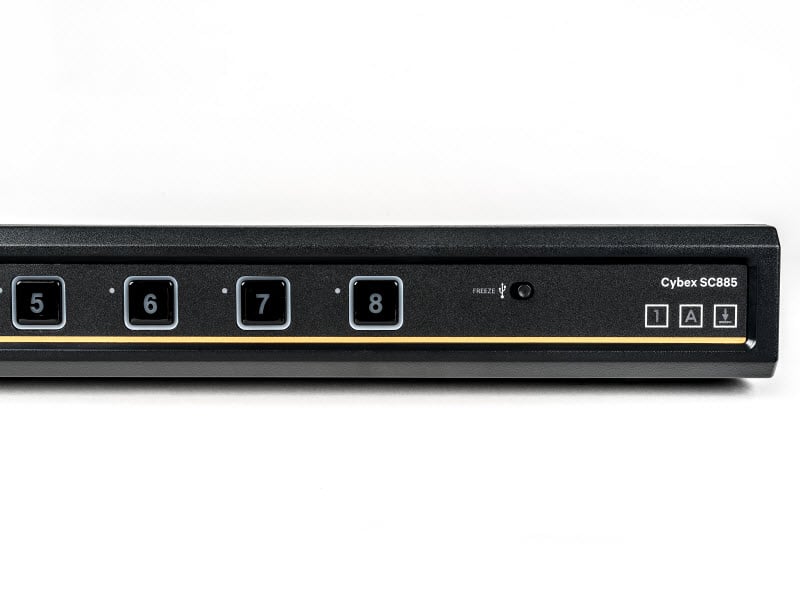

Cybex SC 885 Secure Desktop KVM
(8) DVI-I, single-link/dual-link   DVI-I, single-link/dual-link   DVI dual-link - 2560 x 1600 @60Hz   1.7 in   17.3 in   7.3 in   5.4 lbs
Cybex SC 840DP Secure Desktop KVM
(4) DisplayPort 1.2   Display Port 1.2   UHD 4K - 3840 x 2160 @30Hz   1.7 in   13.7 in   5.0 in   3.0 lbs
Cybex SC 885DP Secure Desktop KVM
(8) DisplayPort 1.2   Display Port 1.2   UHD 4K - 3840 x 2160 @30Hz   1.7 in   17.3 in   7.3 in   5.4 lbs
Cybex SC 820DP Secure Desktop KVM
(2) DisplayPort 1.2   DisplayPort 1.2   UHD 4K - 3840 x 2160 @30Hz   1.7 in   7 in   2.4 in   1.0 lbs

Benefits

Outstanding security. Certified to the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for Peripheral Sharing devices
Discrete processing paths. Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports
Unique NUM Lock, CAPS Lock and Scroll Lock indicators. While the Cybex series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use
Support for USB authentication devices. A CAC port provides secure connection to common access cards for authenticating users. An optional Dedicated Periphral Port (DPP) provides a secure connection to common access card readers, as well as additional types of authentication devices including, facial recognition scanners and fingerprint readers​
Gain true image reproduction and display flexibility. Cybex KVM switches offer the industry’s broadest range of video connections including DVI-I, Display Port, HDMI and support for resolutions up to UHD 4K to make sure image quality is highly accurate and video plays at the highest definition possible.

Features

NIAP Protection Profile for Peripheral Switching Devices v. 3.0
Two, four or eight secure, isolated channels
Resolutions up to UHD 4K or 2560 X 1600
Single Head display connections with DVI-I, HDMI 1.4, or DisplayPort 1.2 support
CAC/DPP option available
Dual monitor support
