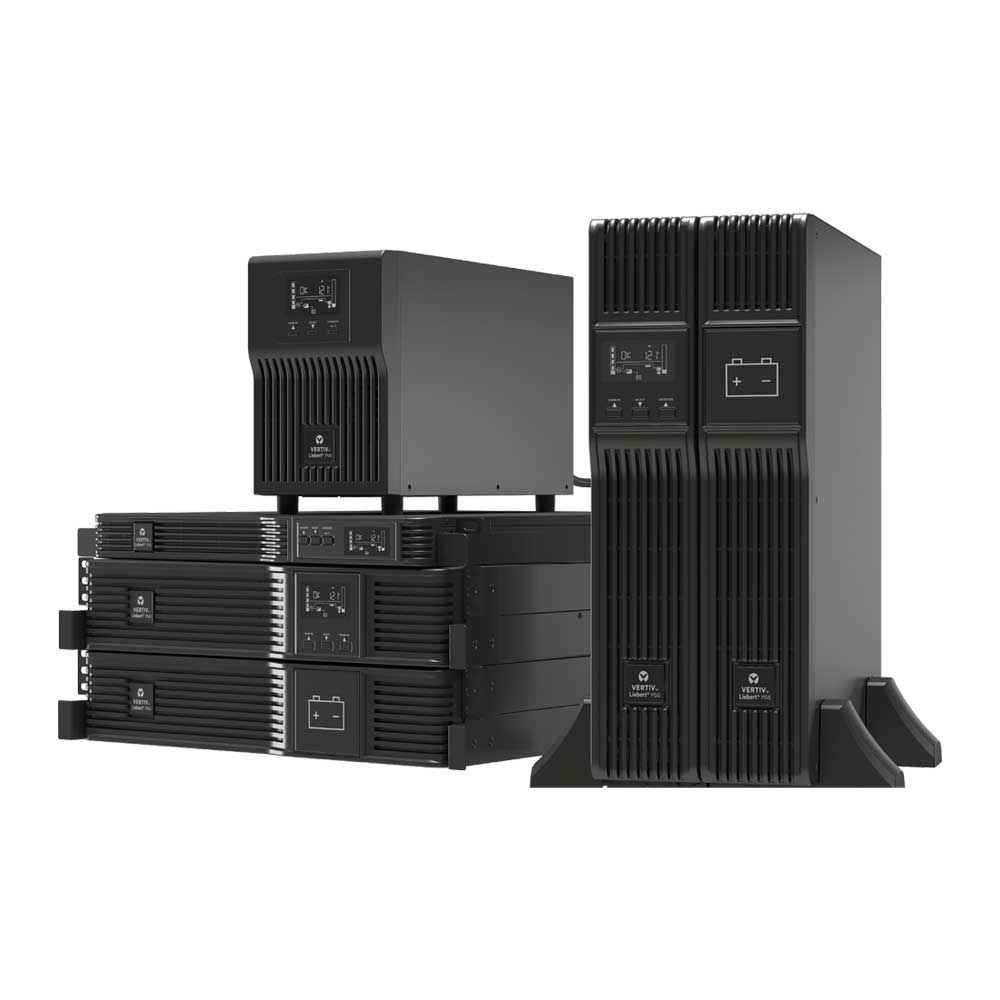

Vertiv Liebert PSI5 UPS, 750-5,000VA Line Interactive AVR, Mini Tower, 1U and 2U Rack/Tower

Compact, Automatic Voltage Regulation (AVR) line-interactive UPS system designed especially for IT applications such as network closets and small data centers. Supports advanced pure sine wave output on battery to safeguard critical IT equipment and electronics. Provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, and others. Three form-factors available: 1U rack mount, 2U rack/tower and mini tower.

Warranty: Vertiv backs all Vertiv Liebert PSI5 UPS systems with two-year, full unit coverage, including the battery. The Vertiv no-hassle, advanced replacement warranty covers all shipping fees and includes next-day delivery, which ensures customers will receive their replacement UPS prior to returning their damaged unit with no questions asked.
Tools & Selectors
Select, compare, or configure UPS systems and models
Runtime Tool
Get detailed runtime information for various load levels
Compare UPS Products
Interactive product selector for single-phase UPS
UPS/Battery Upgrade Services
Explore options to maintain Liebert GXT & PSI UPS

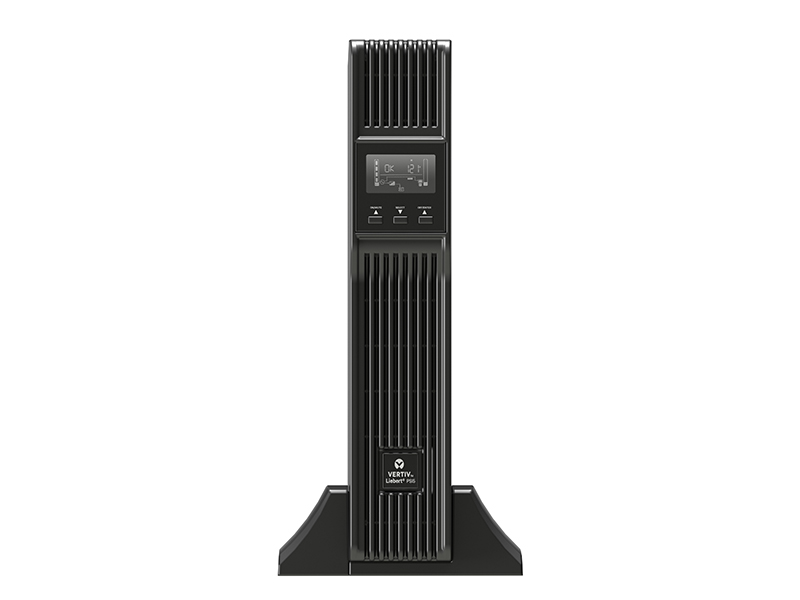

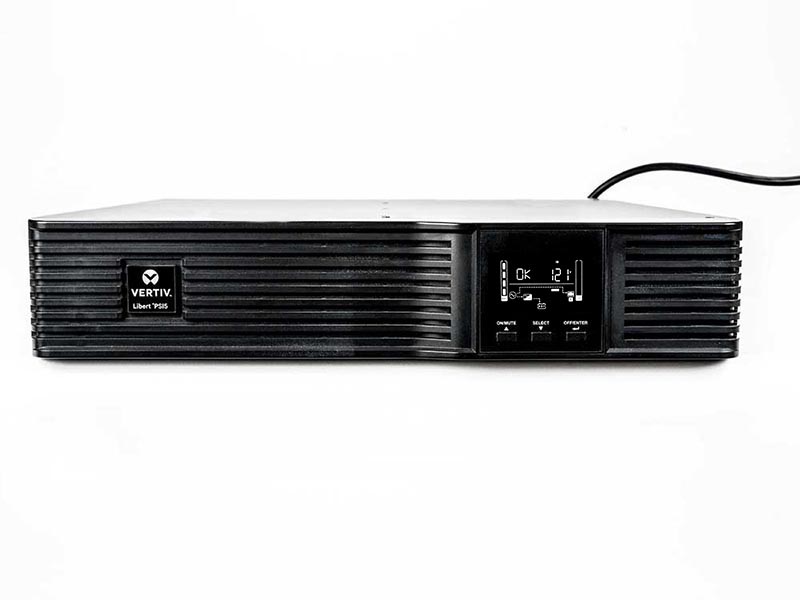

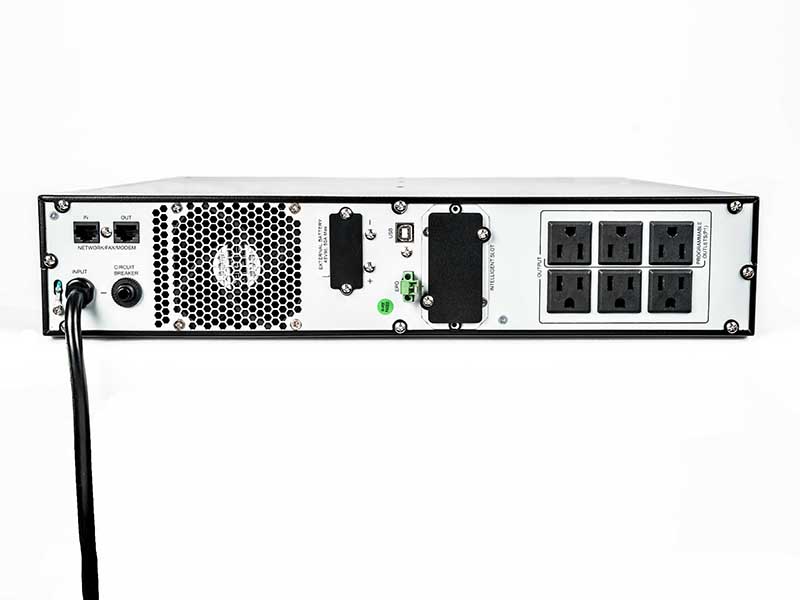

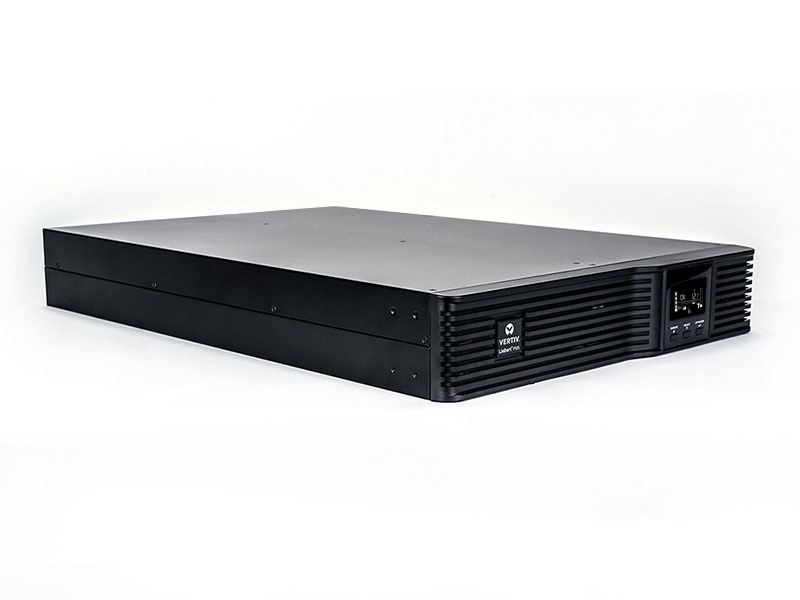

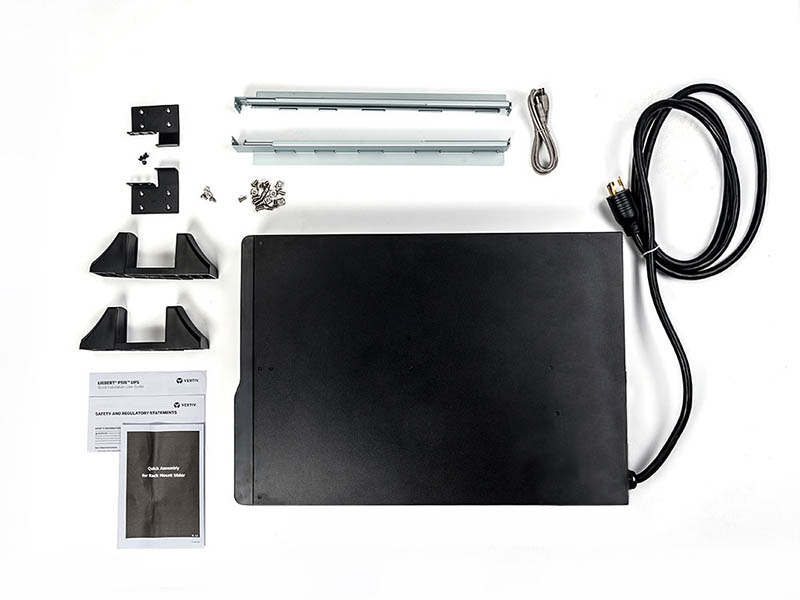

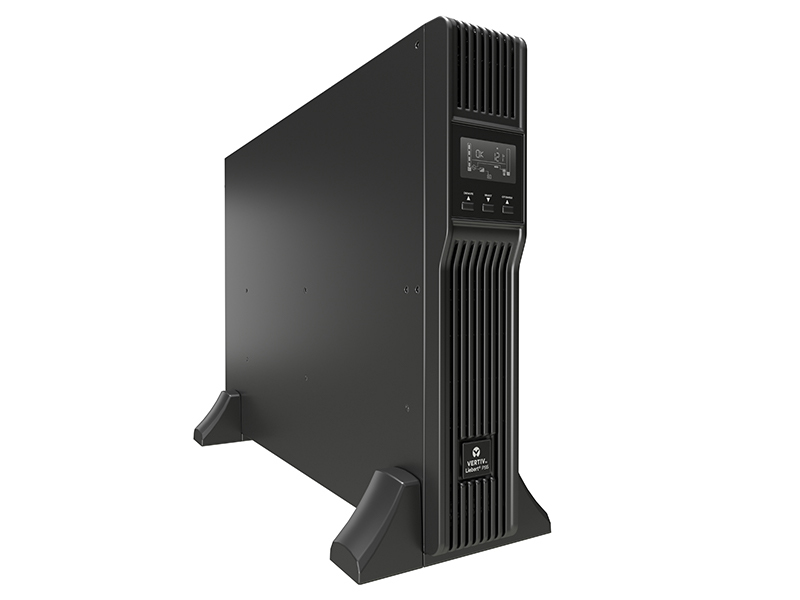

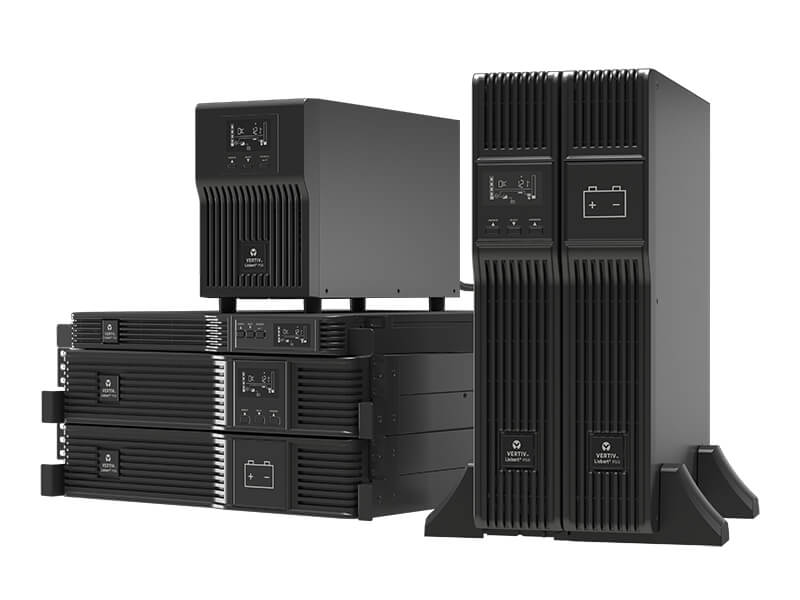

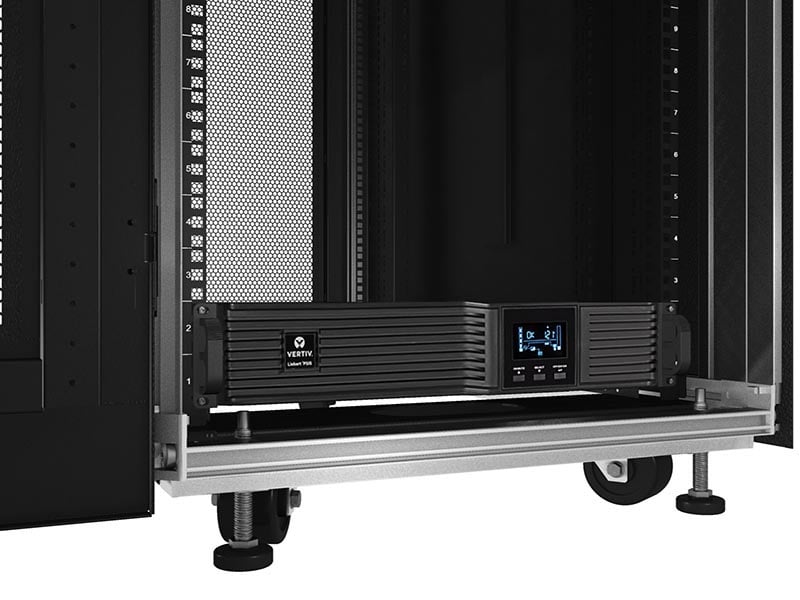

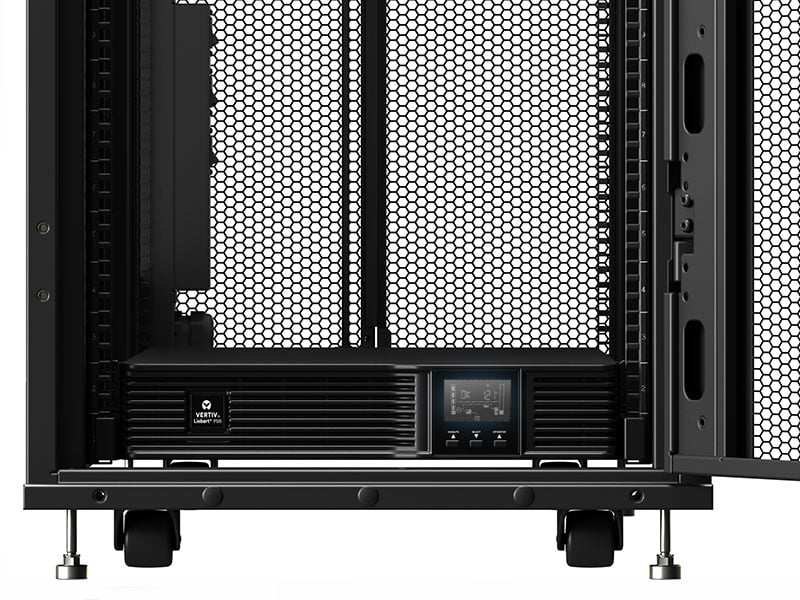

The flexible design of the Liebert PSI5 allows the UPS to be tower (MT models), 1U rack mountable (1U models), or to be configured as a self-standing tower or to be rack-mounted within a 2U space (RT models). It is available from 750VA to 5000VA with both 120V or 208V models. The Liebert PSI5 UPS features an innovative advanced line-interactive design incorporating buck/boost Automatic Voltage Regulation (AVR) technology. This protects against utility voltage fluctuation by raising and lowering utility power to the level needed by the connected equipment. It also allows the UPS to prolong battery life by maximizing its time on utility power before going to battery.

Model Specifications Overview

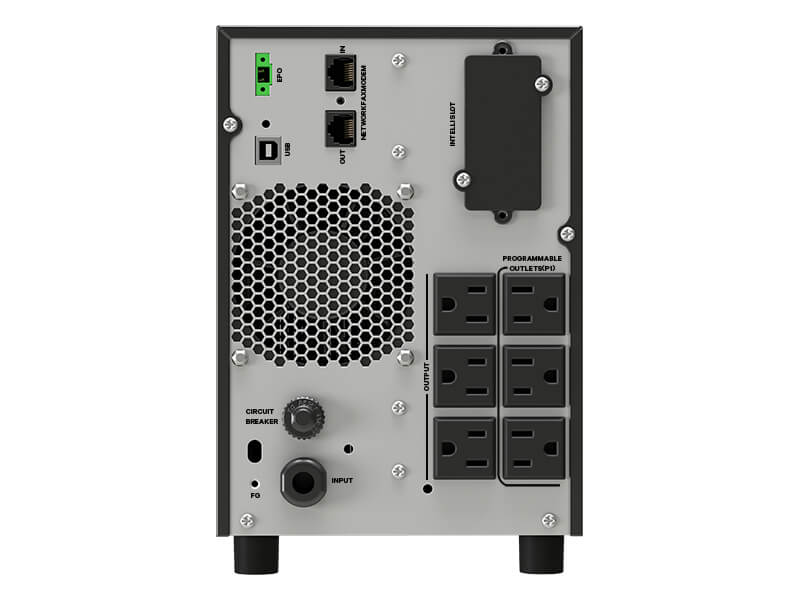

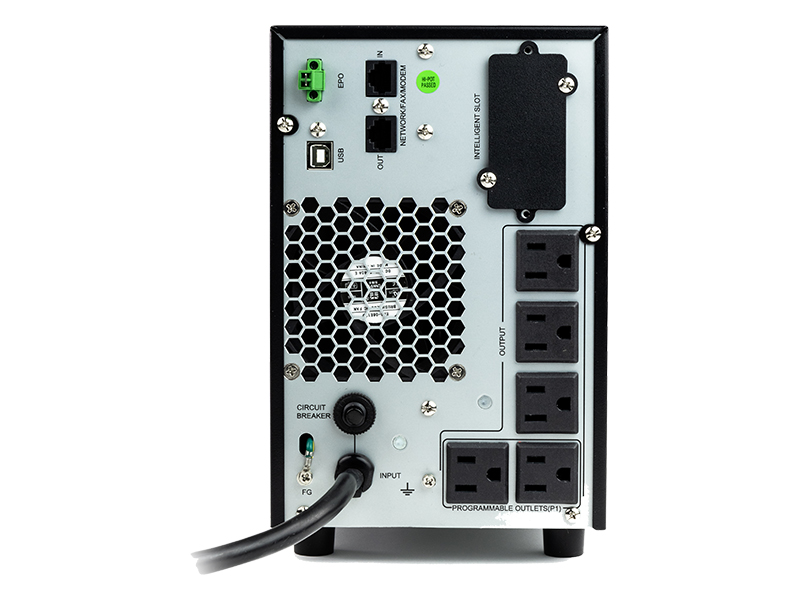

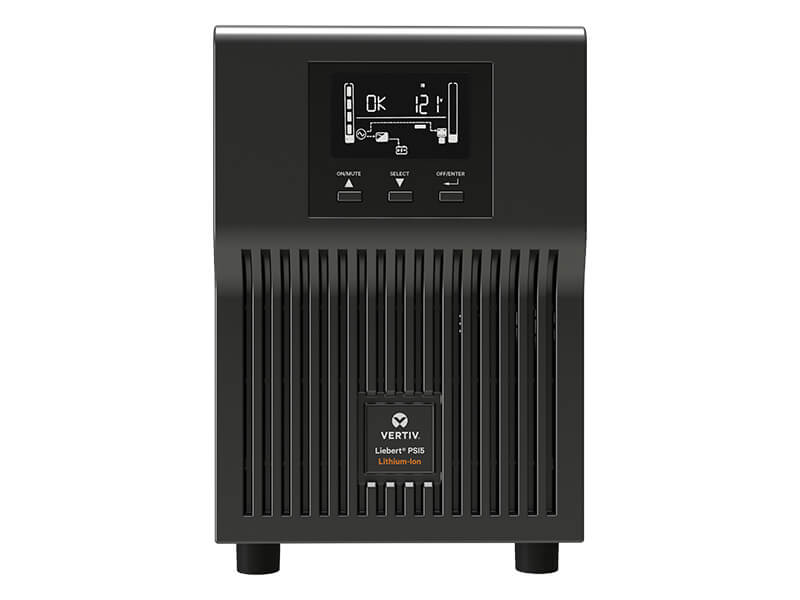

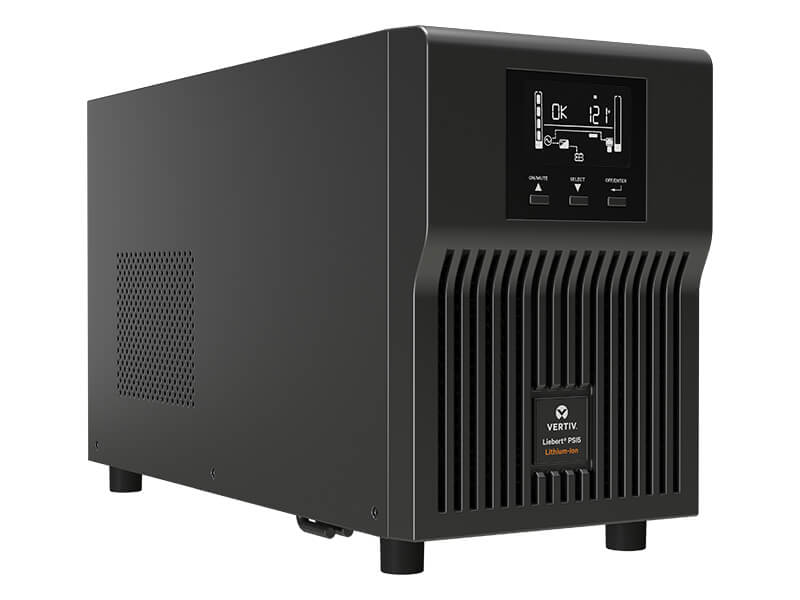

PSI5-750MT120, Liebert PSI5 Mini Tower, 750VA/675W, 120V
750 VA / 675 W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 97% (Normal Mode)   Input: 5-15P; Ouput: 5 x 5-15R   8.7 in   5.7 in   14.6 in   24.7 lb
PSI5-1100MT120, Liebert PSI5 Mini Tower, 1100VA/990W, 120V
1,100 VA / 990 W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 97% (Normal Mode)   Input: 5-15P; Ouput: 5 x 5-15R   8.7 in   5.7 in   14.6 in   26.0 lb
PSI5-1500MT120, Liebert PSI5 Mini Tower, 1440VA/1350W, 120V
1,440 VA / 1,350 W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 97% (Normal Mode)   Input: 5-15P; Ouput: 5 x 5-15R   8.7 in   5.7 in   18.9 in   40.1 lb

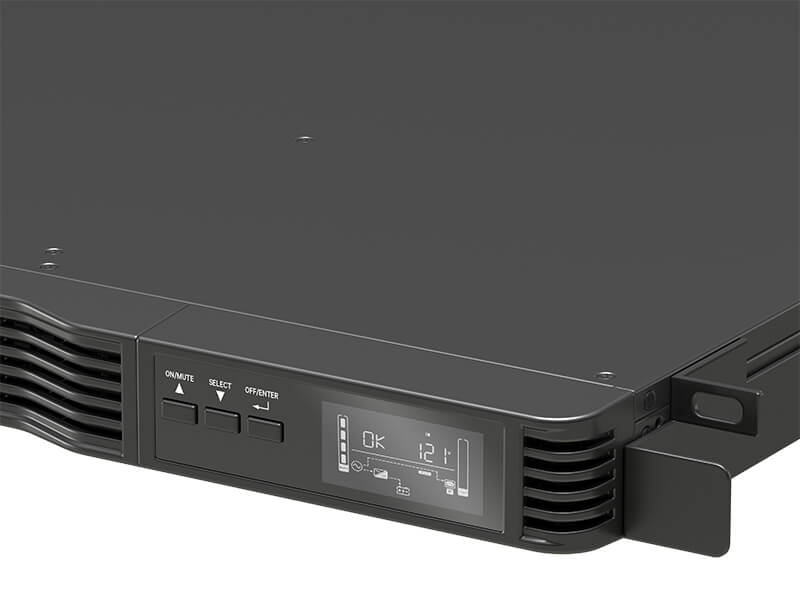

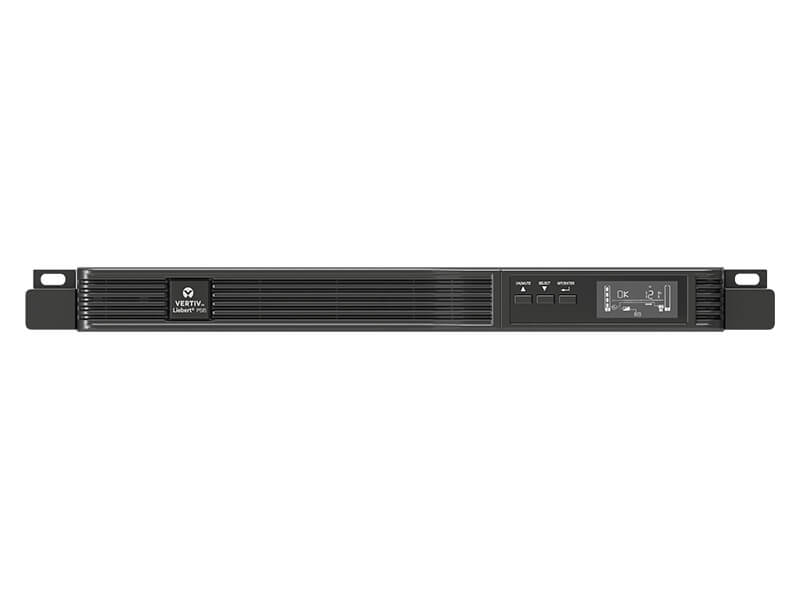

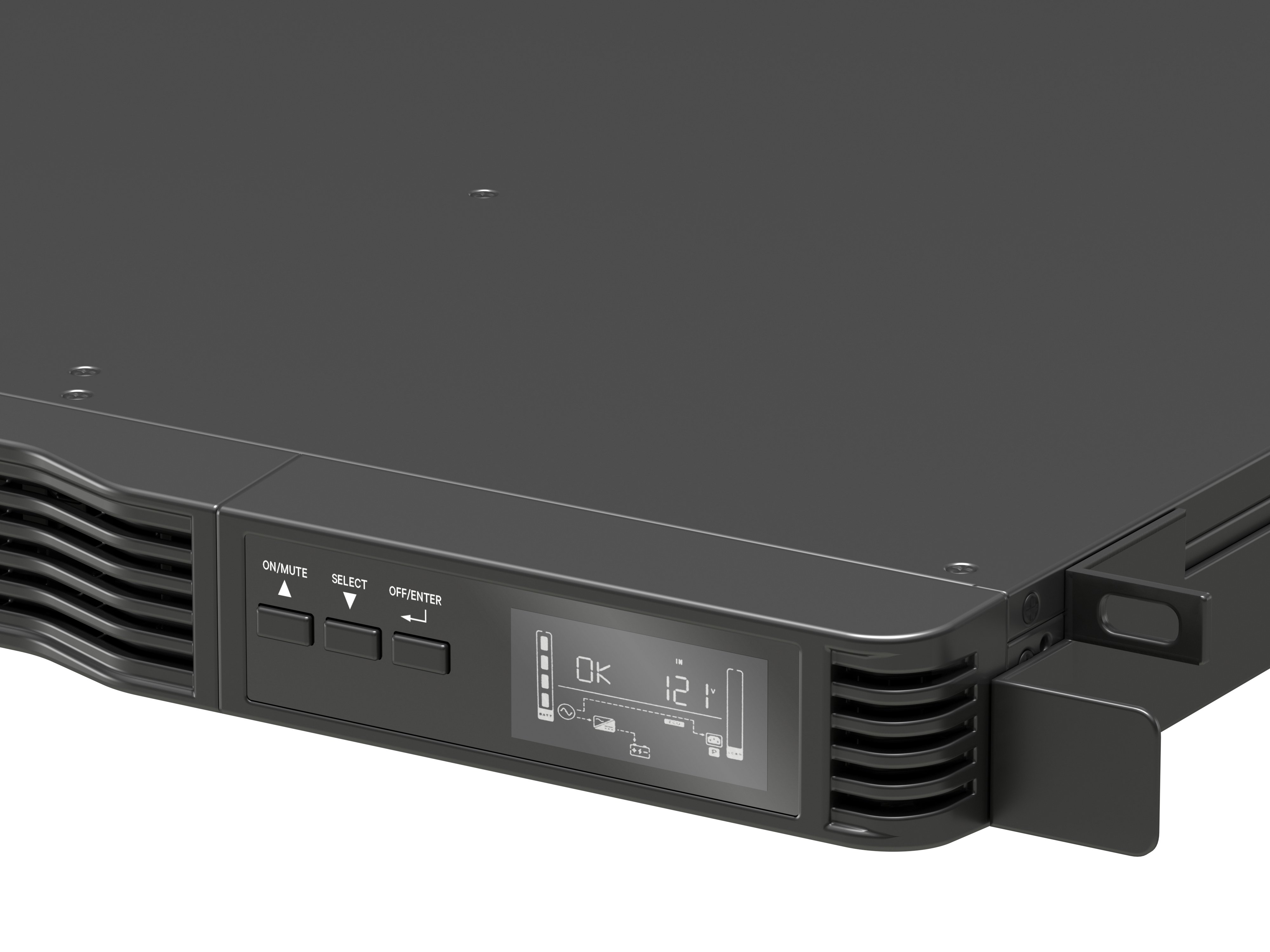

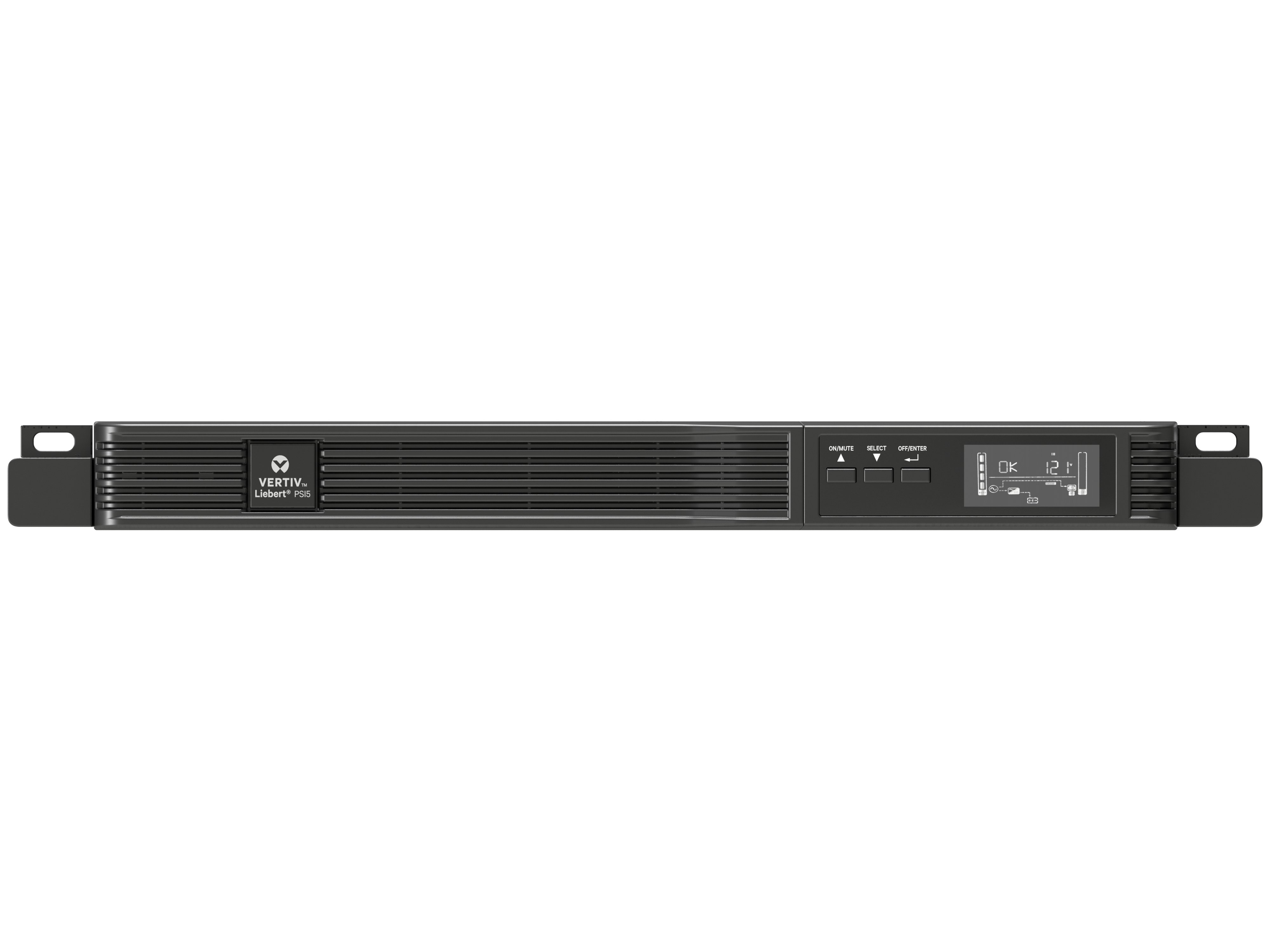

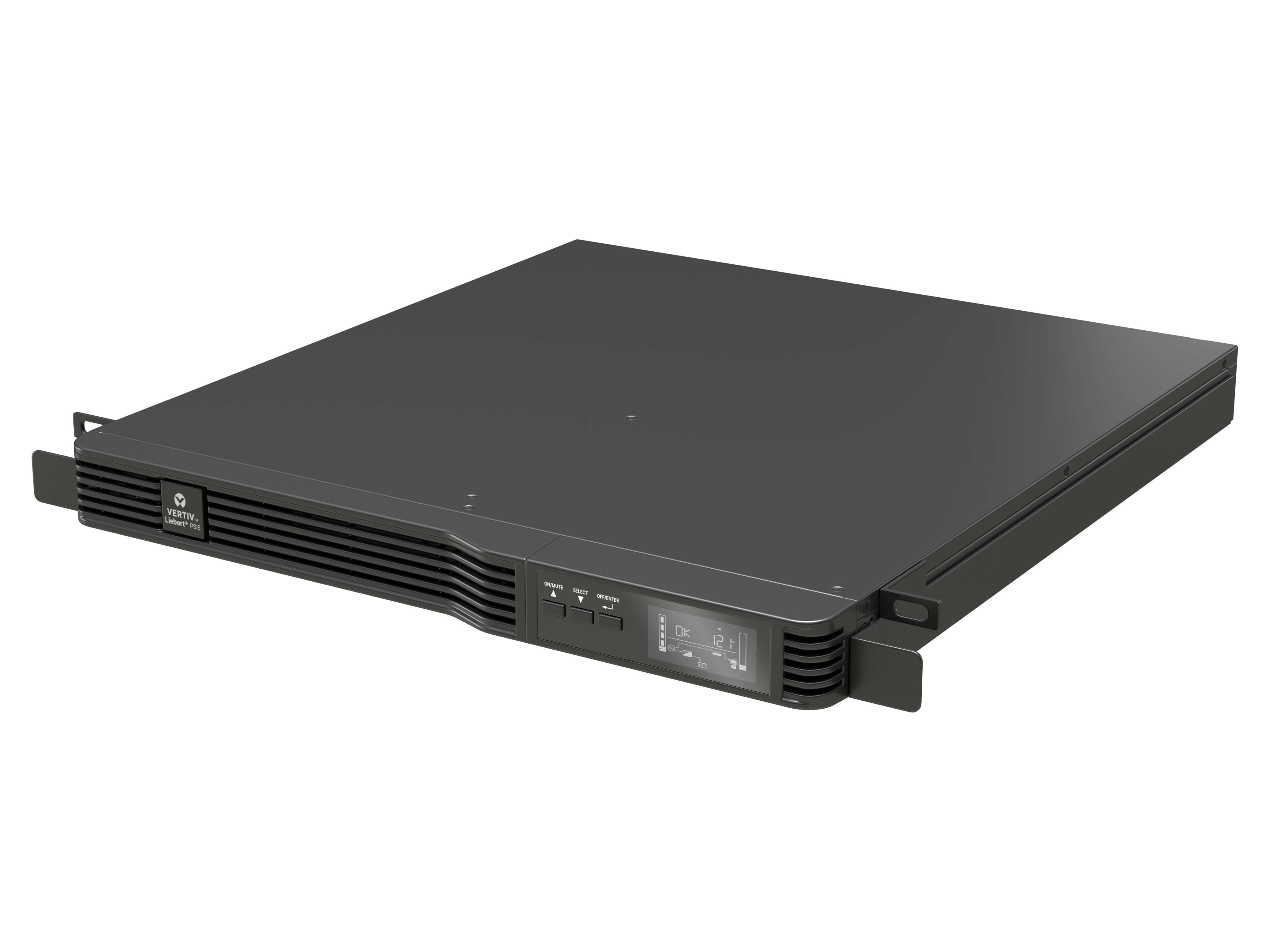

PSI5-1000RM1201U, Liebert PSI5 1U, 1000VA/900W, 120V
1,000 VA / 900 W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 98% (Normal Mode)   Input: 5-15P; Ouput: 5 x 5-15R   1.7 in   17.2 in   17.7 in   36.4 lb
PSI5-1500RM1201U, Liebert PSI5 1U, 1440VA/1350W, 120V
1,440 VA / 1,350 W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 98% (Normal Mode)   Input: 5-15P; Ouput: 5 x 5-15R   1.7 in   17.2 in   22.4 in   45.6 lb

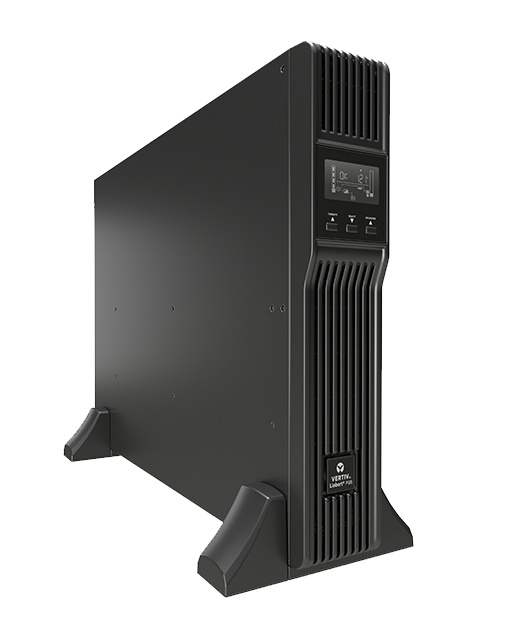

PSI5-800RT120, Liebert PSI5 2U Rack/Tower, 800VA/720W, 120V
800VA / 720W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: 5-15P; Output: 6 x 5-15R   3.5 in   17.2 in   16.1 in   28.4 lb
PSI5-1100RT120, Liebert PSI5 2U Rack/Tower, 1100VA/990W, 120V
1100VA / 990W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: 5-15P; Output: 6 x 5-15R   3.5 in   17.2 in   16.1 in   29.5 lb
PSI5-1500RT120, Liebert PSI5 2U Rack/Tower, 1500VA/1350W, 120V
1500VA / 1350W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: 5-15P; Output: 6 x 5-15R   3.5 in   17.2 in   20 in   42.6 lb
PSI5-2200RT120, Liebert PSI5 2U Rack/Tower, 2200VA/1920W, 120V
2200VA / 1920W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: L5-20P; Output: 6 x 5-15R, 1 x L5-20R   3.5 in   17.2 in   24.8 in   59.1 lb

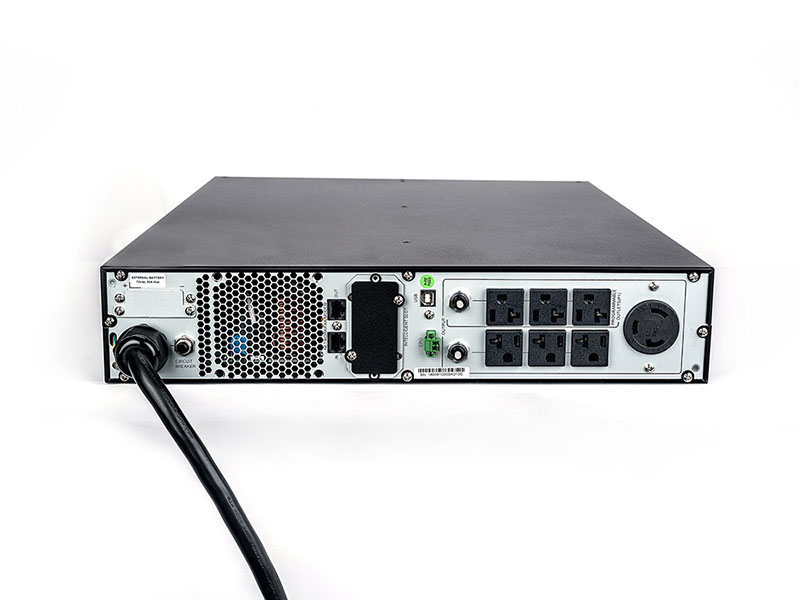

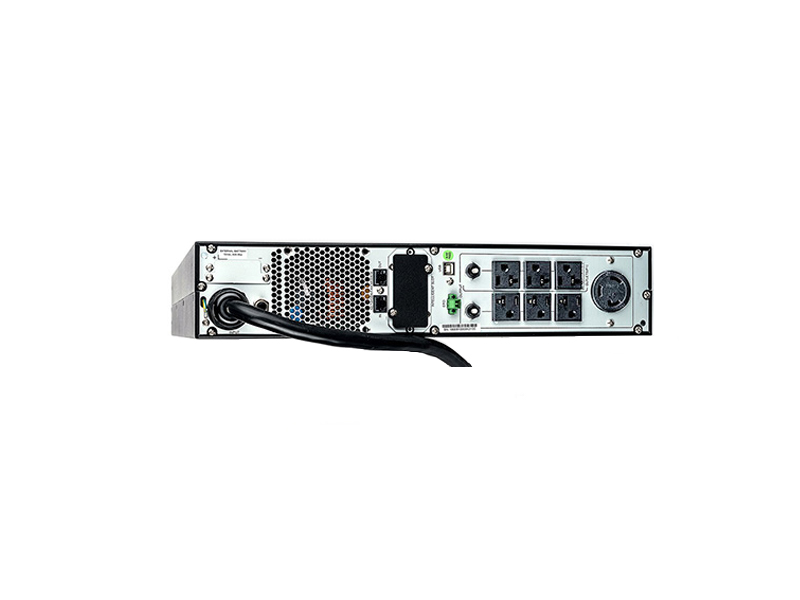

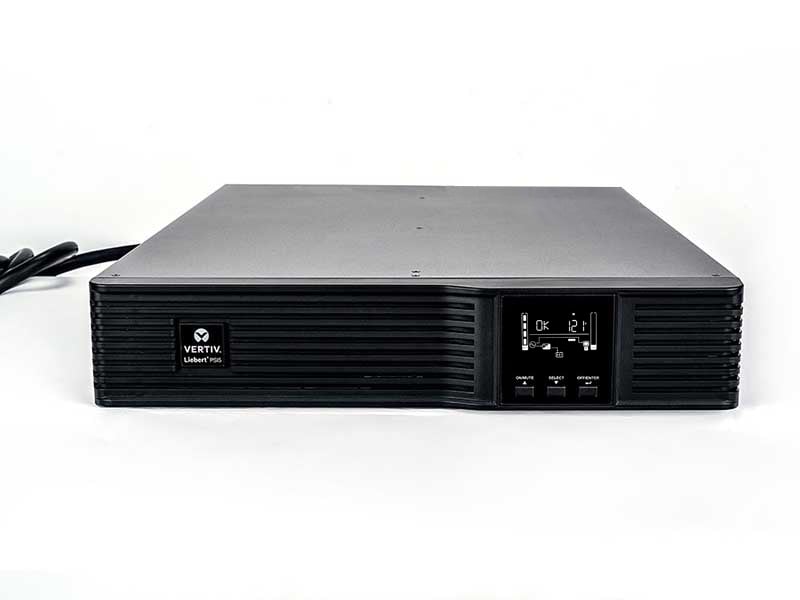

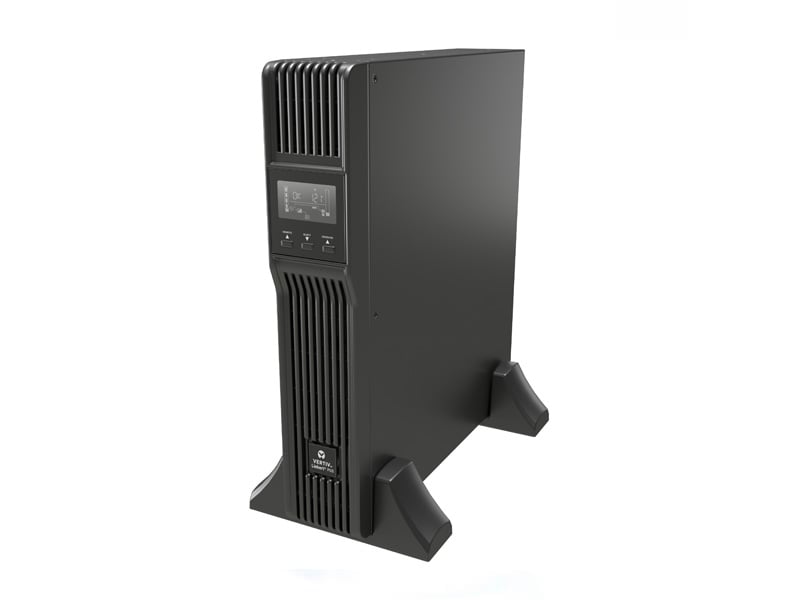

PSI5-3000RT120, Liebert PSI5 2U Rack/Tower, 3000VA/2700W, 120V
3000VA / 2700W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R   3.5 in   17.2 in   24.8 in   70.8 lb

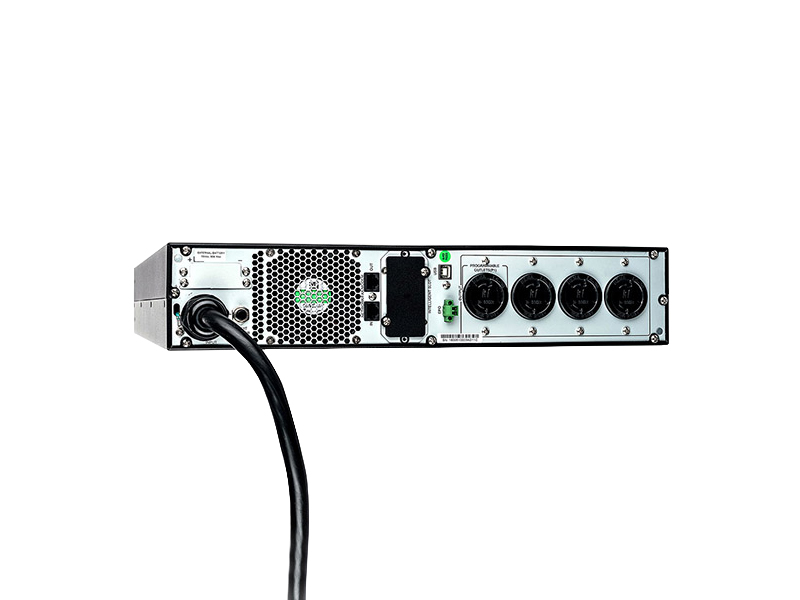

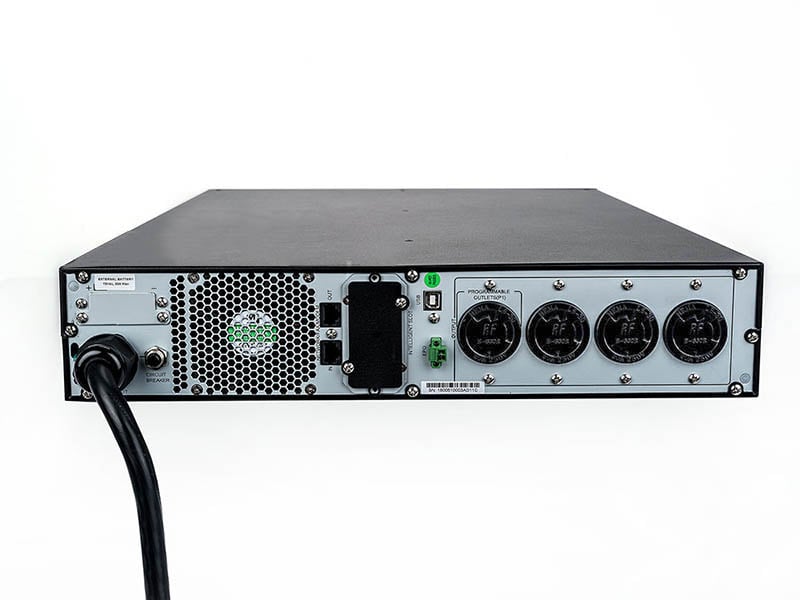

PSI5-5000RT208, Liebert PSI5 2U Rack/Tower, 4250VA/3825W, 120V
4250VA / 3825W   Nominal: 208VAC / Range: 150-281VAC   208VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: L6-30P; Output: 4 x L6-30R   3.5 in   17.2 in   24.8 in   87.7 lb
PSI5-800RT120N, Liebert PSI5 2U Rack/Tower 800VA/720W, bundle with IS-UNITY-SNMP
800VA / 720W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: 5-15P; Output: 6 x 5-15R   3.5 in   17.2 in   16.1 in   28.4 lb
PSI5-1100RT120N, Liebert PSI5 2U Rack/Tower, 1100VA/990W, bundle with IS-UNITY-SNMP
1100VA / 990W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: 5-15P; Output: 6 x 5-15R   3.5 in   17.2 in   16.1 in   29.5 lb
PSI5-1500RT120N, Liebert PSI5 2U Rack/Tower, 1500VA/1350W, bundle with IS-UNITY-SNMP
1500VA / 1350W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: 5-15P; Output: 6 x 5-15R   3.5 in   17.2 in   20 in   42.6 lb
PSI5-2200RT120N, Liebert PSI5 2U Rack/Tower, 2200VA/1920W, bundle with IS-UNITY-SNMP
2200VA / 1920W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: L5-20P; Output: 6 x 5-15R, 1 x L5-20R   3.5 in   17.2 in   24.8 in   59.1 lb
PSI5-3000RT120N, Liebert PSI5 2U Rack/Tower, 3000VA/2700W, bundle with IS-UNITY-SNMP
3000VA / 2700W   Nominal: 120VAC / Range: 75-146VAC   120VAC (100/110/115/125VAC user-configurable)   Up to 96% (Normal Mode)   Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R   3.5 in   17.2 in   24.8 in   70.8 lb

Benefits

ULTIMATE POWER PROTECTION: The advanced pure sine wave UPS from Vertiv compensates for power fluctuations, protects against equipment damage, and prevents data loss during a power disturbance. Automatic voltage regulation (AVR) technology safeguards equipment against a range of utility power fluctuations without battery operation.

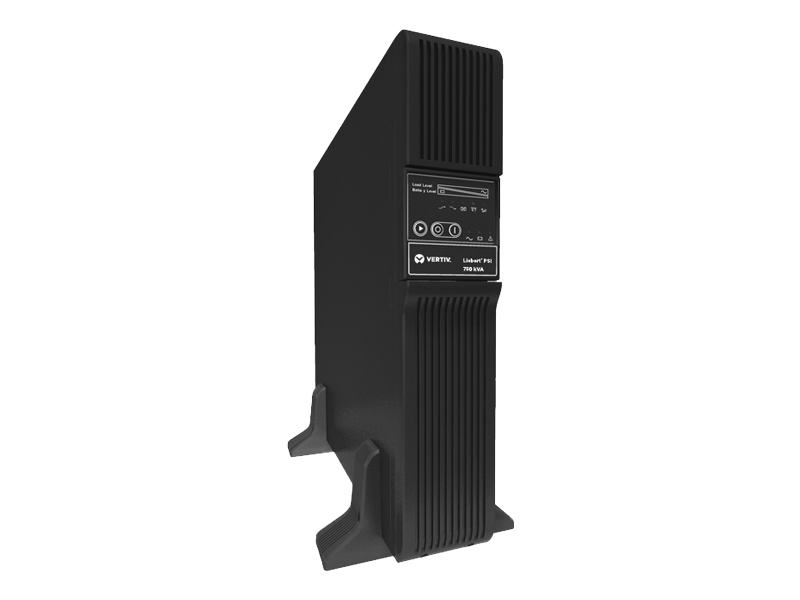

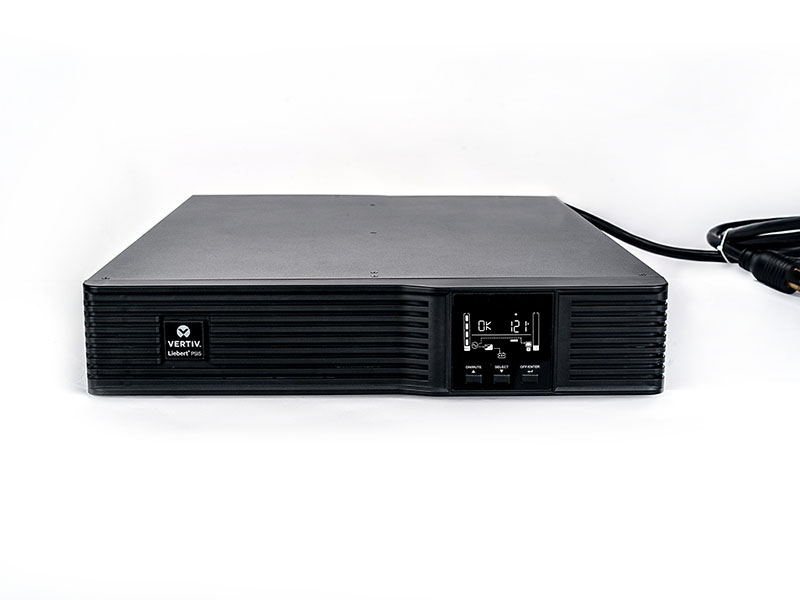

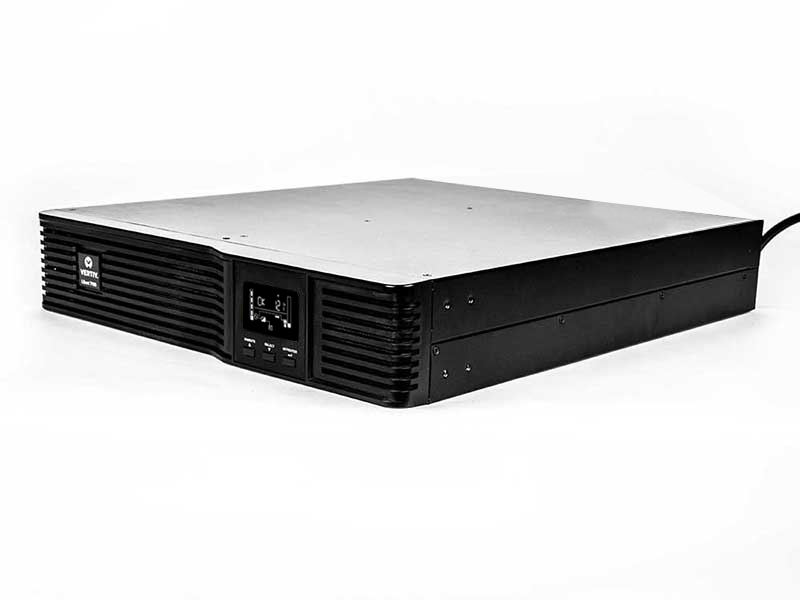

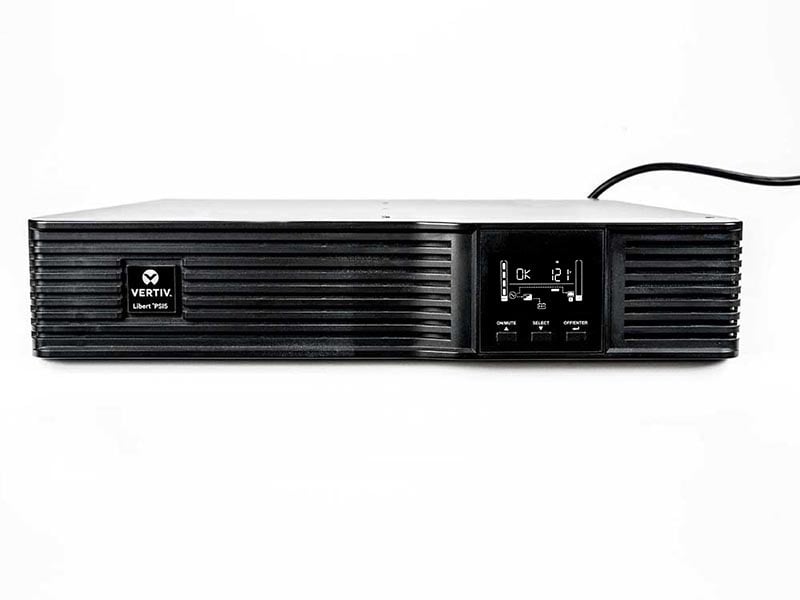

 EASY MONITORING: The Vertiv Liebert PSI UPS offers a compact 2U rackmount/tower configuration, with the LCD display panel rotating 90 degrees to make the readout easy to see in either configuration, including output overload, or low-battery or replace-battery warnings.
 HIGH-END ELECTRONICS: With advanced pure sine wave power conditioning, the Vertiv Liebert PSI UPS protects valuable electronic equipment from the damage power fluctuations can cause. The Vertiv Liebert PSI5 allows users to save their progress during power loss and safeguard expensive electronics when utility power fluctuates.

Features

Battery backup provides ample time for an orderly shutdown of connected equipment
Liebert PSI5 UPS operates at a high 0.9 output power factor

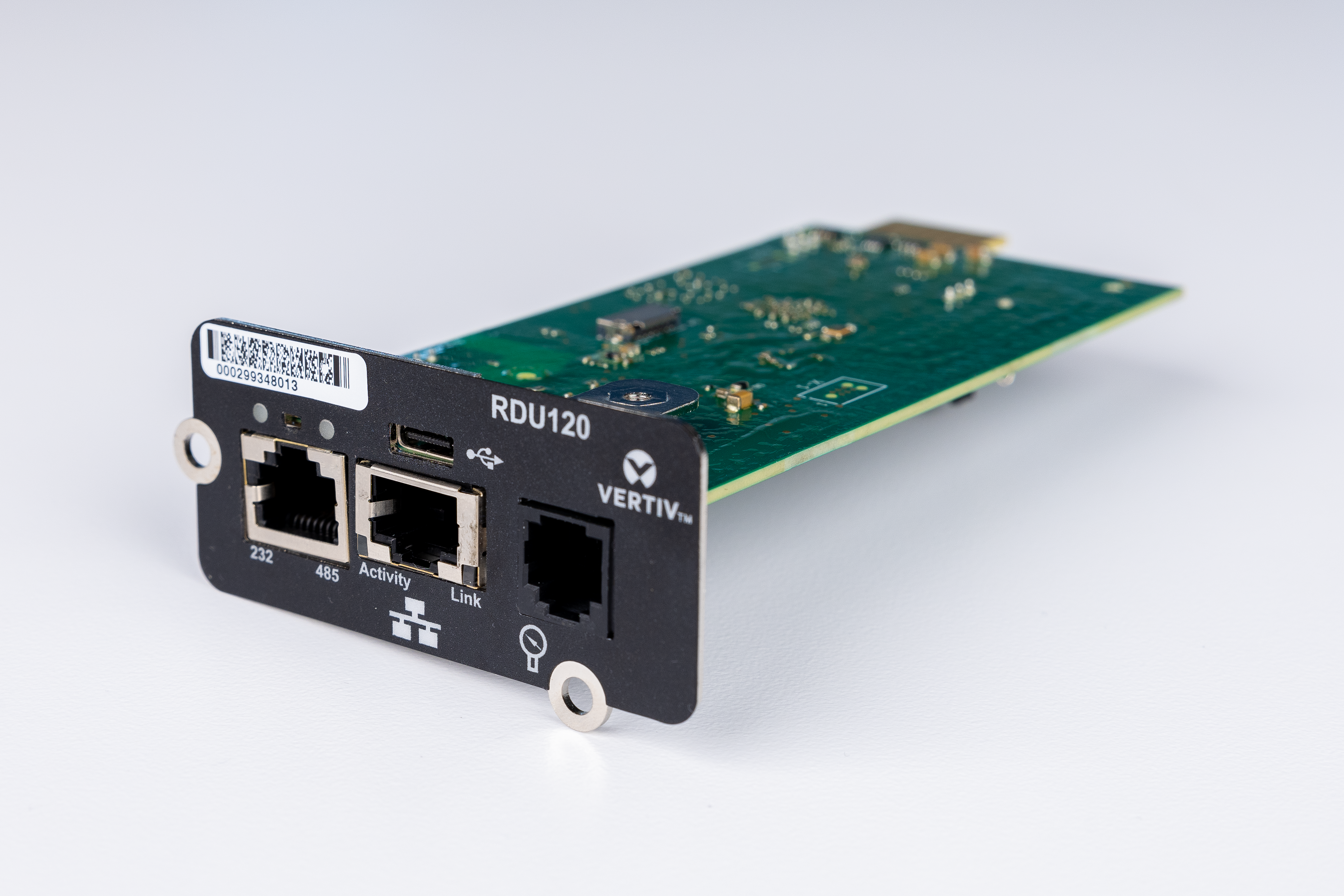

Available network communications card provides remote monitoring
and power management capability — Local USB or SNMP via optional Vertiv Liebert UNITY communication card
Liebert PSI5 UPS is compliant with the Restriction of Hazardous Substances Directive (RoHS)

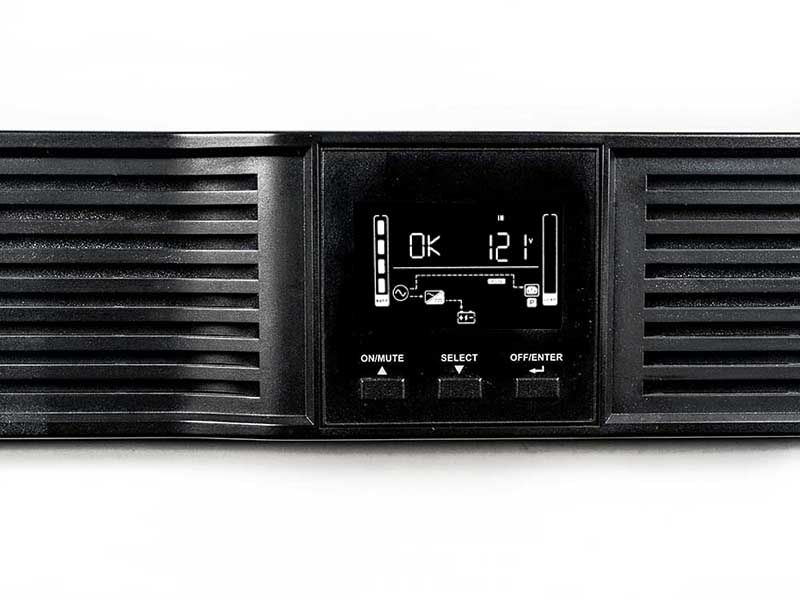

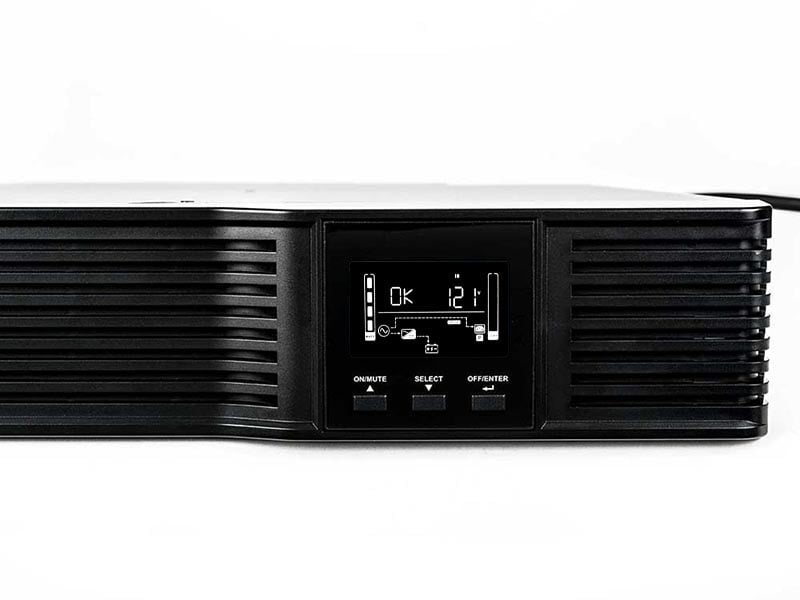

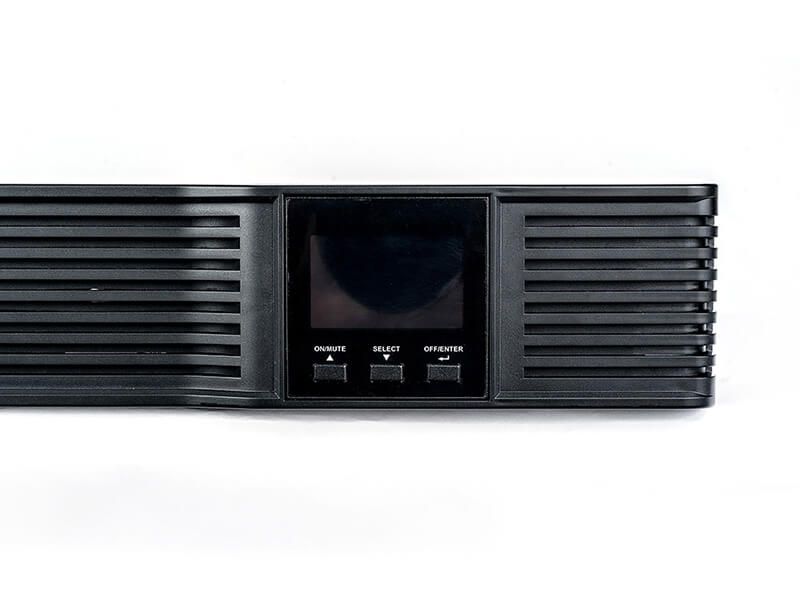

Rotatable LCD Display allows users to view real-time conditions, alarm notices, and runtime information
The standard Liebert PSI5 UPS can accept external battery cabinets for long runtime applications
