Product Family

NetSure 5000 Series

Discretely power critical infrastructure at the edge of your network with optimized management, security, and control. This series of flexible DC power systems is designed for wireless access and fixed network applications offering unmatched temperature performance and high power density.

Get Brochure
Best Suited For:
  • Telecom

Model Specifications Overview
NetSure 5100 DC Power System
18 - 28.8 kW/1.5 - 19.2 kW   40 - 600 A/50 - 400 A   -48V DC, +24V   Single phase: 120 VAC, 208 VAC to 240 VAC   System   8.75 up to 8 in.   19 or 23 in.   23.04 in. (with batteries)   up to 600 lbs.

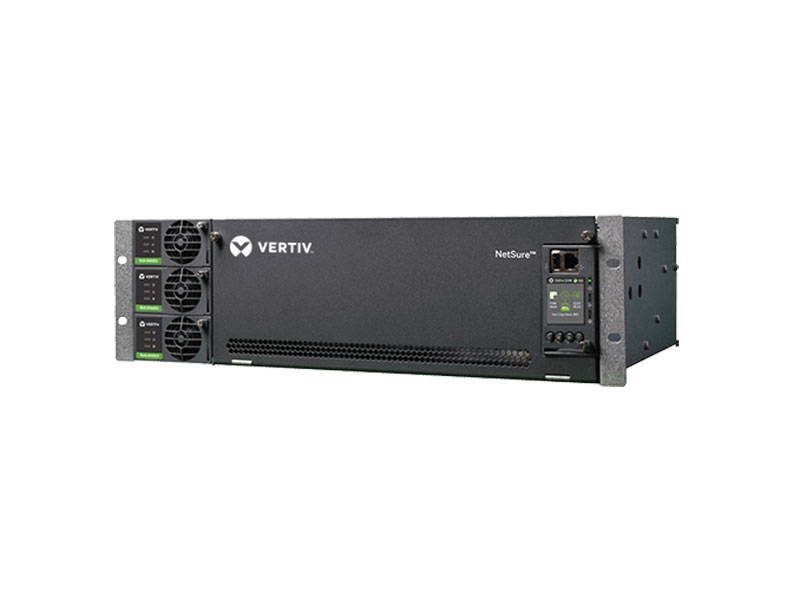

NetSure 5100 Integrated DC Power System
2 - 7.2 kW   40 - 150 A   -48 VDC   Single phase: 120 VAC, 208 VAC to 240 VAC   System   up to 5.25 in.   19 or 23 in.   14.7 in.   up to 48 lbs.
NetSure 5100 Bulk DC Power System
8 kW   up to 160 A   -48 VDC   120 VAC, 208 VAC, 240 VAC   Subrack   1 RU   19" or 23" rack   15"   25 lbs
NetSure 512 Series DC Power System
18 - 28.8 kW/1.5 - 19.2 kW   40 - 600 A/50 - 400 A   -48V DC, +24V   Single phase: 208 VAC to 240 VAC   System   15.75 up to 22.75 in.   27 in.   16 in.   up to 550 lbs.
NetSure 512 Single Row DC Power System
2 - 4.8 kW/1.5 kW   40 - 100 A/50 A   -48V DC, +24V   Single phase: 208 VAC to 240 VAC   System   8.75 in.   23 in.   14.25 in.   up to 150 lbs.

Benefits

Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with rectifier high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with custom configuration files
Reduce your Off Grid generator runtime with Solar/Hybrid input
Optimize your battery capacity with priority and non priority load shedding
Solar/Hybrid Capability – reduces grid dependency

Features

High Efficiency – 96.2% efficient eSure rectifiers
Wide Operating Temperature Range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
Selectable AC Input - 120VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery Management Capability
ECO Energy Savings Mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
Solar/Hybrid Capability
Up to two disconnect levels (LVD)

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
