Product Model
Warranty:
One Year Limited Warranty Against Defects in Material and Workmanship
MMD23C, 3.80kW
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking, Financial and Insurance
- Government
- Healthcare
- Data Center/Colocation/Hosting
- Education
- Retail and Wholesale
Product Model
Warranty:
One Year Limited Warranty Against Defects in Material and Workmanship
MMD23C, 3.80kW
Best Suited For:
- Banking, Financial and Insurance
- Government
- Healthcare
- Data Center/Colocation/Hosting
- Education
- Retail and Wholesale
Benefits
• Requires no floor space
• Simplified maintenance and troubleshooting via the iCOM CMS app
• Reduces installation costs
• Less compressor wear from start-stop cycles

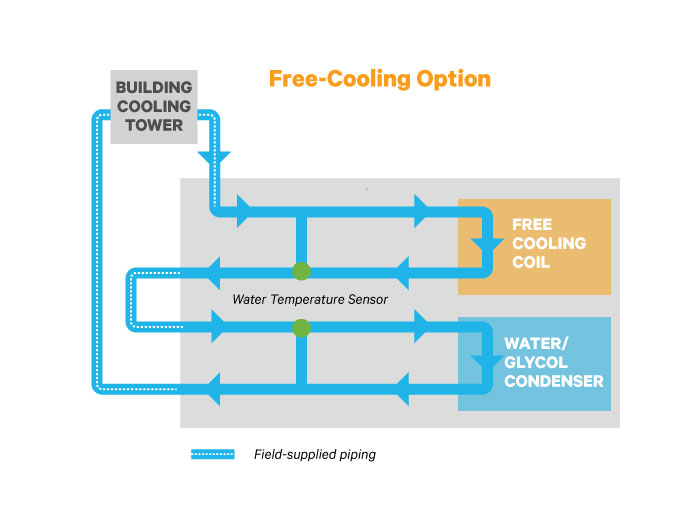

• Improves energy efficiency with free-cooling option
Features
• Ceiling mounted cooling and humidity control

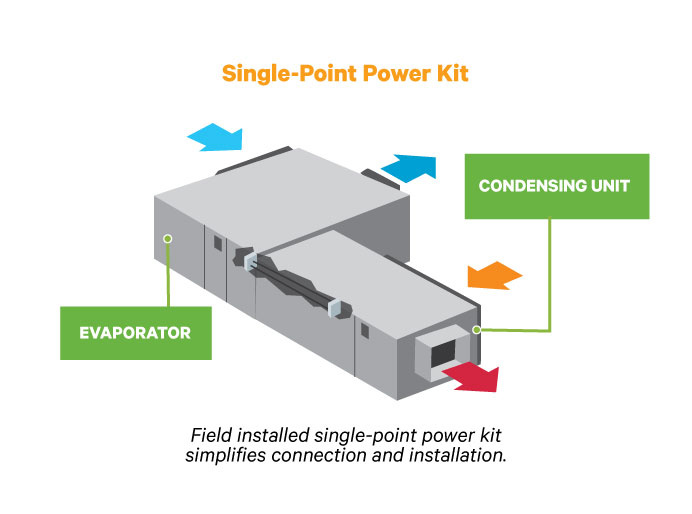

• Installs as self-contained or split system
• Offers direct supply/return or ducted applications
• Simple thermostat-type wiring to split system controls and condensing units
• Services from the unit front for easy component access
• Hot gas bypass
• Compatible with the iCOM CMS mobile app system for monitoring and management of small IT spaces
Specifications
The Vertiv™ Liebert® Mini-Mate is available in nominal cooling capacities from 3.5 to 28 kW (1 to 8 tons), with air, water, glycol and chilled water models available in 50 and 60 Hz. All chilled water systems are self-contained units. Air, water and glycol cooled models are available in split-system configurations.
MMD23C, 3.80kW
- Technical Specifications
- Total Nominal Capacity kBtuh [kW]
- 13.0 [3.80]
- Net Sensible Capacity kBtuh [kW]
- 13.0 [3.80]
- Nominal Airflow [CFM]
- 750
- Total Capacity
- 13.0 [3.80]
- Heat Rejection Medium
- Chilled Water
- Controls and Monitoring
- iCOM CMS Monitoring & Management System
- Physical Characteristics
- Weight
- 220
- Weight
- 100
- Height
- 20
- Height
- 508
- Width
- 54
- Width
- 1371
- Depth
- 30
- Depth
- 782
Manuals
- Vertiv™ Liebert® Mini-Mate2 1 & 1.5 Ton Installer User Guide SL-10530
- Vertiv™ Liebert® Mini-Mate2 2 and 3 Ton User Manual SL-10531
- Liebert® Mini-Mate2 8 Ton User Manual SL-10533
- Liebert® Mini-Mate2 2 and 3 Ton System Design Catalog SL-10535
- Vertiv™ Liebert® Mini-Mate2 8-Ton System Design Catalog SL-10537
- Vertiv™ Liebert® Mini-Mate2 System Design Catalog SL-10525
- Vertiv™ Liebert® IS-UNITY-DP User Manual for Liebert Mini-Mate2 and Liebert DataMate
Brochures and Data Sheets
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
