Vertiv Avocent HMX8000R - IP KVM Receiver | 4K video 10 GbE | 4 USB2.0
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Healthcare
- Transportation
Benefits
Features
Specifications

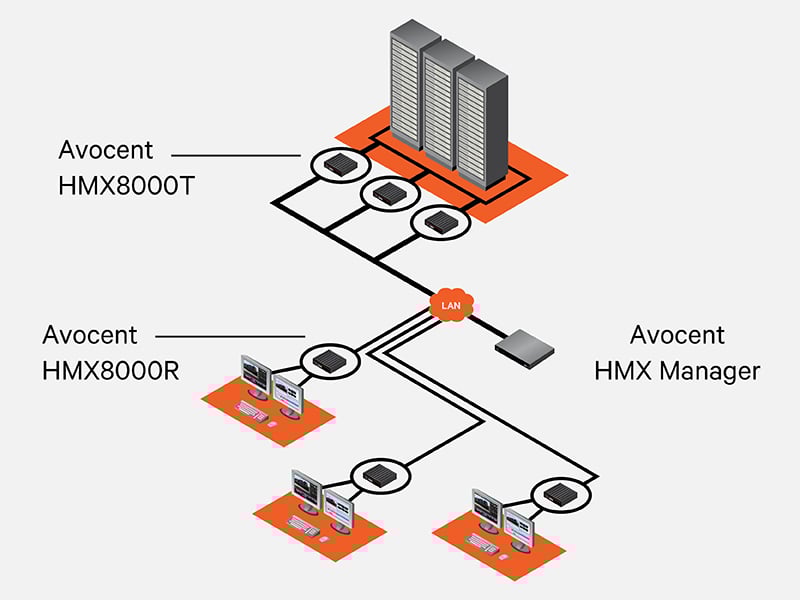

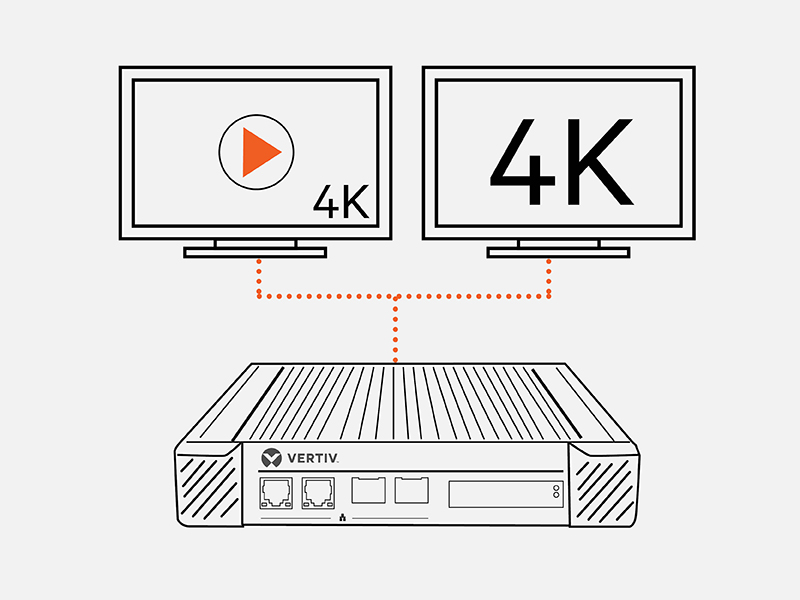

The Vertiv Avocent HMX8000 IP KVM provides access to multiple computers via a standard IP network infrastructure, allowing users to share computing resources. It offers 4K video over a single fiber connection or dual head 4K with an additional fiber connection. The system is ideal for applications requiring high resolution and zero latency such as broadcasting, production editing, or any collaborative environments. This IP-based KVM extender enables computing hardware to be housed remotely from user workstations in secure, temperature-controlled environments. Designed to improve productivity and reduce IT costs, the system provides powerful administrative tools and connection-management control for network resources without compromising picture quality.
- Graphic Mode
- Extension Distance
- See Manual
- Power Description
- Power Supply(s)
- External 12VDC, 5A
- Interfaces/Ports
- Network Interface(s)

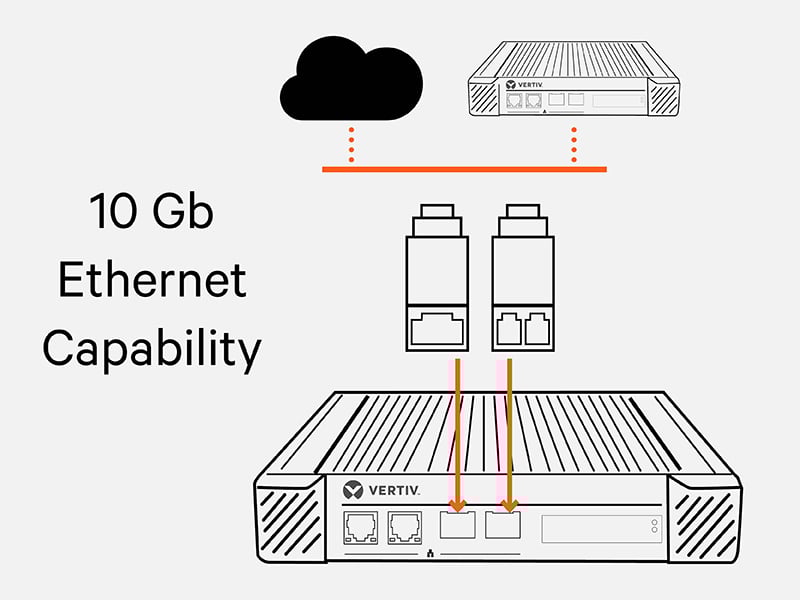

- 10 GB SFP (No 10/100/1000 Support)
- USB ports
- 5X USB Type A
- USB Hub Support
- USB 2.0 with Class Control
- Operational Conditions
- Operating Temperature
- 0 to 50 C / 32 to 122 F
- Humidity
- 10-90% non-condensing
- Storage Temperature
- 0 to 60 C / 32 to 140 F
- Physical Characteristics
- Weight
- 4 lbs
- Weight
- 1.8 kgs
- Height
- 8.3 in
- Height
- 210 mm
- Width
- 8.5 in
- Width
- 215 mm
- Depth
- 1.6 in
- Depth
- 40 mm
- Miscellaneous
- Other supported accessories
- HMX-MM-10G-SFP, HMX-SM-10G-SFP, RMK-104
- Agency Approvals
- CE, FCC, UL
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
