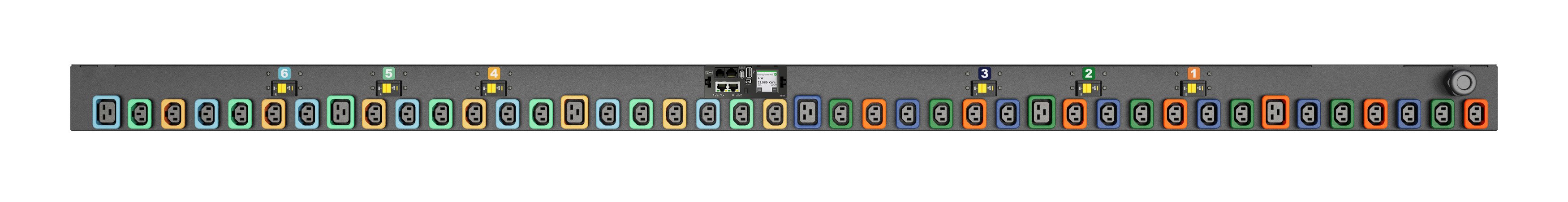

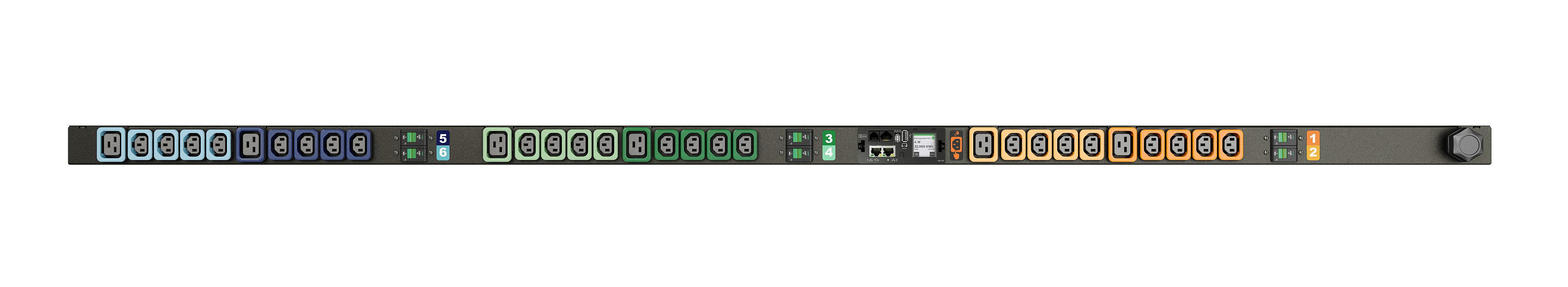

Vertiv™ PowerIT Monitored rPDU – Rack Power Visibility
The Vertiv™ PowerIT Monitored rack PDUs (rPDUs) provide a comprehensive view of power usage, both at the rack and via remote access. They deliver dependable power distribution for critical IT equipment, with high-capacity models supporting racks designed for advanced compute, AI, and other high-demand workloads. They are 100% tested for reliability and functionality and are available in a variety of electrical and receptacle configurations.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Retail and Wholesale
- Transportation
Vertiv™ PowerIT Monitored rPDU – Rack Power Visibility
The Vertiv™ PowerIT Monitored rack PDUs (rPDUs) provide a comprehensive view of power usage, both at the rack and via remote access. They deliver dependable power distribution for critical IT equipment, with high-capacity models supporting racks designed for advanced compute, AI, and other high-demand workloads. They are 100% tested for reliability and functionality and are available in a variety of electrical and receptacle configurations.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Retail and Wholesale
- Transportation
Specifications
Vertiv™ PowerIT Monitored rPDUs are built for adaptable deployment, offering diverse outlet types, plug options, chassis colors, and cord lengths to accommodate a wide range of rack environments. Designed to support an extensive spectrum of power architectures, models include standard configurations, high density options, and high-capacity units. With broad global voltage compatibility and durable construction, it’s easy to align each rack with the right power configuration.
|
Vertiv™ PowerIT Monitored rPDU – 200-240V DELTA, 60A, VP4N60AE
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 60A | 200-240V DELTA | 200-240V DELTA | Combination C13/C19 (30) | Vertical | 72 in | 2.10 in | 3 in | 8 lbs |
| See more product information | ||||||||
|
Vertiv™ PowerIT Monitored rPDU – 200-240V, 30A, VP4N32A0
|
||||||||
| 30A | 200-240V | 200-240V | IEC C13 (12) IEC C19 (4) | Horizontal | 19 in | 17 in | 9 in | 14 lbs |
| See more product information | ||||||||
|
Vertiv™ PowerIT Monitored rPDU – 100-120V, 30A, VP4N30AP
|
||||||||
| 30A | 100-120V | 100-120V | NEMA 5-20R (24) | Vertical | 66 in | 2 in | 2 in | 16 lbs |
| See more product information | ||||||||
|
Vertiv™ PowerIT Monitored rPDU – 100-120/200-240V WYE, 30A, VP4N30AN
|
||||||||
| 30A | 100-120V/200-240V WYE | 100-120V/200-240V WYE | Combination C13/C19 (36) | Vertical | 70 in | 2 in | 2 in | 17 lbs |
| See more product information | ||||||||
|
Vertiv™ PowerIT Monitored rPDU – 200-240V, 30A, VP4N30AM
|
||||||||
| 30A | 200-240V | 200-240V | Combination C13/C19 (36) | Vertical | 66 in | 2 in | 2 in | 16 lbs |
| See more product information | ||||||||
|
Vertiv™ PowerIT Monitored rPDU – 100-120/200-240V WYE, 30A, VP4N30AH
|
||||||||
| 30A | 100-120V/200-240V WYE | 100-120V/200-240V WYE | IEC C13 (20) IEC C19 (4) NEMA 5-20R (12) | Vertical | 70 in | 2 in | 2 in | 17 lbs |
| See more product information |
Benefits
- REAL-TIME POWER MONITORING: The unit delivers reliable power distribution and supports both local and remote monitoring options, giving teams fast access to critical energy-use data to evaluate trends and maintain uptime.
- ENVIRONMENTAL AWARENESS: Built-in environmental monitoring capabilities provide immediate insight into temperature and humidity conditions to help prevent climate-related equipment issues and avoid unplanned downtime.
- UPGRADEABLE MONITORING MODULE: The hot-swappable monitoring device can be upgraded at any time, allowing organizations to adopt new technologies or adjust to evolving requirements without replacing the entire rPDU.
- SECURE POWER CONNECTIONS: Select models include U-Lock receptacles that secure power cords firmly in place to reduce the risk of accidental disconnections during maintenance or high-traffic activity.
- SIMPLE PHASE IDENTIFICATION: Color-coded receptacles available on select units help simplify circuit identification and phase balancing for faster, more accurate power management.
- OUTLET VISIBILITY: Outlet-level monitoring options provide granular visibility into the power usage of individual devices, enabling more precise load management and capacity planning.
- SAFETY COMPLIANCE: North American units are UL listed in accordance with common data center and insurance provider requirements.
- PRE-INTEGRATED RPDU SETUP: Users can save time and reduce deployment costs by choosing rPDUs that are pre-integrated with Vertiv VR Racks; contact your local Vertiv representative for configuration support.
Features
- UPGRADEABLE MONITORING MODULE: The hot-swappable, upgradeable monitoring device allows users to enhance functionality without replacing the entire rPDU.
- POWER MONITORING: Local and remote monitoring provide highly accurate power measurements (±1% per ANSI and IEC standards) for dependable energy-use visibility.
- ENVIRONMENTAL SENSOR SUPPORT: Optional environmental sensors enable temperature and humidity monitoring to help prevent climate-related equipment issues.
- HIGH-TEMPERATURE OPERATION: High-temperature 60°C models are engineered to operate reliably in heat-intensive environments.
- COLOR-CODED U-LOCKS: Select units feature color-coded U-Lock receptacles that secure power cords and provide instant circuit identification.
- FORM FACTORS: Vertical and horizontal rackmount options make it easy to deploy the rPDU in a wide range of rack configurations.
- FLEXIBLE CONFIGURATIONS: Multiple electrical and receptacle configurations offer the flexibility to support diverse power distribution requirements.
- EASY INSTALLATION: Included mounting brackets enable quick, straightforward installation in standard racks and cabinets.
- Vertiv™ PowerIT Rack Power Distribution Unit - Installer User Guide - English
- Vertiv™ PowerIT HM-Series rPDUs - Safety and Quick Installation Guide - English
- Vertiv™ PowerIT Upgradeable PDU and Universal PDU - Quick Installation Guide - English
- Vertiv™ PowerIT IMD-5M - Replacement Guide - English
- Vertiv™ PowerIT - Safety and Regulatory Statements VM1227
- Vertiv™ PowerIT Rack PDUs - Brochure - English
- Vertiv™ PowerIT Rack PDU for high density applications - Brochure - English
- Vertiv™ PowerIT Product Overview - Brochure - English
- Vertiv™ PowerIT Custom Rack PDUs - Data Sheet - English
- Vertiv™ Data Center Infrastructure Solutions - Channel Products Catalog - English
- Vertiv™ PowerIT Rack PDU Color Coded Outlet Guide - Data Sheet - English
- Vertiv™ PowerIT Environmental Monitoring Product Overview - Brochure - English
- Vertiv™ PowerIT Upgradeable rPDU IMD Feature Comparison - DataSheet - English
- Vertiv™ Distribution Assurance Package - Data Sheet - English
- Vertiv™ PowerIT Rack PDU Product Line Comparison - Data Sheet - English
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Change
Frequently Asked Questions
Monitoring Accessories
Vertiv™ Environmental Sensor
A variety of sensors are available to monitor a wide array of environmental conditions. Plug-n-Play and Dry Contact / 0-5V sensor options provide flexibility to choose the ideal solution to meet each unique need. All sensors are compatible with the Vertiv™ Environmental Monitor and rPDU products.
Vertiv™ Geist™ Environmental Monitors
Environmental factors like heat, humidity and moisture pose a severe threat to mission-critical infrastructure. These dangers can be minimized by incorporating an environmental monitoring solution to collect data and alert users of potential threats. Vertiv™ Geist™ Environmental Monitors allow users to securely observe conditions and receive alerts when user defined thresholds are breached.
Next Level Rack Power Distribution
Vertiv™ flexible rPDUs accommodate all common worldwide power configurations. From Basic to Intelligent there is an rPDU for every application. Find your rPDU and improve IT performance now.
