Product Family

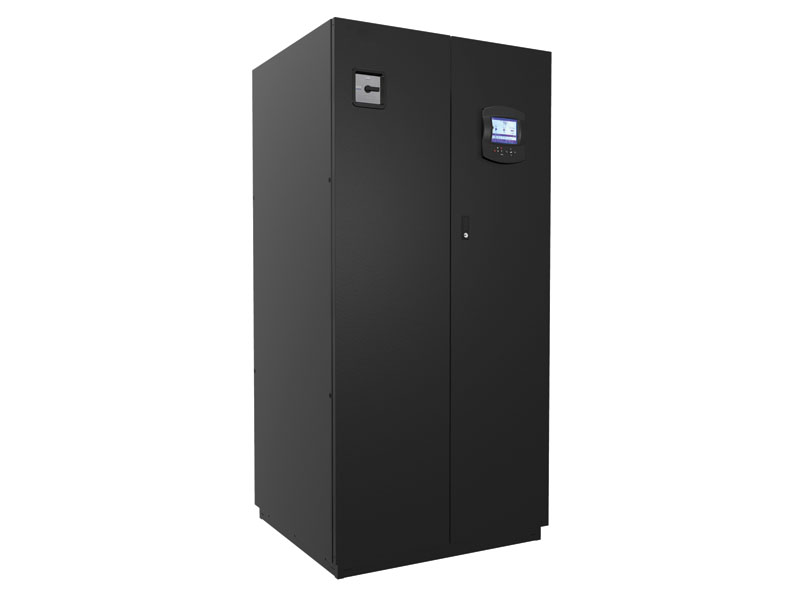

Liebert XD Pumping and Chiller Units, 130-160kW

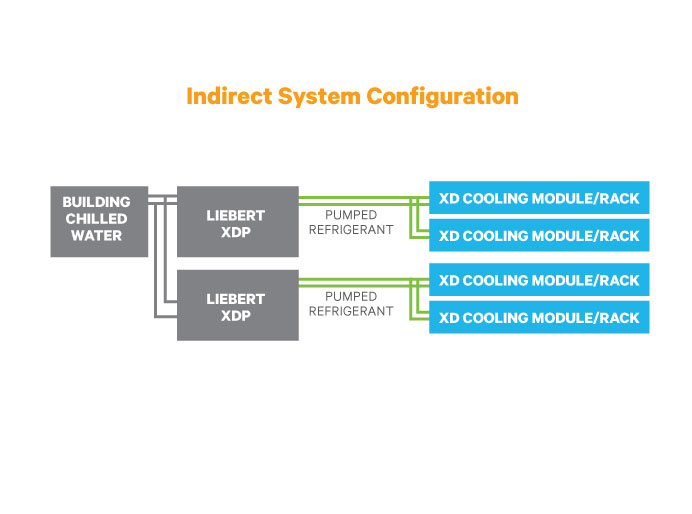

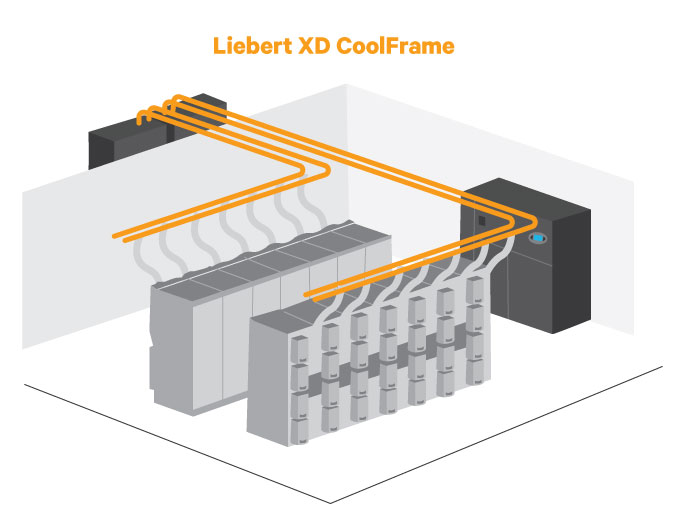

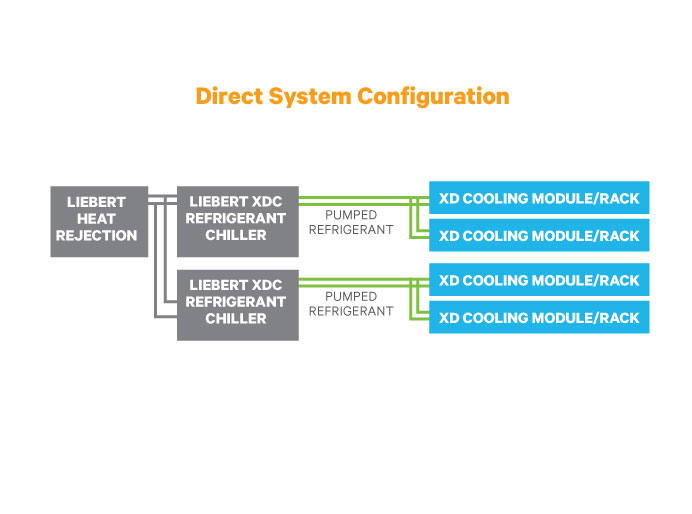

The indoor Liebert XD Pumping and Chiller Units include the Liebert XDP and the Liebert XDC units. These refrigerant-based systems support Liebert XD System spot/zone data center cooling modules, including the Liebert XDO, Liebert XDV, Liebert XDH, and Liebert XD CoolFrame units. The Liebert XDP is used between the cooling units and an associated heat rejection system, while the Liebert XDC is used between the cooling units and a chilled water system.

Get Brochure Get Manual
Best Suited For:
  • Banking, Financial and Insurance
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Retail and Wholesale
Warranty: One Year Limited Warranty Against Defects in Material and Workmanship

Model Specifications Overview
Liebert XD Piping System for Liebert XD Units
  n/a   n/a   n/a   n/a
Liebert XDP Pumping Unit, 130-160kW
  78 in   38 in   34 in   821 lbs
Liebert XDC, XD Chiller and Pumping Unit, 160kW
160 kW / 46 Ton (60 Hz); 130 kW / 37 Ton (50 Hz)   78 in   74 in   34 5/8 in   1800 lbs

Benefits

Highly efficient
Fast and easy installation
Highly scalable
Self-optimizing protection routines

Features

Cools more than 30kW per rack.
Supports Liebert XD Smart Modules.
60 Hz and 50 Hz models.
Energy efficient redundant pumps
Uses advanced Liebert iCOM unit controls
