Avocent LV 5020P KVM Extender
Avocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
Avocent LV 5020P KVM Extender
Avocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.
- Banking, Financial and Insurance
Benefits
The LV5000 series support DisplayPort Dual Mode video and offers pixel-perfect
video resolutions for demanding applications. Users can choose to have a maximum resolution of 3840x2160 (UHD 4K) with a single monitor or 1920 x 1200 (WUXGA)
resolution in a dual monitor configuration.
The LV5000 does more than just extend system control. It provides a full-function
connection that enables up to six USB 2.0 human interface devices. High-definition audio recording and playback is also supported.
Features
Specifications

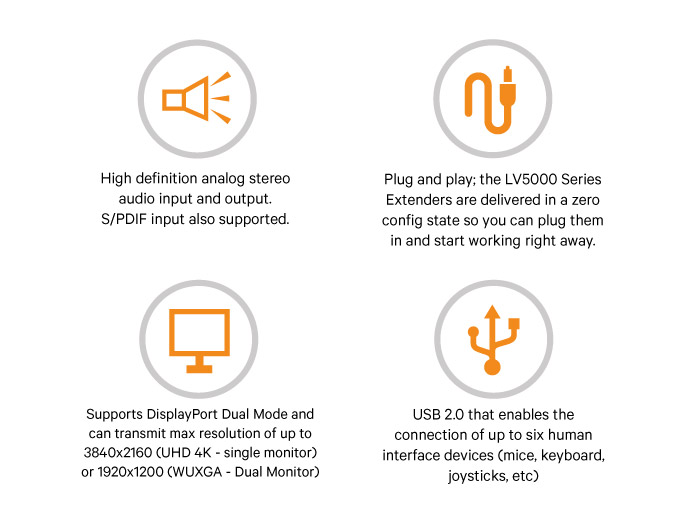

The LV 5000 series support DisplayPort Dual Mode video and offers pixel-perfect video resolutions for demanding applications. Users can choose to have a maximum resolution of 3840x2160 (UHD 4K) with a single monitor or 1920 x 1200 (WUXGA) resolution in a dual monitor configuration. Picture quality is delivered through an uncompressed system whereby every pixel of every frame is sent without loss.
The LV 5000 does more than just extend system control. It provides a full-function connection that enables up to six USB 2.0 human interface devices including mice, keyboards, graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage and isochronous devices, such as webcams and headsets, can be used through the transparent USB 2.0 high-speed port. High-definition audio recording and playback is also supported.* *Full USB 2.0 requires a second cable. Basic keyboard and mouse can share a single CATx video connection.
- Product Overview
- Video Connection
- LV5020 Transmitter 2 x DisplayPort
- Video Resolution
- Up to 4032x216 @ 30Hz / 4K
- Power Description
- Power Supply(s)
- 2 x Power Supply
- Input Power (Maximum)
- .8 A
- Interfaces/Ports
- USB ports
- 2 x USB type B
- USB Hub Support
- USB 1.1 and USB 2.0
- Operational Conditions
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Physical Characteristics
- Weight
- 1.65 lbs
- Weight
- .75 kgs
- Height
- 1.76 in
- Height
- 44 mm
- Width
- 7.92 in
- Width
- 198 mm
- Depth
- 4.8 in
- Depth
- 120 mm
- Miscellaneous
- Agency Approvals
- CE, FCC, UL
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
