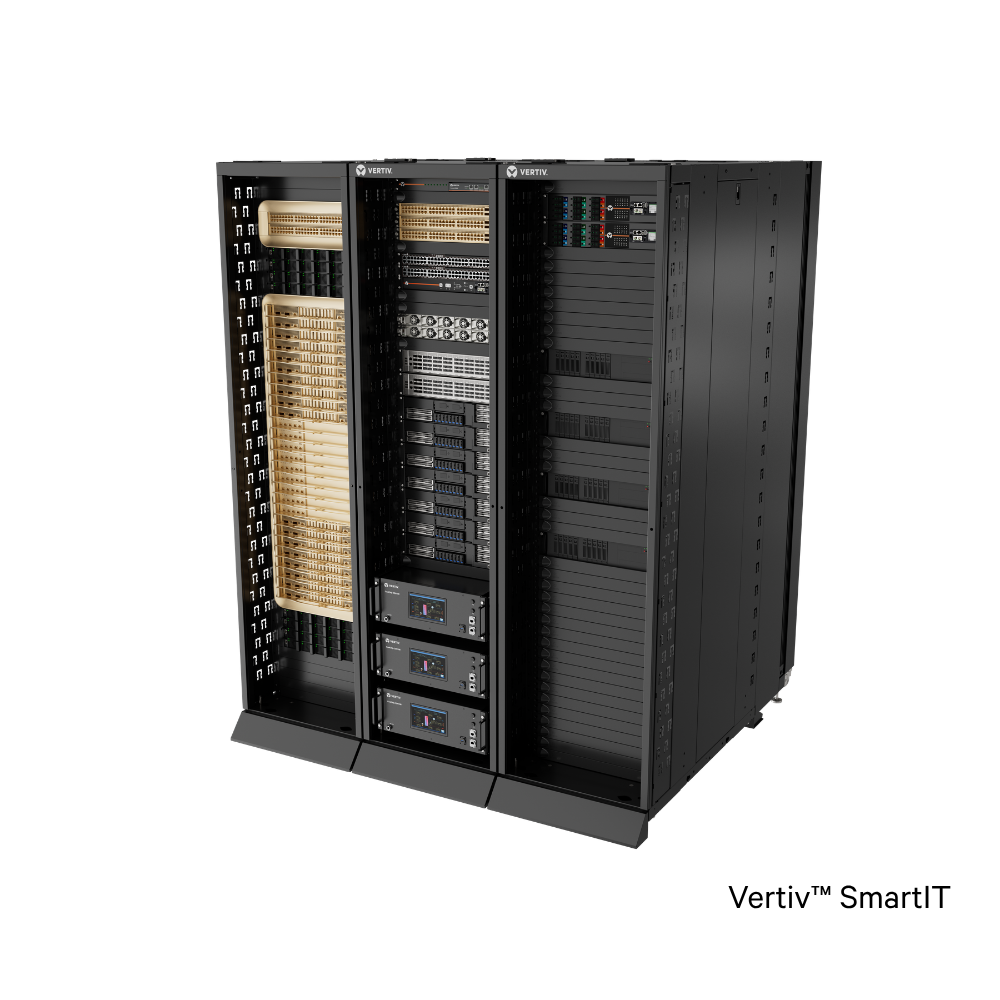

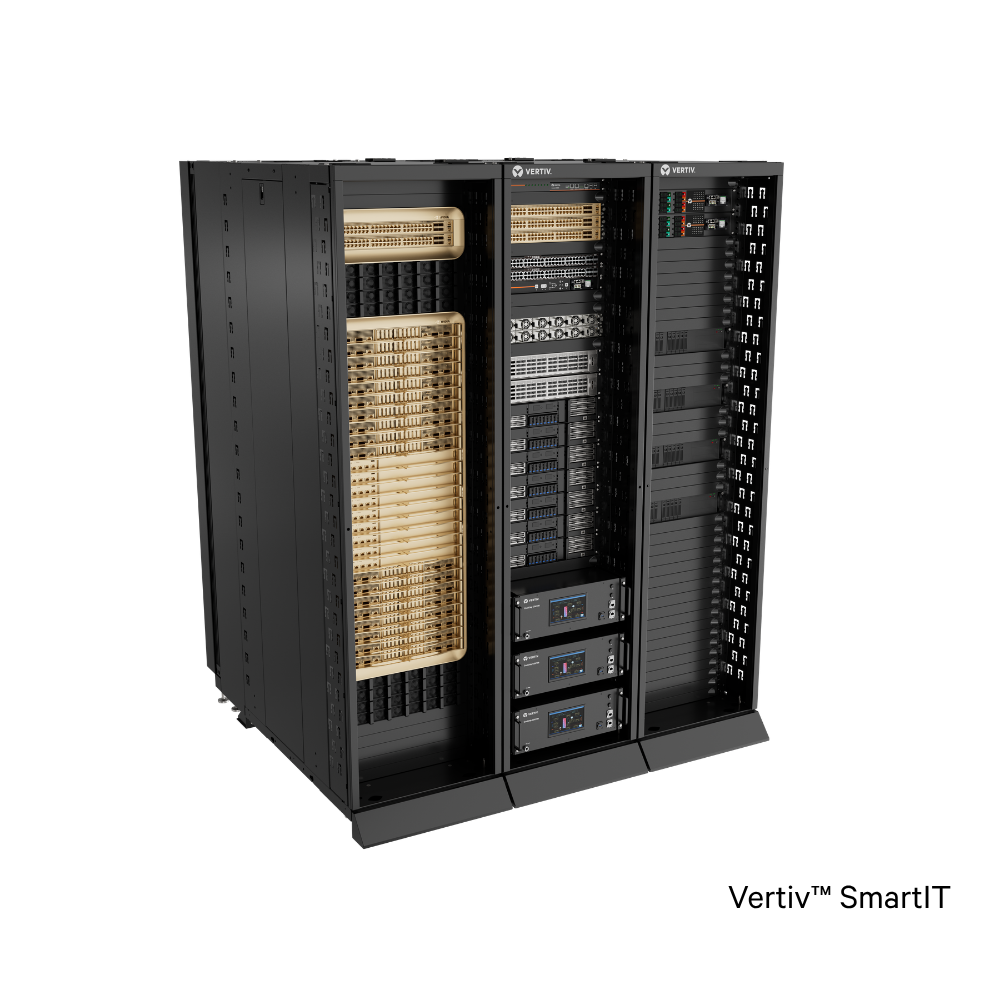

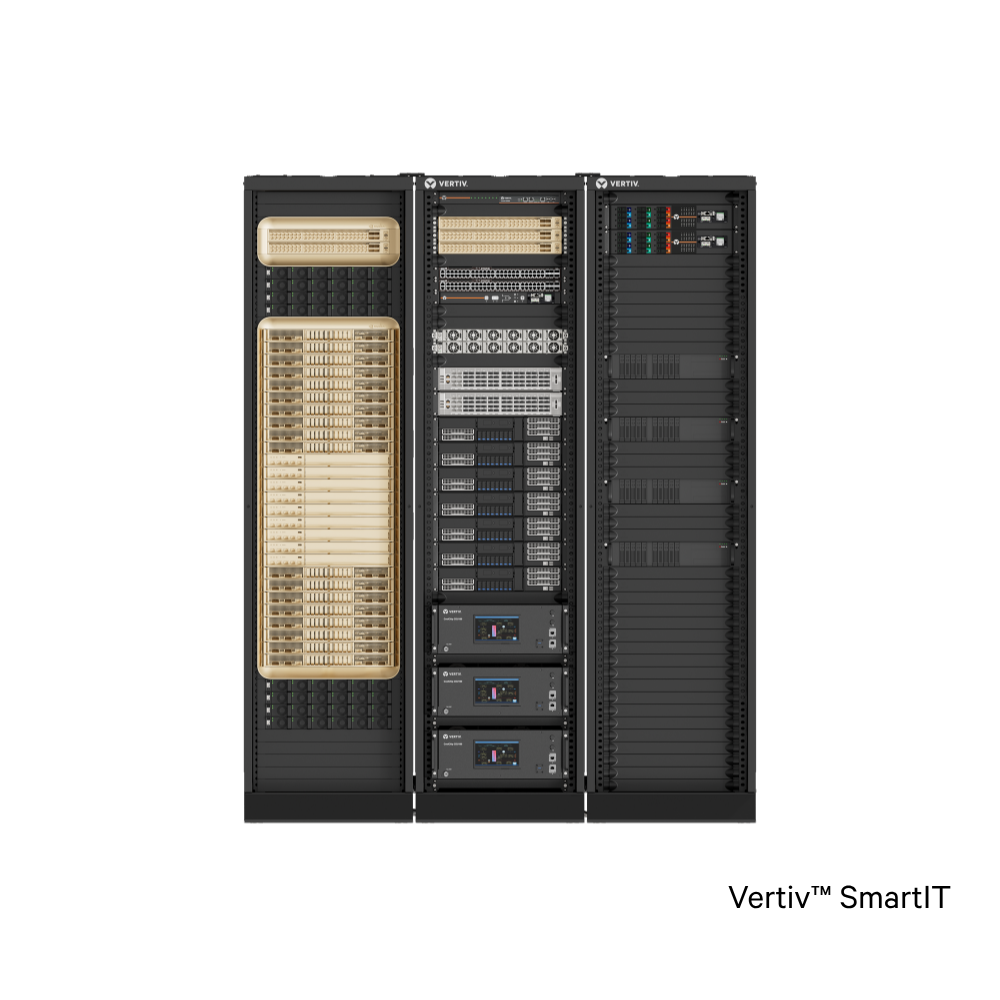

Vertiv™ SmartIT for Enterprise - Pre-integrated AI rack infrastructure for NVIDIA Blackwell-based NVL72 configurations
Enterprise AI requires power, cooling, and rack infrastructure that many existing environments were not designed to support. Vertiv™ SmartIT is a pre-integrated, AI infrastructure solution for NVIDIA GB300 Blackwell-based NVL72 compute, combining Vertiv power, cooling, rack infrastructure, and commissioning into one factory-tested package ordered as one solution and delivered as one unit.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
Benefits
- FULL POWER AND THERMAL CHAIN: Vertiv™ SmartIT integrates rack-level power, cooling, and enclosure infrastructure into a factory-tested package designed for NVIDIA DGX GB300 Blackwell-based NVL72 compute.
- FACTORY-INTEGRATED AND TESTED: Each module arrives pre-integrated and pre-validated. Commissioning scope covers facility-level connections only, reducing coordination complexity and supporting faster time-to-value.
- NVIDIA and OCP-COMPLIANT ARCHITECTURE: Uses Vertiv™ Open Rack for NVIDIA MGX infrastructure for NVIDIA Blackwell-based NVL72-class architecture and OCP-compliant rack deployment in defined configurations.
Features
- CONFIGURABLE RACK ENCLOSURES: Support rack and storage rack configurations are available to meet deployment requirements.
- VERTIV™ POWERDIRECT 3000 DC POWER SHELVES (33 kW): Vertiv™ PowerDirect provides rack-level DC power conversion for compute racks, with two 33 kW shelves per support rack.
- IN-RACK XDU (DIRECT-TO-CHIP LIQUID COOLING): Vertiv™ CoolChip CDU 121 provides 121 kW direct-to-chip liquid cooling per unit, with three units included in the package.

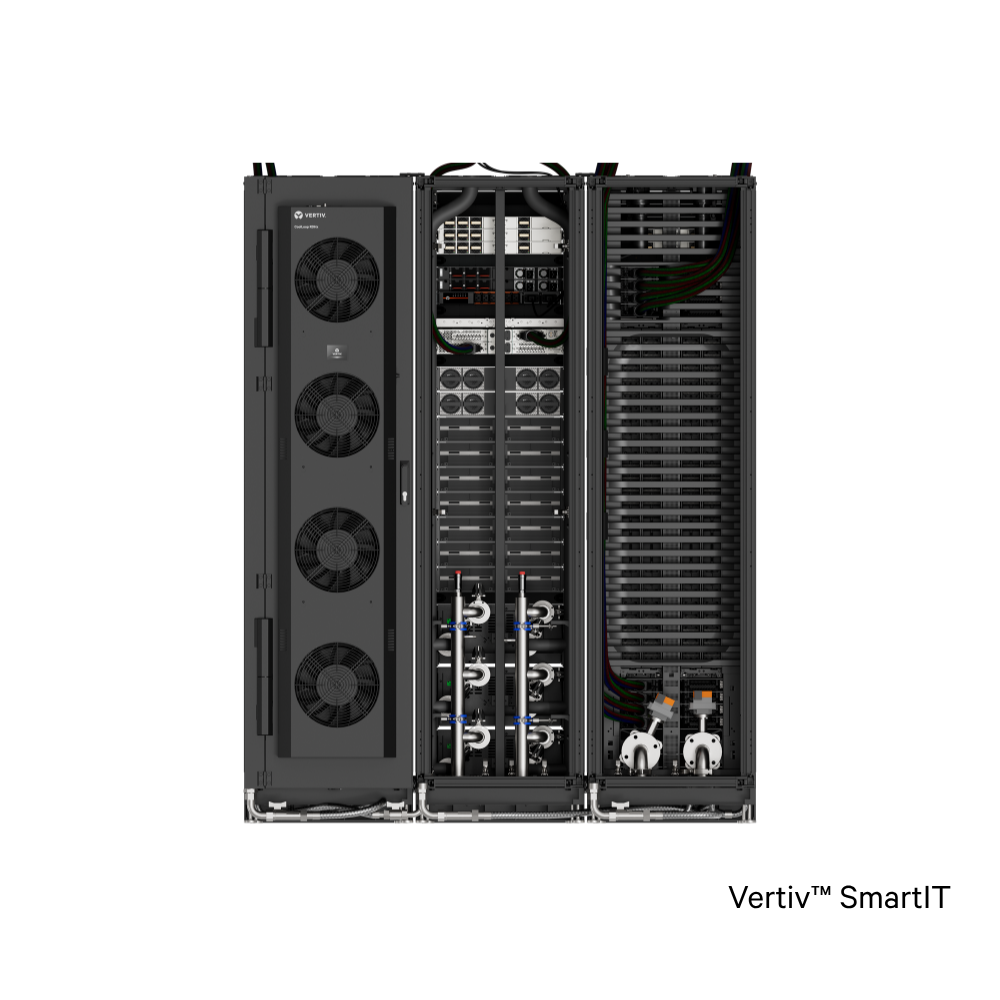

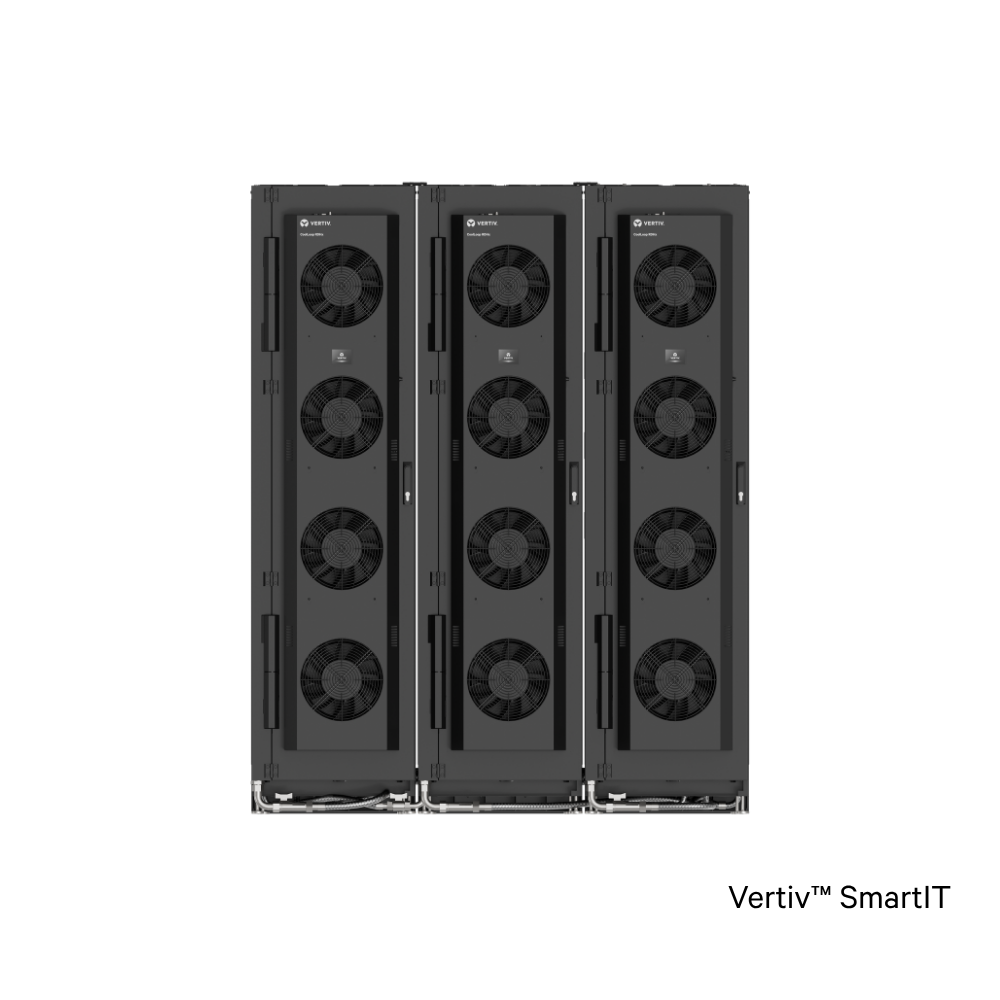

- RDHX (ACTIVE REAR DOOR HEAT EXCHANGER): Vertiv™ Liebert® DCD 47kW rear door heat exchangers provide supplemental air cooling.
- IN-RACK MANIFOLD: Blind mate connection for coolant distribution designed to reduce maintenance complexity and leak risk within the rack envelope.
- INTEGRATED LEAK DETECTION: Drip tray and manifold sensors connect through Vertiv™ Avocent® ACS 804 to support continuous leak monitoring and site-defined fault-response.
- NORTHBOUND COMMUNICATION: Redfish, SNMP, and Modbus TCP/RS485 for integration into existing data center management platforms.
- NVIDIA PLATFORM VALIDATION: Validated for NVIDIA DGX GB300 Blackwell-based NVL72 platforms with NVIDIA Grace and 72 NVIDIA Blackwell GPUs per rack.
Find Your Area Contact
Change
Specifications
| Parameter | Specification |
|---|---|
|
Solution footprint |
Integrated package |
|
Power Capacity per compute rack |
120–142 kW |
|
Liquid cooling capacity |
2× 121kW = 242kW N+1 (direct-to-chip) |
|
Supplemental air cooling |
3× 47kW = 141kW (active rear door) |
|
Total module cooling |
441kW |
|
UPS efficiency |
Up to 97.5% double-conversion |
|
Rack standard |
OCP-compliant MGX architecture |

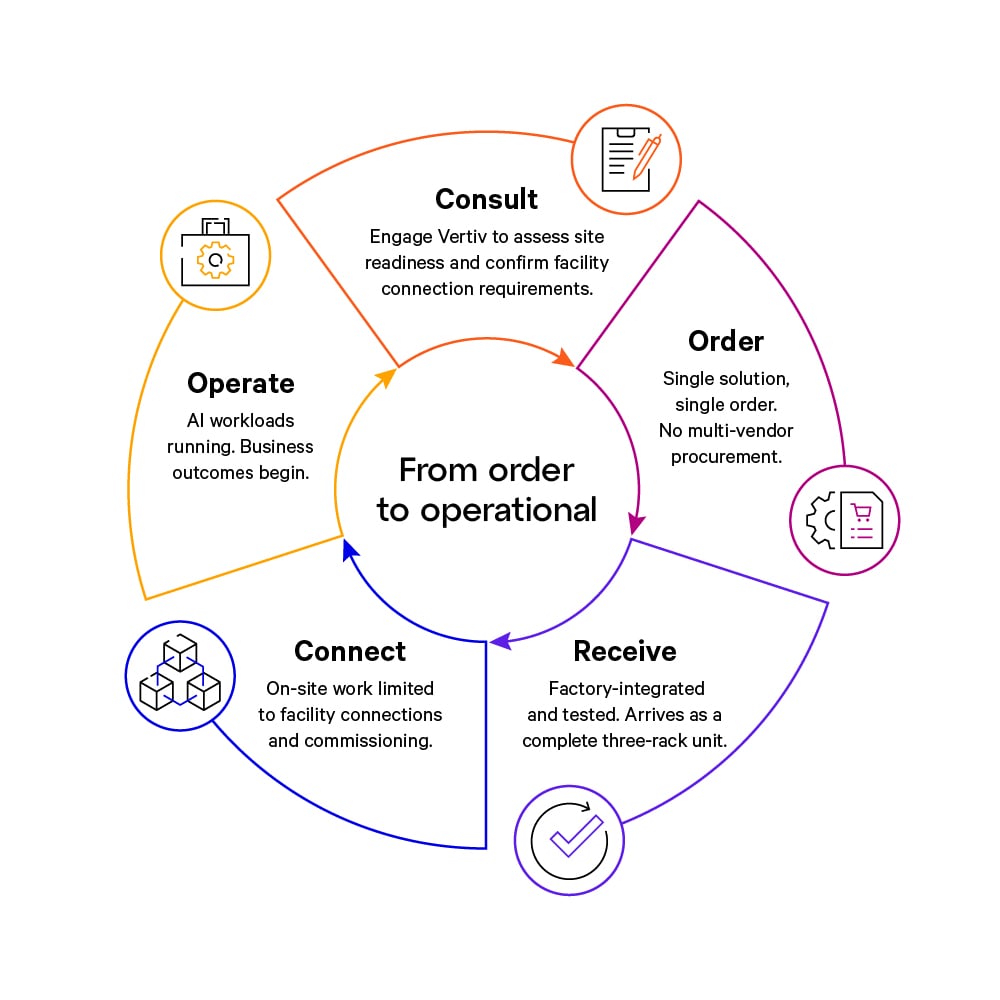

From one rack to many
Expand AI compute in modular steps. Same architecture. Same validation. Nothing redesigned. Each module ships pre-integrated and factory-tested against the same specification as the initial deployment. Integration, power infrastructure, and cooling design remain consistent across all configurations.

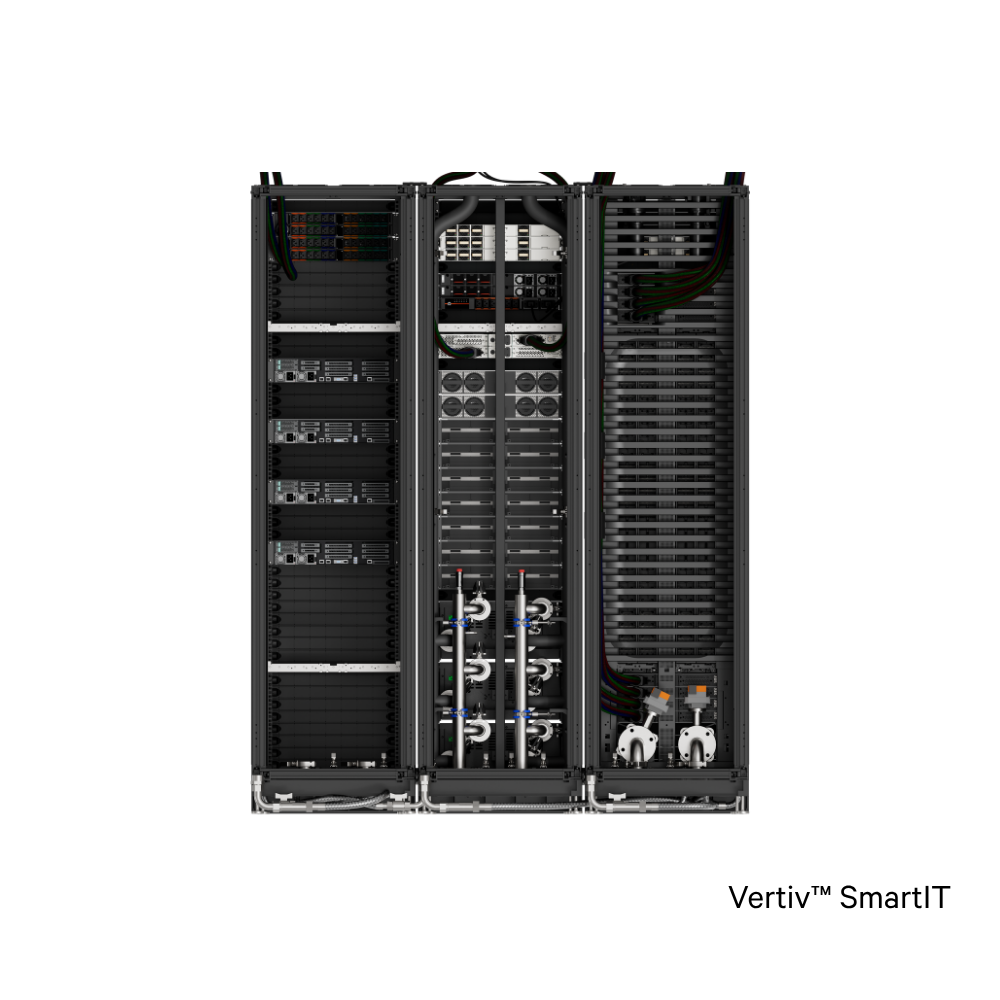

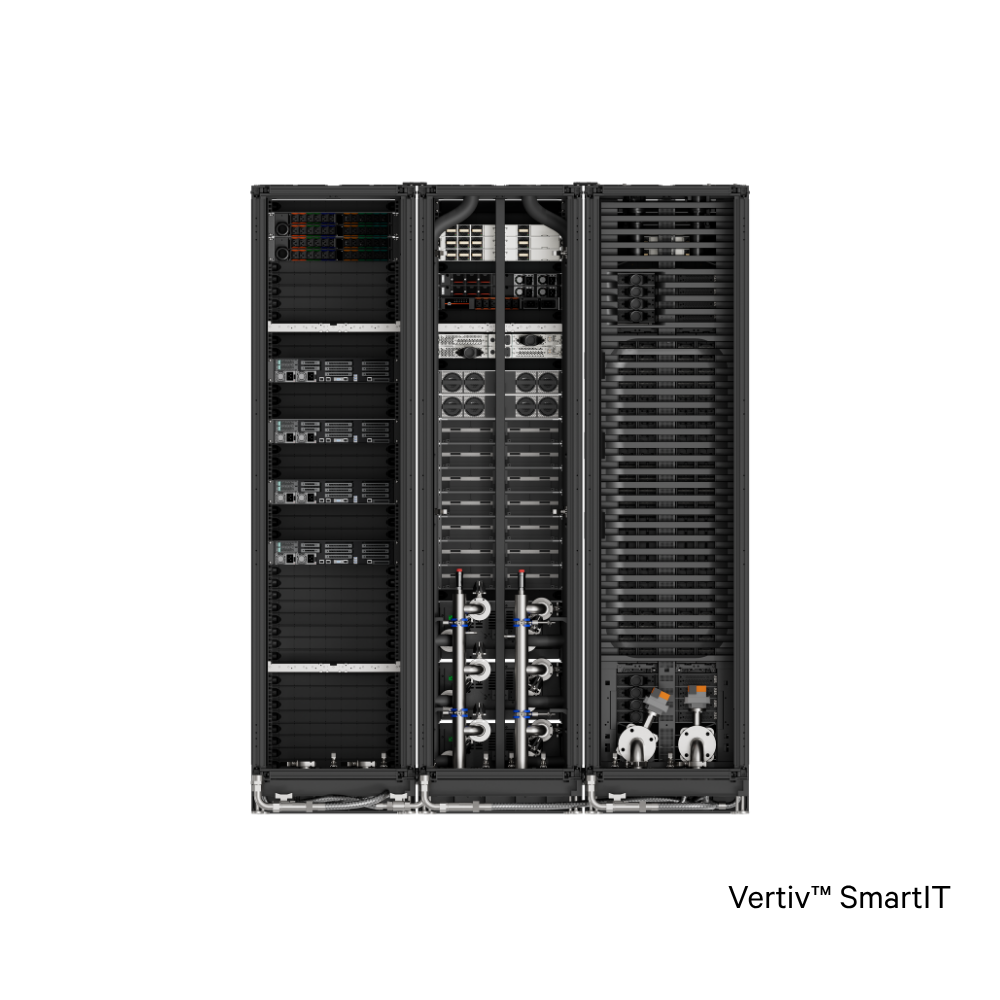

Support Rack (IRM692-362-VQE0M-N00)
Provides support for network switches, leak detection, and houses CDU and Power Shelves. Pairs seamlessly with the AI compute rack to enable a complete, deployment-ready infrastructure.
Storage Rack (IRM692-362-00E00-N00)
Purpose-built for storage deployments, featuring two 60A 3-phase PDUs with 69 kVA total capacity for reliable power distribution. Complements the AI compute rack to deliver a unified, high-density solution.
| Components | Function | Support Rack | Storage Rack |
|---|---|---|---|
| RACK INFRASTRUCTURE | |||
|
Vertiv™ Open Rack for NVIDIA MGX |
MGX-compliant enclosures for Blackwell-based NVL72 architecture |
1 |
1 |
| POWER TRAIN | |||
|
Vertiv™ PowerDirect Shelf (33kW shelves, 50 VDC) |
Rack-level DC power conversion (Compute racks) |
2 |
— |
|
Vertiv™ Liebert® APM2 UPS + Battery Cabinet |
Modular UPS protection; up to 97.5% efficiency |
Optional |
Optional |
|
Vertiv™ rPDU (Switched, outlet-level monitored) |
Intelligent AC power distribution (Storage rack) |
— |
2 |
|
Vertiv™ PowerIT Rack Transfer Switch |
Automatic source transfer for single-corded devices |
2 |
2 |
| THERMAL CHAIN | |||
|
Piping, valve & actuator assemblies |
Facility water loop isolation and flow control |
Comes with support rack |
— |
|
Vertiv™ CoolChip CDU 121 |
Direct-to-chip liquid cooling (121kW per unit) |
3 |
— |
|
Vertiv™ Liebert® DCD47 Rear Door Heat Exchanger |
Supplemental air cooling; 47kW room-neutral per rack |
1 |
1 |
| MONITORING | |||
|
Vertiv™ Avocent® ACS 804 |
Leak detection and response gateway |
1 |
— |
|
Vertiv™ Avocent® RM1048P Rack Manager |
Rack-level device access and management |
2 |
— |
| SERVICES | |||
|
Services & warranty |
Installation, commissioning—including flush and fill—and project management |
Included |
Included |
*NVIDIA DGX Blackwell-based NVL72 provided by NVIDIA
Scope boundary: Vertiv™ SmartIT covers the integrated package. Facility-level power distribution, utility connections, and building infrastructure are outside the solution boundary and addressed through standard site preparation guidance.
