Product Model
Warranty:
Vertiv™ PowerIT Monitored Rack PDU come with a standard five-year limited warranty.
VP4N40A3

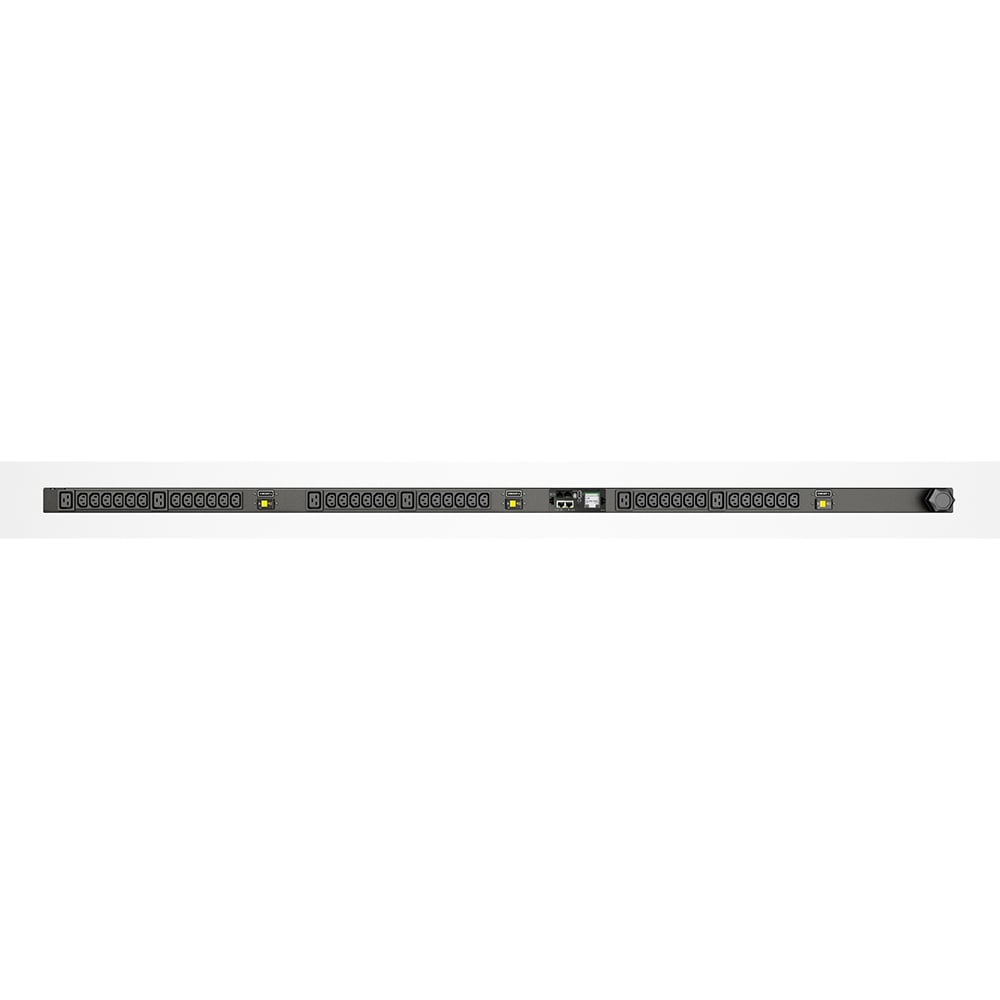

Unit Level Monitored Rack PDU VP4N40A3 is a 35A, 208V Delta 0U vertical with input power monitoring. It has 36 IEC C13 and 6 IEC C19 receptacles and a 3P+E CA providing 10.0 kW of power capacity. The unit is equipped with an environmental sensor port and dual ethernet ports to simplify management of multiple rPDUs with fault-tolerant daisy chaining or IP aggregation capabilities.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Model
VP4N40A3
Unit Level Monitored Rack PDU VP4N40A3 is a 35A, 208V Delta 0U vertical with input power monitoring. It has 36 IEC C13 and 6 IEC C19 receptacles and a 3P+E CA providing 10.0 kW of power capacity. The unit is equipped with an environmental sensor port and dual ethernet ports to simplify management of multiple rPDUs with fault-tolerant daisy chaining or IP aggregation capabilities.
Warranty: Vertiv™ PowerIT Monitored Rack PDU come with a standard five-year limited warranty.Benefits
• Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
• Environmental monitoring capabilities ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
• Upgrade your hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs without having to replace entire power strips.
• U-Lock receptacles available on select units to secure power cords and avoid accidental disconnections.
• Simplify circuit and phase balancing with color-coded receptacles available on select units.
• Monitor power consumption at the outlet-level on select units for a detailed view of power distributed to specific equipment with the outlet level option.
• Every unit is 100% tested for reliability and functionality to ensure units function as designed.
• North American units are UL listed in accordance with common data center and insurance provider requirements.
• All Vertiv PowerIT rPDUs come with a standard 5-year limited warranty.
• Save time and money by pre-integrating rPDUs with the VR Rack. Contact your local sales representative to get started.
Features
• Hot-Swappable and upgradeable monitoring device.
• Local and remote power monitoring with accuracy of +/- 1% (ANSI & IEC Standards).
• Environmental monitoring with the addition of optional sensors.
• High Temperature Grade 60°C for high temperature environments.
• Color-coded U-Lock receptacles by circuit for instant identification on select units.
• Available in vertical and horizontal rackmount form factors.
• Flexibility to meet a broad range of requirements, with a variety of electrical and receptacle configurations available.
• Simple and quick installation in all standard racks or cabinets with included mounting brackets.
• TAA Compliant
• The LCD touchscreen of the IMD-5M auto-orients for both vertical and horizontal units.
• Enhanced with Secure Boot, the Hardware key and Firmware key must match to boot up.
• When connected with another rPDU via a redundant power cable, the IMD-5M remains powered when the rPDU loses power.
Specifications
VP4N40A3
- Product Overview
- Capacity
- 35A
- Input Voltage Range
- 208V DELTA
- Output Voltage Range
- 208V DELTA
- Output Options
- (36) C13 / (6) C19
- Location
- Rack
- Management
- Listings
- RoHS, UL & c-UL Listed 60950, FCC Part 15 Class A
