Product Family

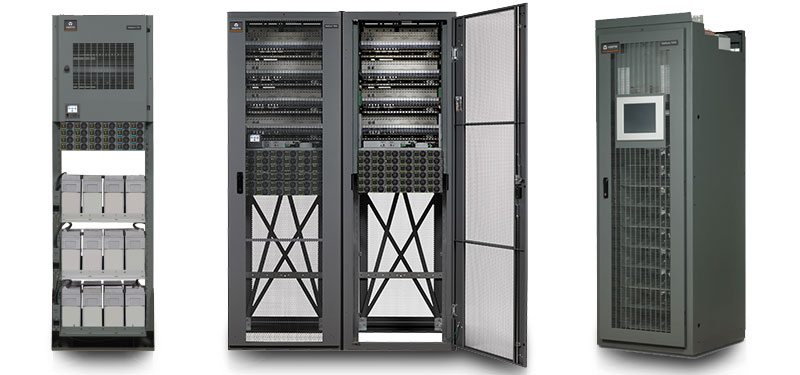

NetSure 7000 Series for Core / Edge

The NetSure 7000 Series of DC power systems is ideal for applications ranging from radio base stations and small offices to large office and data center facilities requiring high power efficiency, reliability and system availability in a small footprint.

Get Brochure Get Manual
Best Suited For:
  • Telecom
  • Data Center/Colocation/Hosting
  • Government

Model Specifications Overview
Email

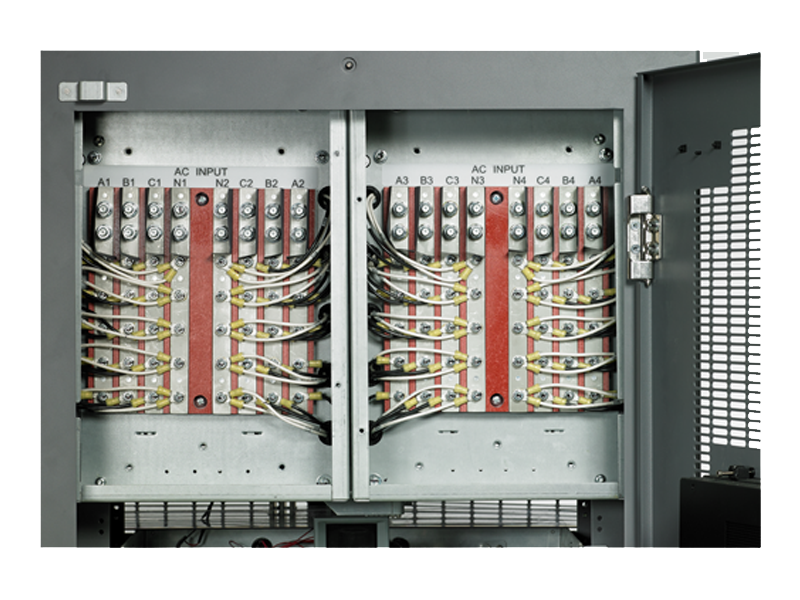

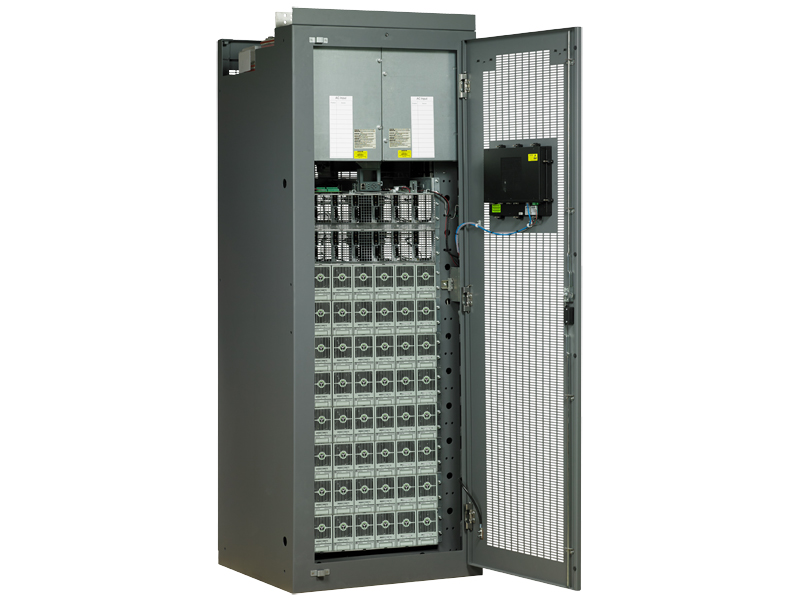

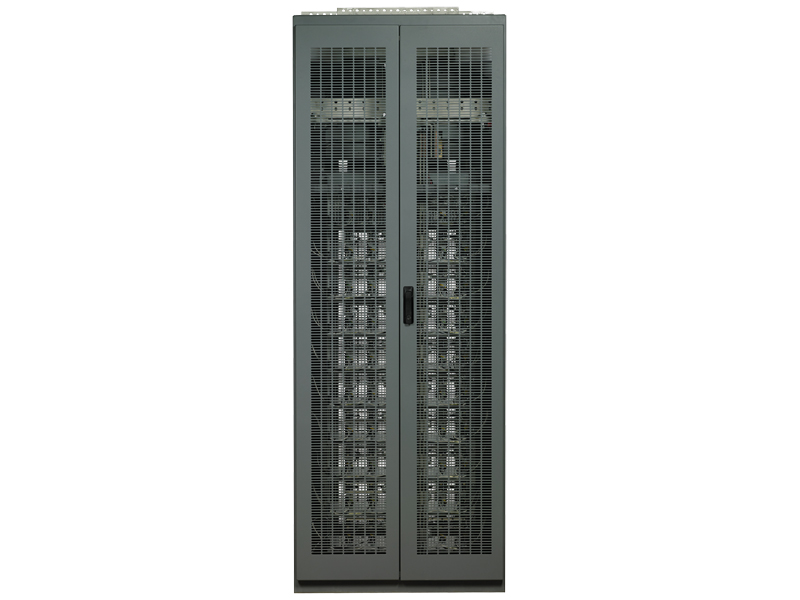

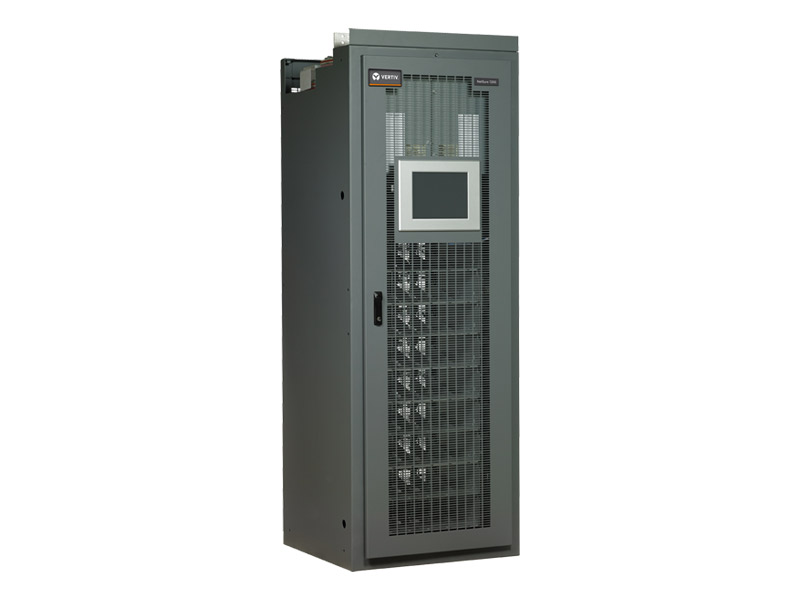

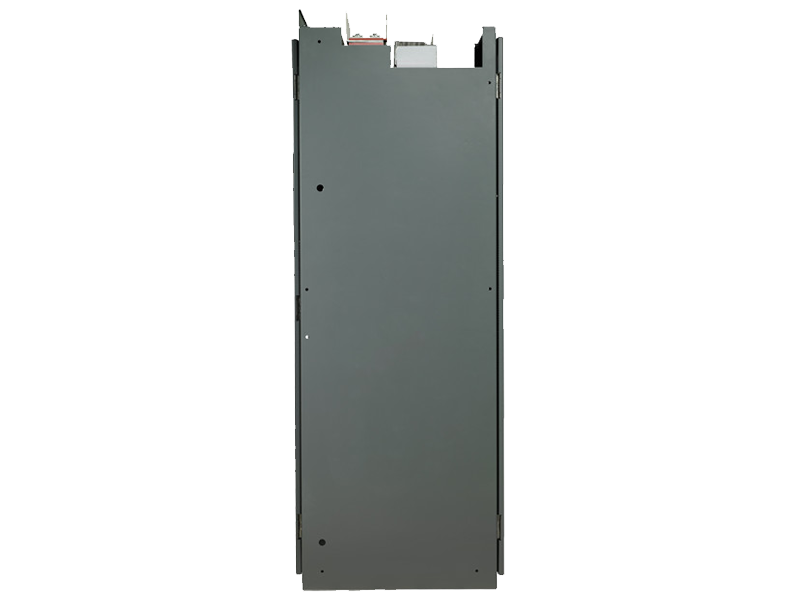

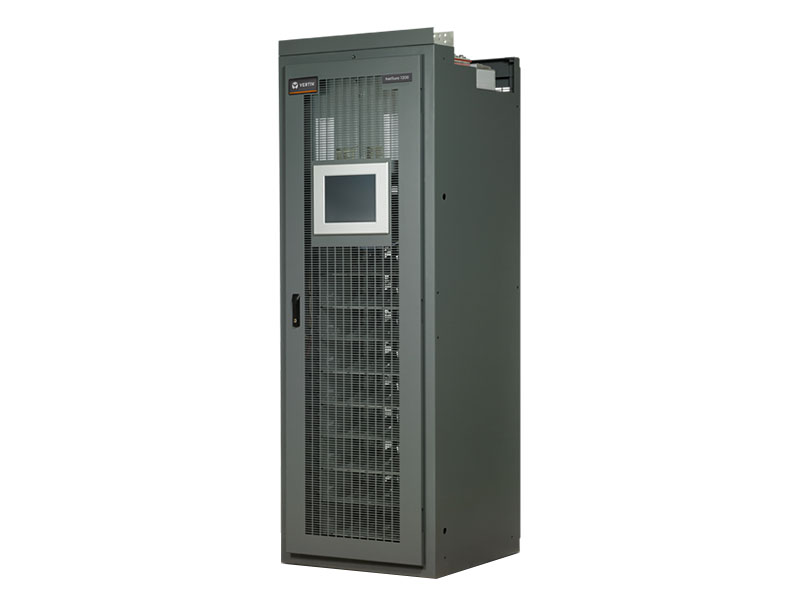

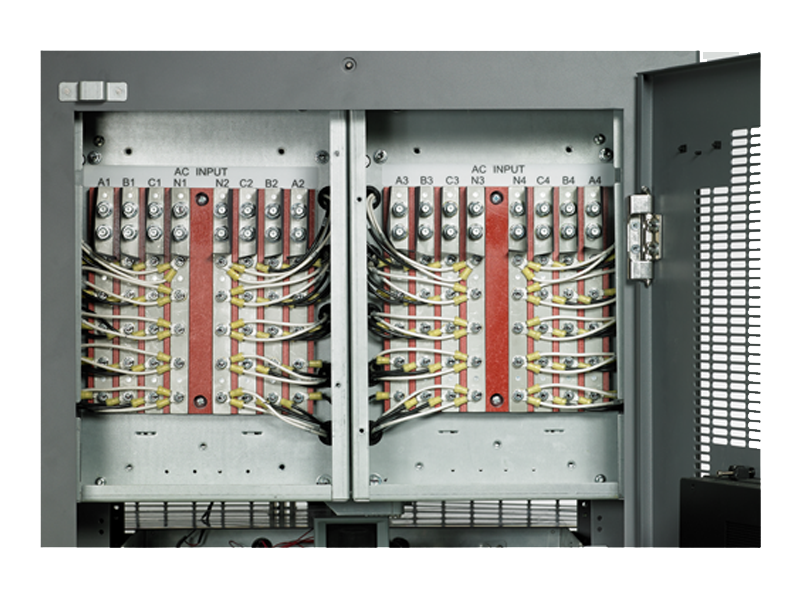

NetSure 7200 Series
600 kW   12,000 A   -48 VDC   208/240 or 277/480 VAC   Cabinet   84"   30"- 240"   30"   975-1225 lbs

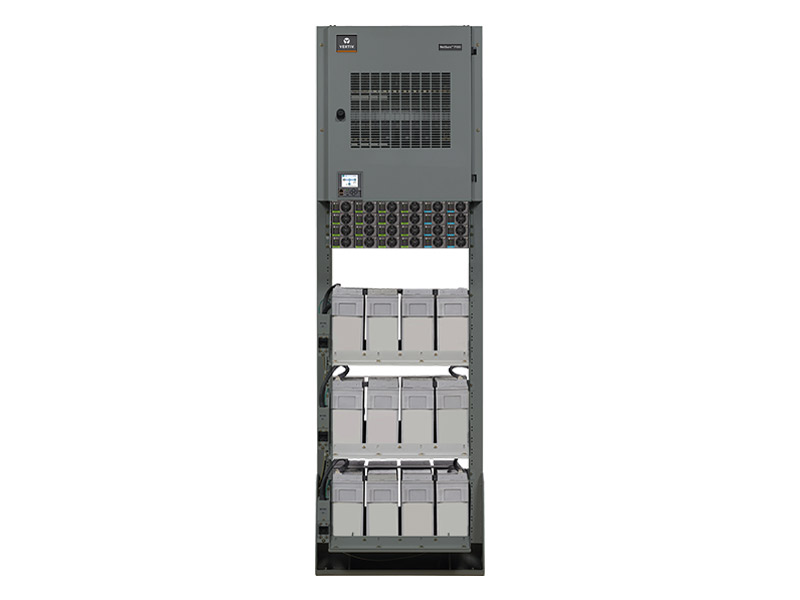

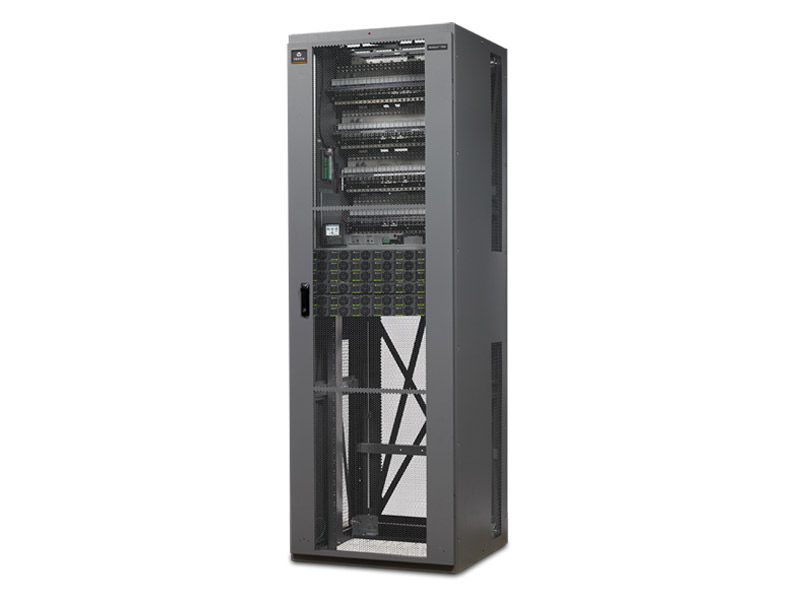

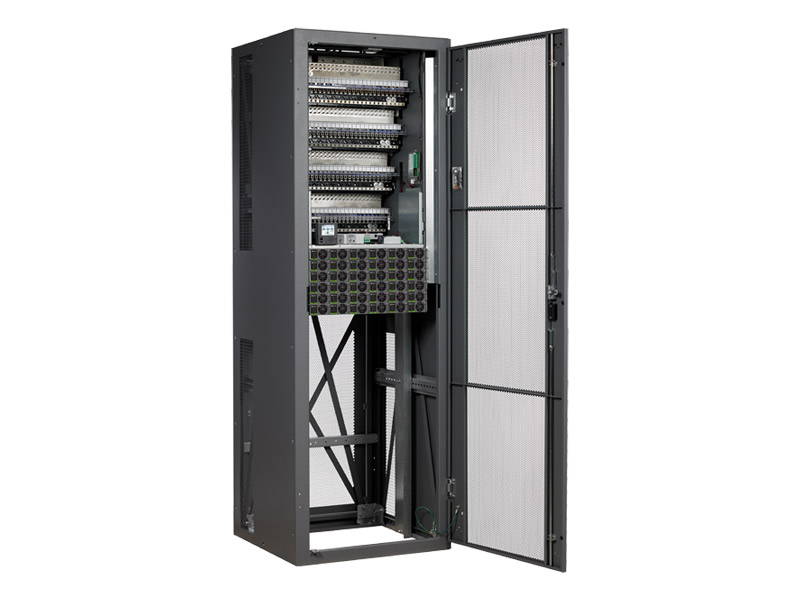

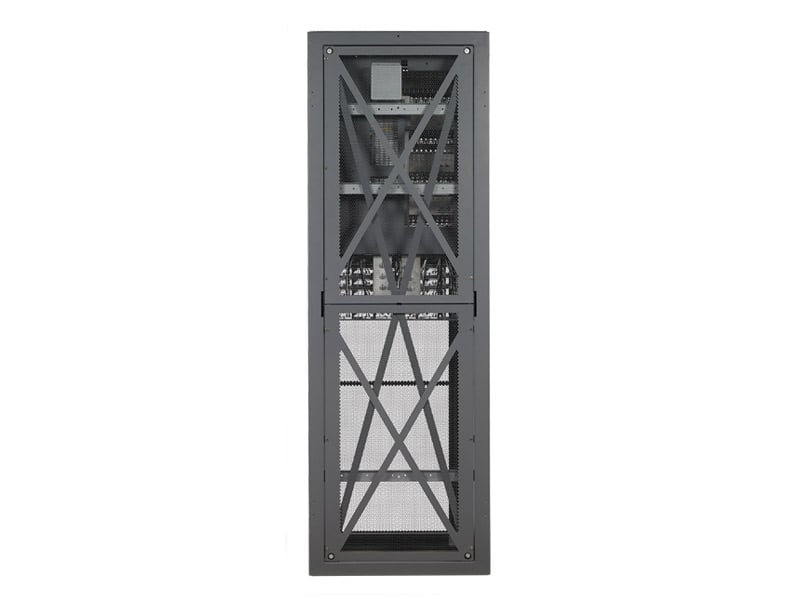

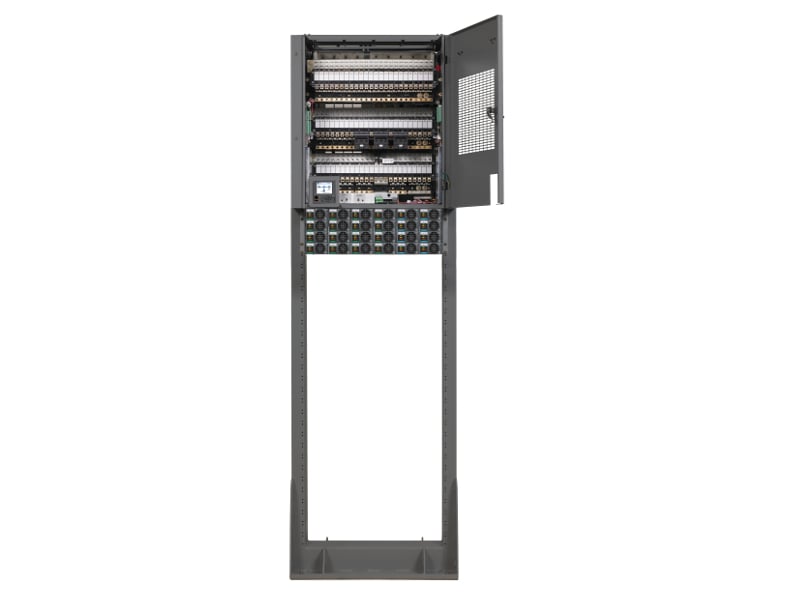

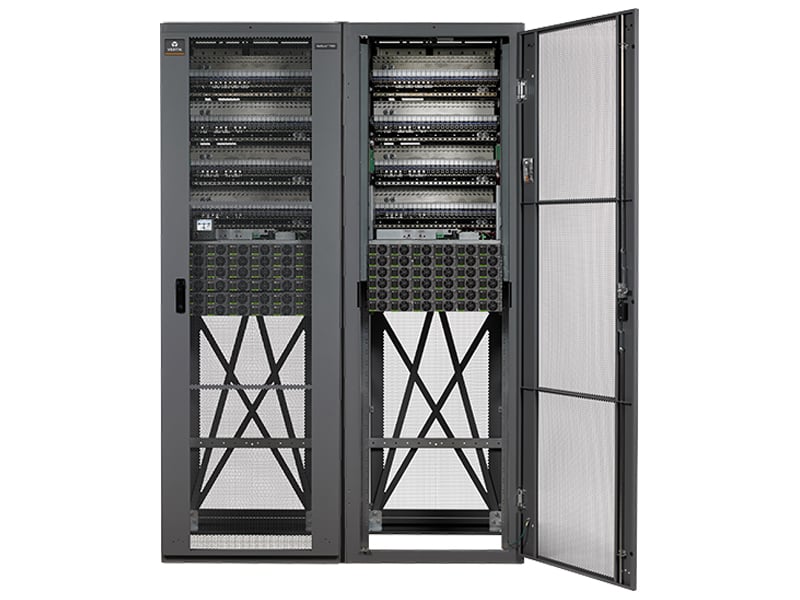

NetSure 7100 Series
600 kW (6 bays)   12,000 A (6 bays)   -48 VDC, +24 VDC, -58 VDC   208 VAC to 277/480 VAC   Cabinet or Relay Rack   84"   23" to 28"   20.1" to 28"   200 to 650 lbs.

Benefits

Optimized total cost of ownership Safe and simple to install and operate Enhanced real-time visibility into what's powering your network Includes DHCP Ethernet connection and local access via an additional port with a default IP address Meets strict agency standards for safety and reliability Reduce energy cost with high-efficiency eSure rectifiers Low initial investment with scalable configuration thatallows for incrementalsystem growth High reliability with N+1 configuration redundancy

Features

Advanced controller offers battery management, AC service monitoring, site monitoring and configuration management Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3) Dual Ethernet port option Modular design with hot-swappable rectifiers and distribution units High system efficiency over 96% Multi-bay configurations Multiple AC input configurations NEBS Level 3 certified andUL Listed to UL subject 1801

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
