Product Model

NetSure 7200 Series

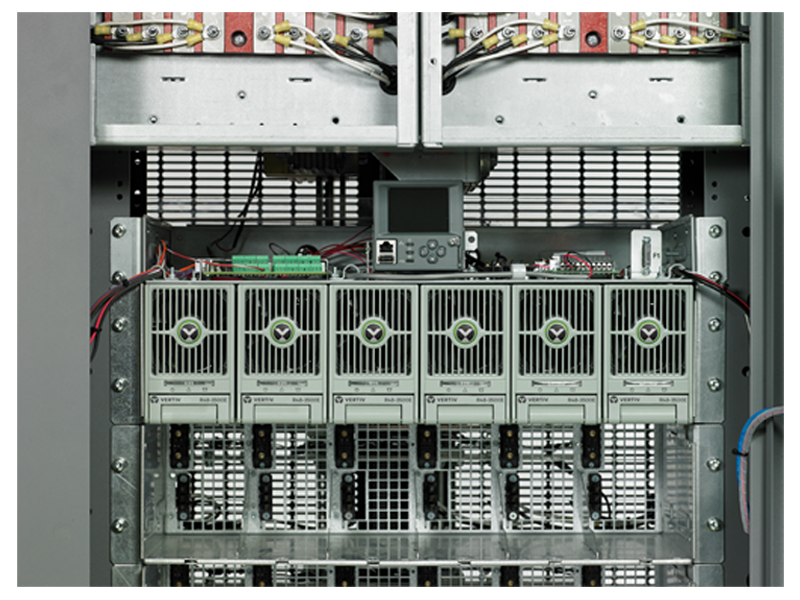

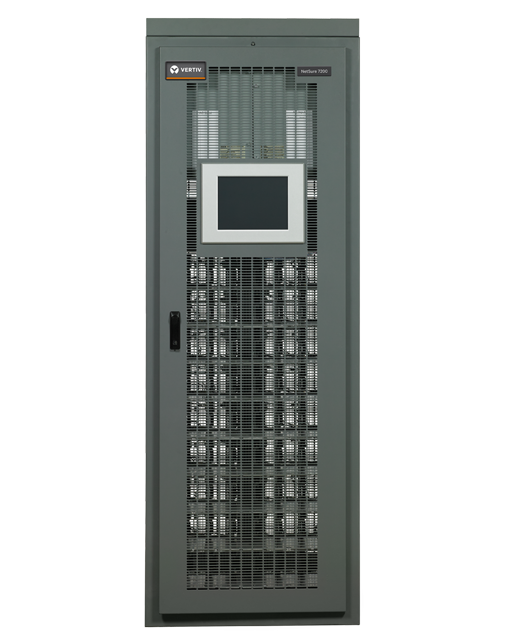

The NetSure™ 7200 DC power system is an efficient and reliable multi-bay power system that delivers intelligent control, metering and monitoring. The foundation of the system is a patented, proven 3.5kW eSure™ rectifier, featuring high frequency switching technology in a compact package. The flexible and modular design of this series enables deployment in a variety of site configurations and allows for scalable buildouts to match capacity to demand.

Get Brochure Get Manual
Best Suited For:
  • Telecom
  • Data Center/Colocation/Hosting
  • Government

Benefits

Alt Text Image
Optimized total cost of ownership
Safe and simple to install and operate
Enhanced real-time visibility into what's powering your network
Includes DHCP Ethernet connection and local access via an additional port with a default IP address
Meets strict agency standards for safety and reliability
Reduce energy cost with high-efficiency eSure rectifiers
Low initial investment with scalable  configuration that allows for incremental system growth
High reliability with N+1 configuration redundancy

Features

Alt Text Image
Advanced controller offers battery management, AC service monitoring, site monitoring and configuration management
Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3)
Dual Ethernet port option
Modular design with hot-swappable rectifiers and distribution units
High system efficiency over 96%
Multi-bay configurations
Multiple AC input configurations
NEBS Level 3 certified and UL Listed to UL subject 1801

NetSure 7200 Series
Product Overview
Power Capacity
600 kW
Current Capacity
12000 A
System Type
Cabinet
Input
Input Voltage, Nominal
208/240 or 277/480 VAC
Input Voltage, Operational
176 to 305 VAC
Input Connections
Terminal Strip
Access
Rear
Output
Output Voltage, Nominal
48 VDC
Output Voltage, Operational
42 to 58 VDC
Output Capacity
System 12000 amps; Bay 4000 amps (48VDC); Rectifier 3500 W (R48-3500e)
Peak Efficiency
96.2%
Load Circuit Breakers / Fuses
TPS/TLS, TPL, TPH Fuses; GJ/218, Bullet Circuit Breakers
Physical Characteristics
Weight
975-1225 lbs
Weight
442-555 kgs
Height
84"
Height
2134 mm
Width
30"- 240"
Width
762 - 6096 mm
Depth
30"
Depth
762 mm
Environmetal & Standard Compliance
Control and Monitoring
Dual Ethernet Embedded web pages, SNMP, Modbus;Programmable Relay Outputs and Binary Inputs
Operating Temperature
0°C to +40°C (+32°F to +104°F)
Safety Compliance
Power Bay; UL 60950 Listed (“c UL”), NEBS; Distribution Bay UL 1801 Listed (“c UL”), NEBS
EMC Compliance
FCC Class B

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
