Vertiv™ PowerSwitch 7000 Static Transfer Switch

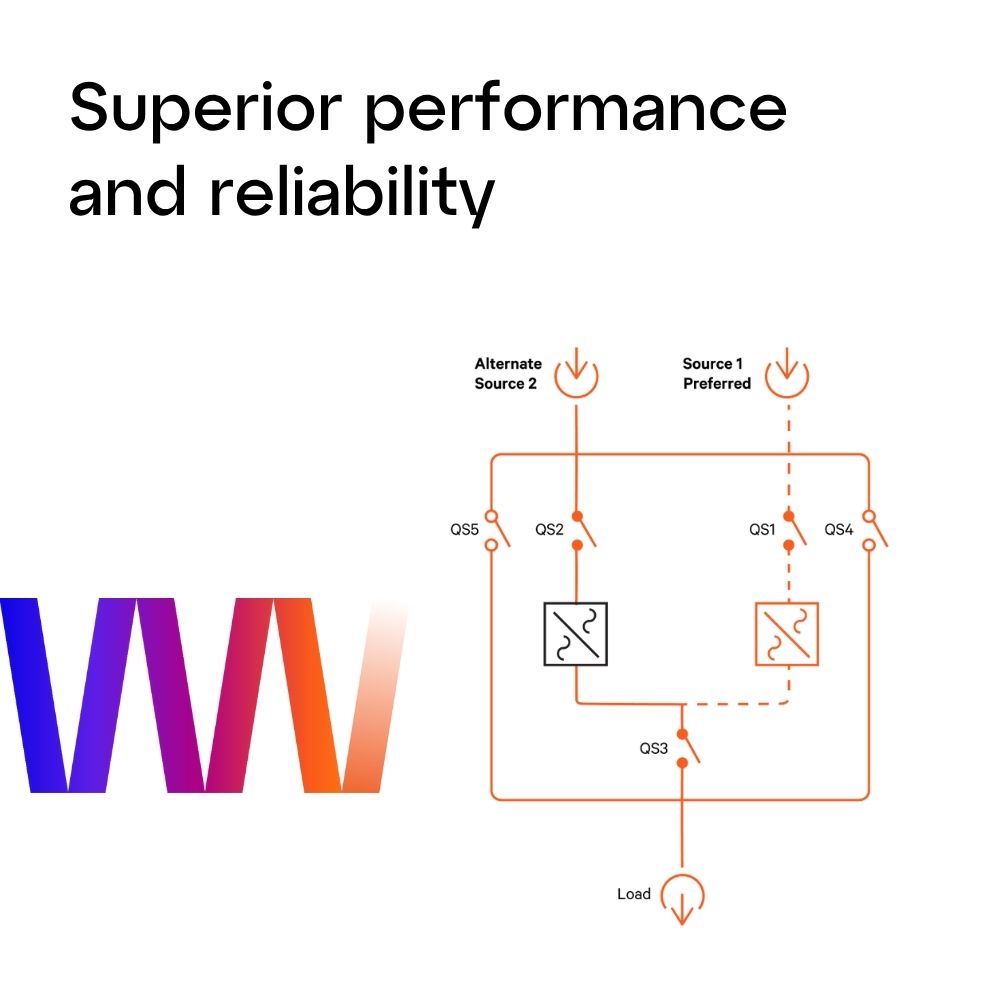

Introducing a next-generation state of the art static transfer switch, Vertiv™ PowerSwitch 7000, with an innovative design and enhanced monitoring capability including waveform capture. For maximum availability applications, Vertiv™ PowerSwitch 7000 provides an automatic seamless transfer between your critical load and the outputs of two independent UPS systems in a dual-bus power configuration. If the primary UPS should fail, the switch will automatically transfer the loads to the alternate UPS.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications
The Vertiv™ PowerSwitch 7000, a space-efficient and highly reliable next-generation static transfer switch, simplifies the protection of your critical equipment. It provides single cords with the reliability of dual cord power or adds redundancy to dual cord devices. This compact unit offers automatic switching between two different AC power sources and is available in 160A, 250A, 400A, and 630A systems, in both 60Hz and 50Hz, with multiple input voltages. Designed for dual-bus power applications, it combines fast switching, power isolation, monitoring, and grounding into a single, efficient package.
Benefits
Features
Find Your Area Contact
Products Support Contacts
Change
| Models | Ampere Size | Voltage | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) | Height (in) | Width (in) | Depth (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| Vertiv™ PowerSwitch 7000 - 160A | 160 amps | 380/400/415V | 2000 | 915 | 830 | 477.22 | 78.7 in | 36 in | 32 in | 1052 lbs |
| Vertiv™ PowerSwitch 7000 - 240A | 240 amps | 380/400/415V | 2000 | 915 | 830 | 477.22 | 78.7 in | 36 in | 32 in | 1052 lbs |
| Vertiv™ PowerSwitch 7000 - 400A | 400 amps | 380/400/415V | 2000 | 915 | 830 | 477.22 | 78.7 in | 36 in | 32 in | 1052 lbs |
| Vertiv™ PowerSwitch 7000 - 630A | 630 amps | 380/400/415V | 2000 | 915 | 830 | 477.22 | 78.7 in | 36 in | 32 in | 1052 lbs |
