Product Model

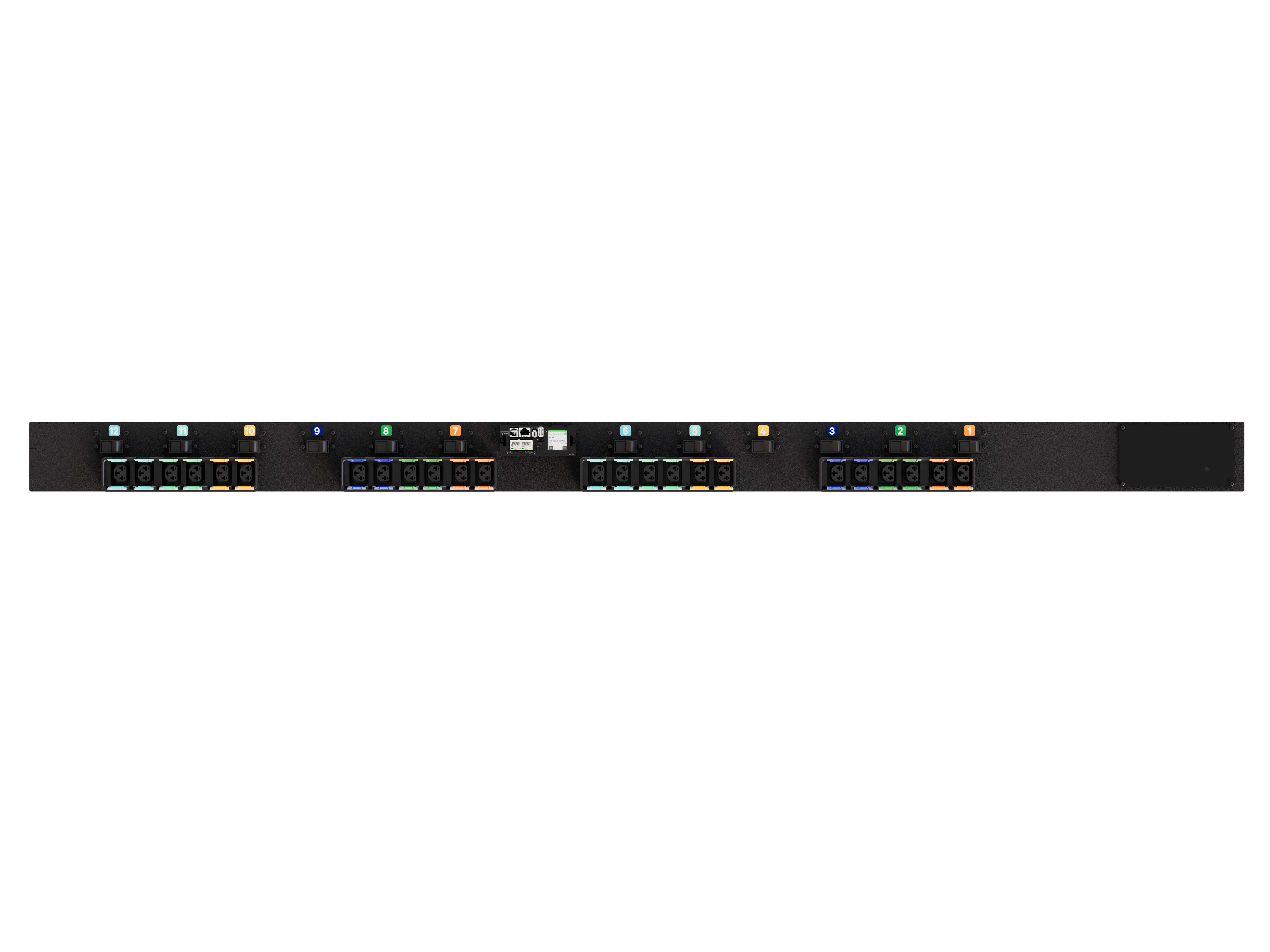

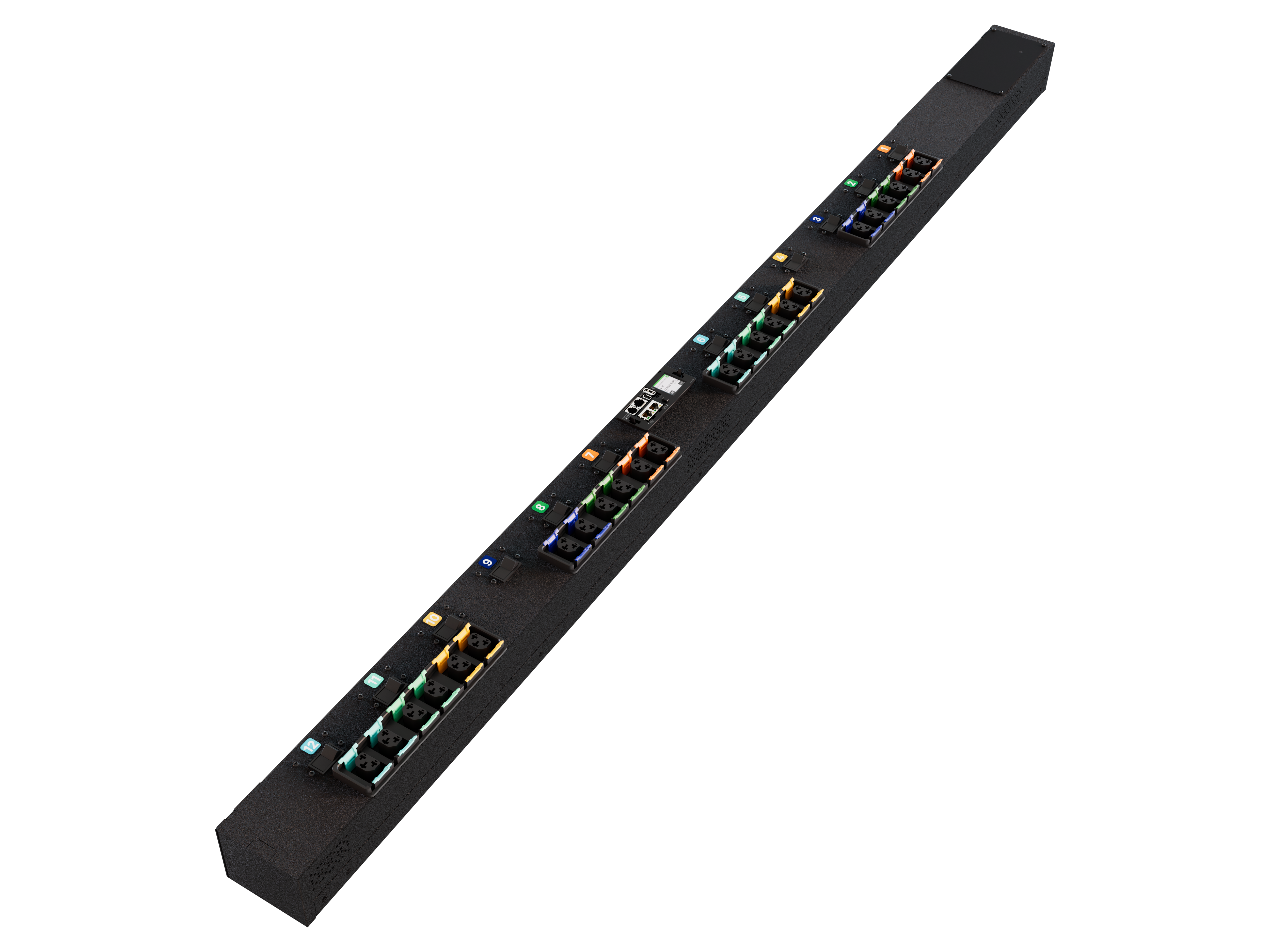

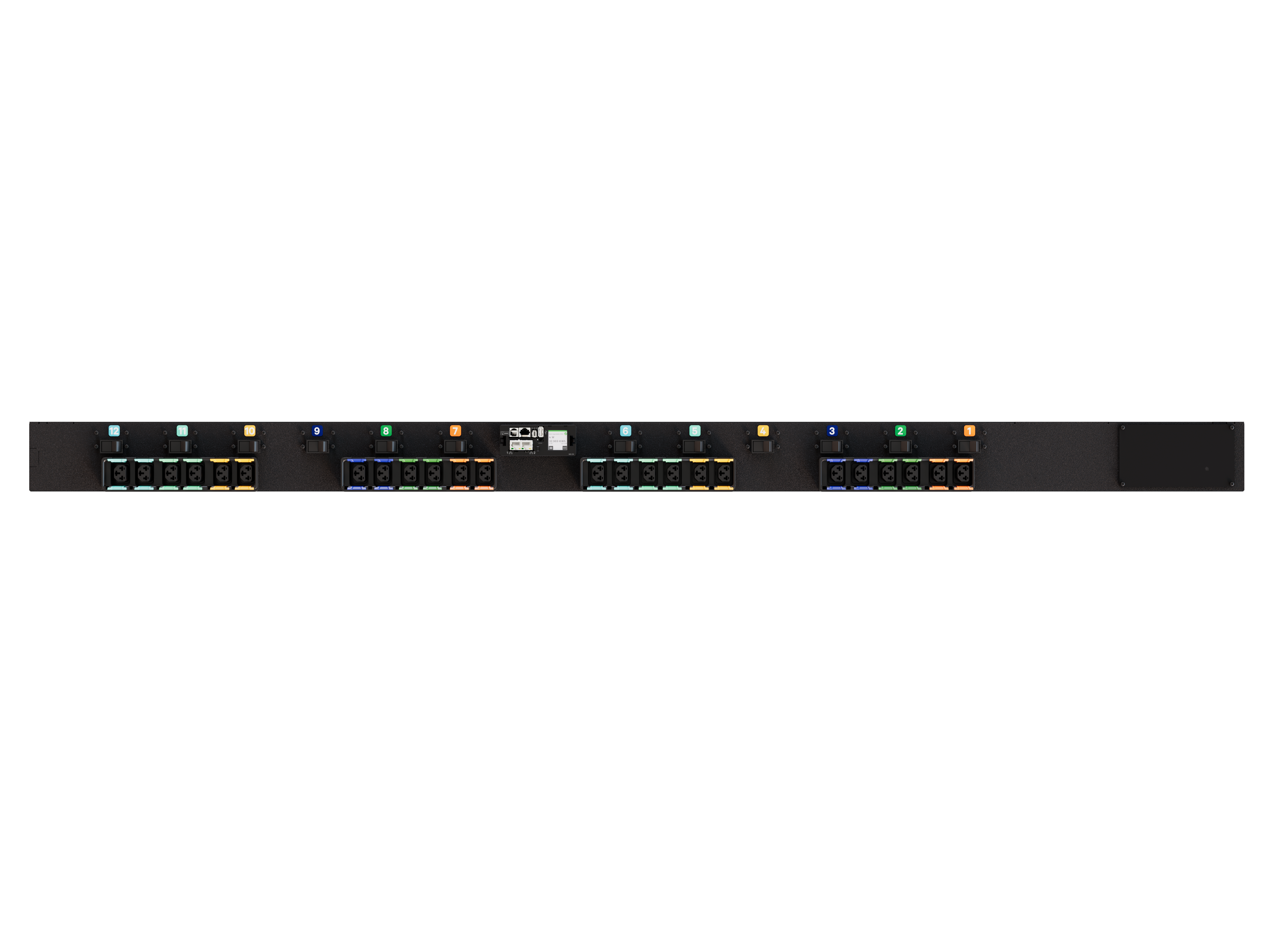

Vertiv PowerIT HD rPDU VP7NA0A0

The Vertiv PowerIT Switched Outlet Level Monitored HD rPDU VP7NA0A0 is an upgradeable, 80A, 1~ 240V/3~ 208V, 0U, vertical rPDU with input monitoring and outlet level monitoring and switching, 24 Combination C13/C19 outlets, and a hardwired input plug providing 28.8kW of power capacity. This unit allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment.

Find Sales Contact

Key Benefits

UPGRADEABLE TECHNOLOGY: The hot-swappable Interchangeable Monitoring Device (IMD-5M) allows users to upgrade and enhance security as technology advances and business needs change. OUTLET FLEXIBILITY: The combination C13/C19 receptacle can be used to connect both C14 and C20 plugs interchangeably. SECURED OUTLETS: The Combination C13/C19 receptacle has high-retention, color-coded outlets that are P-Lock cable compatible. "SIMPLIFIED REMOTE MANAGEMENT: With Vertiv Intelligence Director, users can daisy chain up to 50 devices on a single IP address, streamlining deployment with self-configuration of downstream devices." FIVE-YEAR WARRANTY: All Vertiv PowerIT HD rPDU units come with a default three-year warranty which can be extended to five years if the units are registered within 120 days of purchase.

Best Suited For:

Data Center/Colocation/Hosting

Product Model

Vertiv PowerIT HD rPDU VP7NA0A0

Find Sales Contact

Key Benefits

Best Suited For:

Data Center/Colocation/Hosting

Benefits

Enhanced Intelligence: With advanced monitoring and management, users have a comprehensive view of critical IT equipment power usage either at the rack or via remote access. Users can also power cycle unresponsive IT equipment remotely with select switched RTS models. You can set thresholds to receive alarms when power conditions fall outside the desired range for added protection. Outlet Control: Address unresponsive equipment or increase runtime of critical equipment upon power failure with outlet-level control. 100% Tested: Individually tested, functional, and reliable Vertiv PowerIT HD rPDU units meet local compliance requirements: UL, RoHS, China RoHS, and TAA Five-Year Warranty: All Vertiv PowerIT HD rPDU units come with a default three-year warranty which can be extended to five years if the units are registered within 120 days of purchase

Features

Upgradable Technology: The Vertiv PowerIT rPDUs equipped with the upgradeable Interchangeable Monitoring Device (IMD) allow you to upgrade your monitoring technology as the needs of your business evolves. The IMDs are hot-swappable so scheduled downtime is not required for an upgrade. Outlet Flexibility: Select models in the Vertiv Geist rPDU product line are equipped with the Combination Outlets C13/C19. These hybrid outlets function as both a C13 and C19 receptacle. The outlets accommodate both C14 and C20 plug types interchangeably, providing you the flexibility to support common critical IT equipment using just a single rack PDU. Simplified Management: Daisy-chain up to 50 devices on a single IP address with Vertiv Intelligence Director. Reduce deployment time with self-configuration of downstream devices. Easy-to-Use Front Panel: The rPDU has an easy-to-use front panel that provides visual identification of the active power source for easy monitoring. It also allows users to do a manual transfer of the power source. The transfer can be done either by touch of a button or remotely, so users have options on how to manage power loads during maintenance or emergency power loss.

Print Download Email

Vertiv PowerIT HD rPDU VP7NA0A0

Physical Characteristics

Weight: 22

Width: 3.8

Depth: 3
