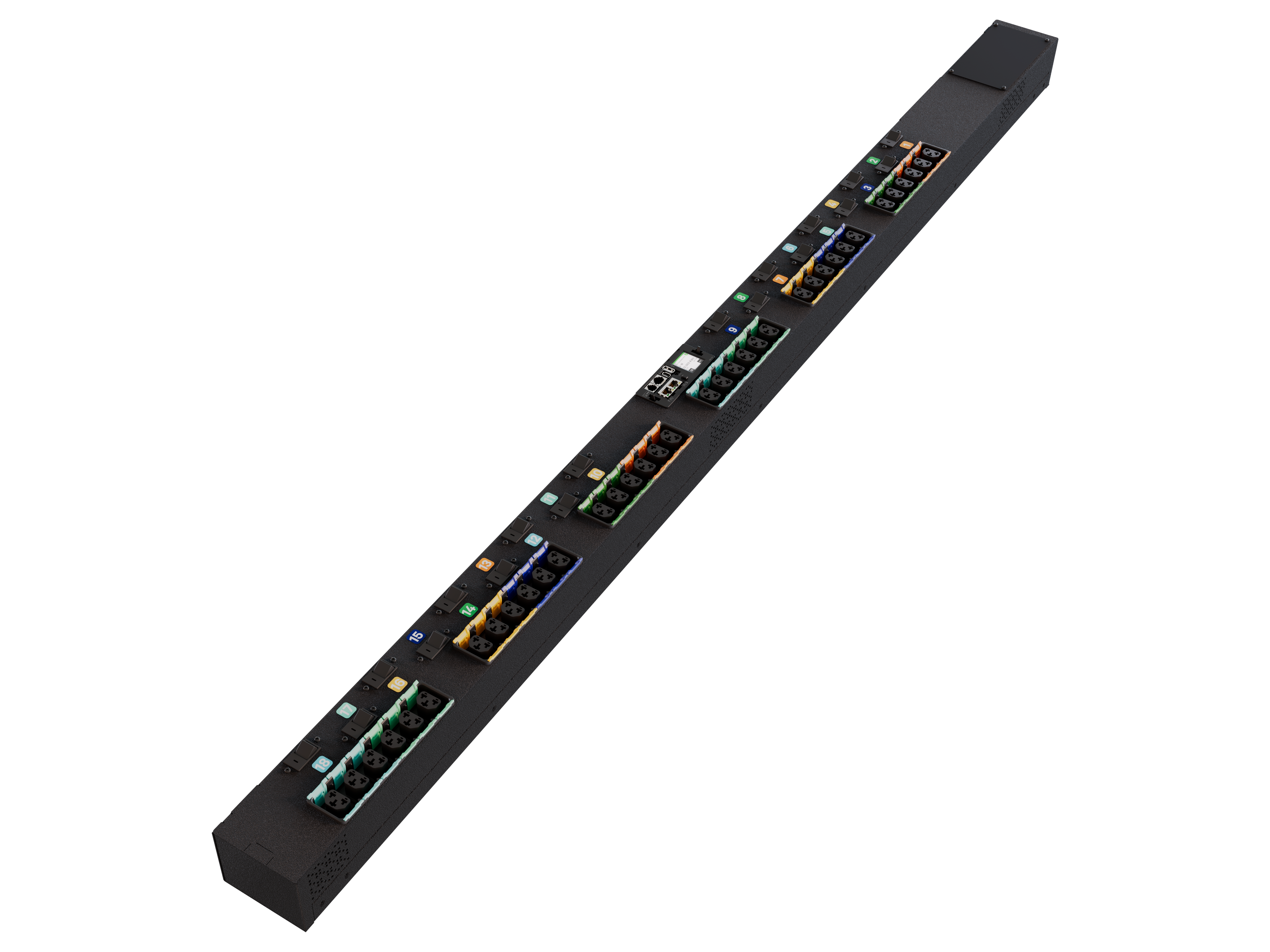

The Vertiv PowerIT Monitored VP4UA0A1 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring, 36 Combination C13/C19 outlets, and a hardwired input plug with 57.6kW power capacity. It has a hot-swappable Interchangeable Monitoring Device (IMD-5M) for serial communication and environmental monitoring and dual gigabit ethernet ports to simplify multiple-PDU management.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Retail and Wholesale
- Transportation
VP4UA0A1

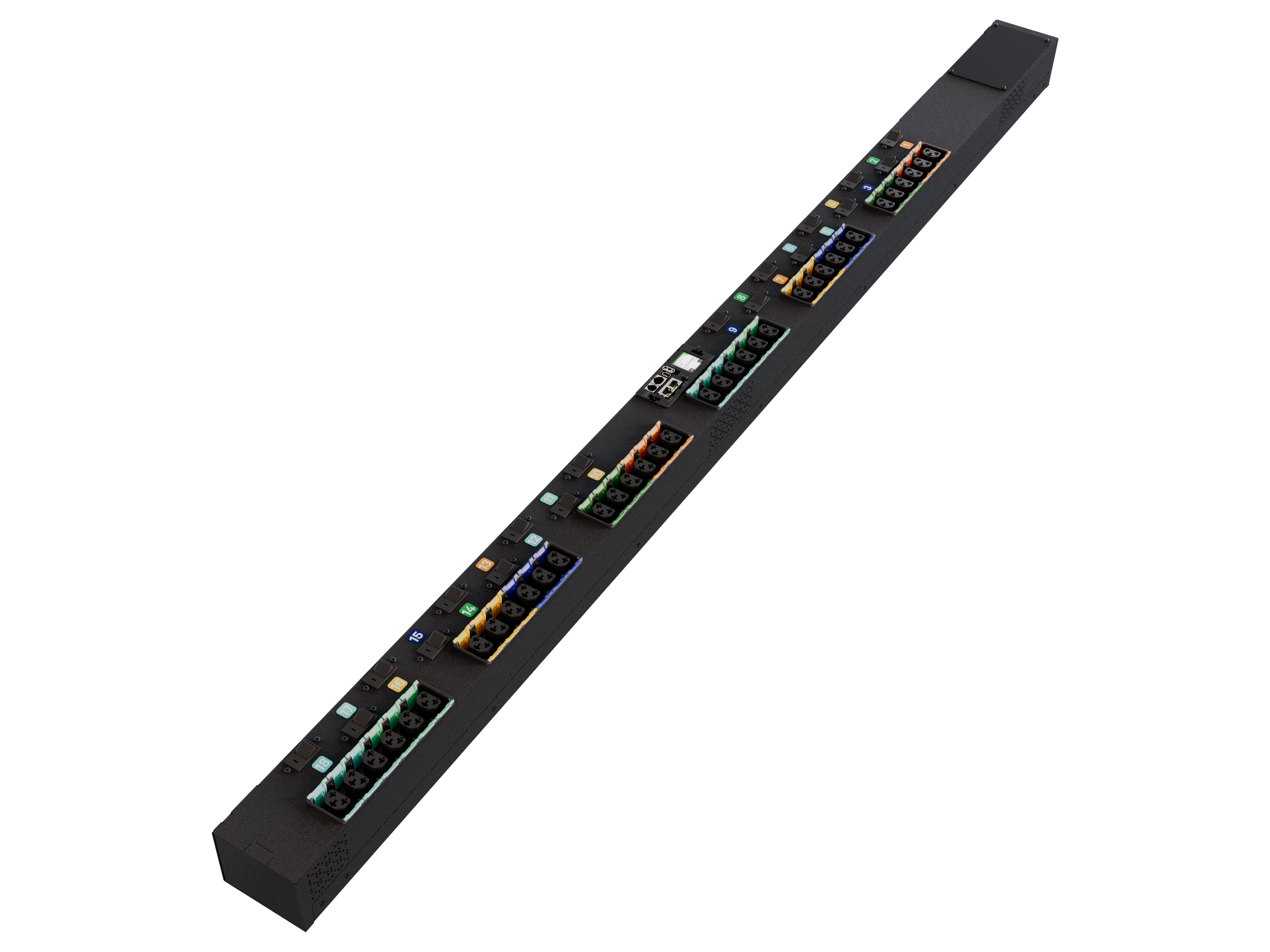

The Vertiv PowerIT Monitored VP4UA0A1 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring, 36 Combination C13/C19 outlets, and a hardwired input plug with 57.6kW power capacity. It has a hot-swappable Interchangeable Monitoring Device (IMD-5M) for serial communication and environmental monitoring and dual gigabit ethernet ports to simplify multiple-PDU management.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Retail and Wholesale
- Transportation
Benefits
Features
Specifications
Vertiv™ PowerIT Monitored rPDUs are built for adaptable deployment, offering diverse outlet types, plug options, chassis colors, and cord lengths to accommodate a wide range of rack environments. Designed to support an extensive spectrum of power architectures, models include standard configurations, high density options, and high-capacity units. With broad global voltage compatibility and durable construction, it’s easy to align each rack with the right power configuration.
- Product Overview
- Capacity
- 80A
- Input Voltage Range
- Hardwired Input
- Output Voltage Range
- 240/415V WYE
- Output Options
- '(36) Combination Outlet C13/C19
- Location
- Vertical
- Physical Characteristics
- Weight
- 19
- Width
- 3.8
- Depth
- 3
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
