Vertiv™ PowerIT Basic rPDU – Configurable Rack Power
The Vertiv™ PowerIT Basic rack PDUs (rPDUs) deliver reliable, space-saving power distribution for a wide range of IT environments, with configurations supporting standard, high-density, and high-capacity applications. These high-capacity models provide significantly greater power delivery for racks supporting advanced compute, AI, or other growing power demands. Every unit is 100% tested for functionality and reliability and comes with a standard five-year limited warranty.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Retail and Wholesale
- Transportation
Specifications
Vertiv™ PowerIT Basic rPDUs are built for adaptable deployment, offering diverse outlet types, plug options, chassis colors, and cord lengths to accommodate a wide range of rack environments. Designed to support an extensive spectrum of power architectures, models include standard configurations, high density options, and high-capacity units. With broad global voltage compatibility and durable construction, it’s easy to align each rack with the right power configuration.
|

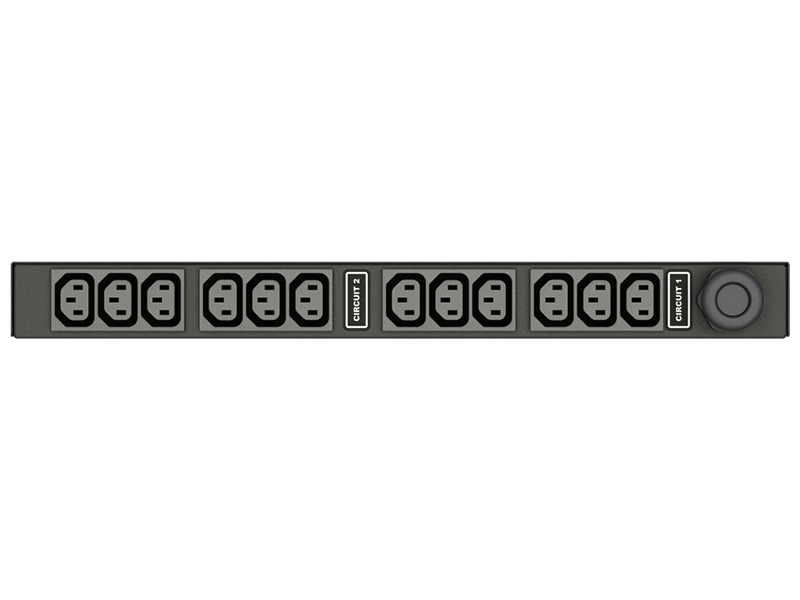

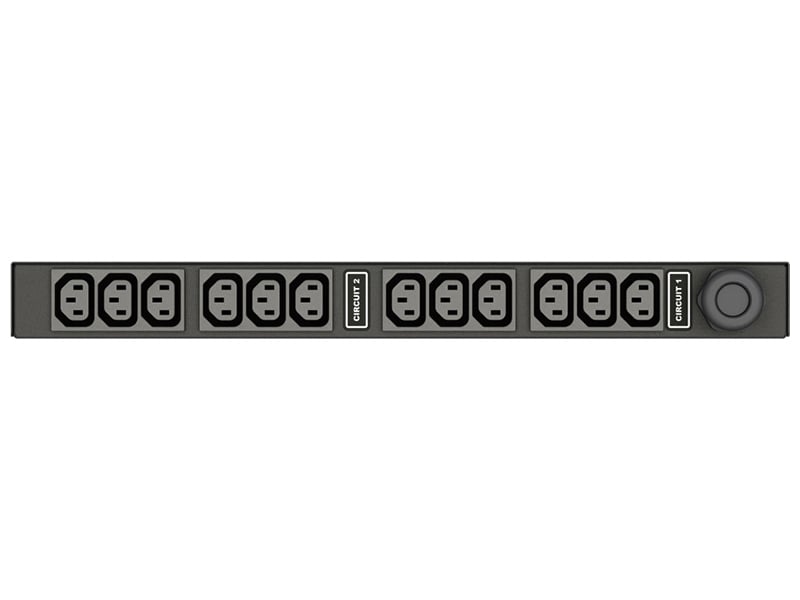

Vertiv™ PowerIT Basic rPDU – 200-240V, 30A, VP9571A
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 30A | 200-240V | 200-240V | 12 IEC C13 | Horizontal | 1.72 in | 17 in | 6.5 in | 8 lb |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 100-120V, 15A, VP9567
|
||||||||
| 15A | 100-120V | 100-120V | 14 NEMA 5-15R | Vertical | 24 in | 1.61 in | 1.61 in | 5 lb |
| See more product information | ||||||||
|

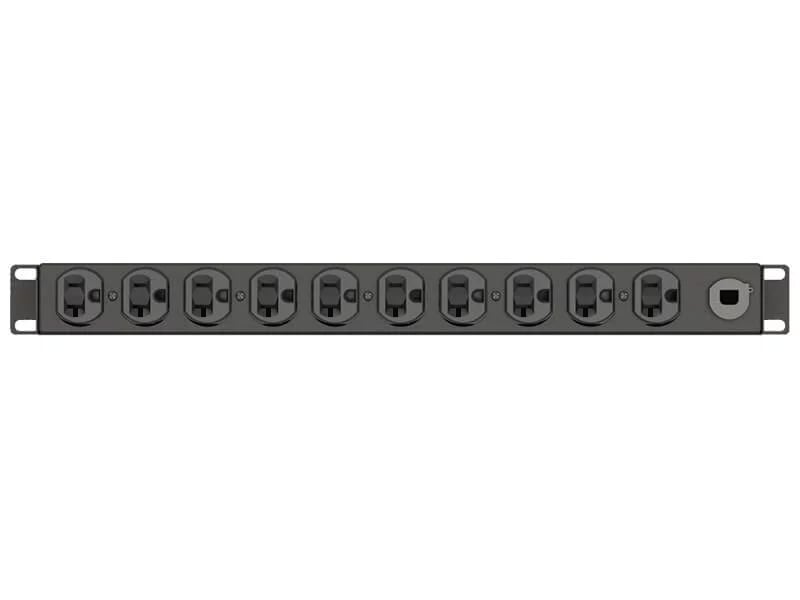

Vertiv™ PowerIT Basic rPDU – 100-120V, 20A, VP9563
|
||||||||
| 20A | 100-120V | 100-120V | 10 NEMA 5-20R | Horizontal | 1.72 in | 17 in | 3.5 in | 6 lb |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 100-120V, 15A, VP9562
|
||||||||
| 15A | 100-120V | 100-120V | 10 NEMA 5-15R | Horizontal | 1.72 in | 17 in | 3.75 in | 6 lb |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 200-240V, 30A, VP7541
|
||||||||
| 30A | 200-240V | 200-240V | 20 IEC C13 4 IEC C19 | Vertical | 66.25 in | 2 in | 2 in | 17 lb |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 100-120V/200-240V, 30A, VP0N3100
|
||||||||
| 30A | 100-120/200-240V | 100-120/200-240V | 12 Combination C13/C19 4 NEMA 5-20R | Horizontal | 1.72 in | 17 in | 8.5 in | 15 lb |
| See more product information |
Benefits
- STABLE CRITICAL POWER: The Vertiv™ PowerIT basic rPDU provides stable, continuous power delivery to keep mission-critical IT equipment systems operating without interruption.
- 100% TESTED: Each unit is individually tested for full functionality and adherence to ETL, RoHS, and TAA.
- SAFETY COMPLIANCE: North American units are UL listed in accordance with common data center and insurance provider requirements.
- RAPID DEPLOYMENT: Save time and money by pre-integrating Vertiv™ PowerIT rPDUs with the VR Rack. Contact your local sales representative to get started.
Features
- HIGH-DENSITY READINESS: Select Vertiv™ PowerIT basic rPDUs are designed for IT, AI, and HPC loads up to 66.4 kVA.
- FLEXIBLE CONFIGURATION OPTIONS: It delivers versatile power distribution with a broad range of outlet types (C13, C19, C13/C19, NEMA, SAF-D-GRID) and comes in both horizontal and vertical form factors.
- UPGRADABLE DESIGN: Vertiv™ PowerIT Basic upgradable rPDUs allow you to add monitoring capabilities, leveraging Vertiv’s upgradable architecture to adapt as requirements evolve.
- QUICK SETUP: It enables simple, fast installation in any standard rack or cabinet using the included mounting brackets.
- WARRANTY & CERTIFICATIONS: Each Vertiv™ PowerIT Basic rPDU includes a 5-year limited warranty and is TAA-compliant.
- BROAD COMPATIBILITY: The Vertiv™ PowerIT Basic rPDUs fit all industry-standard racks and support major global volage and amperage combinations for easy integration with Vertiv’s wider power chain.
