NetSure 710 DC Power System
NetSure 710 DC Power System
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
Product
NetSure 710 DC Power System
NetSure 710 DC Power System
Best Suited For:
- Telecom
Benefits
Simple to install and operate allows incremental cost-effective system growth
Enhanced real-time visibility into what's powering your network
Add power capacity without changing the settings and making adjustments no system interruption
Allows for easy installation, additions and maintenance
Save floor space with this high density, compact design
Adherence to strict compliance standards ensures years of safe and reliable operation
Features
Scalable, modular design
Advanced controller – offers battery management, AC service monitoring, site monitoring and configuration management
Remote access – options allow users to view, control and interact with the system using an Ethernet interface
Plug'n'play rectifiers and converters
Front accessible high density, compact design
NEBS Level 3 certified UL Listed to UL subject 1801, FCC Class B
Specifications
NetSure 710 DC Power System
- Product Overview
- Power Capacity
- 50 kW
- Current Capacity
- 2000 A
- Output Voltage, Nominal
- +24 VDC
- Input Voltage, Nominal
- +24 VDC
- System Type
- System
- Input
- Input Voltage, Nominal
- +24 VDC
- Input Voltage, Operational
- 180 VAC to 264 VAC
- Input Connections
- Terminal Blocks
- Equipment Dimensions (H x W x D)

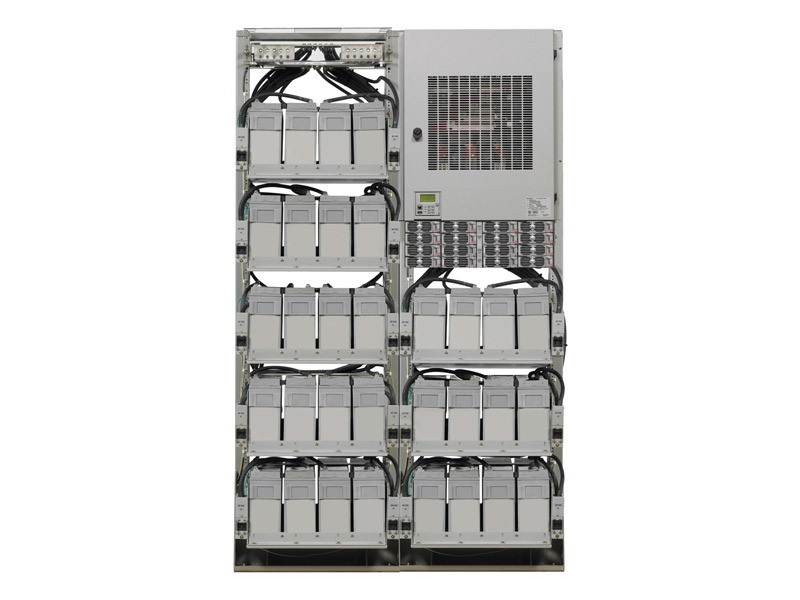

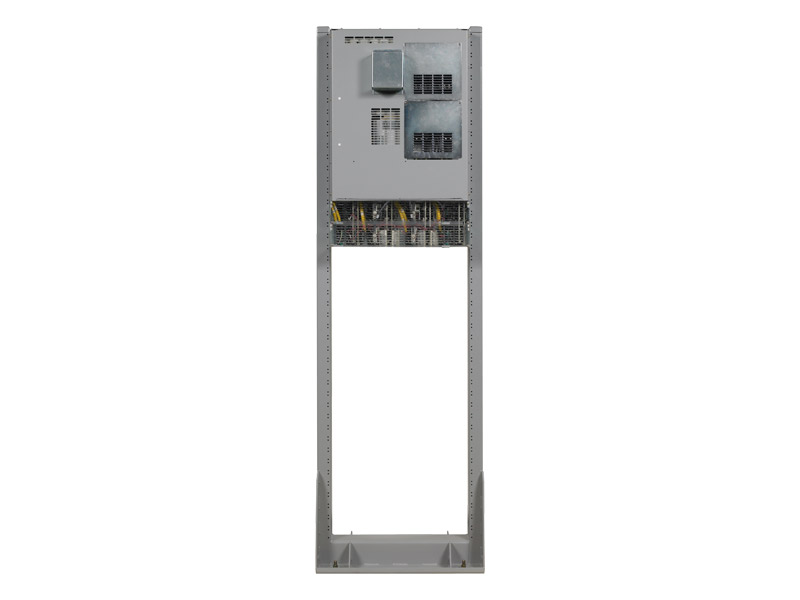

- Cabinet: 12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", Shelves: 3.45" (2RU) to 14.0" (8RU) x 23" x 20.1", Rectifier and Converter:1.7" (1RU) x 5" x 15"
- Access
- Front for installation, operation and maintenance, Rear for rectifier shelf or battery tray expansion
- Output
- Output Voltage, Nominal
- +24 VDC
- Output Voltage, Operational
- 21.0 VDC to 28.5 VDC
- Output Capacity

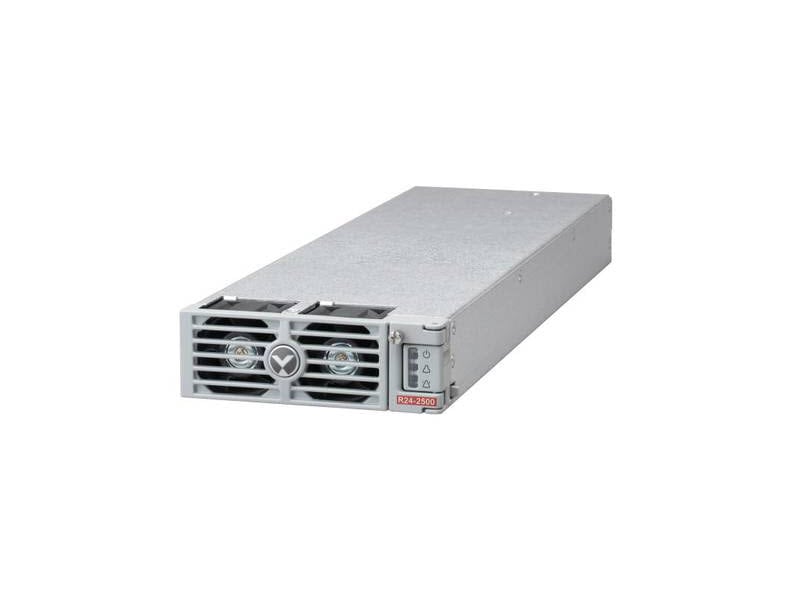

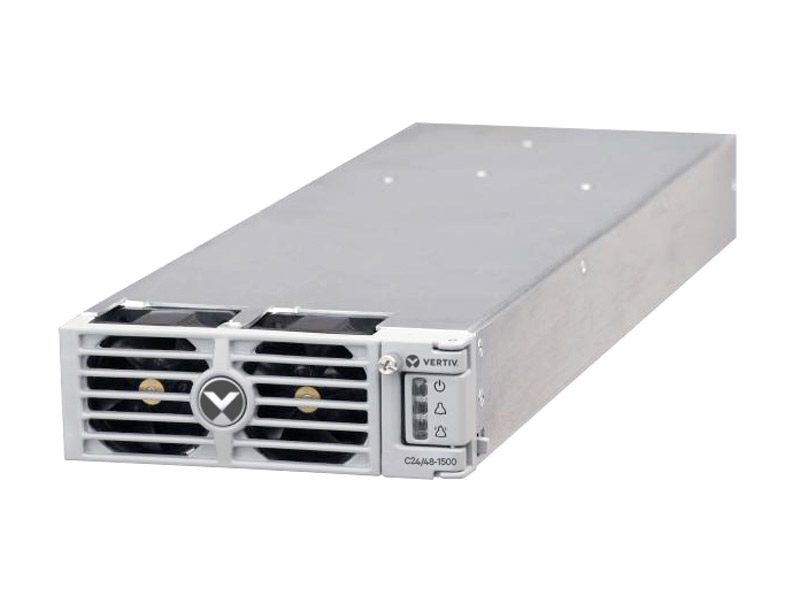

- Rectifier: 3000 W, Converter: 1500 W, Shelf: 24 kW @ 24 VDC, 6 kW @ 48 VDC, System: 50 kW @ 24 VDC, 24 kW @ 48 VDC
- Peak Efficiency
- 93.5%
- Load Circuit Breakers / Fuses
- Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A, up to 200A CB Disconnect mounted on each batt
- Options
- Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors
- Weight
- 200 lbs. to 650 lbs.
- Height
- 2134 mm standard
- Width
- 23 in. Mounting
- Depth
- 510.5 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Dual Ethernet, Embedded web pages, SNMP, Modbus, Battery Management: Temperature Compensation, Thermal Runaway Management, Auto or Cyclic Equalize
- Operating Temperature
- -40 °C to +40 °C (-40 °F to +104 °F)
- Safety Compliance
- UL 1801 Listed (“c UL”), NEBS Level 3
- EMC Compliance
- FCC Class B
