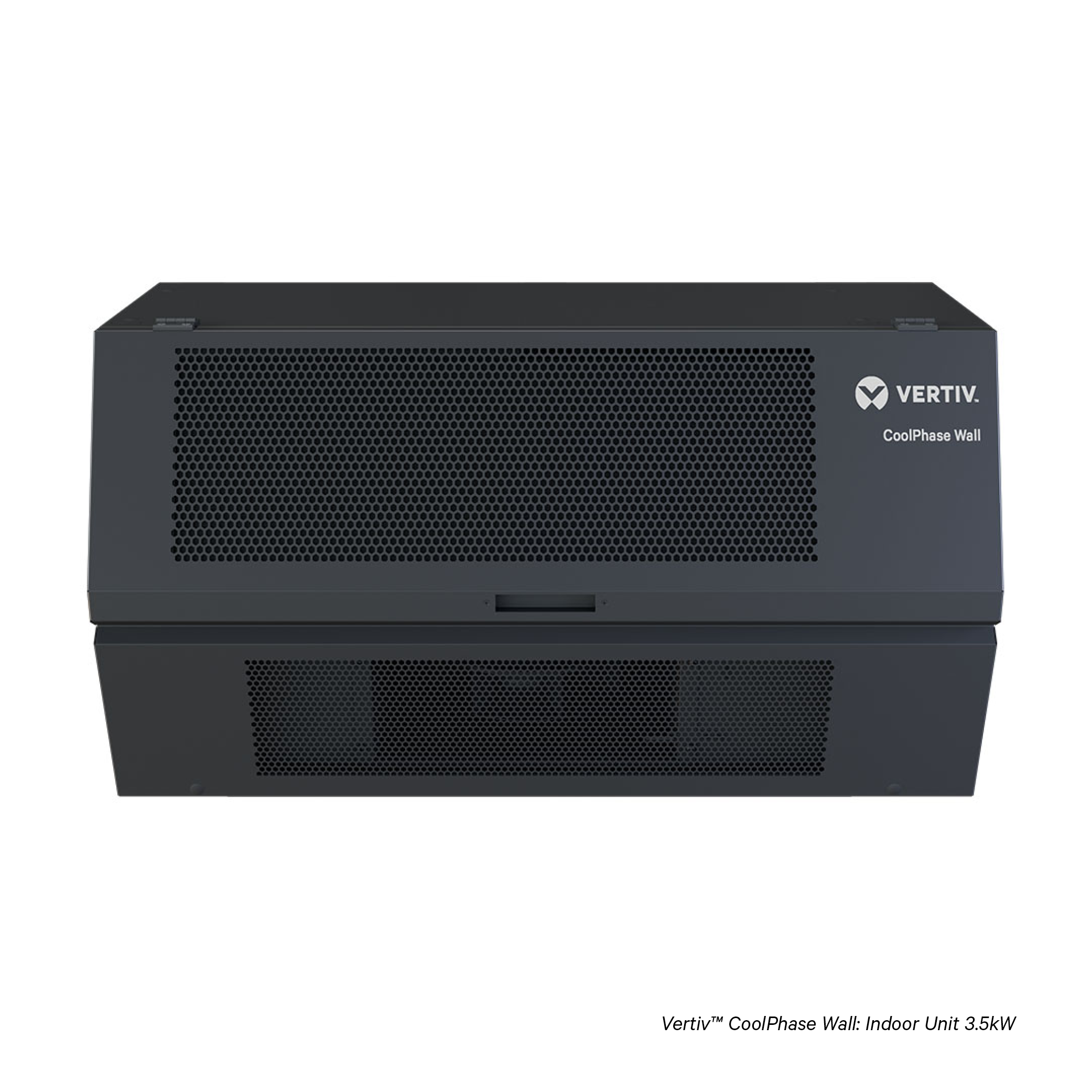

Vertiv™ CoolPhase Wall WLM030A, Sistema Split de Resfriamento de 3,5 kW Montado em Parede para Salas de TI Pequenas
The Vertiv™ CoolPhase Wall WLM030A is a wall-mount split system cooling solution for small technical rooms, server rooms, and edge computing applications. This reliable IT thermal management equipment provides 3.5kW of dedicated cooling capacity even in extreme conditions and without the need for ducted air handling, reducing the risk of overheating and equipment failure. By taking up zero floor space and utilizing a low GWP refrigerant, this compact unit meets the constant data center cooling and energy efficiency demands of increasing equipment load and can be scaled for redundancy.
Guadar este produto no seu dashboard
Você pode guardar este produto no seu dashboard para ve-lo depois. Você pode elimina-lo com facilidade do seu dashboard quando você já no quer ve-lo lá.
Please login or create an account to save this for later
- Banking
- Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Construction and Engineering
- Education
- Government
- Healthcare
- Manufacturing
- Military
- Defense
- Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
- Telecom
- Transportation
Vertiv™ CoolPhase Wall WLM030A, Sistema Split de Resfriamento de 3,5 kW Montado em Parede para Salas de TI Pequenas
The Vertiv™ CoolPhase Wall WLM030A is a wall-mount split system cooling solution for small technical rooms, server rooms, and edge computing applications. This reliable IT thermal management equipment provides 3.5kW of dedicated cooling capacity even in extreme conditions and without the need for ducted air handling, reducing the risk of overheating and equipment failure. By taking up zero floor space and utilizing a low GWP refrigerant, this compact unit meets the constant data center cooling and energy efficiency demands of increasing equipment load and can be scaled for redundancy.
- Banking
- Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Construction and Engineering
- Education
- Government
- Healthcare
- Manufacturing
- Military
- Defense
- Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
- Telecom
- Transportation
Vantagens
Recursos
Especificações
O Vertiv™ CoolPhase Wall é um sistema split montado em parede que fornece resfriamento dedicado de 3,5 kW a 11 kW para as crescentes cargas de equipamentos em pequenas salas técnicas, salas de servidores e aplicações de edge computing. Ele possibilita o resfriamento eficaz em ambientes diversos com o seu recurso de rejeição de calor. Equipado com recursos de monitoramento remoto e com controles inteligentes da Vertiv™, ele também otimiza o gerenciamento térmico para equipamentos críticos. Ao dar suporte ao controle de temperatura consistente, ele aprimora a confiabilidade do sistema mesmo em condições extremas.
- Technical Specifications
- Total Nominal Capacity kBtuh [kW]
- 12,000 BTUH (3.5kW)
- Net Sensible Capacity kBtuh [kW]
- 10,800 BTUH (3.16 kW)
- Nominal Airflow [CFM]
- 590 CFM
- Total Capacity
- 12,000 BTUH (3.5kW)
- Net Sensible Capacity
- 10,800 BTUH (3.16 kW)
- Input Voltage (V/Phase/Frequency Hz)
- 208–230V / 1Ph / 50–60Hz
- Nominal Airflow
- 590 CFM
- Controls and Monitoring
- Vertiv™ Liebert® iCOM™ Edge Controller, Automatic startup HTTP, SNMP, Modbus Remote Monitoring
- Key Components
- R-32 Refrigerant, Touchscreen Display, Alarms, Remote Monitoring
- Allowable Heat Rejection
- -4°F to 118°F (Standard), -31°F to 118°F (Low Ambient)
- Physical Characteristics
- Altura (pol/mm)
- 19.29in
- Altura (pol/mm)
- 490mm
- Largura (pol/mm)
- 36.02in
- Largura (pol/mm)
- 915mm
- Profundidade (pol/mm)
- 15.35in
- Profundidade (pol/mm)
- 390mm
- Vertiv™ CoolPhase Wall Installation, Maintenance and User Manual SL-71138
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Installer User Guide SL-71930
- Vertiv™ CoolPhase Wall Condensate Pump Kit Quick Installation Guide SL-71205
- Vertiv™ CoolPhase Wall Handling and Unboxing Instructions SL-71244
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Wind Baffle Quick Installation Guide SL-71332
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Hail Guards Quick Installation Guide SL-71333
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Duct Kit Quick Installation Guide SL-71932
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Handling and Unpacking Instructions SL-71177
*Para ver downloads específicos de modelos, é necessário acessar a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.
