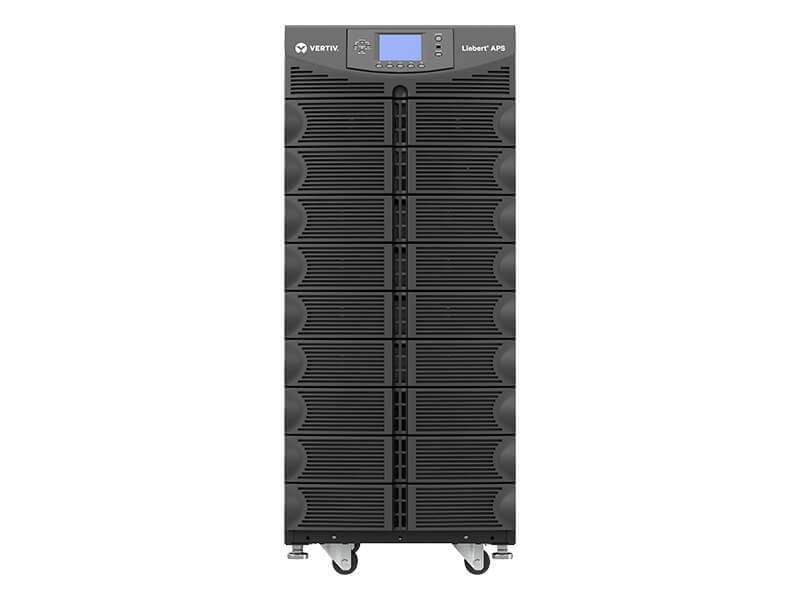

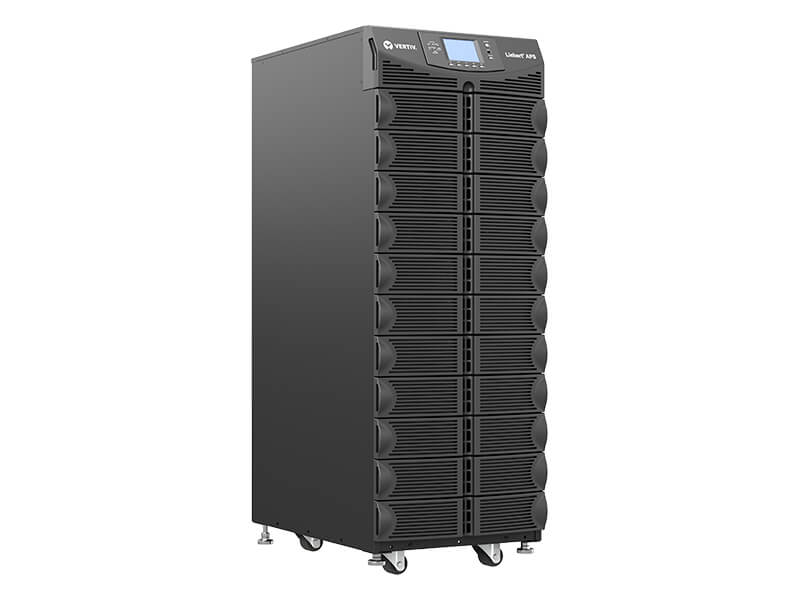

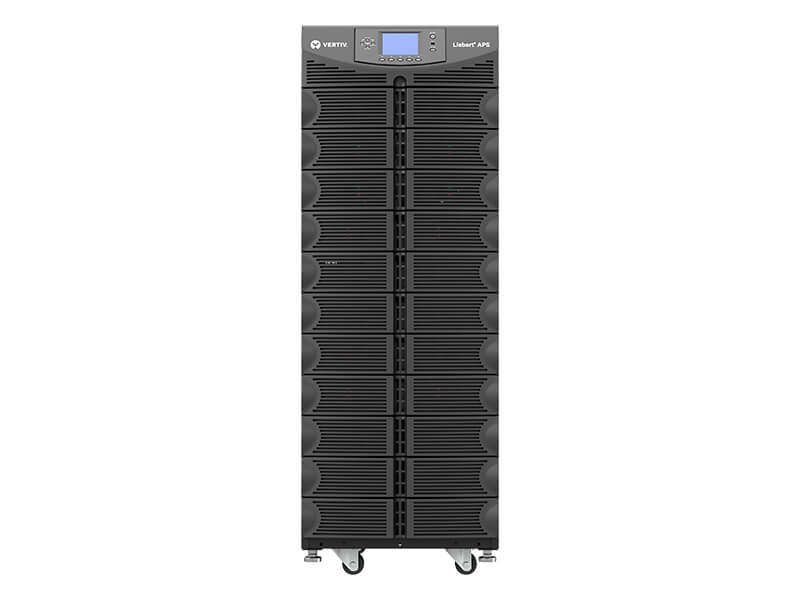

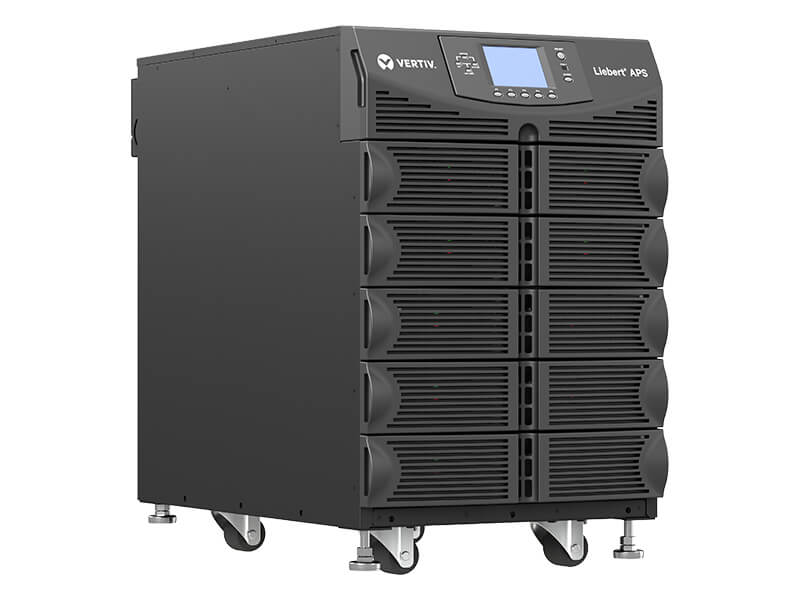

Liebert APS UPS, 5-20 kVA

The Liebert® APS is an on-line, modular UPS that provides mission-critical availability while reducing costs and maintaining flexibility for the future.

Buscar Contato De Vendas Obter Brochura Obter Manual

Ideal para:

Bancos, Setor Financeiro e Seguradoras
Setor de Saúde
Governo
Varejista e Atacadista
Transporte

Produto

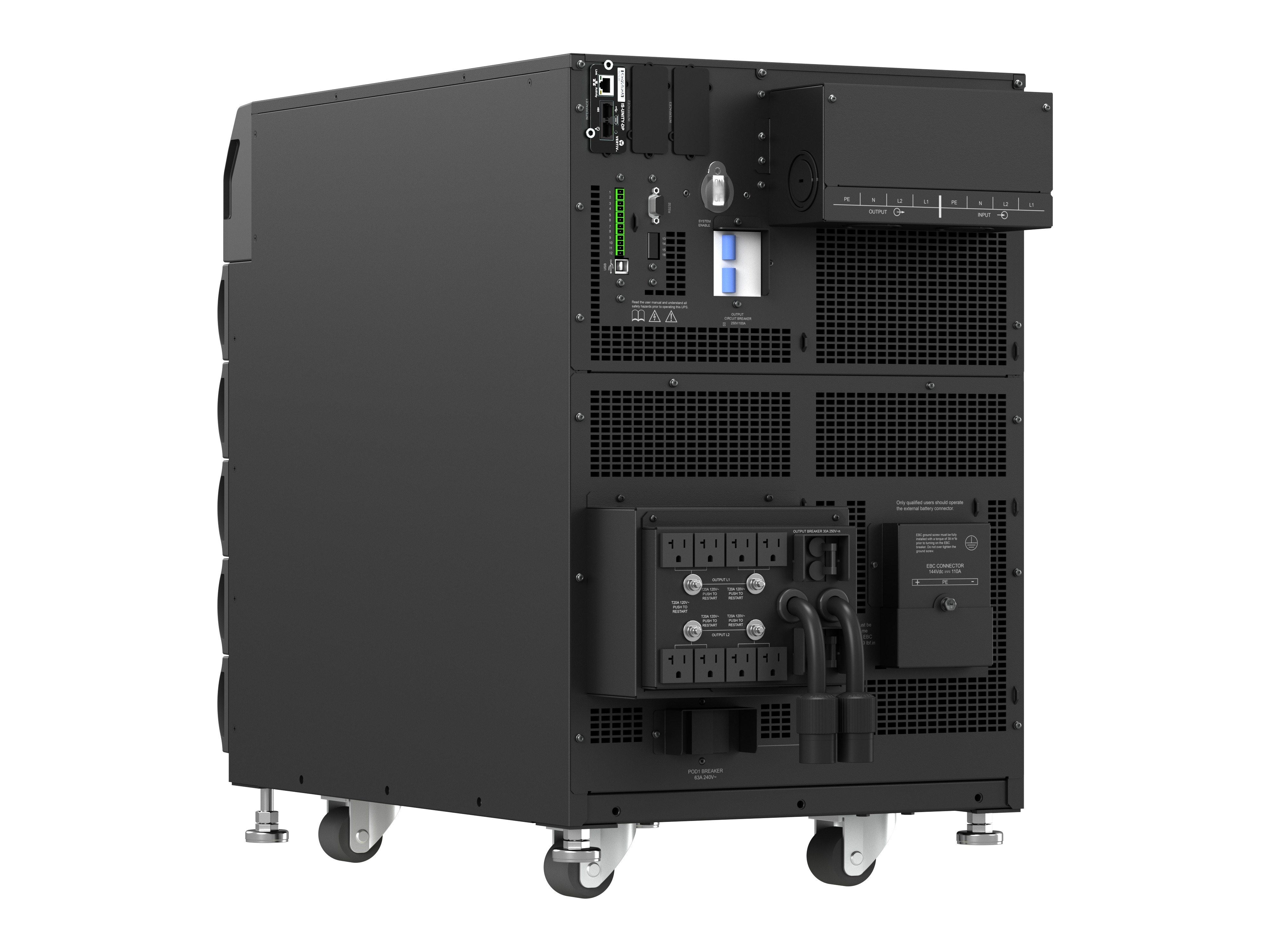

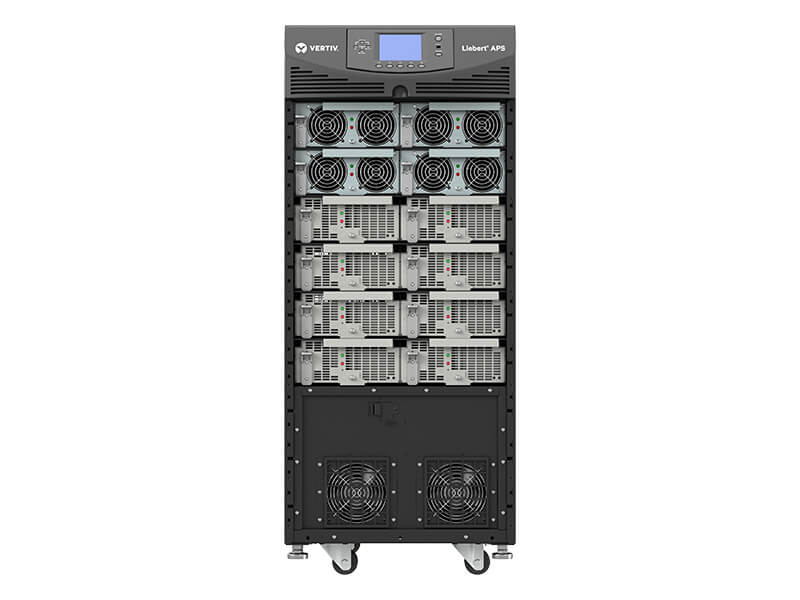

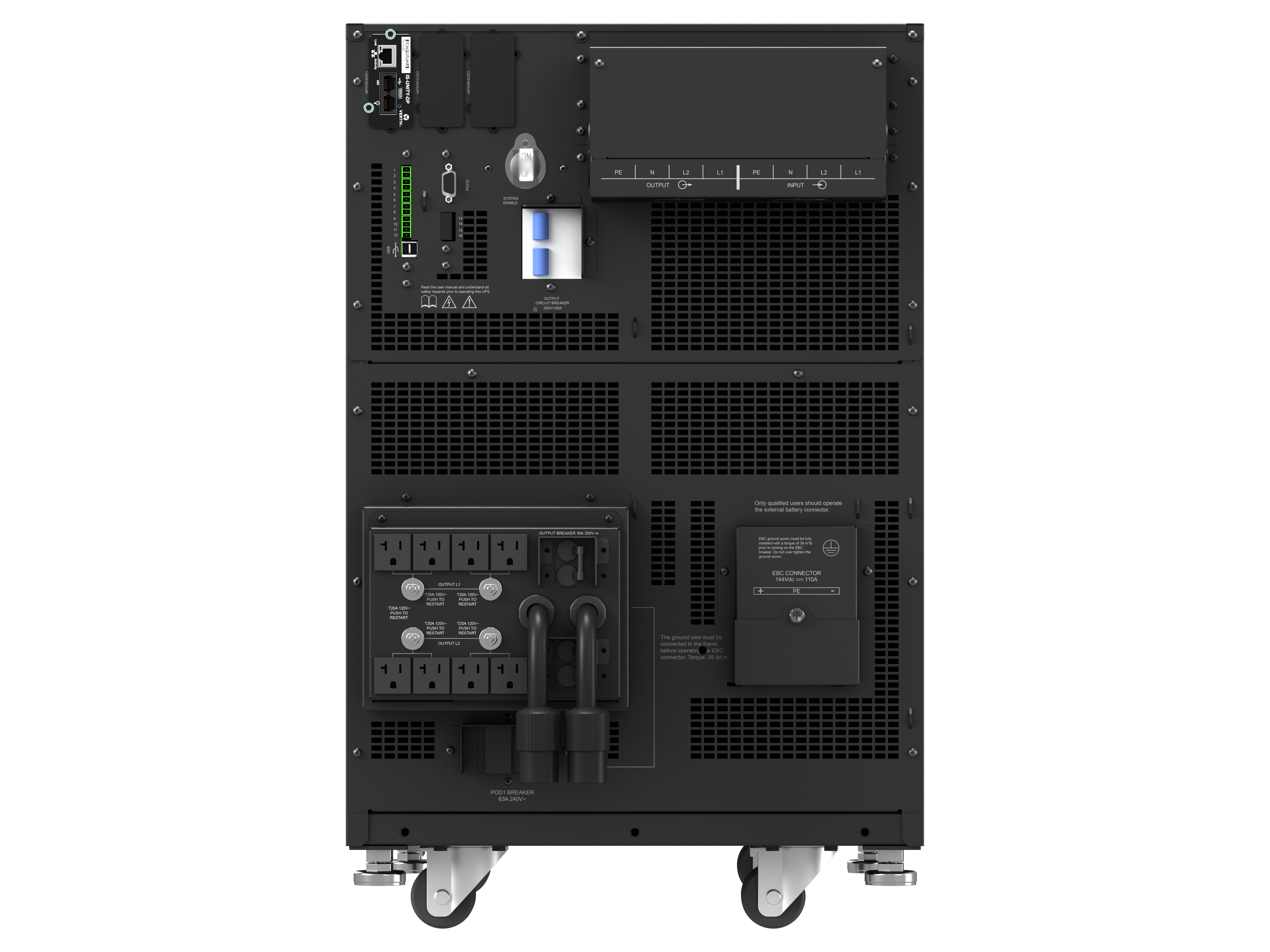

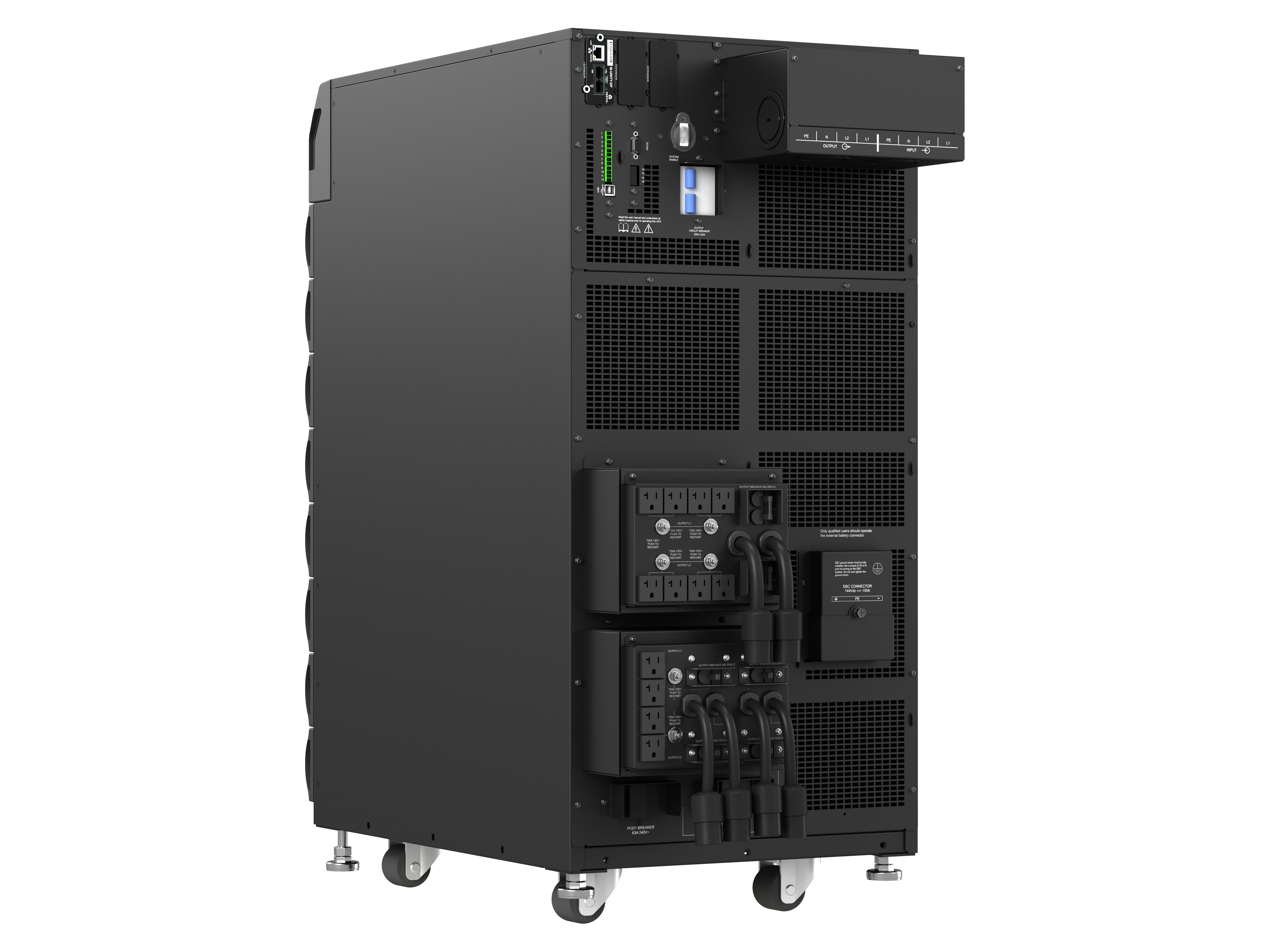

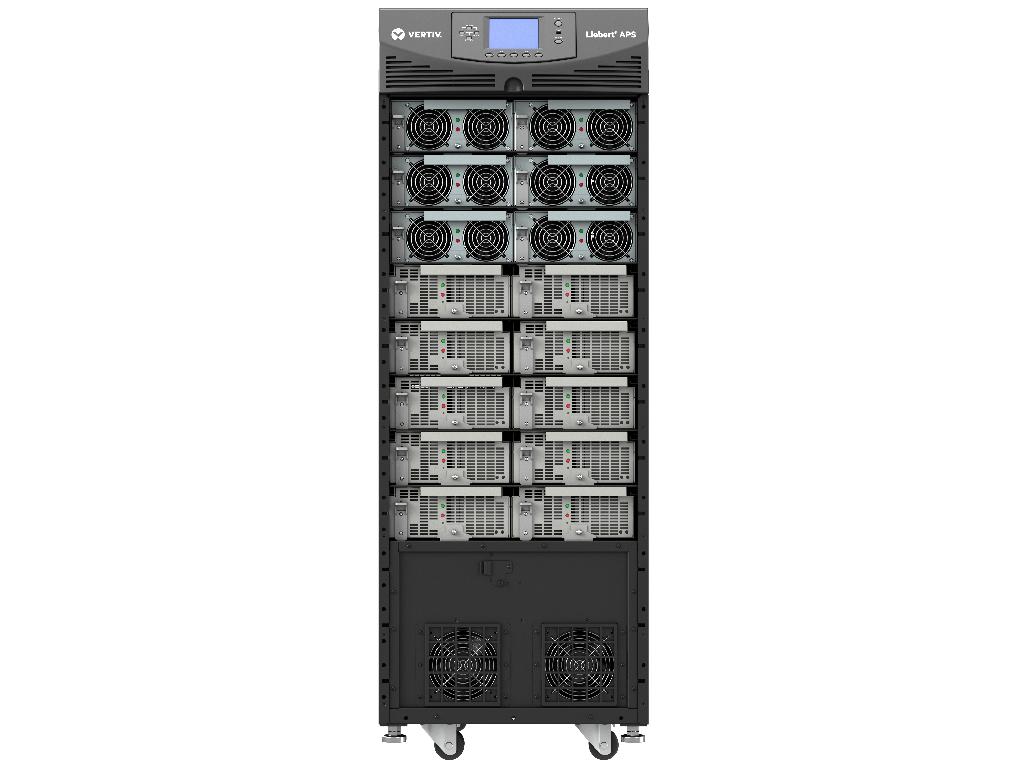

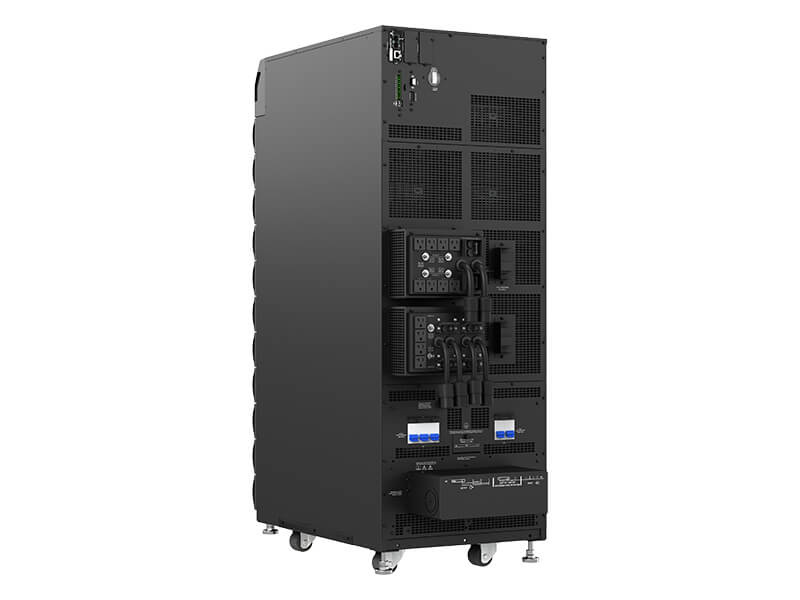

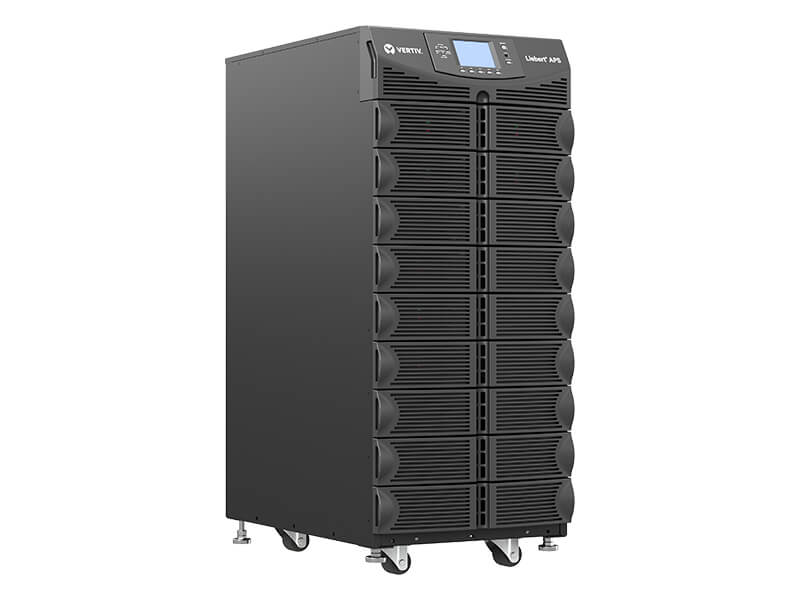

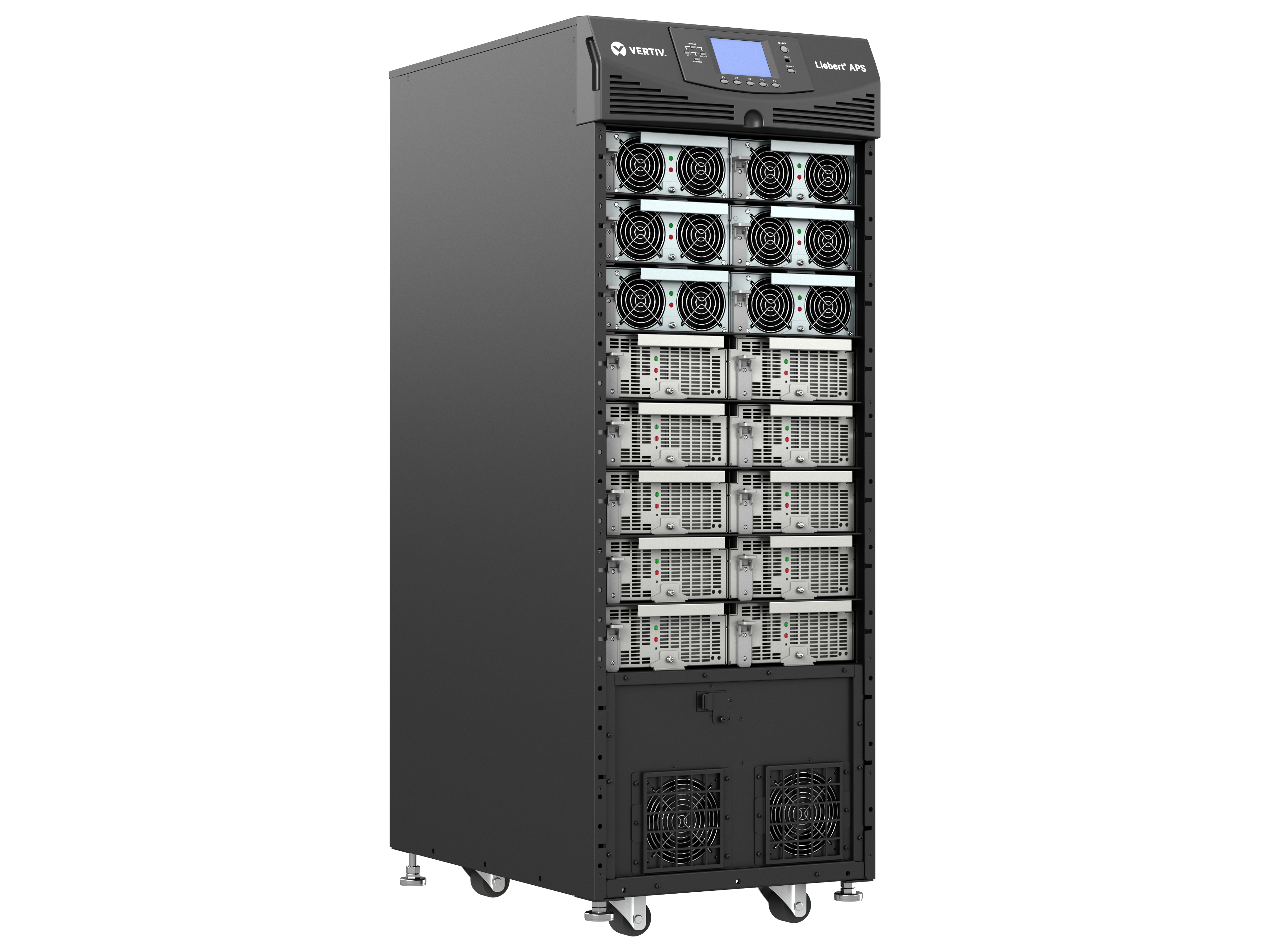

Liebert APS UPS, 5-20 kVA

The Liebert® APS is an on-line, modular UPS that provides mission-critical availability while reducing costs and maintaining flexibility for the future.

Buscar Contato De Vendas Obter Brochura Obter Manual

Ideal para:

Bancos, Setor Financeiro e Seguradoras
Setor de Saúde
Governo
Varejista e Atacadista
Transporte

Vantagens

Low Total Cost of Ownership

5 kVA / 4.5 kW power modules deliver enhanced active power when compared to UPS of equal size

Class-leading double conversion efficiency: 92%

Scalable architecture designed to adapt to growing power requirements, optimizing initial investment and pay as you grow benefits

Integral battery monitoring and temperature compensated charging for extended battery life and replacement minimization

Full redundant design allows the critical load to run on conditioned power in the unlikely event of component failure.

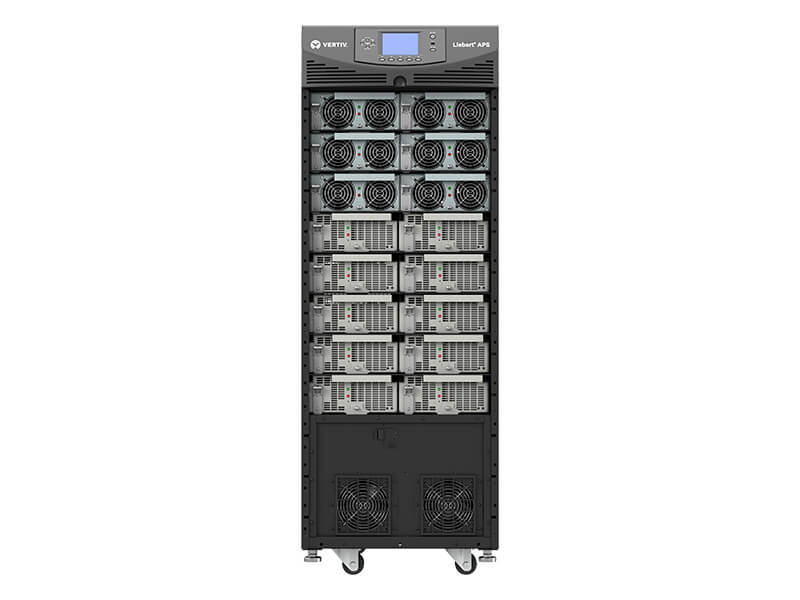

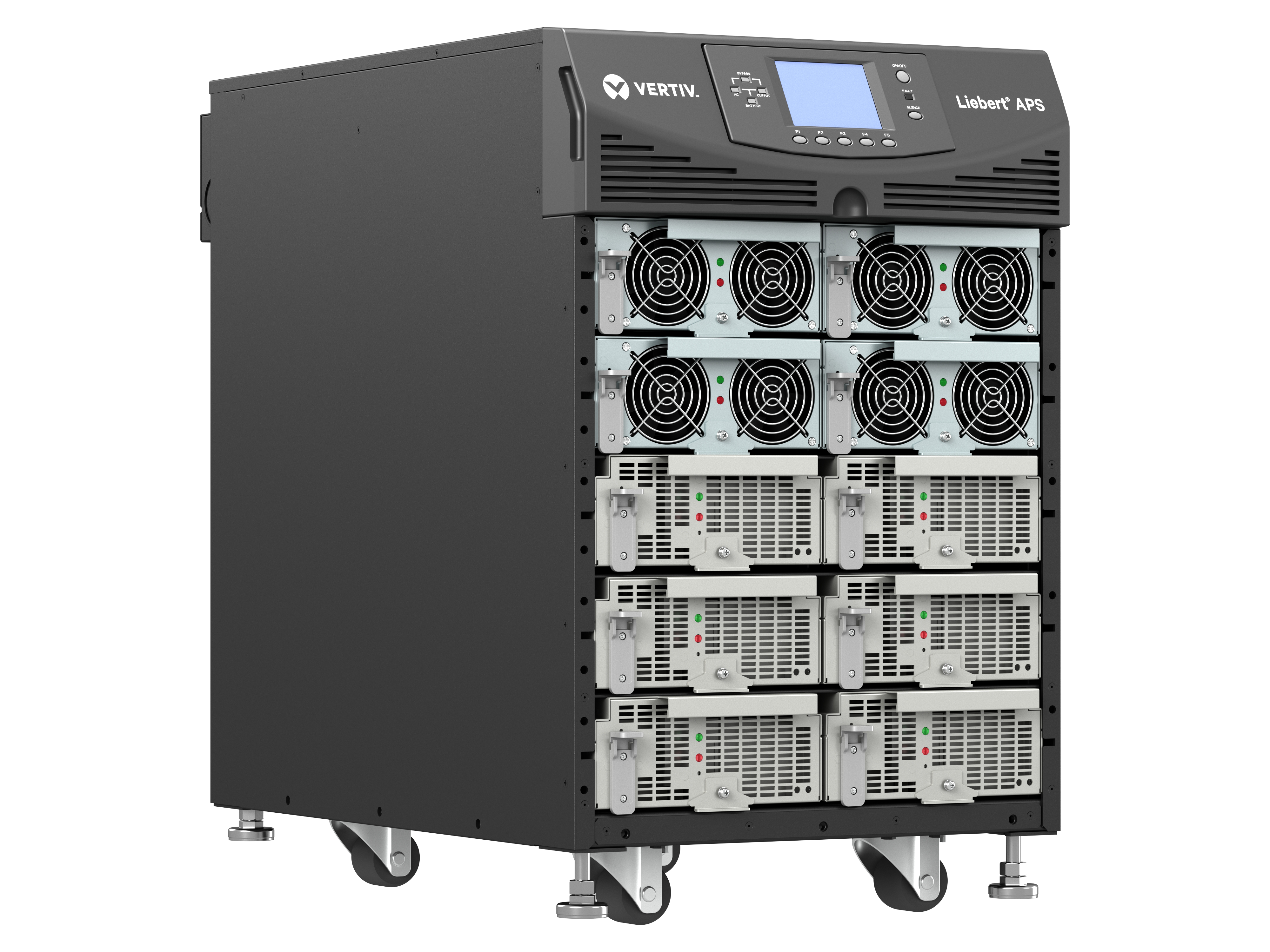

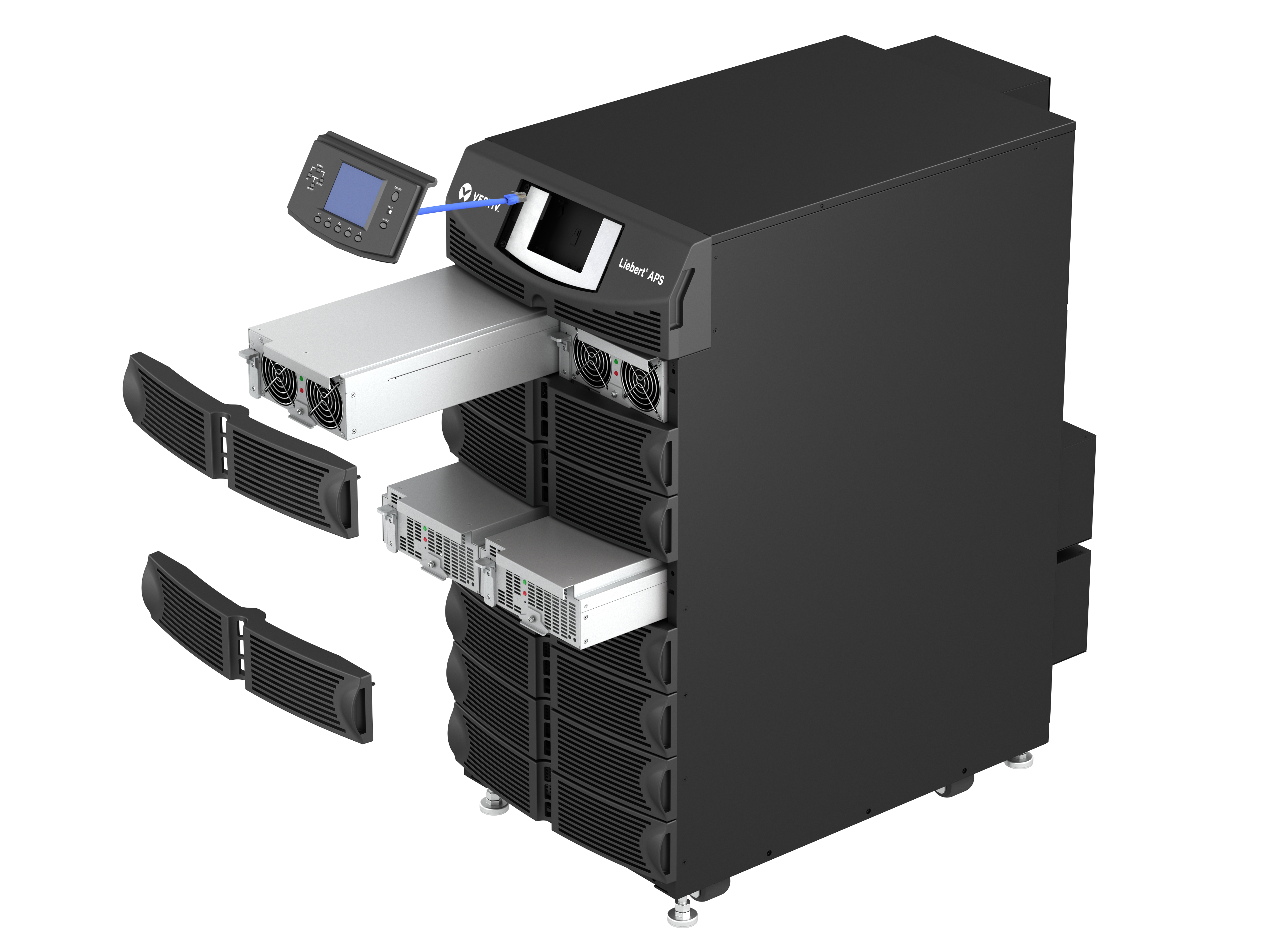

Hot-swappable power, control and battery modules allow replacement to be carried out while remaining modules continue to power the load.

Intelligent Battery System provides continuous battery monitoring and protection
Liebert APS is enabled with LIFE™ remote diagnostics and preventive monitoring service, which provides proactive maintenance, decreasing the average Mean Time to Repair (MTTR) and maximizing uptime.

Configurable input: one or three phase

Designed for standalone or rack mount installation

Ideally Suited For

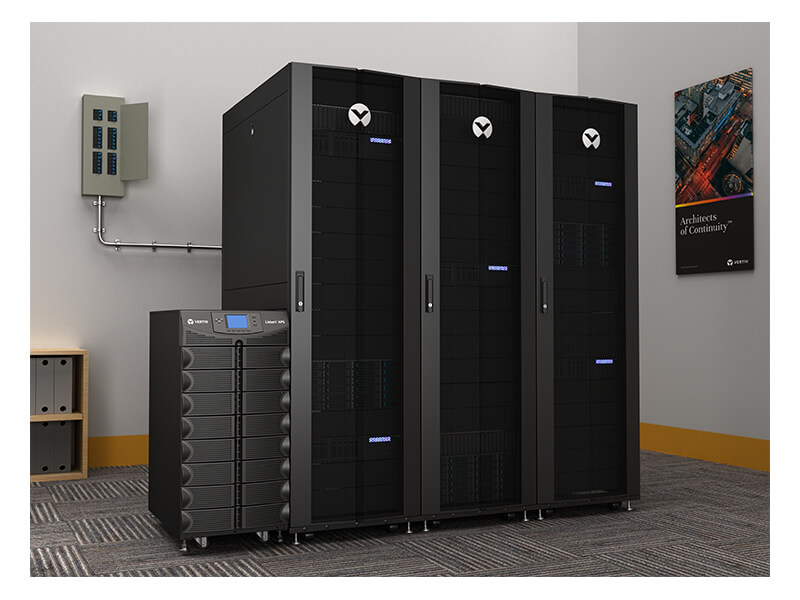

Small-to-medium-sized data centers

Network closets

VoIP

Scalable storage systems

Recursos

True on-line double conversion

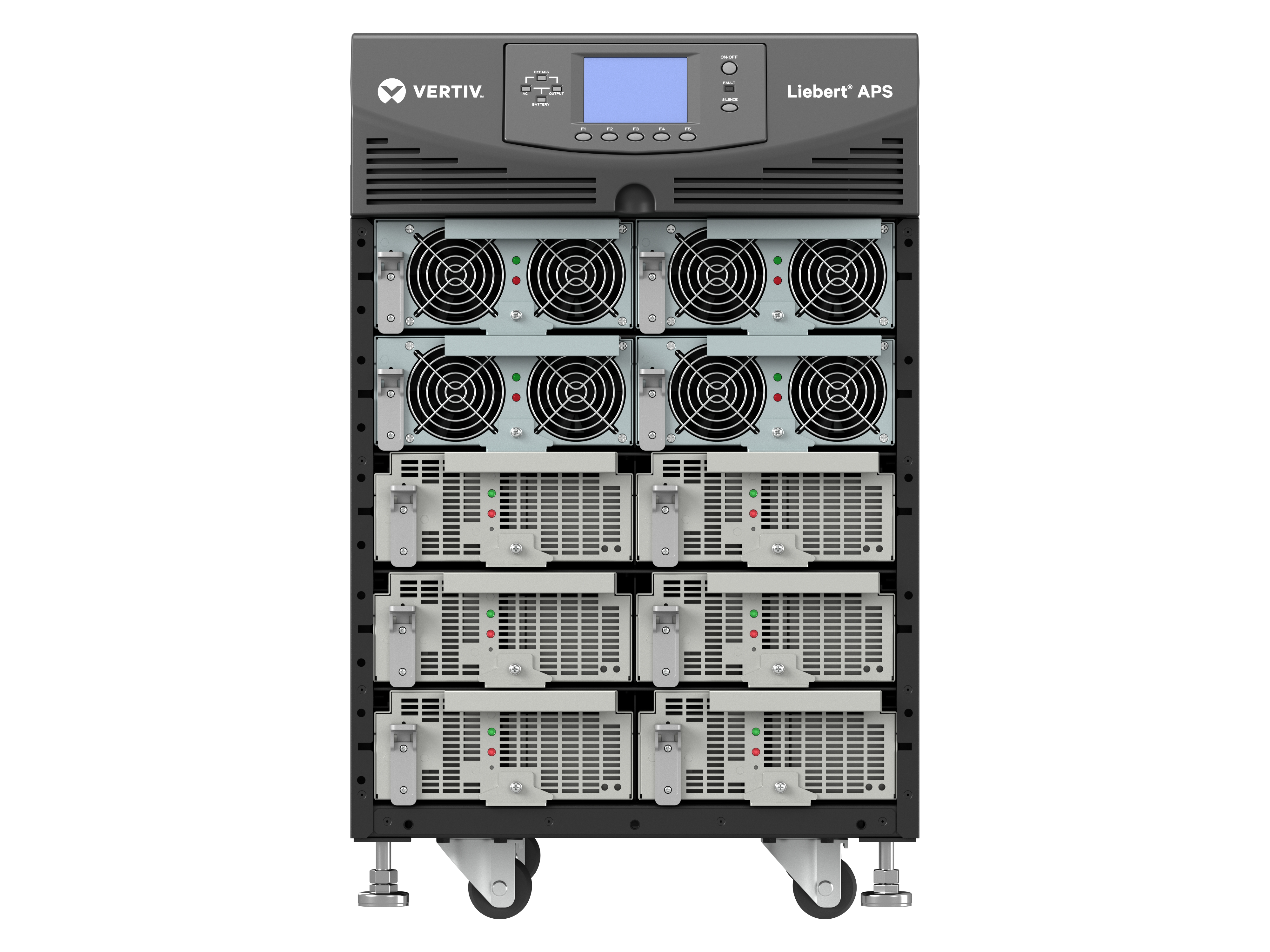

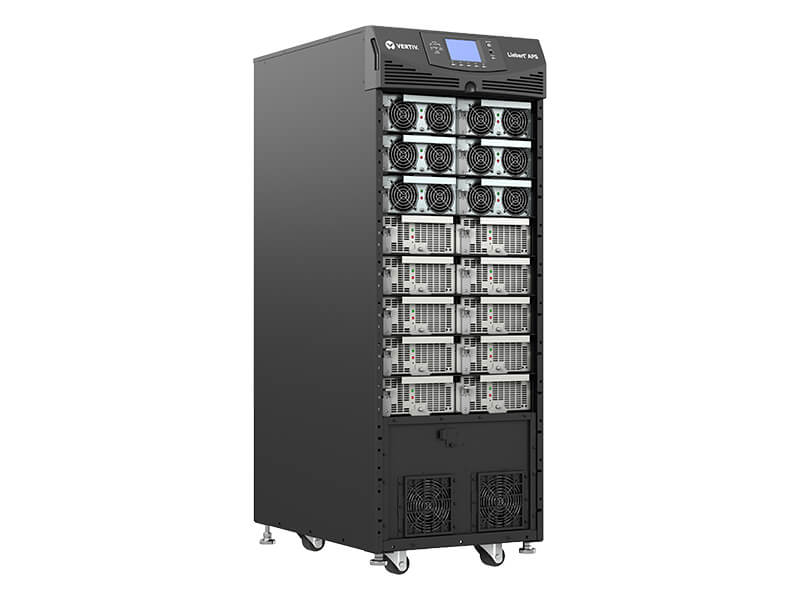

UPS Hot-swappable power and battery modules

High power factor 5 kVA / 4.5 kW power modules

Site configurable as single phase or three phase input

Scalable up to 20 kVA plus 10 kVA of redundancy

Fully rated at 40°C

Stand alone or rack mountable

Intelligent battery modules with automatic offline capability for anomalous events

Double conversion efficiency: 92%

Optional 10 A charger module

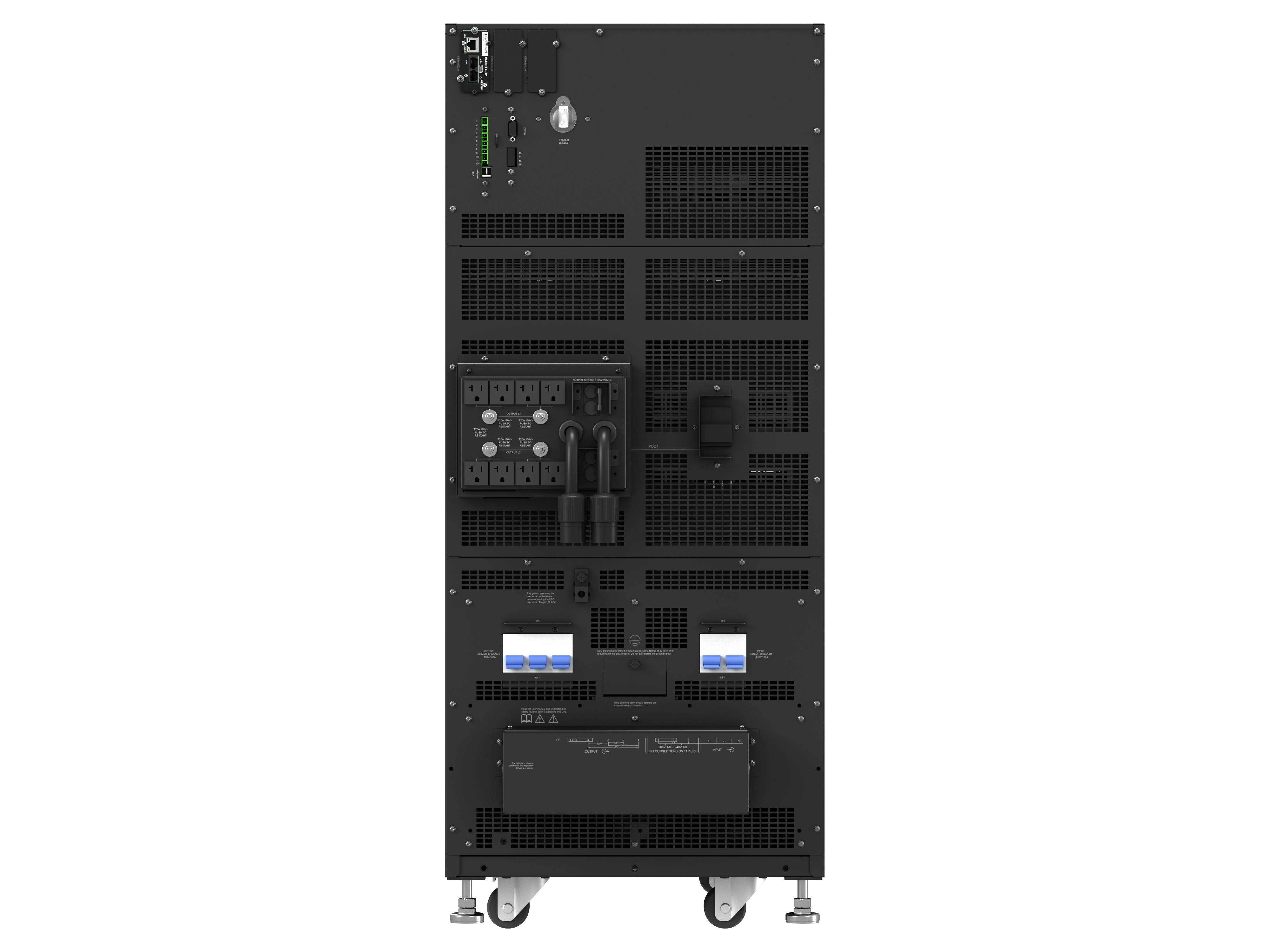

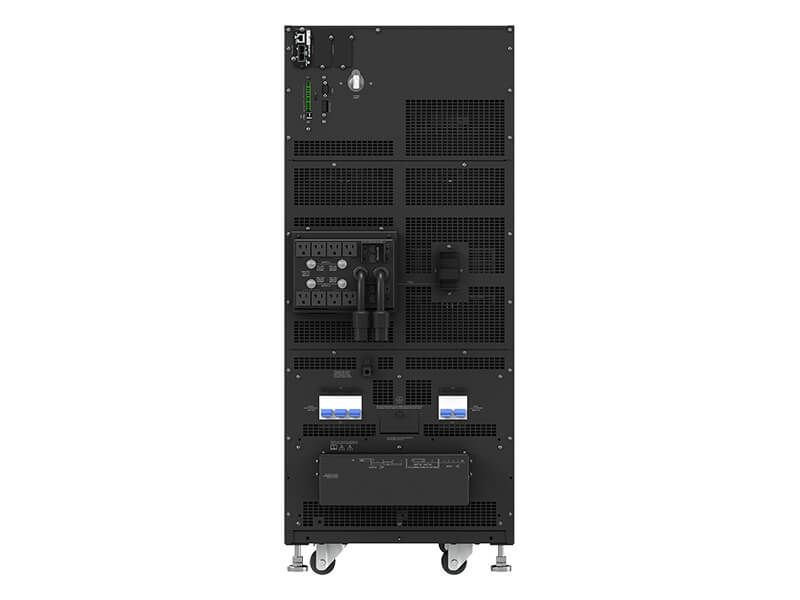

Terminal block or output socket

The Liebert® APS is a modular, single phase output UPS, with both single and three phase input options to provide both high availability and flexibility.

Print Download Email

Liebert APS UPS, 5-20 kVA

Product Overview

Power Rating: 5 kVA / 4.5 kW

Tensão de Entrada: 230VAC 1ph- 400 VAC 3ph

Tensão de Saída: 220 / 230 / 240 VAC

Efficiency: Efficiency

Interfaces/Ports

Opções de Interface: SNMP/Web, Modbus, Relay, Terminals

Protocolos: SNMP, Modbus

Painel de Controle: LCD

Operational Conditions

Temperatura de Operação: 0°C to +40°C

Miscellaneous

Certificações: CE, RoHS, ISTA 1A, Energy Star

Topologia: Online

Manuais

Liebert APS 5-20kVA User Manual

Catálogos e folhas de dados

Relatórios

Whitepaper_Modular UPSs_EN
