Albér Cellcorder CRT-400 Cell Resistance Tester

Cell resistance tester designed to strictly comply with IEEE standards for testing batteries online. It displays and records cell float voltage, internal cell resistance and intercell connection resistance. The well-proven Albér DC resistance test method completely eliminates distorting ripple from the charger, and produces very high repeatability in testing.

Pobierz broszurę Pobierz instrukcję

Idealne rozwiązanie dla:

Data Center/Colocation/Hosting
Government
Nuclear Power
Power/Gas Transmission and Distribution
Power Generation
Telecom

Gwarancja: One Year Warranty Against Defects in Material and Workmanship

Produkt

Albér Cellcorder CRT-400 Cell Resistance Tester

Pobierz broszurę Pobierz instrukcję

Idealne rozwiązanie dla:

Data Center/Colocation/Hosting
Government
Nuclear Power
Power/Gas Transmission and Distribution
Power Generation
Telecom

Gwarancja: One Year Warranty Against Defects in Material and Workmanship

Korzyści

List of benefits for the continuous battery monitoring of the Alber Cellcorder CRT-400

Flexibility

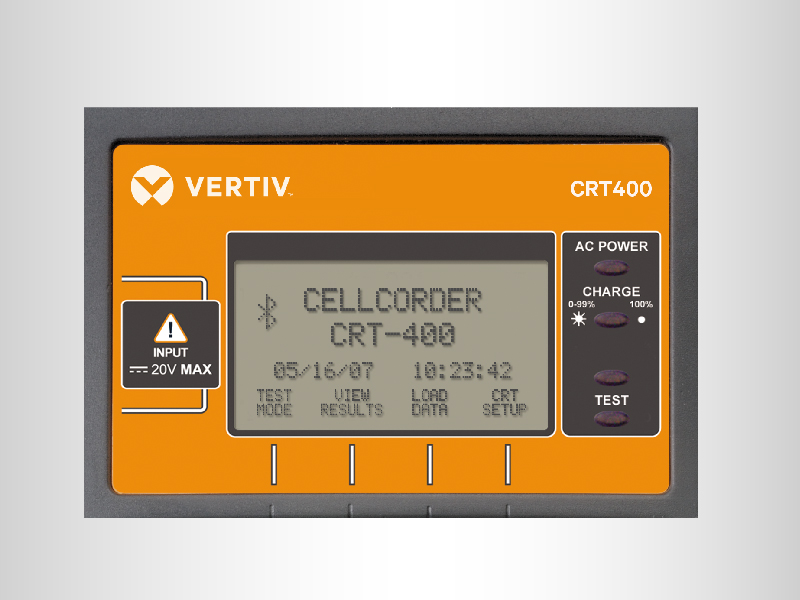

New graphical display makes menu navigation easy.

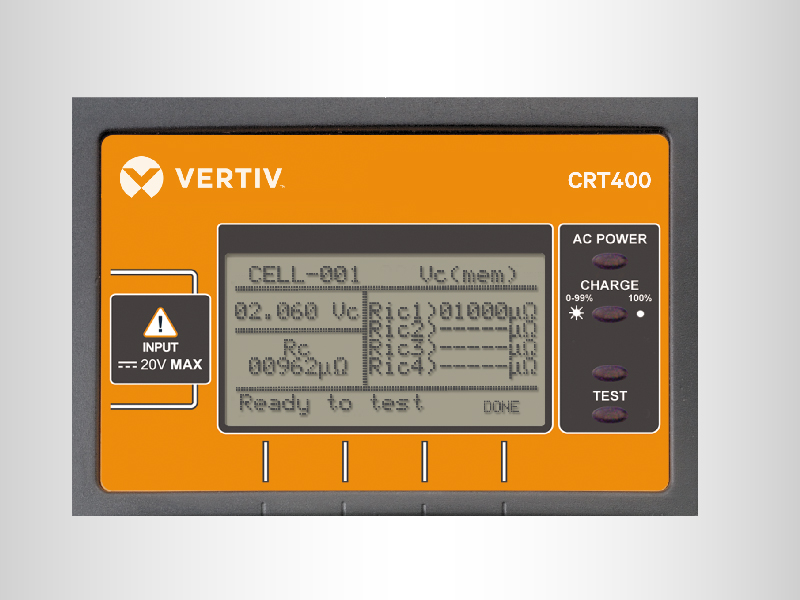

Measures cell voltage and internal battery resistance as well as intercell resistance.

Flash drive can be used to transfer data to your PC.

IrDa allows wireless communication with a variety of peripheral equipment including compatible DMA-35-CRT Hydrometer.

Battery Analysis PC software lets you identify bad cells, create reports and archive data. Higher Availability

Patented Internal Resistance testing eliminates inaccuracy.

Tests batteries from 0-16V.

Includes new battery test clamps with interchangeable jaws.

Lowest Total Cost of Ownership

Packaged system has lower initial cost.

Stored trending data provides early performance degradation in individual battery cells, allowing replacement of only bad cells, extending the life of the complete battery string.

Ideally Suited For

Single cell or multi cell modules

Właściwości

The three steps of battery monitoring automation, enabled by the Alber Cellcorder CRT-400 cell resistance tester

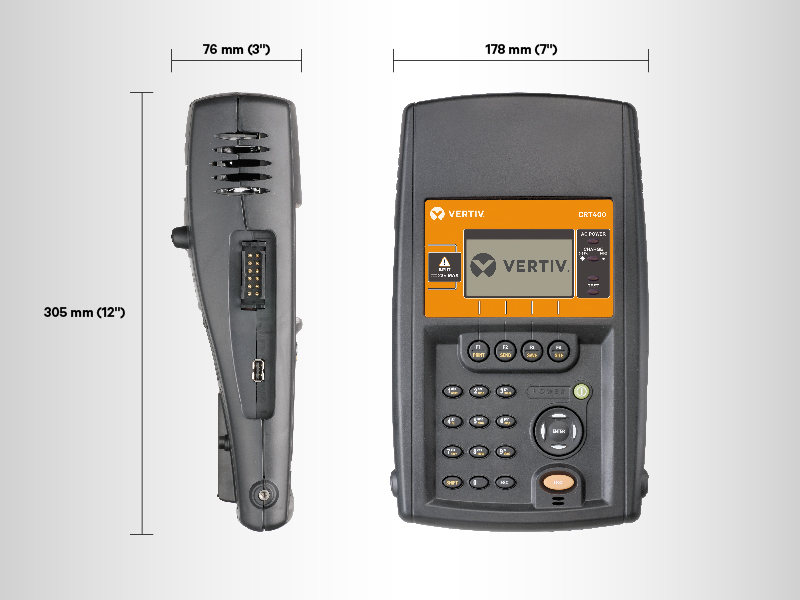

Handheld battery cell resistance tester

Displays and records information

Allows transfer of readings to a PC for analysis and report generation

Patented Resistance Test Method

USB capabilities

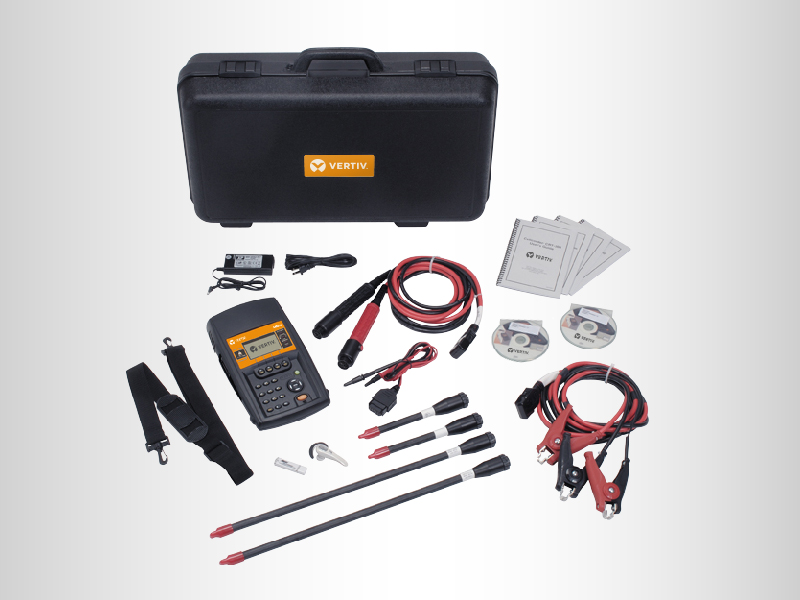

The Albér Cellcorder CRT400 cell resistance tester is designed to strictly comply with IEEE standards for testing data center infrastructure batteries online. It displays and records cell float voltage, internal cell resistance and intercell connection resistance. The well-proven DC resistance test method completely eliminates distorting ripple from the charger, and produces very high repeatability in testing. The portable, handheld Cellcorder has easy keyboard entry, and comes with a hard shell carrying case, AC charger, data trending and analysis software and a user-friendly manual. An optional IR printer is available.
