Vertiv™ CoolPhase Wall, Wall-Mount Split System Cooling for Small IT Rooms, 3.5-11kW

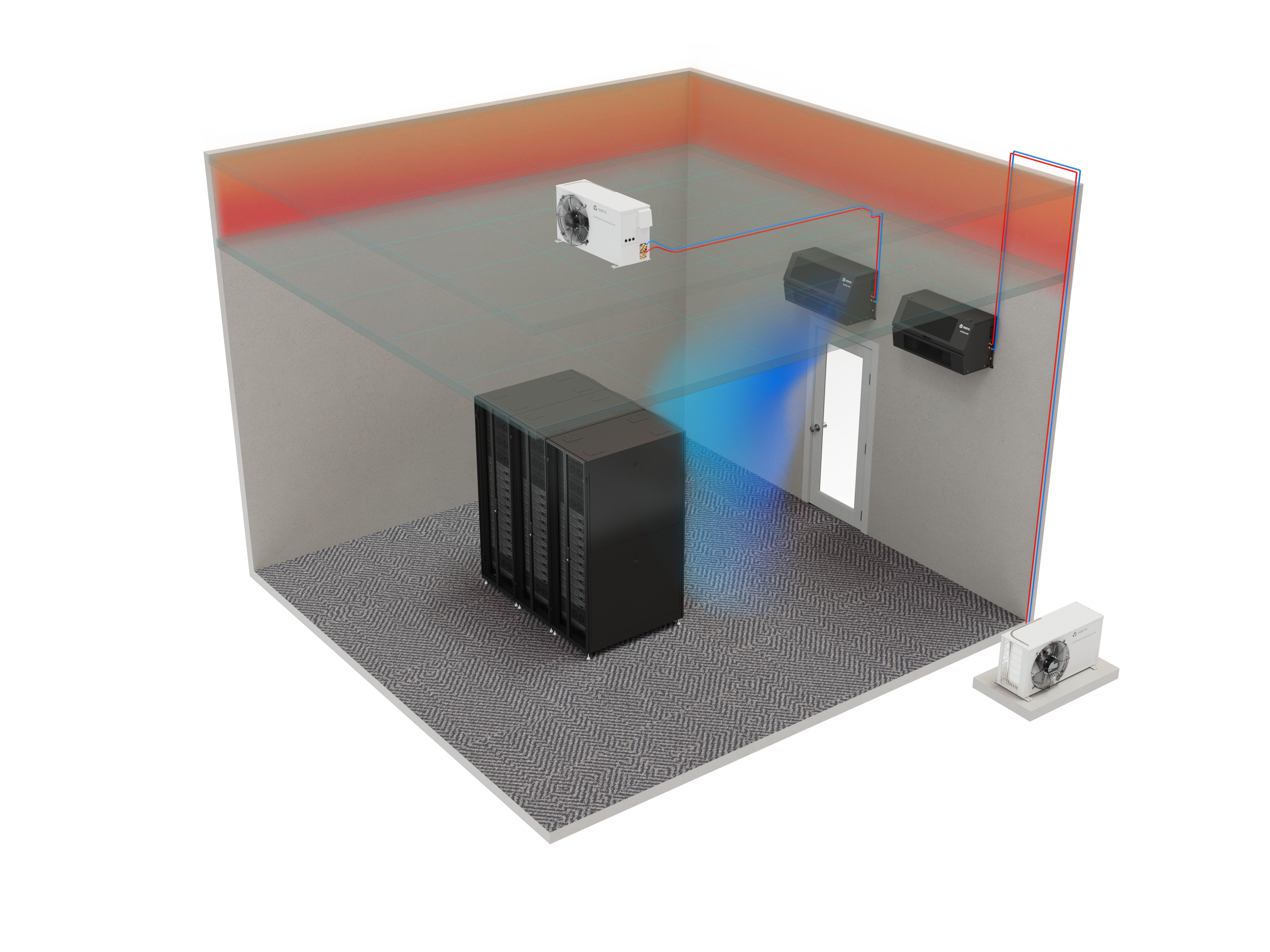

The Vertiv™ CoolPhase Wall is a wall-mount split system cooling solution for small technical rooms, server rooms, and edge computing applications. This reliable IT thermal management equipment provides dedicated cooling up to 11kW even in extreme conditions and without the need for ducted air handling, reducing the risk of overheating and equipment failure. By taking up zero floor space and utilizing a low GWP refrigerant, this compact unit meets the constant data center cooling and energy efficiency demands of increasing equipment load and can be scaled for redundancy.
Questo prodotto è stato salvato sul tuo dashboard
Hai appena salvato questo prodotto sul tuo dashboard per vederlo più tardi. Puoi facilmente rimuovere l'articolo dal tuo dashboard se non desideri più tenerlo salvato.
Eseguire il login o creare un account per salvare queste informazioni per dopo
- Bancario, Finanziario e Assicurativo
- Broadcast ed Entertainment
- Chimico/Petrolchimico (esclusi petrolio/gas)
- Costruzioni e ingegneria
- Istruzione
- Amministrazione pubblica
- Sanità
- Produzione
- Militare, Difesa, Aerospaziale e Missilistico
- Nucleare
- Petrolio e Gas
- Generazione di elettricità
- Trasmissione e distribuzione di elettricità/gas
- Servizi professionali
- Dettaglio e Ingrosso
- Telecomunicazioni
- Trasporti
Vertiv™ CoolPhase Wall, Wall-Mount Split System Cooling for Small IT Rooms, 3.5-11kW
The Vertiv™ CoolPhase Wall is a wall-mount split system cooling solution for small technical rooms, server rooms, and edge computing applications. This reliable IT thermal management equipment provides dedicated cooling up to 11kW even in extreme conditions and without the need for ducted air handling, reducing the risk of overheating and equipment failure. By taking up zero floor space and utilizing a low GWP refrigerant, this compact unit meets the constant data center cooling and energy efficiency demands of increasing equipment load and can be scaled for redundancy.
- Bancario, Finanziario e Assicurativo
- Broadcast ed Entertainment
- Chimico/Petrolchimico (esclusi petrolio/gas)
- Costruzioni e ingegneria
- Istruzione
- Amministrazione pubblica
- Sanità
- Produzione
- Militare, Difesa, Aerospaziale e Missilistico
- Nucleare
- Petrolio e Gas
- Generazione di elettricità
- Trasmissione e distribuzione di elettricità/gas
- Servizi professionali
- Dettaglio e Ingrosso
- Telecomunicazioni
- Trasporti
Specifiche

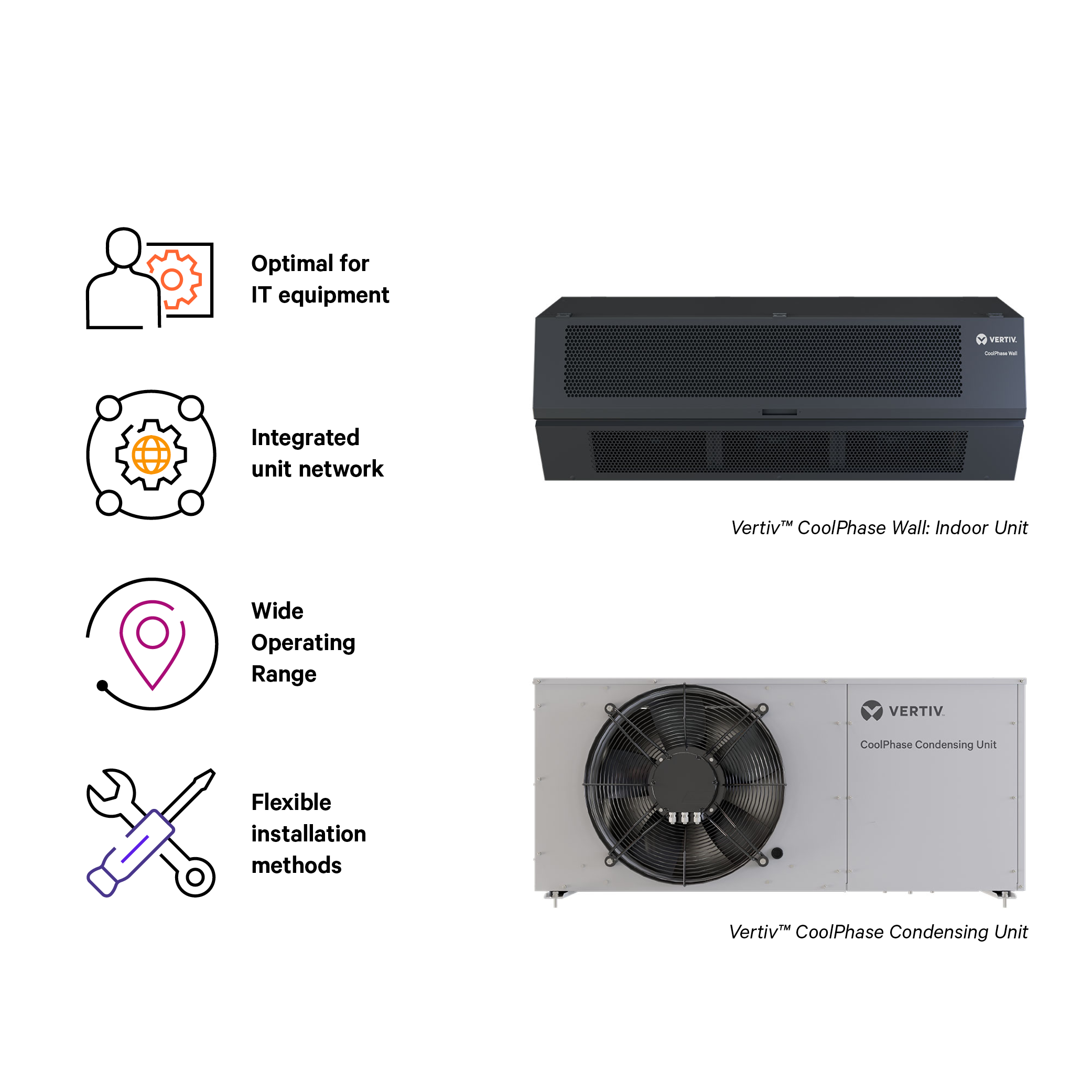

The Vertiv™ CoolPhase Wall is a wall-mount split system providing dedicated cooling from 3.5kW to 11kW for increasing equipment loads in small technical rooms, server rooms, and edge computing applications. It enables effective cooling across diverse environments with its heat rejection capability. Equipped with remote monitoring features and intelligent Vertiv™ controls, it also optimizes thermal management for critical equipment. By supporting consistent temperature control, it enhances system reliability even in extreme conditions.
|

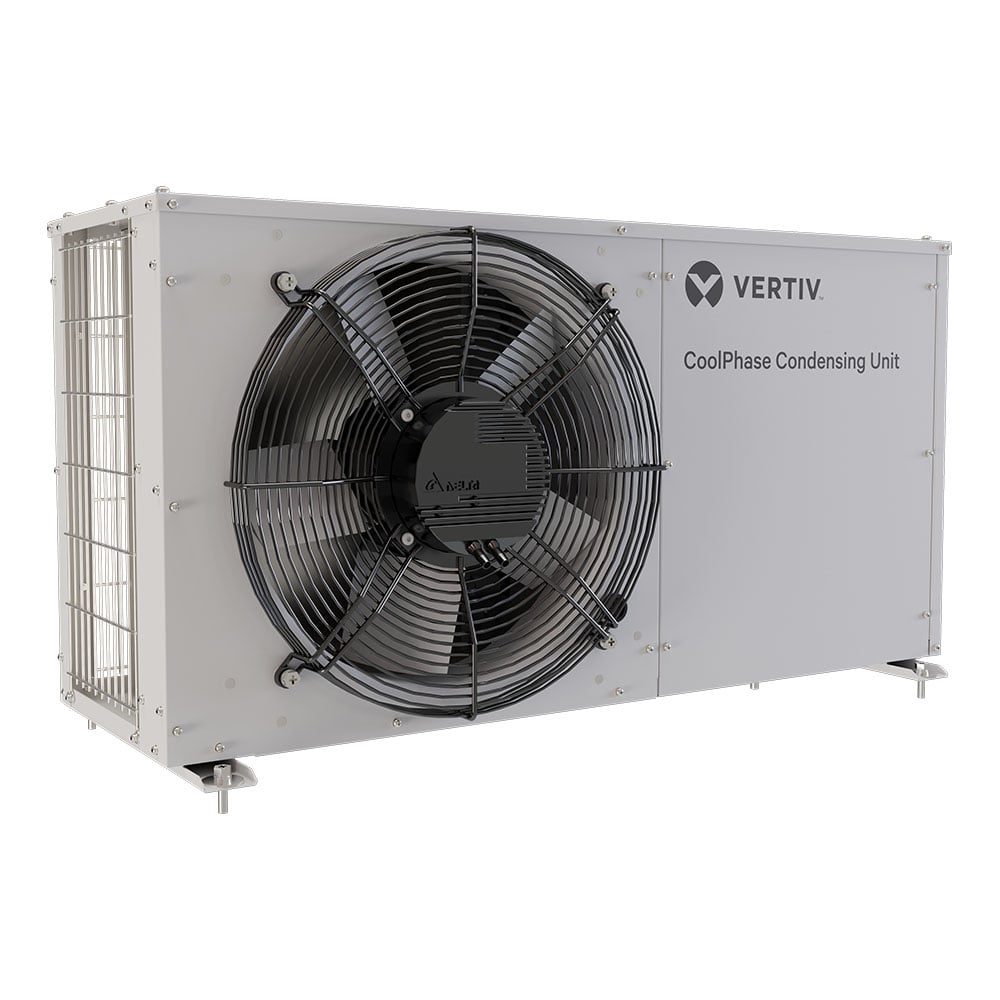

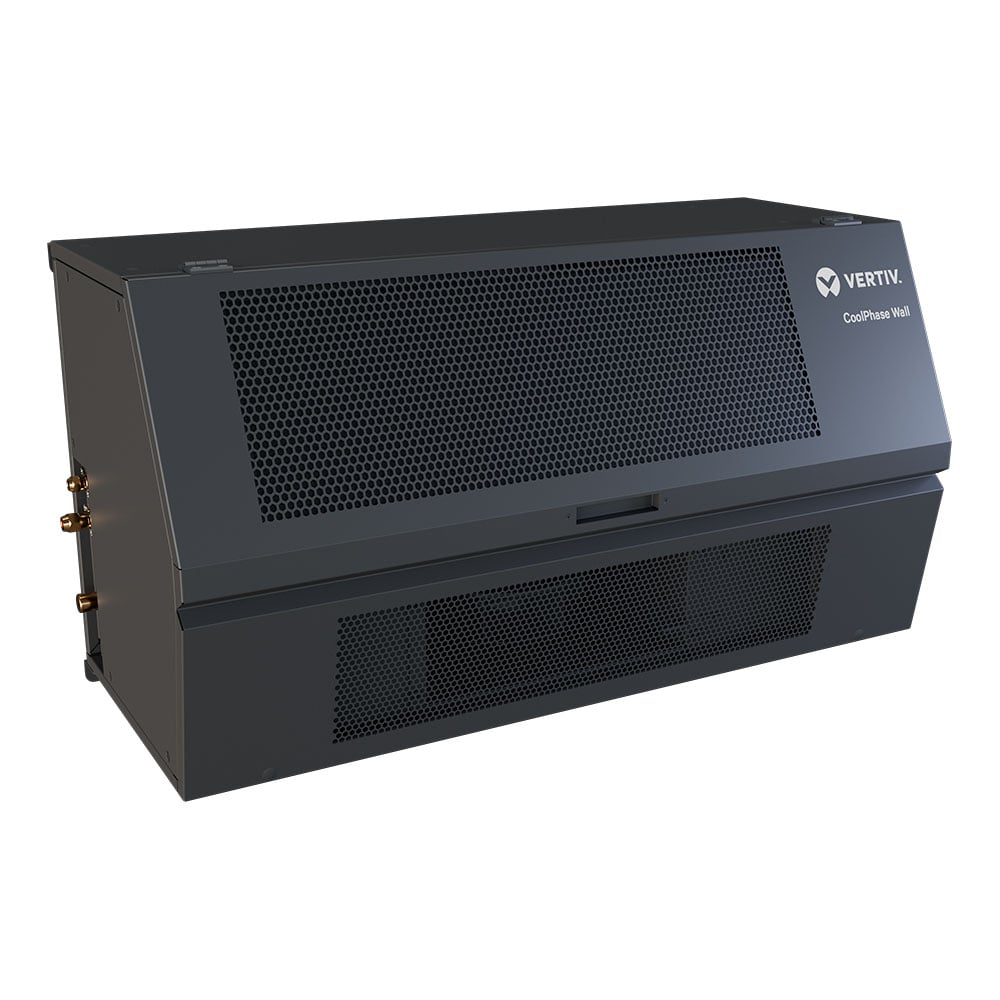

Vertiv™ CoolPhase Wall WLM030A, 3.5kW Wall-Mount Split System Cooling for Small IT Rooms
|
|||||
|---|---|---|---|---|---|
| 12,000 BTUH (3.5kW) | 10,800 BTUH (3.16 kW) | 590 CFM | 19.29in | 36.02in | 15.35in |
| Vedi maggiori informazioni sul prodotto | |||||
|

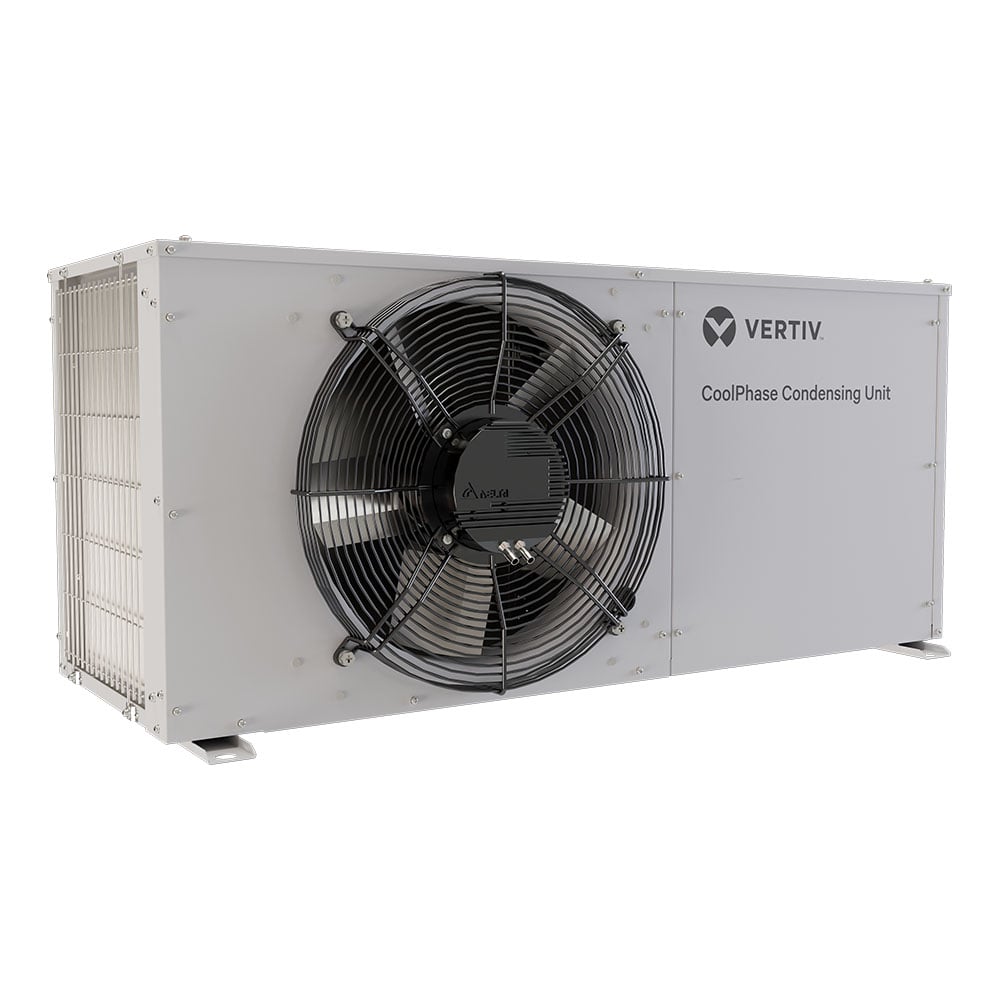

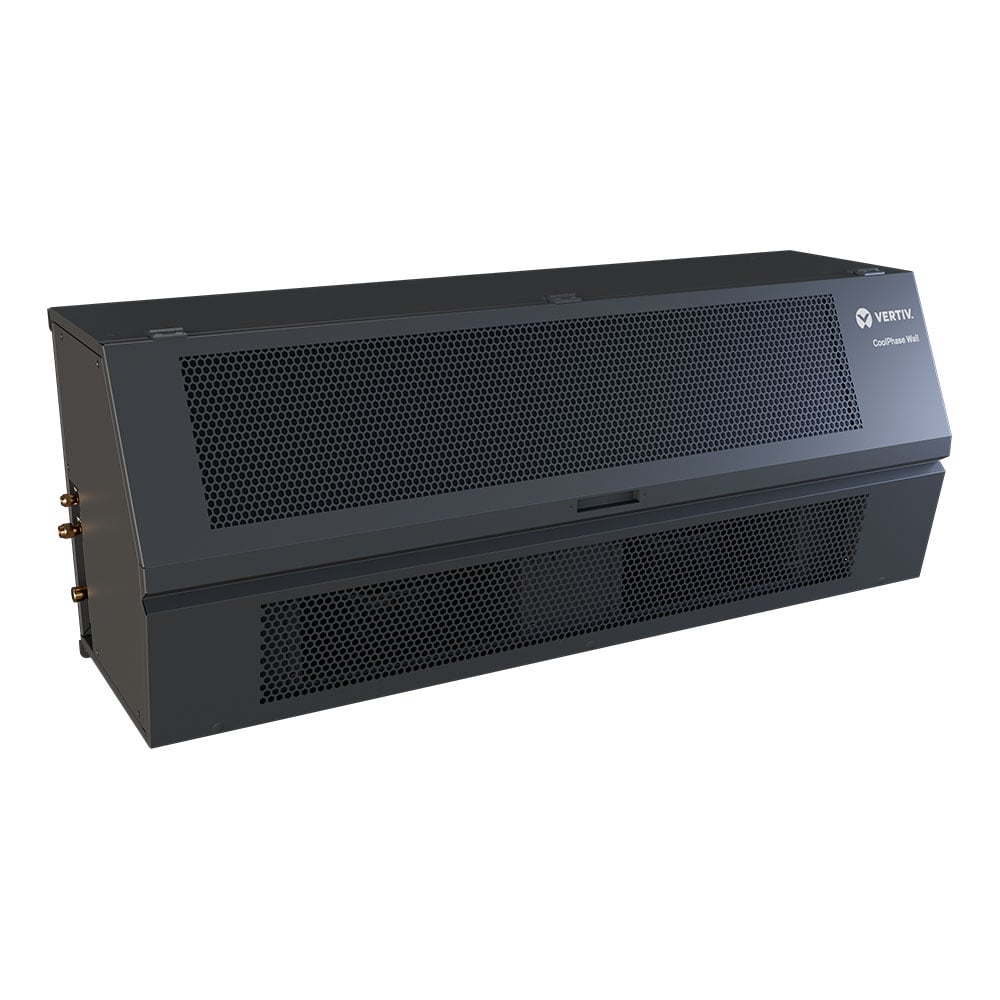

Vertiv™ CoolPhase Wall WLM070A, 7.0kW Wall-Mount Split System Cooling for Small IT Rooms
|
|||||
| 24,000 BTUH (7kW) | 21,600 BTUH (6.33 kW) | 1,300 CFM | 19.29in | 49.8in | 15.35 |
| Vedi maggiori informazioni sul prodotto | |||||
|

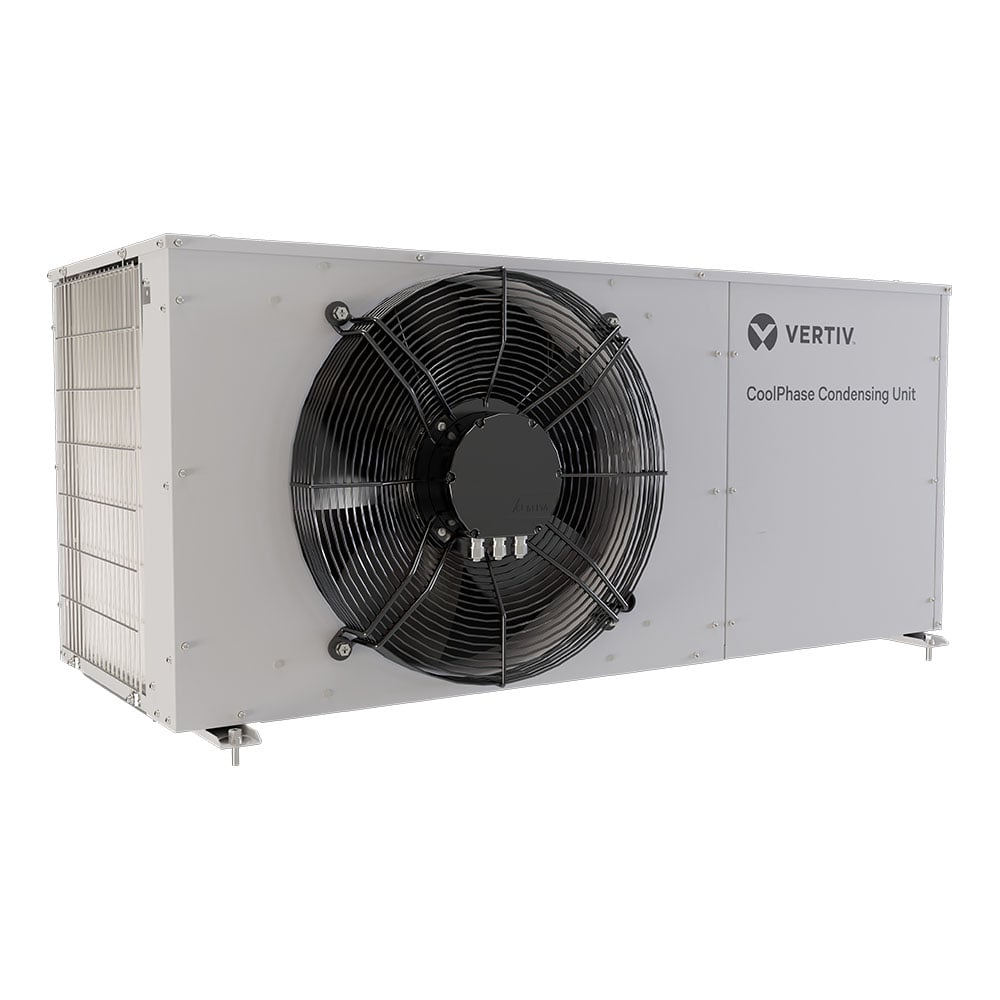

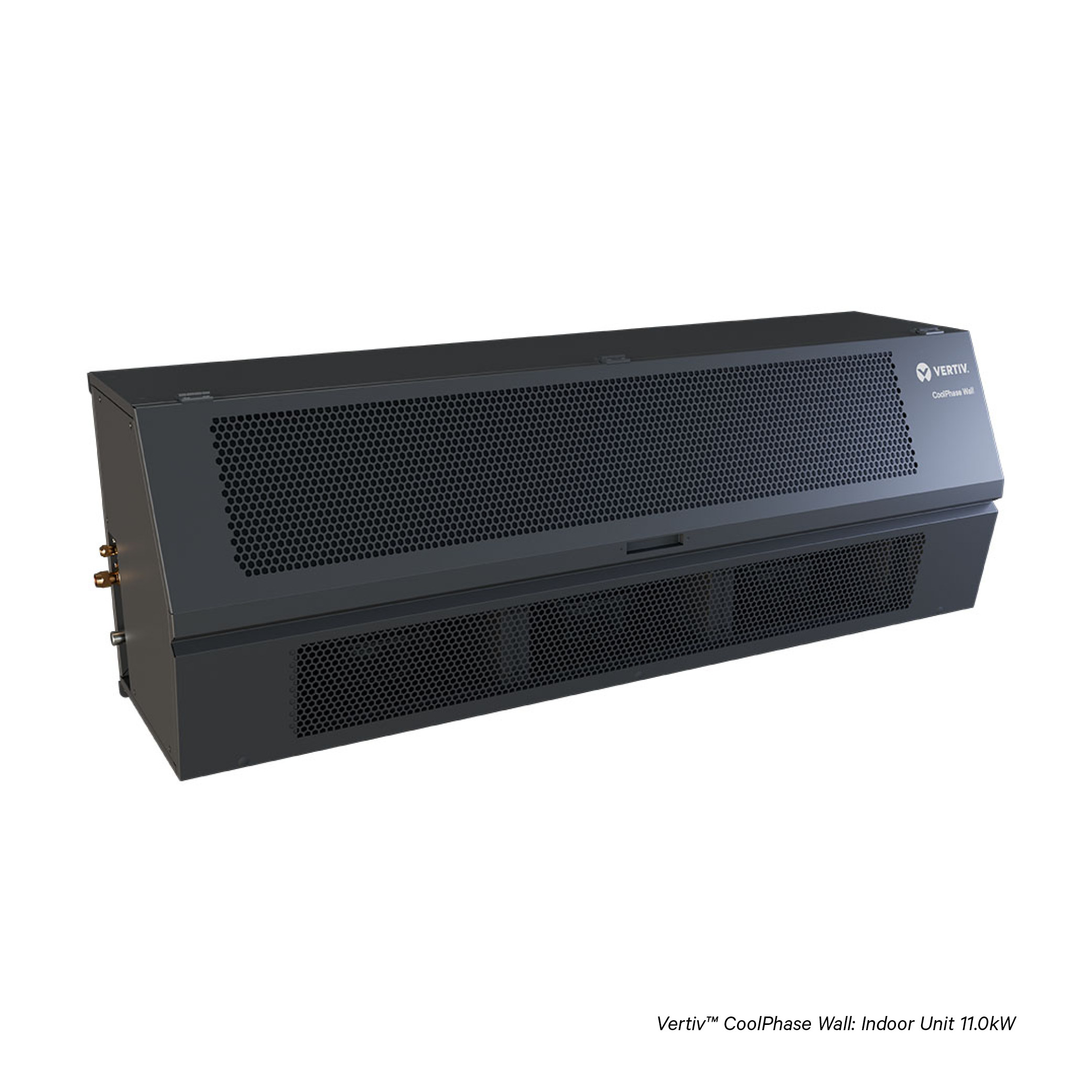

Vertiv™ CoolPhase Wall WLM0110A, 11.0kW Wall-Mount Split System Cooling for Small IT Rooms
|
|||||
| 37,500 BTUH (11.0kW) | 33,750 BTUH (9.89 kW) | 1,885 CFM | 19.29in | 56.1in | 15.35in |
| Vedi maggiori informazioni sul prodotto |
Vantaggi
Caratteristiche
- Vertiv™ CoolPhase Wall Installation, Maintenance and User Manual SL-71138
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Installer User Guide SL-71930
- Vertiv™ CoolPhase Wall Condensate Pump Kit Quick Installation Guide SL-71205
- Vertiv™ CoolPhase Wall Handling and Unboxing Instructions SL-71244
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Wind Baffle Quick Installation Guide SL-71332
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Hail Guards Quick Installation Guide SL-71333
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Duct Kit Quick Installation Guide SL-71932
- Vertiv™ CoolPhase Condensing Unit 3.5-11 Handling and Unpacking Instructions SL-71177
Per vedere i download specifici per modello, è necessario andare nella pagina del prodotto di interesse selezionando il nome del modello nella scheda delle specifiche sopra.
