Vertiv™ CoolPhase Perimeter Cooling System, DS035-105kW, R454B
As the world's most flexible and reliable direct expansion data center cooling system, the Vertiv™ CoolPhase Perimeter improves data center efficiency and protection. The system uses the industry's most advanced thermal controls and features a modular design, multiple compressor options and easy service access.
- Banking Financial and Insurance
- Broadcast and Entertainment
- Data CenterColocationHosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications
Vertiv™ CoolPhase Perimeter data center cooling system provides efficient, precise, reliable control of room temperature, humidity and airflow. The flexible unit offers high energy efficiency, user-friendly Vertiv™ Liebert® iCOM™ unit controls, a modular frame, front service access, and multiple compressor and fan options. Vertiv™ CoolPhase Perimeter is offered in both upflow and downflow models from 35-105kW (10-30 tons) capacities. Cooling types include air, water/glycol, and GLYCOOL™.
|
DS035, 35kW
|
|||||
|---|---|---|---|---|---|
| 119 [35] | 5,200 | 76 in | 73 in | 35 in | 1470 lb |
| See more product information | |||||
|

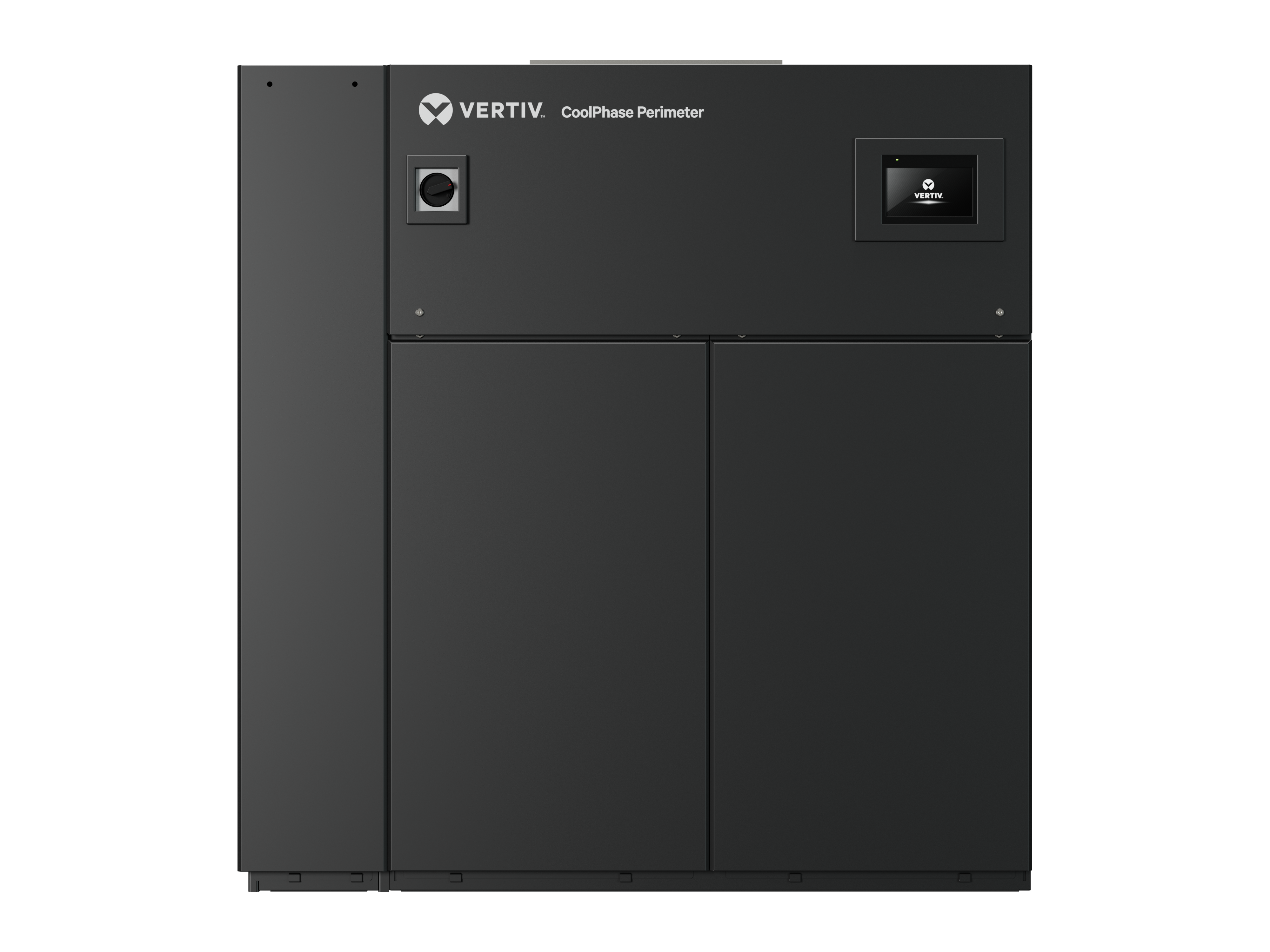

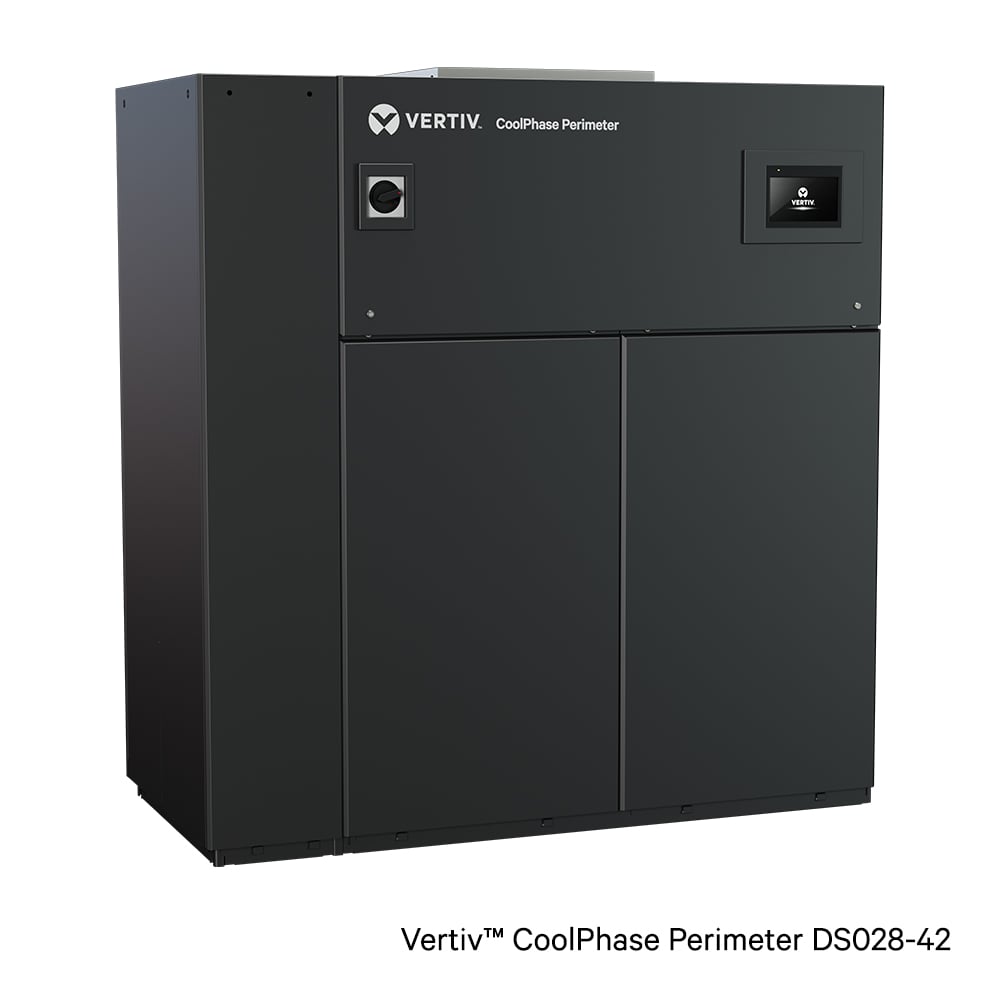

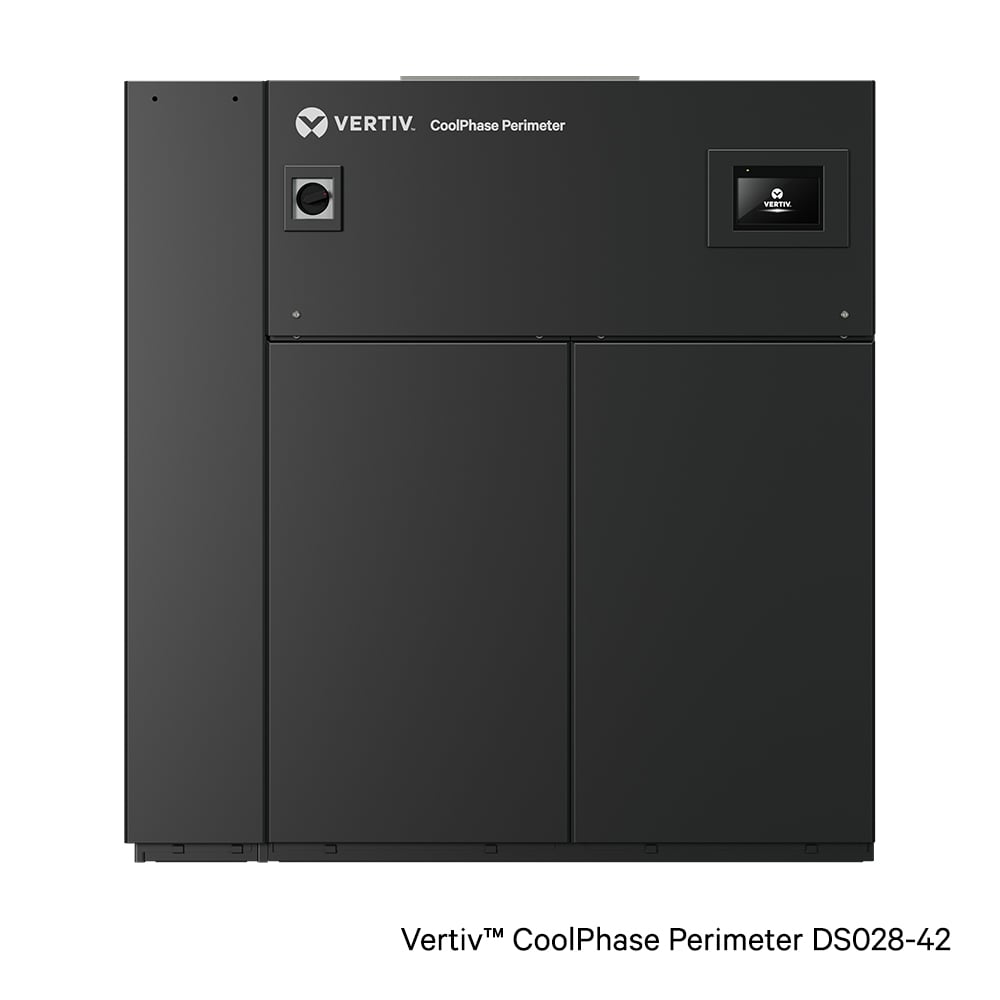

DS042, 42kW
|
|||||
| 143 [42] | 6,200 | 76 in | 73 in | 35 in | 1470 lb |
| See more product information | |||||
|

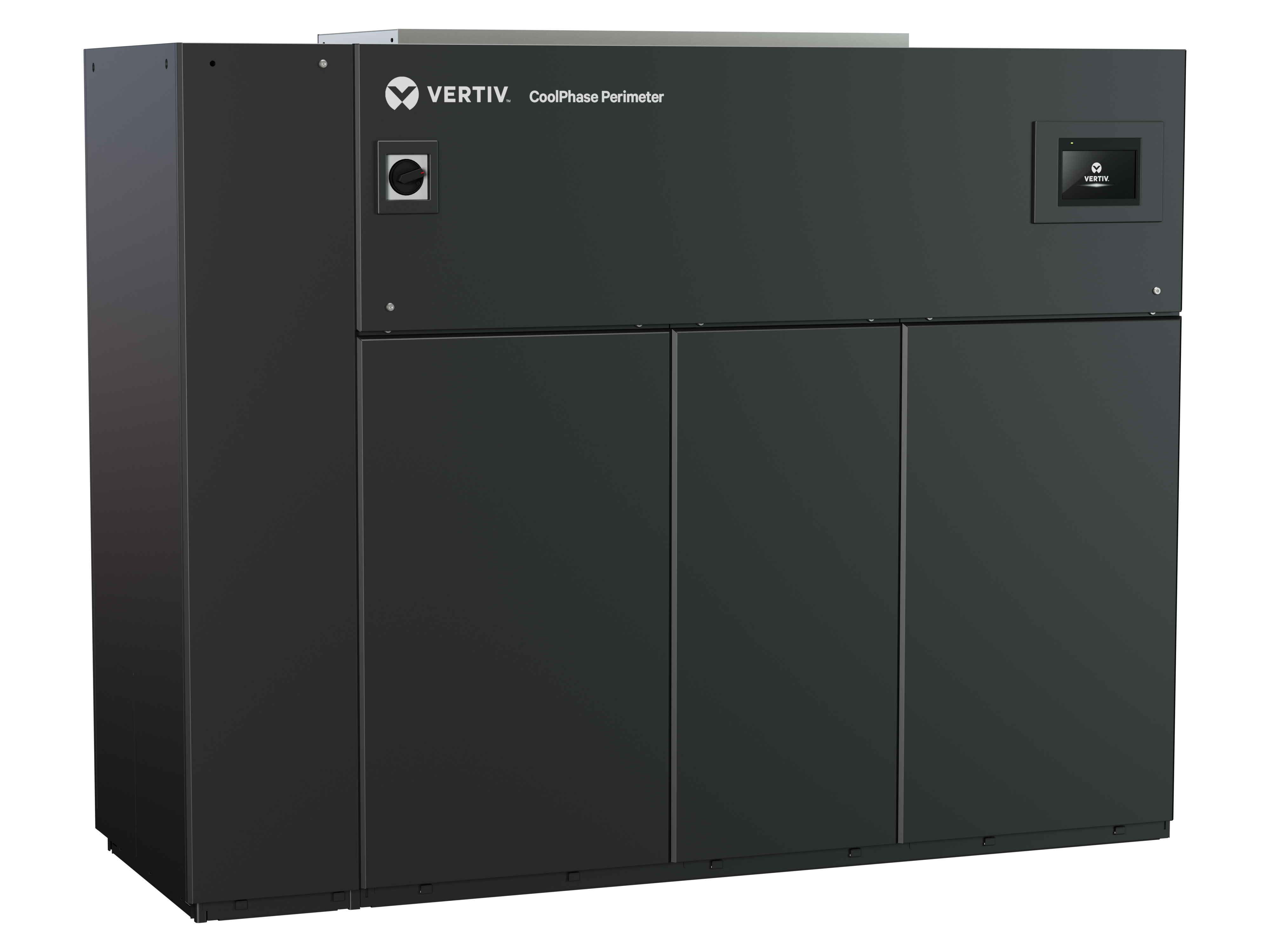

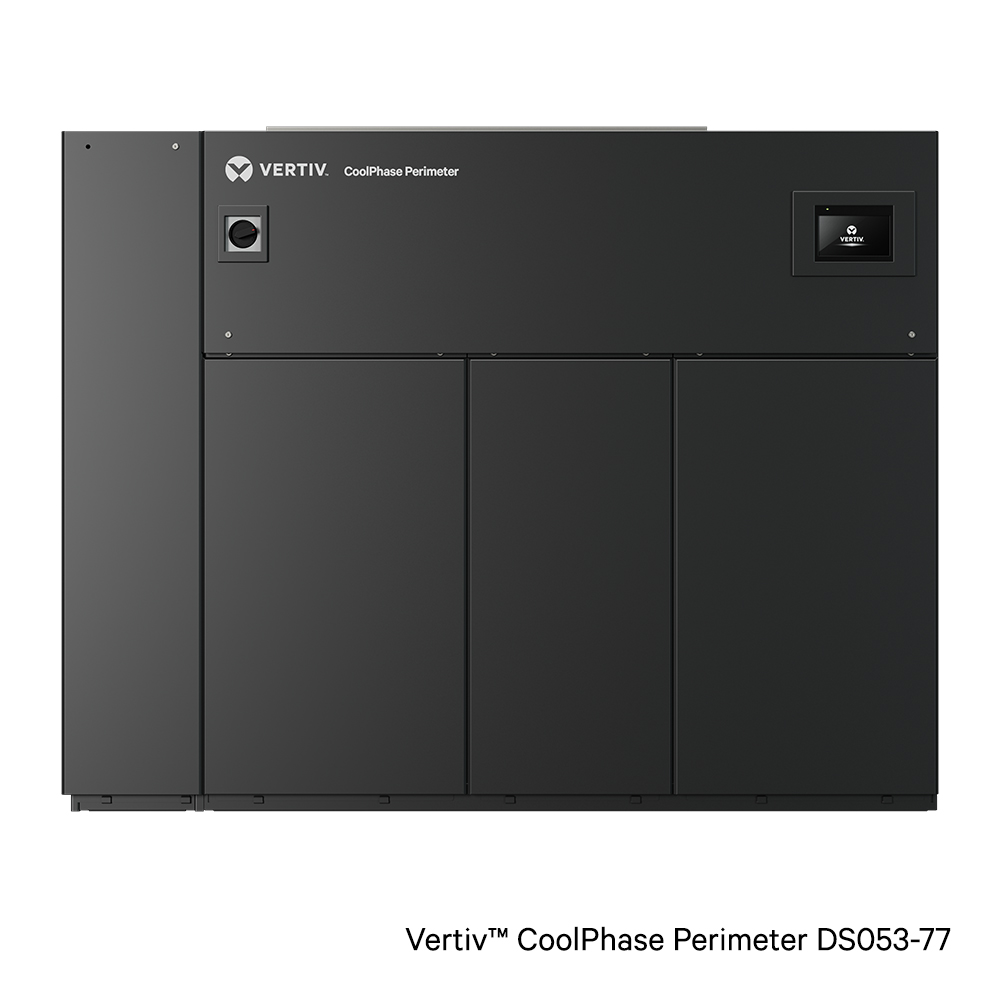

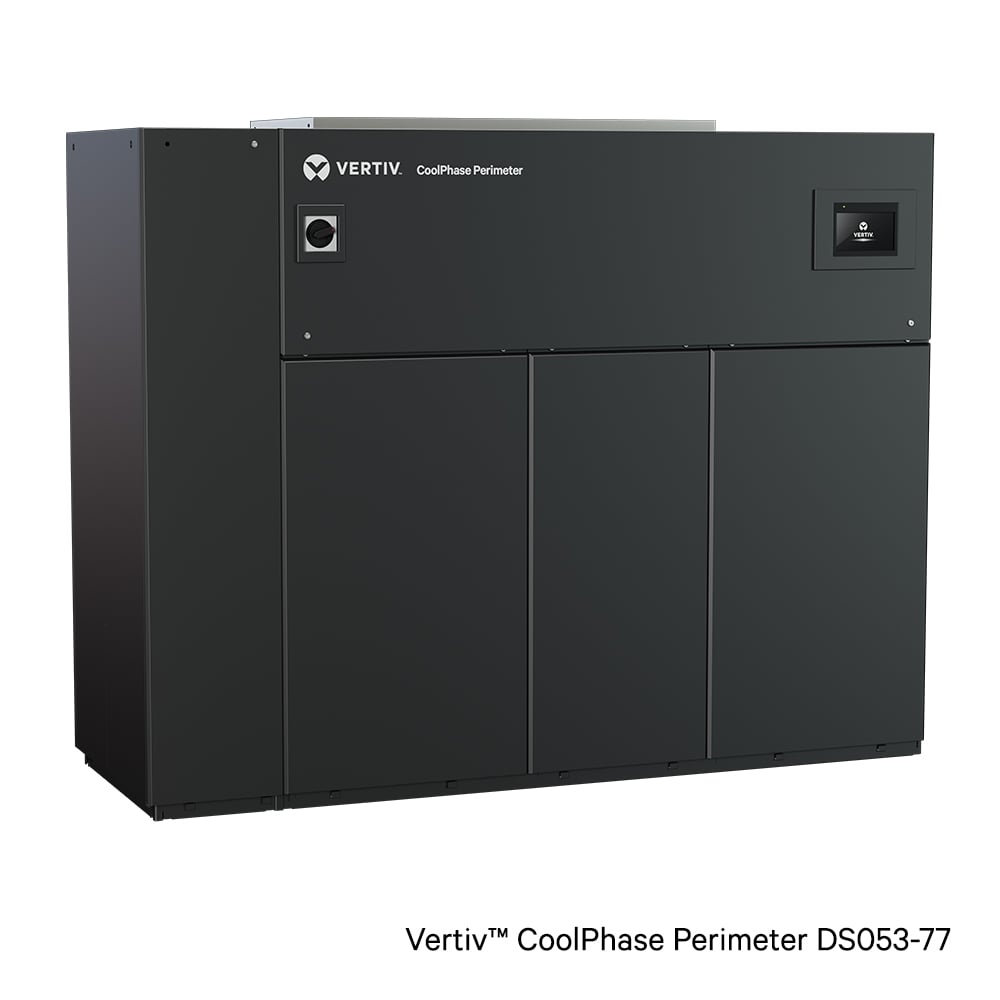

DS053, 53kW
|
|||||
| 181 [53] | 8,000 | 76 in | 98 in | 35 in | 1920 lb |
| See more product information | |||||
|
DS070, 70kW
|
|||||
| 239 [70] | 9,600 | 76 in | 98 in | 35 in | 1970 lb |
| See more product information | |||||
|
DS077, 77kW
|
|||||
| 263 [77] | 11,000 | 76 in | 98 in | 35 in | 2450 lb |
| See more product information | |||||
|

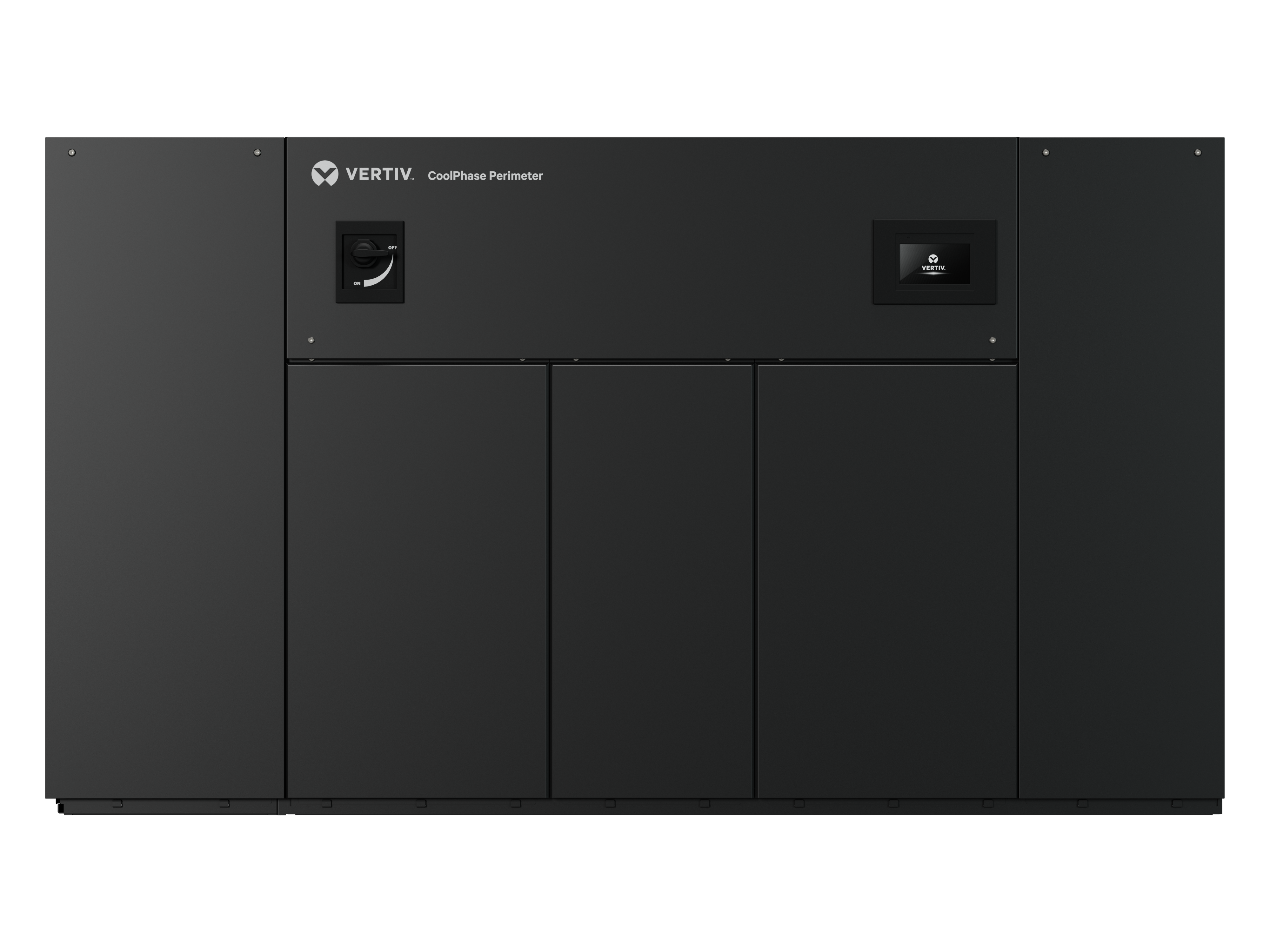

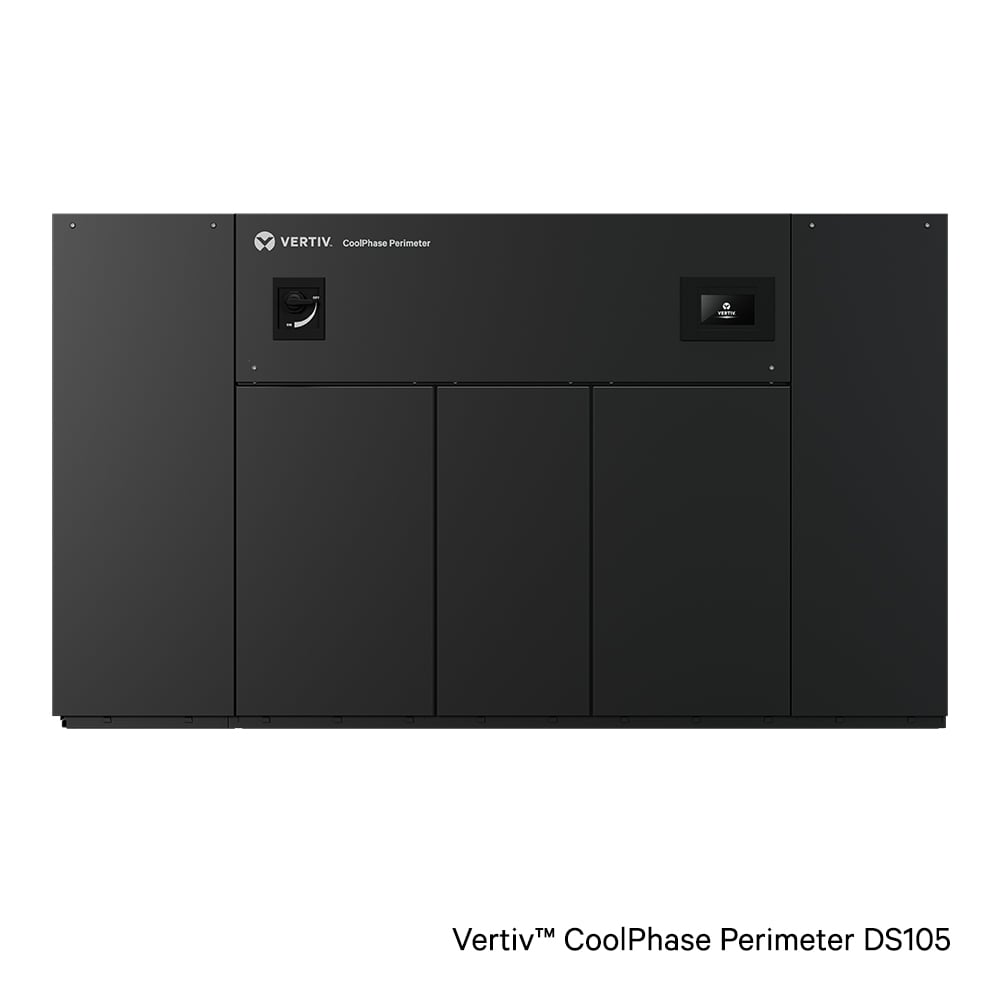

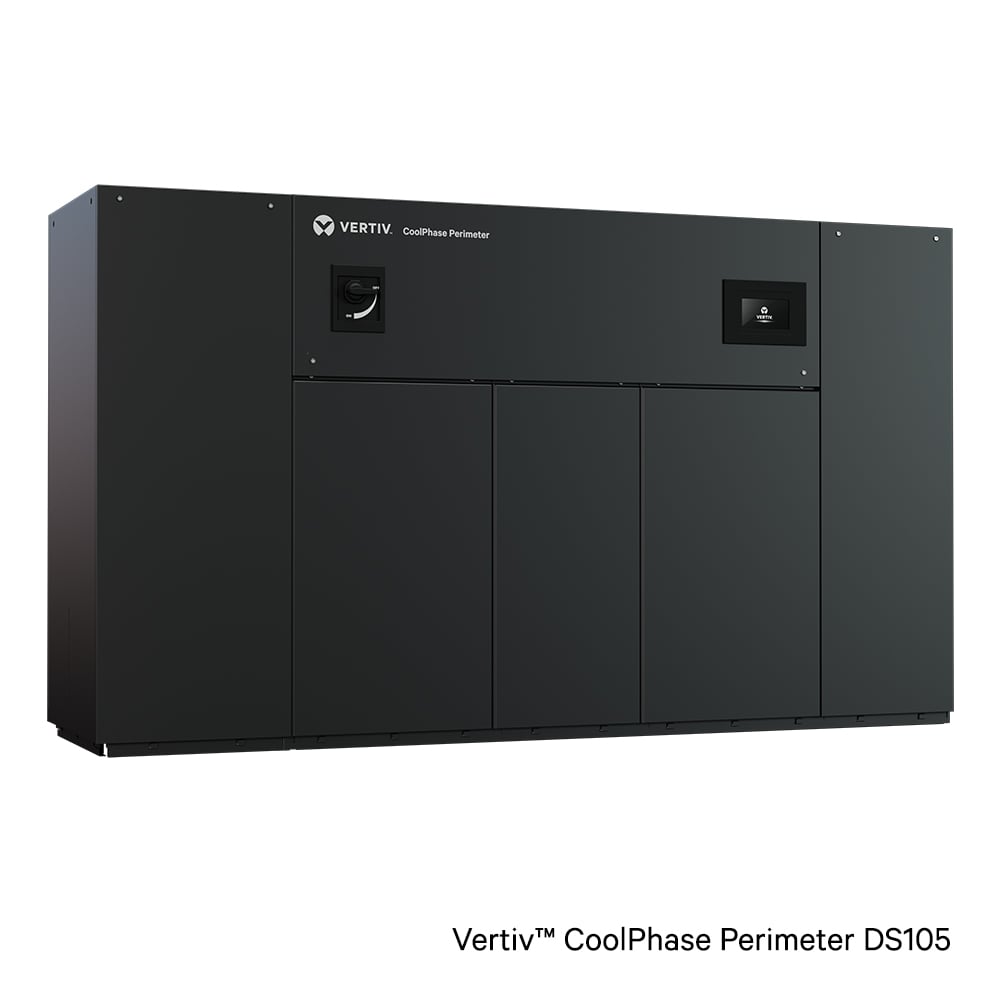

DS105, 105kW
|
|||||
| 358 [105] | 13,700 | 76 in | 132 in | 35 in | 2780 lb |
| See more product information |
Benefits
Features
- Vertiv™ CoolPhase Perimeter, DS035-105 User Manual SL-80164
- Vertiv™ Liqui-Tect 460 Kit Zone Leak Detection Sensor Installation Guide SL-80310
- Vertiv™ CoolPhase Condenser (MC028-220) User Manual SL-80204
- Vertiv™ CoolPhase and CoolLoop Perimeter iCOM User Manual SL-80185
- Vertiv™ Liqui-Tect 410 Point Leak Detection Sensor Installation Guide SL-80311
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
