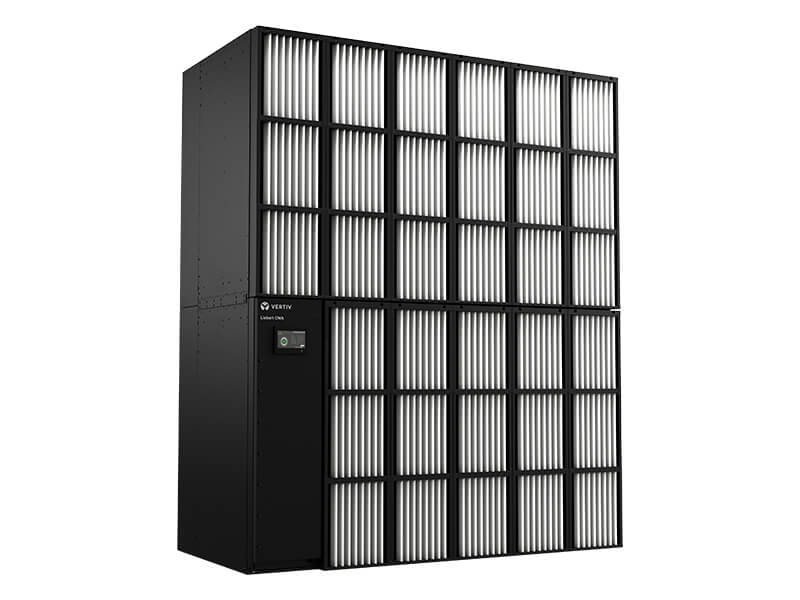

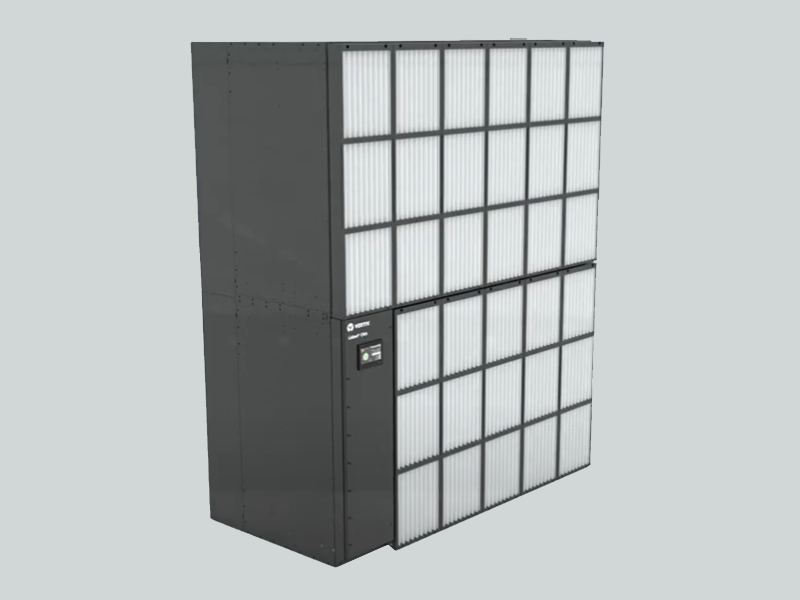

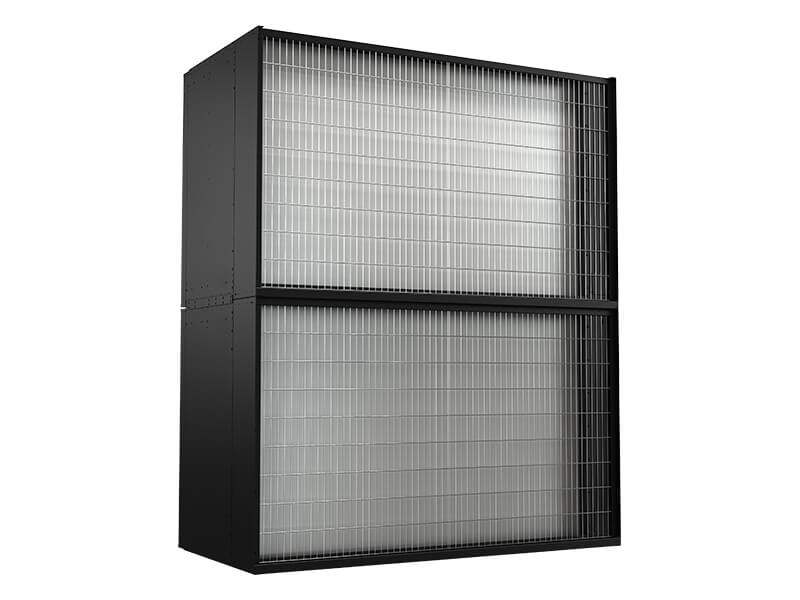

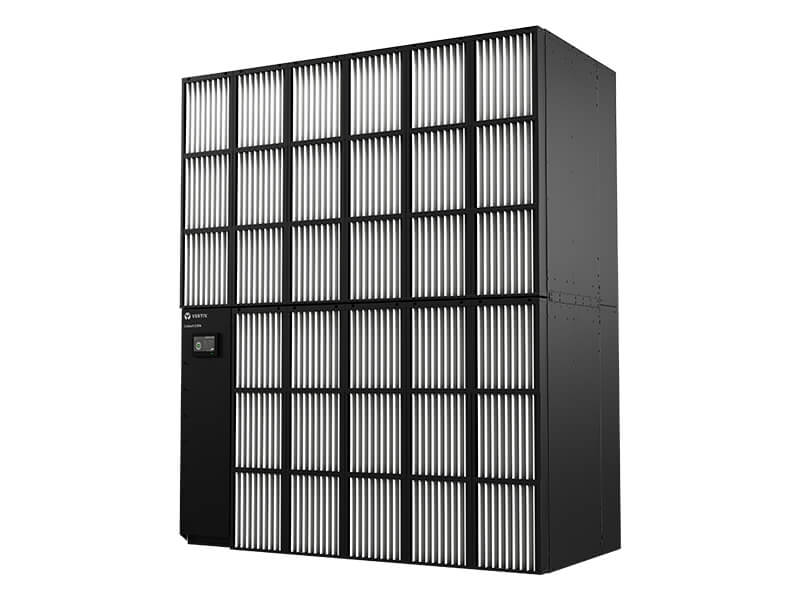

Vertiv™ CoolLoop Thermal Wall - Chilled Water Air Handling Unit for Data Centers, Gallery-side Slab Floor, 350 to 500kW
The Vertiv™ CoolLoop Thermal Wall unit is a turnkey chilled water air handling unit delivering 350-500kW cooling capacity for slab floor, gallery-side data center installations. Designed for cloud, hyperscale, and colocation facilities, it supports traditional air-cooled and hybrid AI and HPC environments. The Vertiv CoolLoop Thermal Wall unit supplies high-volume, low speed airflow directly to the server room, improving rack density. Its simple slab floor designs can help reduce construction complexity and increase deployment speed. EC fans, intelligent controls, seismic options, and active THDi mitigation enhance efficiency, temperature control, and operational reliability in non‑raised floor environments.
- Data Center/Colocation/Hosting
Specifications
Designed for large‑capacity environments, the Vertiv™ CoolLoop Thermal Wall scales up to 500 kW to support larger, non‑raised floor data center building blocks. It integrates into chilled water systems and accommodates a wide range of IT loads, from traditional air‑cooled deployments to higher‑density AI applications.
|
Vertiv™ CoolLoop Thermal Wall from 350 to 500 kW CA60
|
||||
|---|---|---|---|---|
| 360 | 20,000-60,000 | 144.3 in | 120 in | 60 in |
| See more product information | ||||
|
Vertiv™ CoolLoop Thermal Wall from 350 to 500 kW CA80
|
||||
| 500 | 26,500-90,000 | 144.5 in | 156 in | 60 in |
| See more product information |
Benefits
- DENSITY AT SCALE: The unit delivers 350 to 500 kW of cooling capacity, supporting higher cooling density per footprint in large-scale IT environments.

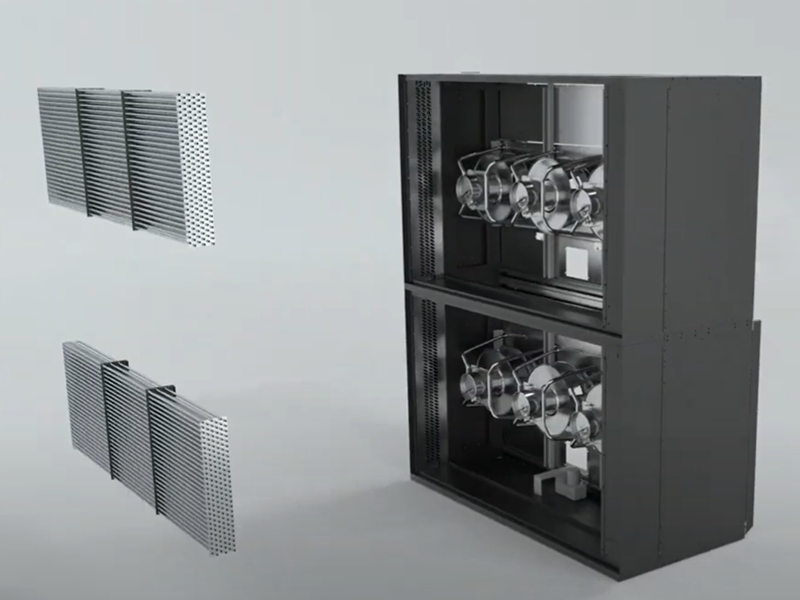

- REDUCED LOGISTICS: Modular sections lower shipping costs while enabling fast commissioning and easy installation.
- HIGHER COOLING CAPACITY: The high-performance EC fans increase cooling capacity without increasing the unit footprint.
- GROWTH-READY DESIGN: This cooling solution supports a data center’s evolving requirements through its extended operating ranges, scalable fan options, and custom coils.
- RAPID ON-SITE DEPLOYMENT: It provides fast commissioning and a range of optional features to align with your business needs.
Features
- HIGH-EFFICIENCY EC FANS: ErP‑compliant, latest generation EC fans help boost airflow and cooling performance while reducing energy consumption.
- ENHANCED COIL PERFORMANCE: Multiple enhanced coils increase heat transfer capacity to support higher cooling output and improved thermal performance.
- LOWER PRESSURE AIRFLOW: The unit design reduces internal aerodynamic resistance to minimize air pressure drop and lower overall power consumption.
- PRECISION WATERFLOW CONTROL: The pressure independent control valve maintains a constant flow rate to ensure stable water distribution and optimized system efficiency.
- FLANGED PIPING CONNECTIONS: Flange connections simplify installation and servicing by enabling secure, consistent, and leak‑resistant hydronic tie‑ins.
- FACTORY-INTEGRATED CONTROLS: Vertiv™ Liebert® iCOM™ controls are factory installed and tested to enable faster start‑up, coordinated operation, and optimized cooling performance.
- TOUCHSCREEN USER INTERFACE: The touchscreen display provides intuitive local control for quick configuration, monitoring, and diagnostics.
- POWER CONTINUITY DESIGN: The dual power supply with control power continuity keeps the control system operational during power events to maintain reliable unit performance.
- SEISMIC-RATED CONSTRUCTION: IBC seismic certification ensures the unit includes structural bracing that enables safe installation and operation in seismic zones.
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
