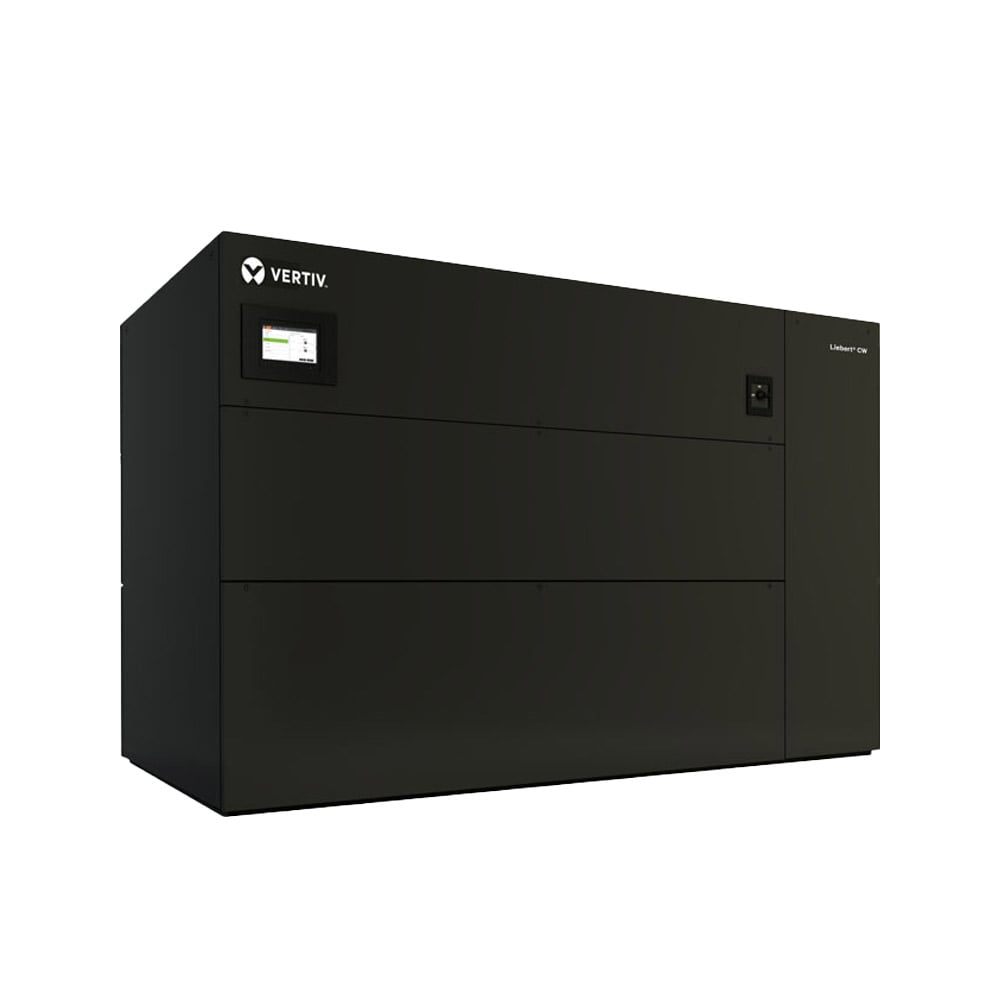

Vertiv™ Liebert® CW - Perimeter chiller water floor mount cooling unit - 038-181 kW
Vertiv™ Liebert® CW system lets you rapidly deploy chilled water capacity, achieve higher efficiency and use less white space. It offers a wide range of capacities, featuring advanced controls and innovations, such as optimized coil design that maximizes capacity and efficiency even at high entering water temperatures.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Vertiv™ Liebert® CW - Perimeter chiller water floor mount cooling unit - 038-181 kW
Vertiv™ Liebert® CW system lets you rapidly deploy chilled water capacity, achieve higher efficiency and use less white space. It offers a wide range of capacities, featuring advanced controls and innovations, such as optimized coil design that maximizes capacity and efficiency even at high entering water temperatures.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications
Vertiv™ Liebert® CW delivers a complete and flexible precision cooling solution with advanced humidity control, multiple airflow configurations, and intelligent Vertiv™ Liebert® iCOM™ Supervision, allowing high availability through reliable components and coordinated operation, while minimizing total cost of ownership through existing chilled‑water integration and high‑efficiency fan options; multiple connection choices and right/left‑side piping access further enhance installation flexibility by reducing required floor space and allowing units to be positioned closer together.
|
CW038, 38kW
|
||||||
|---|---|---|---|---|---|---|
| 112 [32.8] | 110 [32.2] | 6050 | 72 in | 50 in | 35 in | 840 lbs |
| See more product information | ||||||
|
CW041, 41kW
|
||||||
| 148 [43.4] | 132 [38.7] | 5950 | 72 in | 50 in | 35 in | 900 lbs |
| See more product information | ||||||
|
CW051, 51kW
|
||||||
| 169 [49.5] | 167 [48.9] | 9200 | 72 in | 74 in | 35 in | 1220 lbs |
| See more product information | ||||||
|
CW060, 60kW
|
||||||
| 231 [67.7] | 205 [60.1] | 9200 | 72 in | 74 in | 35 in | 1250 lbs |
| See more product information | ||||||
|
CW076, 76kW
|
||||||
| 241 [70.6] | 230 [67.4] | 12,400 | 72 in | 99 in | 35 in | 1440 lbs |
| See more product information | ||||||
|
CW084, 84kW
|
||||||
| 297 [87] | 265 [77.6] | 11900 | 72 in | 99 in | 35 in | 1540 lbs |
| See more product information | ||||||
|
CW114, 114kW
|
||||||
| 449 [132] | 393 [115] | 17,300 | 76 in | 122 in | 35 5/8 in | 1925 lbs |
| See more product information | ||||||
|
CW146, 146kW
|
||||||
| 523 [153] | 473 [139] | 21,000 | 94 in | 122 in | 42 in | 2520 lbs |
| See more product information | ||||||
|
CW181, 181kW
|
||||||
| 720 [211] | 605 [177] | 24,000 | 94 in | 122 in | 42 in | 2520 lbs |
| See more product information |
Benefits
- GREATER FLEXIBILITY: Full precision cooling and humidity control in upflow or downflow designs for raised or non‑raised floors.
- HIGHER AVAILABILITY: High‑reliability design for 24/7 protection, allowing proper humidity through a high sensible heat ratio.
- LOWER TOTAL COST OF OWNERSHIP (TCO): leverages existing building chilled‑water systems and high‑efficiency fan options, including EC plug fans and variable‑speed centrifugal fans.
Features
- OPTIMISED COIL: large-face-area, low–face-velocity A-Frame coil designed to maximize cooling performance while allowing consistent, evenly distributed airflow.
- CONTROL VALVES WITH OPTIONAL AUTO-TUNING: to provide precise proportional modulation with intelligent logic, prevent hunting and extend component life.
- VARIABLE SPEED EC FANS: delivering superior efficiency by lowering motor kW, balanced to minimize vibration to fit every application requirement
- Vertiv™ Liebert® iCOM™ control: microprocessor controls to maintain precise temperature and humidity while automatically sequencing components to balance wear, extend service life, and improve cooling efficiency.
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
