DME027E, 6.65kW
Quick Access
Specifications
Technical Specifications
DME027E, 6.65kW
- Product Specifications
- Total Nominal Capacity kBtuh [kW]
- 22.7 [6.65]
- Net Sensible Capacity kBtuh [kW]
- 22.7 [6.65]
- Nominal Airflow [CFM]
- 1230
- Total Capacity
- 22.8 [6.70]
- Heat Rejection Medium
- Air
- Physical Characteristics
- Weight
- 330
- Weight
- 150
- Height
- 32
- Height
- 813
- Width
- 64 1/8
- Width
- 1628
- Depth
- 11 7/8
- Depth
- 302
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

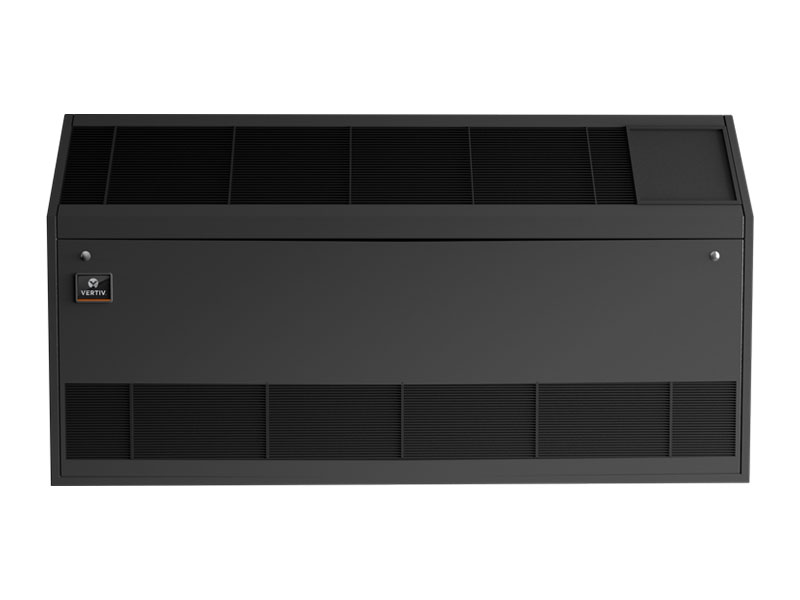

DME027E, 6.65kW

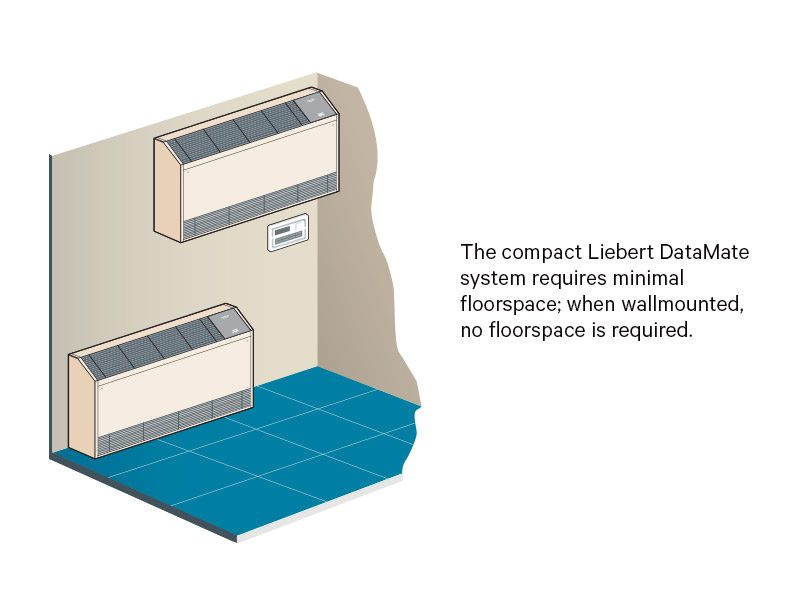

The Liebert DataMate is a split-system evaporator available in combination with a remote air-, water- or glycol-cooled condensing unit or a close-coupled water/glycol-cooled condensing unit, or as a self-contained, chilled water unit. Models are available to fit small computer rooms, requiring only five quare feet or less of floor space, or can be mounted on a wall. Each split system has thermostat-type wiring to controls and condensing unit. System components are pre-charged with refrigerant using quick-connect fittings for fast installation. The unit is designed for front service access.
Warranty : One Year Limited Warranty Against Defects in Material and Workmanship
