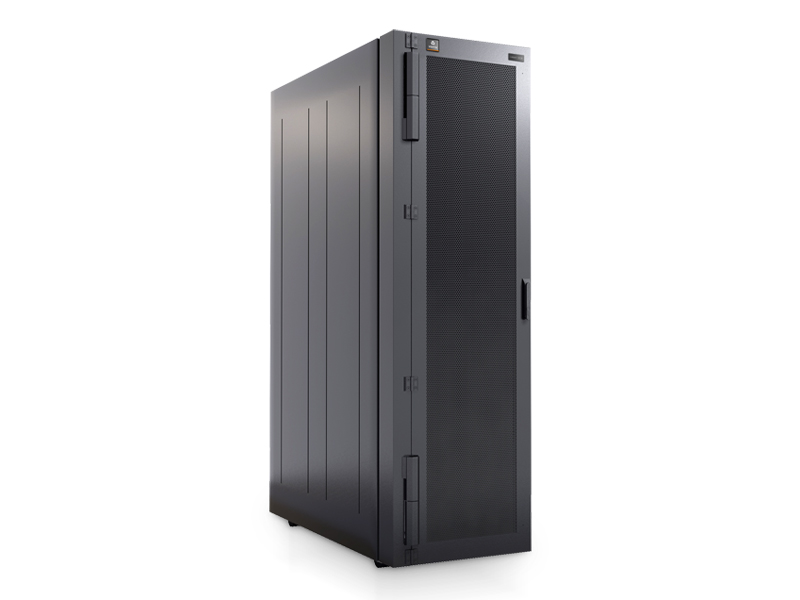

Liebert® DCD Water-Cooled Passive Rack Door, 35 kW

The Liebert® DCD chilled-water cooling unit is a highly efficient heat exchanger module that mounts on the rear of an IT rack and provides up to 35kW of room-neutral cooling. By utilizing the IT equipment fans inside the rack, the DCD passive door requires zero energy, maximizing the efficiency of your high-density system. The DCD can be supplied by either the existing chilled water system or by a coolant distribution unit, such as the Liebert® DCP, providing flexibility during installation.

Get Manual
Key Benefits
High energy efficiency by utilizing server fans to remove the heat provides lower operational cost
Mounts on the rear side of the IT rack, saving valuable floorspace for additional critical IT equipment
Few moving parts enable a much longer product lifespan, ensuring high cooling availability for years
Able to be installed on existing network racks, allowing for adaptive and scalable growth without interrupting cooling operations
Non-condensing heat exchanger reduces the risk of damage to critical IT equipment, providing peace of mind to IT managers
Doors swing open 180°, allowing for easy access to equipment inside the rack
Best Suited For:
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Retail and Wholesale
Warranty: One Year Limited Warranty Against Defects in Material and Workmanship

The Liebert® DCD chilled-water cooling unit was designed specifically for high heat density applications where the challenges of reducing energy consumption and increasing processing capabilities are the top priority for data center managers. Mounting on the rear of the rack, the Liebert® DCD brings cooling directly to the source and takes up zero additional IT floorspace, all while providing 35kW of room-neutral cooling using a chilled-water heat exchanger. By utilizing the fans from the IT equipment inside the rack to provide airflow over the heat exchanger, the DCD passive door requires zero power to remove the IT heat load, maximizing the efficiency of your high-density system. The DCD can be supplied by either the existing chilled water system or by a coolant distribution unit, such as the Liebert® DCP, providing additional flexibility during installation.

Liebert® DCD Water-Cooled Passive Rack Door, 35 kW
Physical Characteristics
Weight
210 lbs
Weight
95.2 kgs
Height
76 7/8 in
Height
1954 mm
Width
23 5/8 in
Width
600 mm
Depth
6 in
Depth
151 mm

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
