Product Family
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

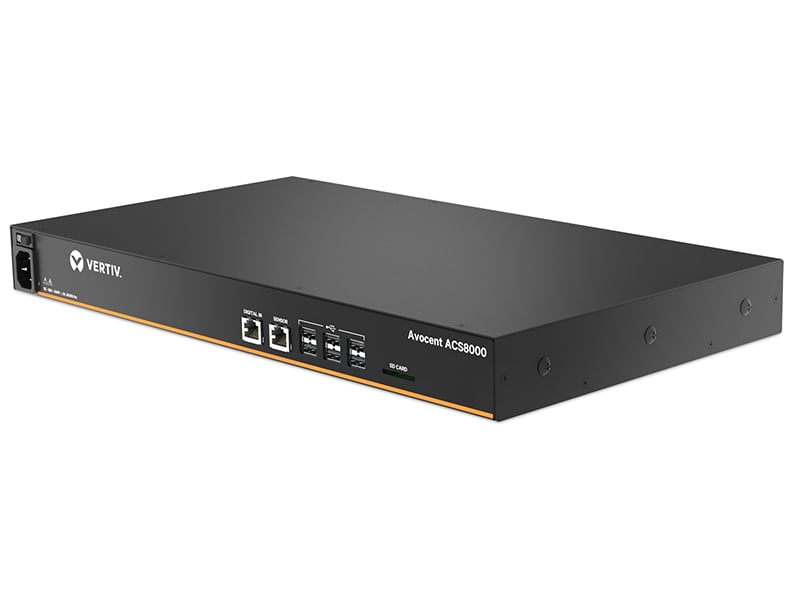

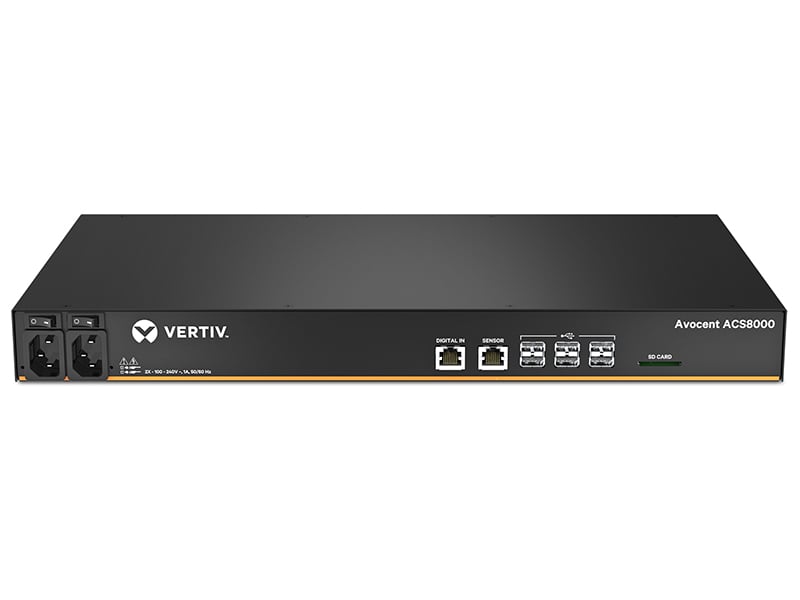

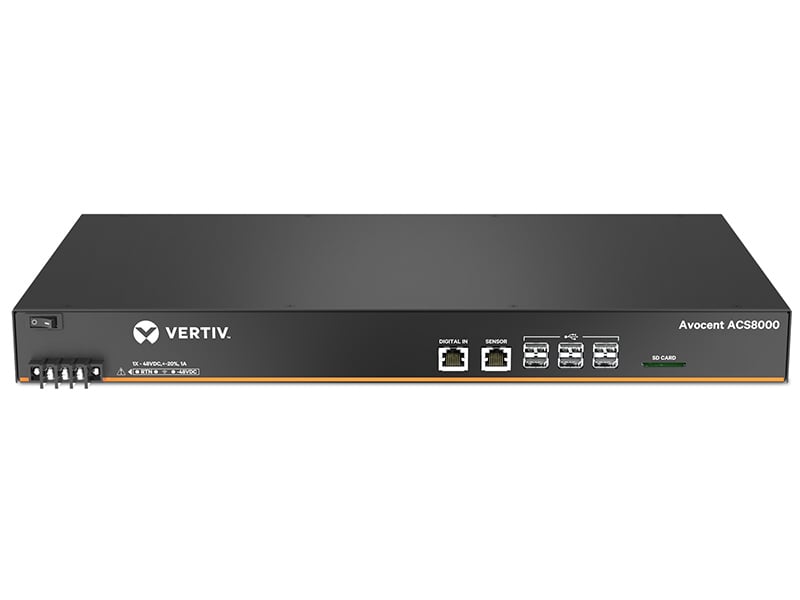

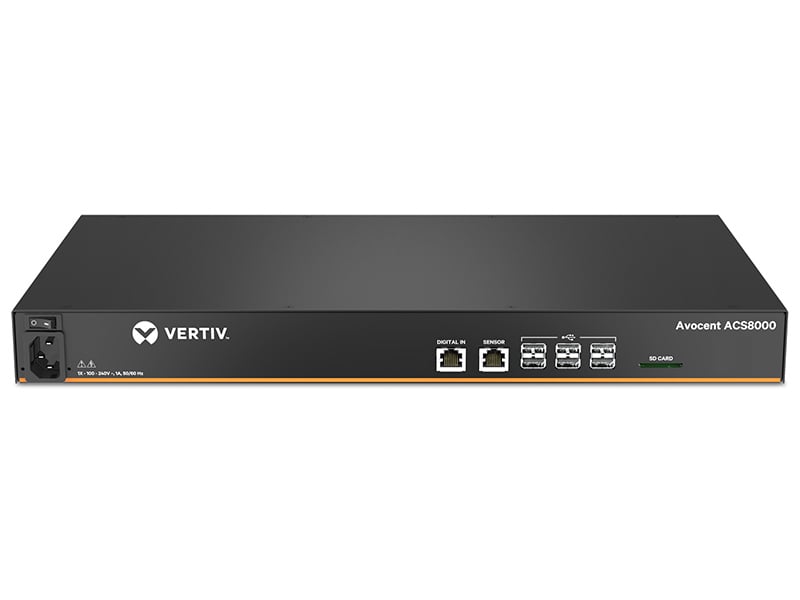

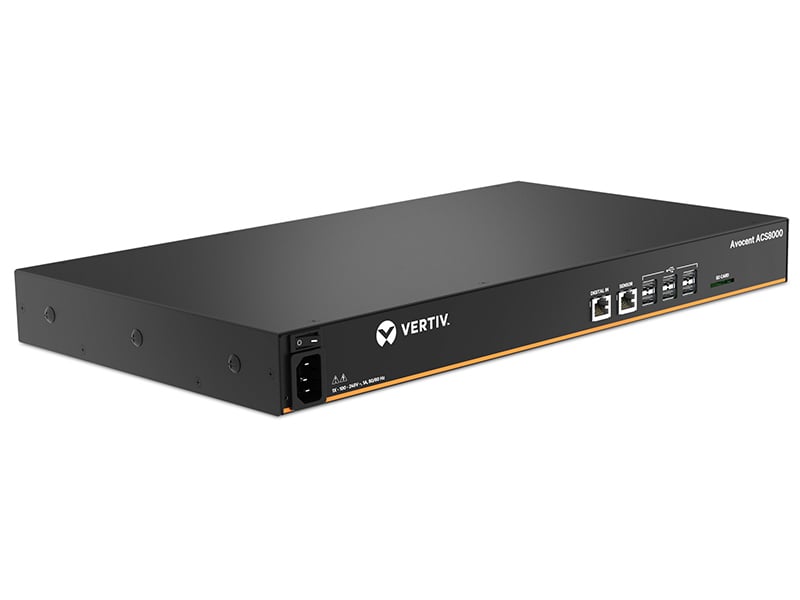

Vertiv™ Avocent® ACS 8000 Serial Consoles
The Vertiv™ Avocent® ACS 8000 Serial Consoles deliver secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. Now with cellular capabilities, the system provides flexibility to access devices when wired networks are down (failover) or unavailable at the location.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Military
- Defense
- Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Retail and Wholesale
- Telecom
- Transportation
Product Family
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

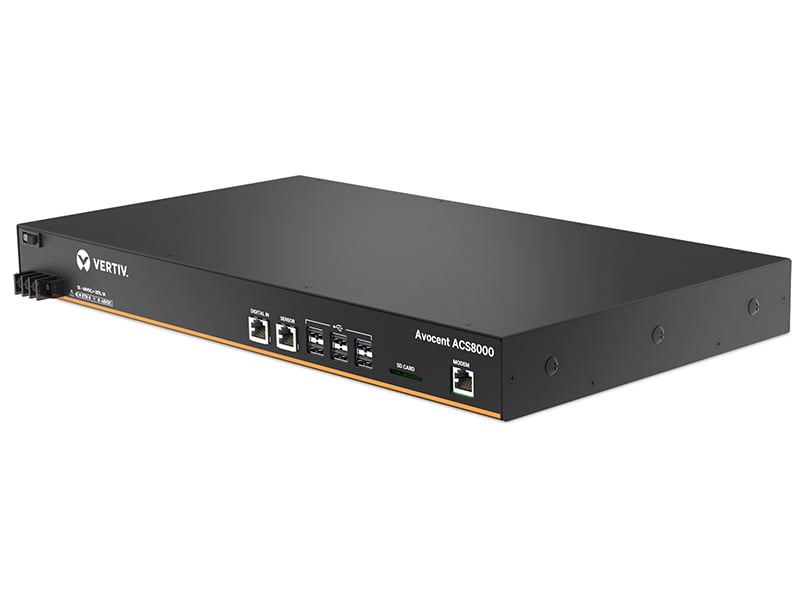

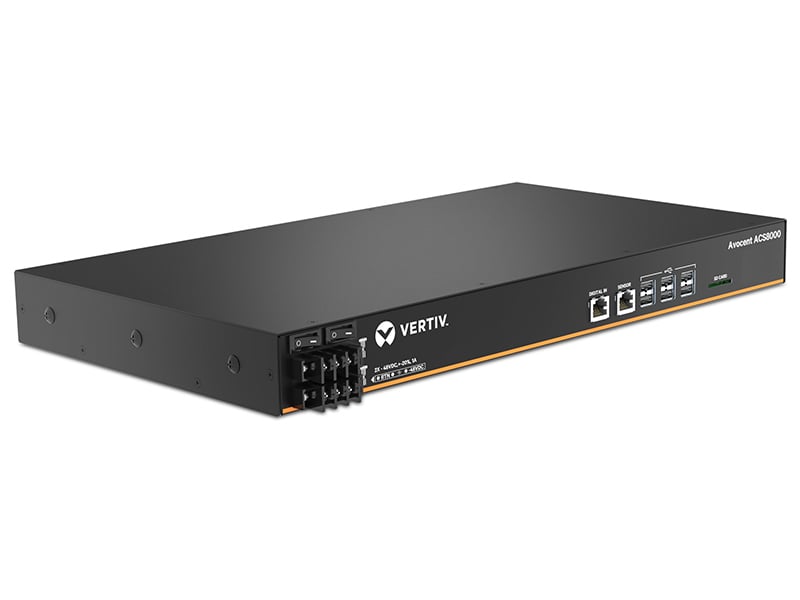

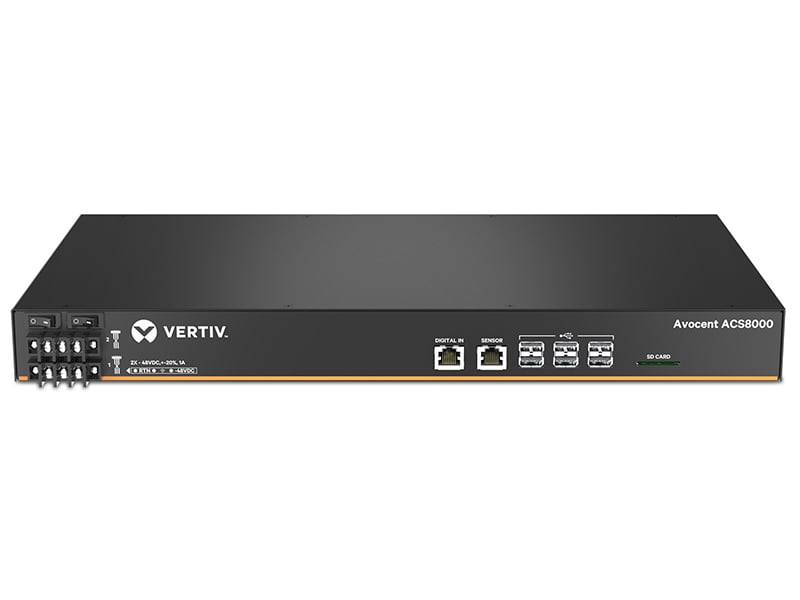

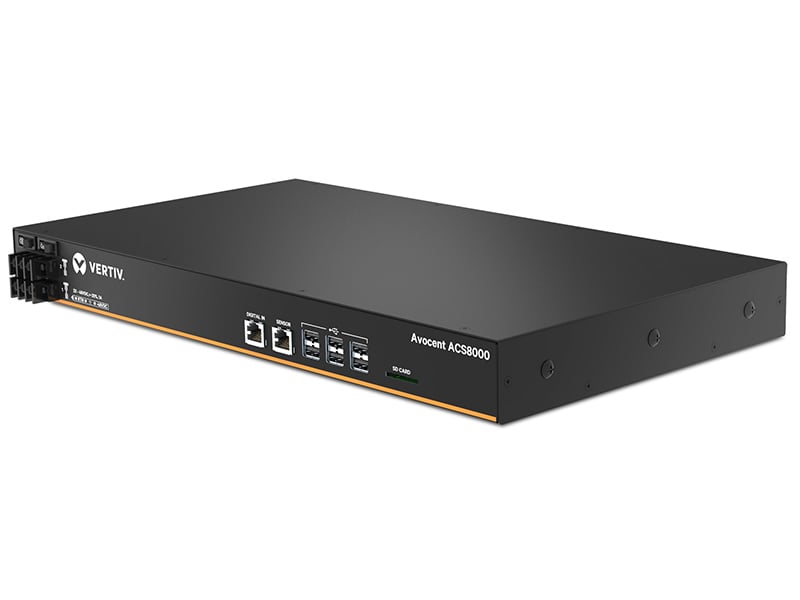

Vertiv™ Avocent® ACS 8000 Serial Consoles
The Vertiv™ Avocent® ACS 8000 Serial Consoles deliver secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. Now with cellular capabilities, the system provides flexibility to access devices when wired networks are down (failover) or unavailable at the location.
Best Suited For:
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Military
- Defense
- Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Retail and Wholesale
- Telecom
- Transportation
Specifications
|

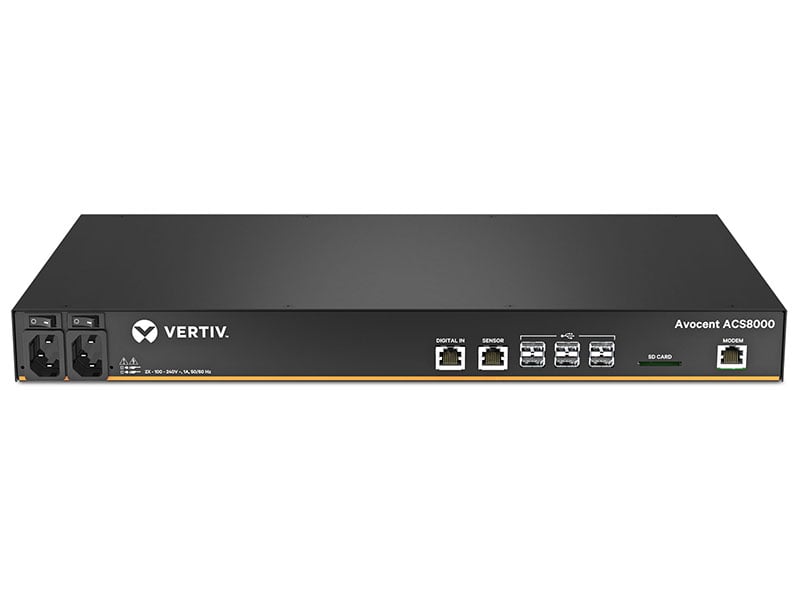

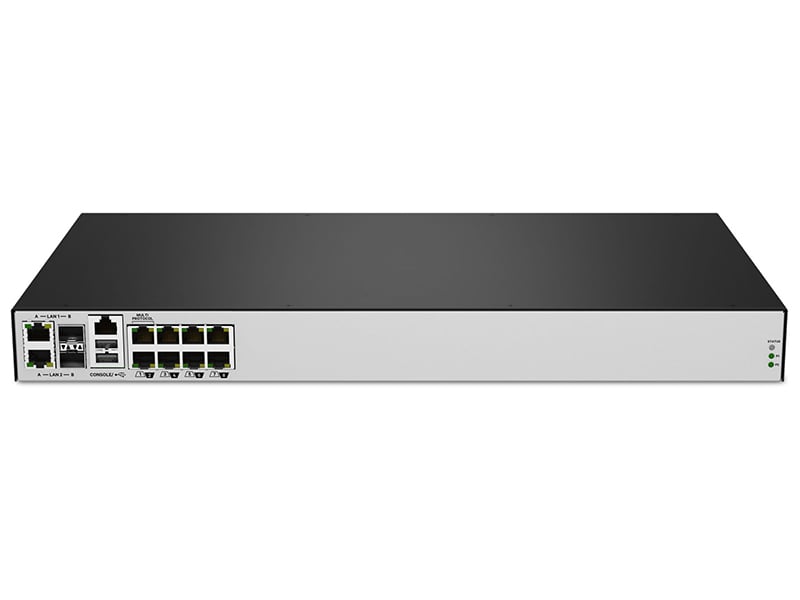

ACS 8008-NA-DAC Cellular Dual AC Serial Console
|
|||||
|---|---|---|---|---|---|
| Serial | 8 RS-232 serial, 8 USB 2.0, 4 digital | 1.75 in | 17.25 in | 9.5 in | 7.5 lbs |
| See more product information | |||||
|
ACS 8016-NA-DAC Cellular Dual AC Serial Console
|
|||||
| Serial | 16 RS-232 serial, 8 USB 2.0, 4 digital | 1.75 in | 17.25 in | 9.5 in | 7.5 lbs |
| See more product information | |||||
|

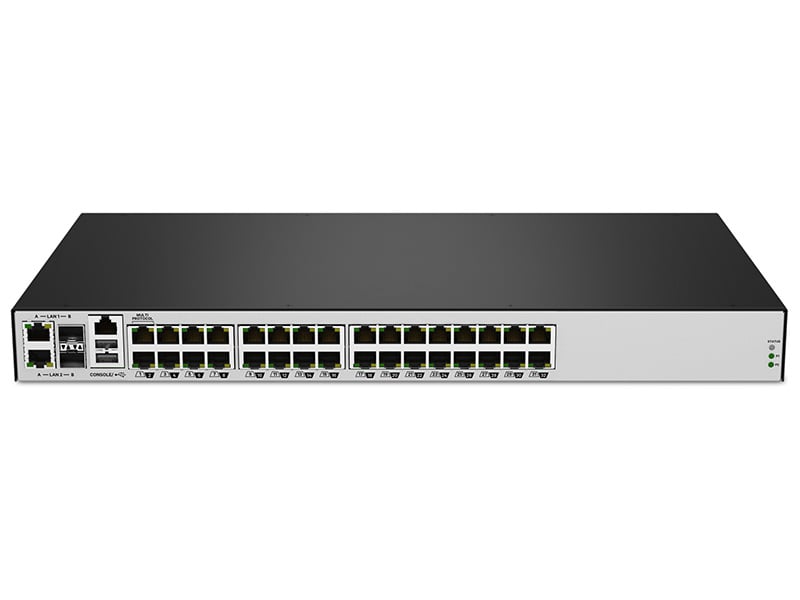

ACS 8032-NA-DAC Cellular Dual AC Serial Console
|
|||||
| Serial | 32 RS-232 serial, 8 USB 2.0, 4 digital | 1.75 in | 17.25 in | 9.5 in | 7.5 lbs |
| See more product information | |||||
|

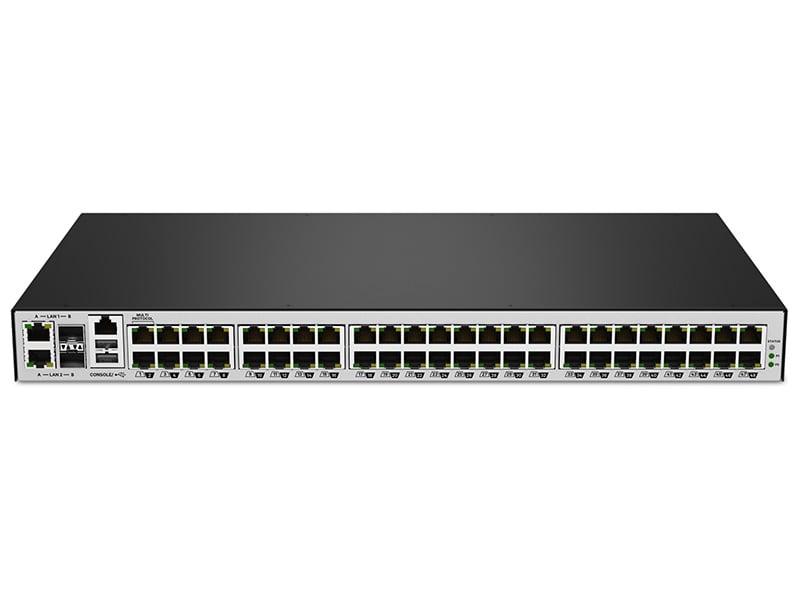

ACS 8048-NA-DAC Cellular Dual AC Serial Console
|
|||||
| Serial | 48 RS-232 serial, 8 USB 2.0, 4 digital | 1.75 in | 17.25 in | 9.5 in | 7.5 lbs |
| See more product information |
Benefits

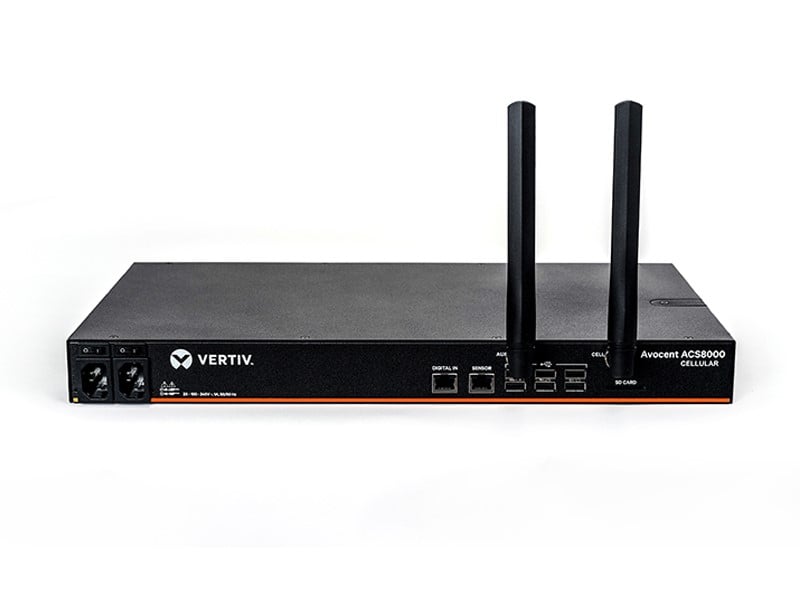

NEW! - Cellular option provides primary Out-of-Band or failover connectivity
Environmental sensor port gives visibility into onsite conditions
Access and troubleshoot remote locations using automatic network failover to cellular, Ethernet or analog modem

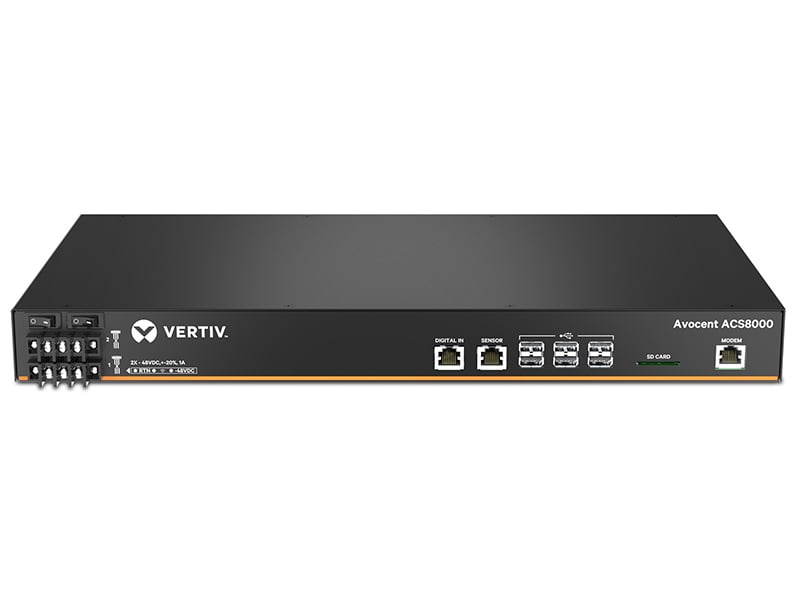

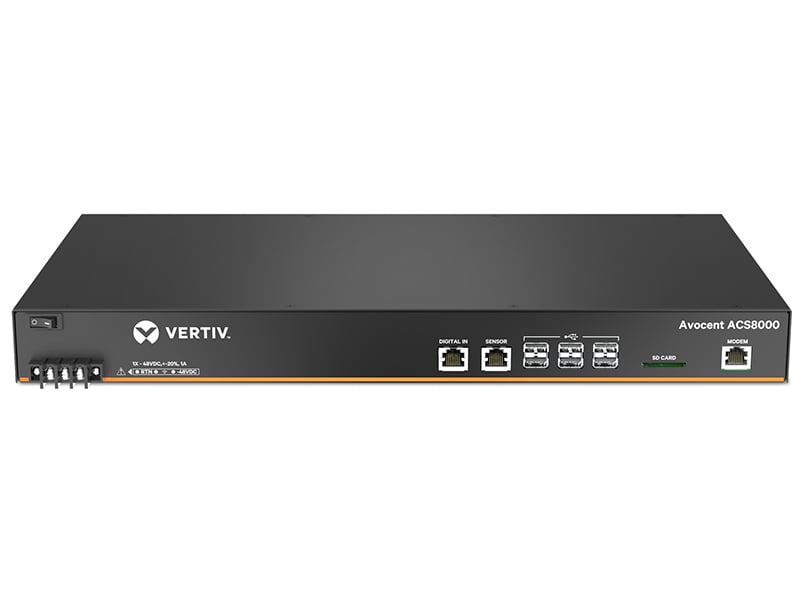

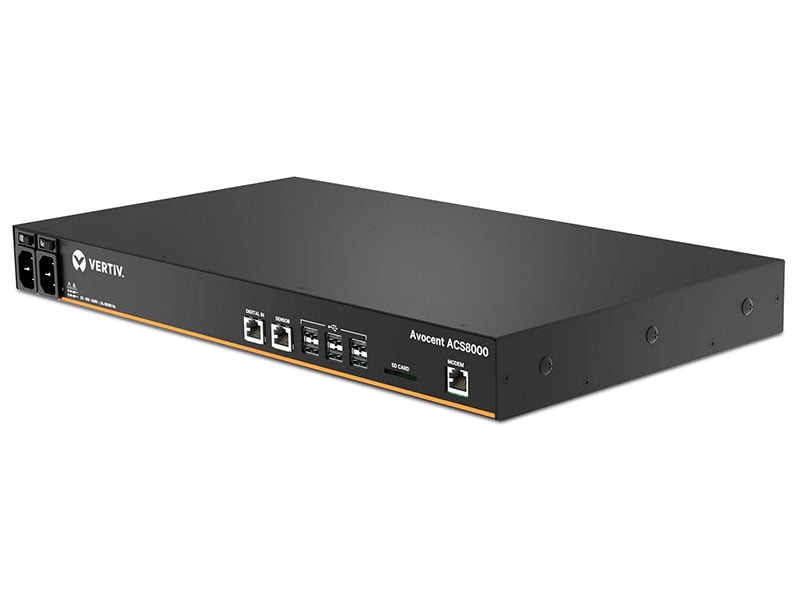

Strong dial-up and secure dial-back using optional built-in modem
Compliance with data center access and security policies via customizable, multiple access levels
No need for adaptors with automatic Cyclades™ and Cisco pin-out conversions
Integrated support for 1Gb SFP fiber modules 8 USB ports to support new IT equipment and external devices
Uses an embedded cryptographic module that is based on a FIPS 140-2 validated cryptographic module

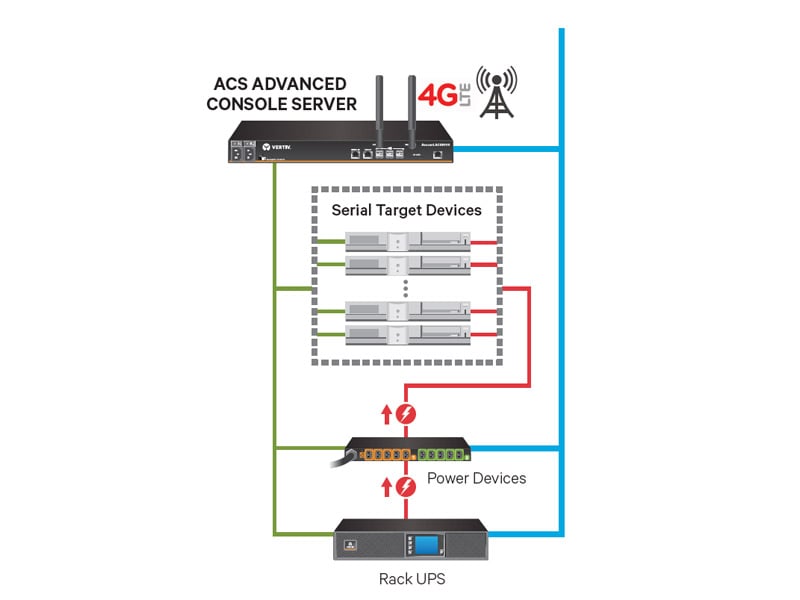

Expanded support for Rack PDUs from Vertiv™, ServerTech, APC, Raritan & Eaton along w/ GXT4/5 UPS systems
Features
Fast, automated configuration with Zero-Touch Provisioning (ZTP)
In-band and out-of-band serial access to remotely manage IT devices anywhere in the world
Automatic gigabit ethernet or cellular failover
Customizable and preset security profiles
Regulatory compliance & easy troubleshooting – online & off-line data logging w/ time stamps
Manuals
- Vertiv™ Avocent® ACS800 8000 Installer User Guide.pdf
- Avocent® ACS800-8000 Advanced Console System Command Reference Guide
- Avocent Infrastructure Managemnet ACS ACS 8000 Serial Console Rack Mounting Guide English 5901325501A 590-1510-501A
- Avocent Infrastructure Management ACS ACS 8000 Serial Console Quick Installation Guide 5901324501A English 590-1483-501A
- Avocent ACS8000 Advanced Console System Rack Mounting Guide (Parisian French)
- Cables and Adapters from Cyclades
Brochures and Data Sheets
Software
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Emergency Response for Services
+1 800 543 2378
USA
Product areas of focus:
Geist Support - Americas (Rack PDU and Watchdog)
Email Contact
+1 888 630 4445
1777 Yolande Avenue
Lincoln Nebraska
USA
Product areas of focus:
Power Distribution, Monitoring
High Voltage Maintenance – Support
+1 866 486 8326
USA
Product areas of focus:
Change
Frequently Asked Questions
- Q

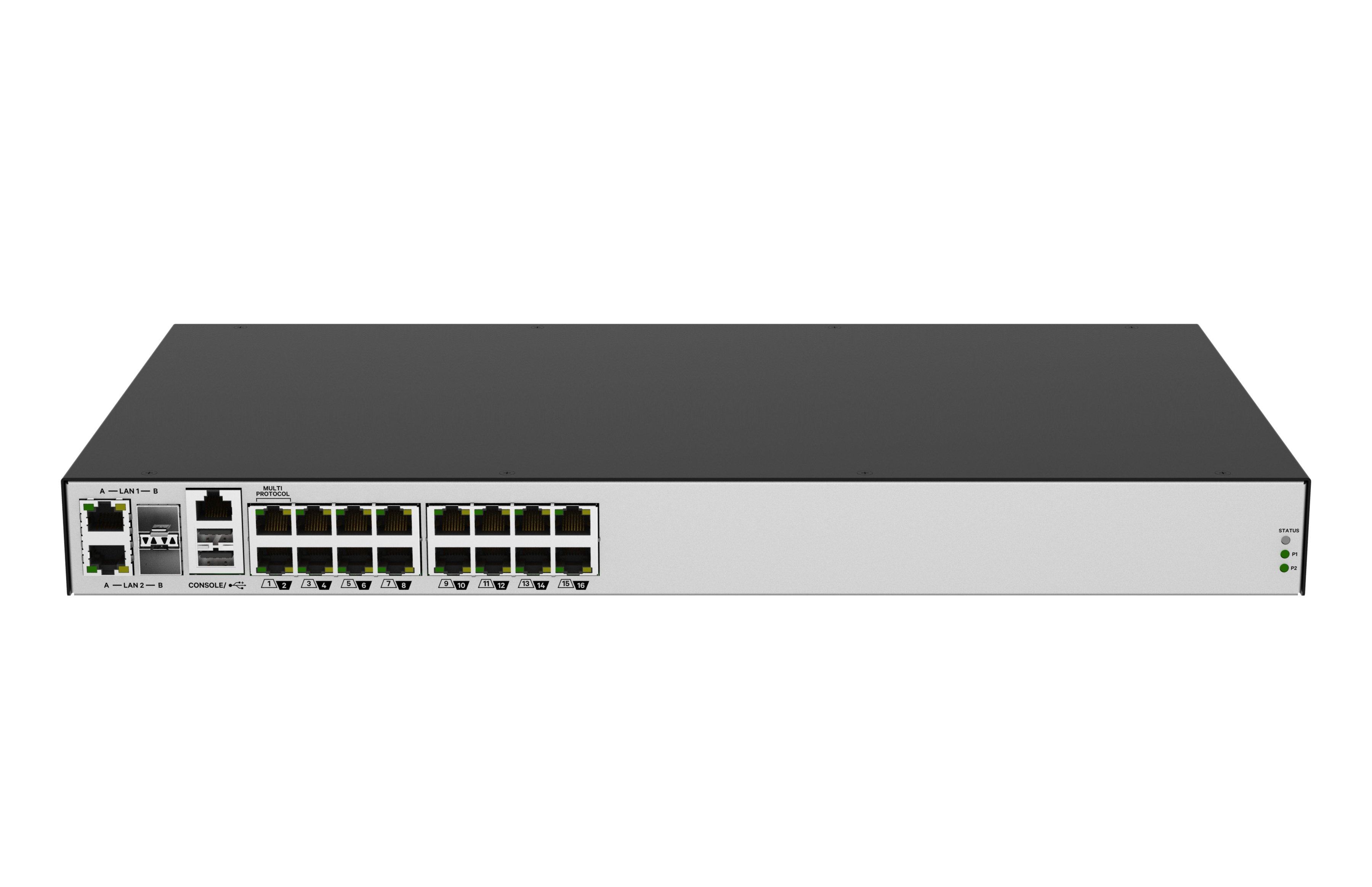

- How many serial port connections do Vertiv™ Avocent® ACS 8000 Serial Consoles support?
- A
- The ACS 8000 family has variants that include 8, 16, 32, and 48 serial ports along with 8 multi-purpose USB 2.0 ports.
- Q
- What serial protocols/types does the ACS 8000 support?
- A
- ACS Serial Consoles are equipped to support RS-232, RS-485, RS-422 protocols via RJ-45 and USB 2.0 on Type A connectors.
- Q
- How do I connect to and manage the ACS 8000?
- A
- In-band and out-of-band access (with network failover) are supported via (2) Gigabit Ethernet interfaces, (2) Gigabit Fiber SFP ports, optional v.92 analog modem and/or external 4G/LTE cellular modem. The appliance provides a web-browser based GUI and local console port for CLI and Linux Shell commands.
- Q
- Can the ACS 8000 be used to manage PDU and UPS systems?
- A
- Yes, the ACS 8000 automatically detects and supports Liebert GXT4 UPS systems, as well as, Rack PDUs from Vertiv/Liebert, ServerTech, ServerTech Pro, APC, Raritan and Eaton.
- Q
- How does the ACS 8000 provide secure access?
- A
- Users are authenticated using TACACS+, RADIUS, LDAP/AD or local authentication. The appliance also includes a built-in firewall with Access-Control Lists (ACLs).
