Product Model

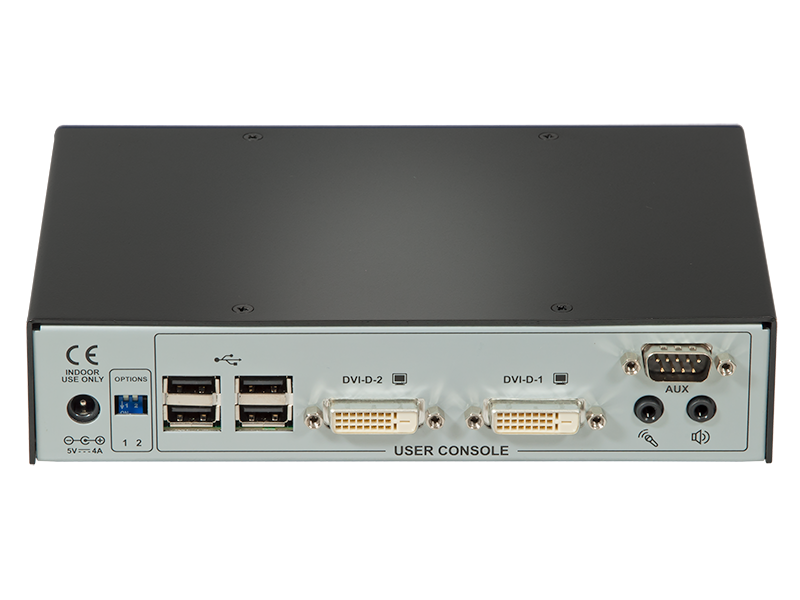

Vertiv Avocent HMX5200R - IP KVM Receiver|USB 2.0 RX Dual DVI-D Audio SFP

Digital Extension and Matrix Switching for Any Environment

Get Brochure View Accessories
Key Benefits
NO DISTANCE LIMITATION: This KVM system allows access to any target computer from any access point with IP network. SECURE SETUP: It supports devices in remote locations for more secure and temperature-controlled environment. FAST SWITCHING: Quickly access critical devices with less than a second switching. IP-BASED KVM: This allows you to have desktop experience remotely with no compromise on video quality or control. PERIPHERAL SUPPORT: This enables peripherals such as DVI-D video, digital audio, USB mass storage, keyboard and mouse and other USB devices.
Best Suited For:
  • Banking
  • Financial and Insurance
  • Broadcast and Entertainment
  • Chemical/Petrochemical (excl. Oil & Gas)
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Military
  • Defense
  • Aerospace and Missile
  • Nuclear Power
  • Oil and Gas
  • Transportation

Benefits

Features

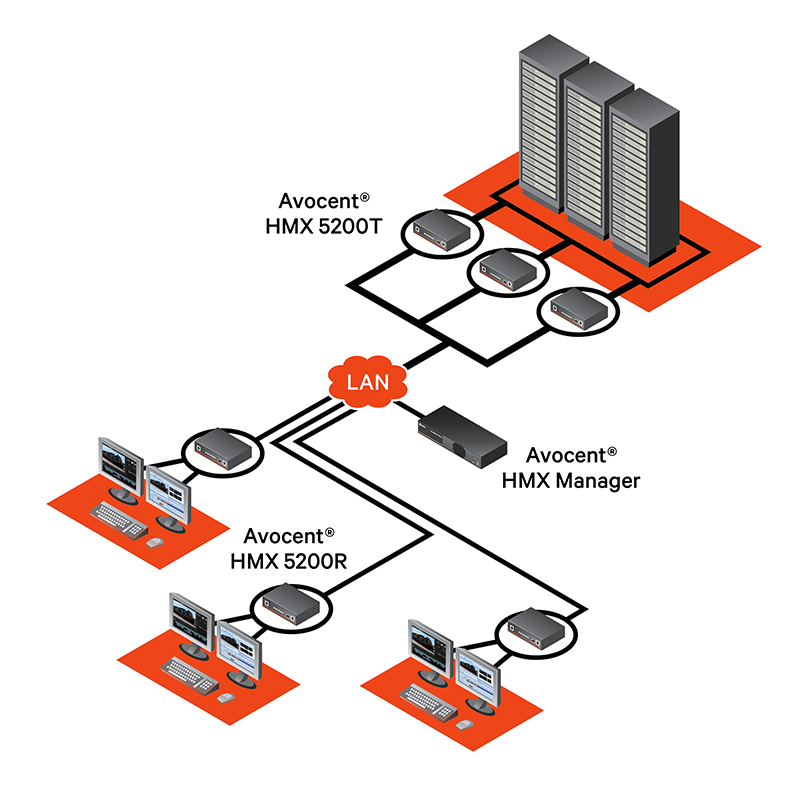

Eliminates Distance Limitations within the LAN - Allows computers and users to be located anywhere on the network High-Quality DVI Video and Digital Audio - For intensive graphic and audio applications Centralized Management - Via a single console, including access, desktop pooling and reporting Centralized, User-Rights Management - HMX system allows user administration and authentication through AD, LDAP. Greater Security - TLS certificate based encryption for secure access No Dedicated Cabling - Removes the need for dedicated cabling between user and computer Digital DVI Video - Up to 2560 x 1600or dual sessions at 1920x1200 each USB Support - USB media and most other USB devices including USB keyboard/mouse

Vertiv Avocent HMX5200R - IP KVM Receiver|USB 2.0 RX Dual DVI-D Audio SFP
Graphic Mode
Internal Modem
No
Service Processor support
No
Power Description
Power Supply(s)
Yes
Input Power (Maximum)
5VDC 20W output from power adapter
Interfaces/Ports
Network Interface(s)
2 x RJ45
USB ports
4 x USB type A
USB Hub Support
USB 2.0 with Class Control
Operational Conditions
Operating Temperature
0 to 40ºC / 32 to 104ºF
Humidity
10% to 90% non-condensing
Storage Temperature
-31° to 158°F (-35° to 70°C)
Physical Characteristics
Weight
2.7
Weight
1.1
Height
1.76
Height
44
Width
7.92
Width
198
Depth
6
Depth
150
Miscellaneous
Agency Approvals
CE, FCC
