Product Model

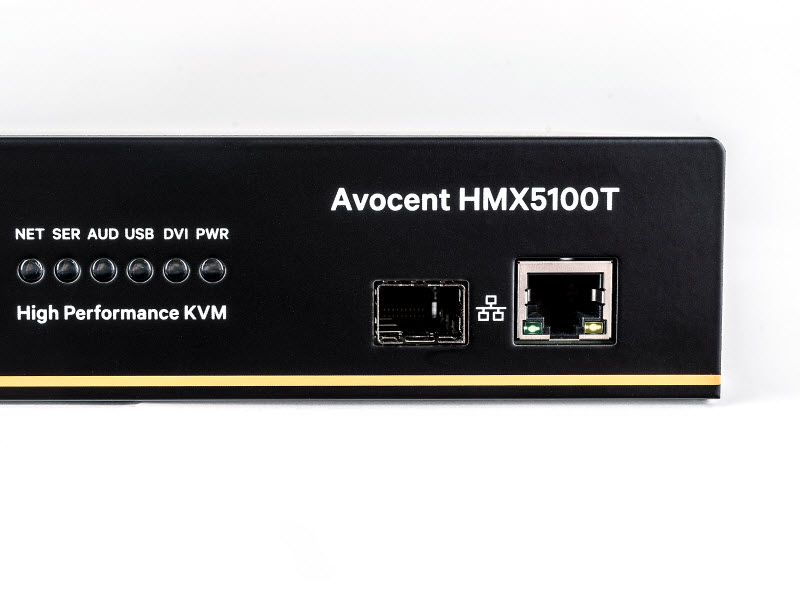

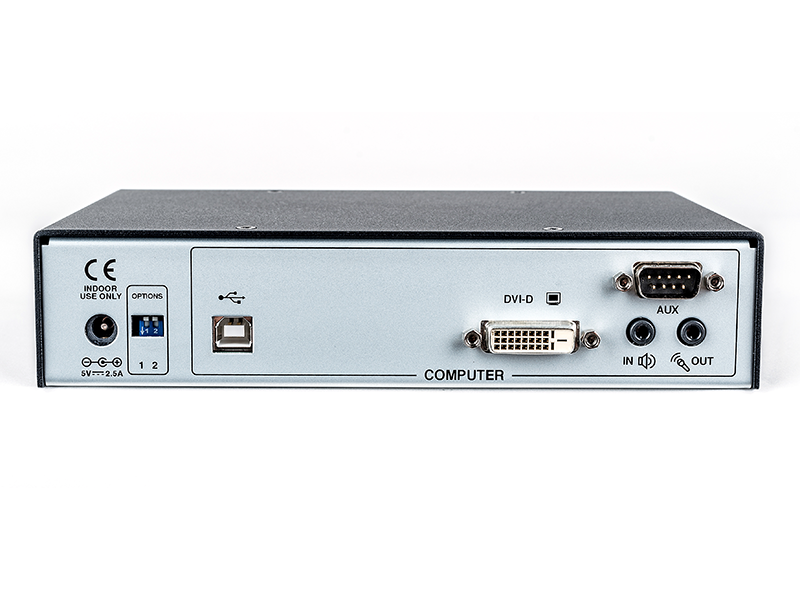

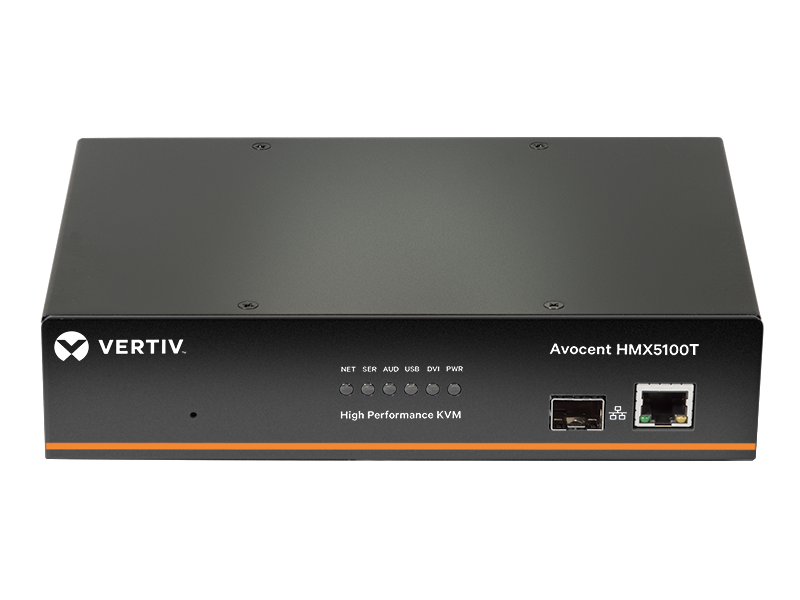

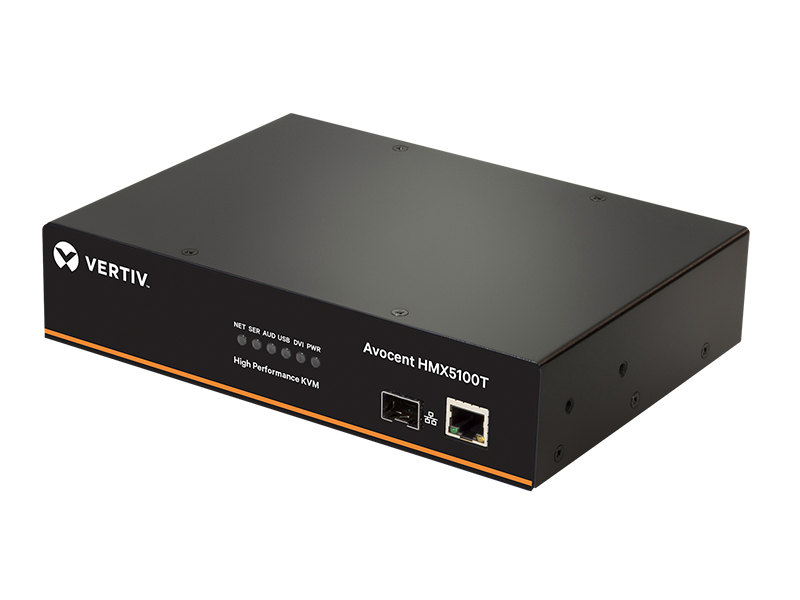

Vertiv Avocent HMX5100T - IP KVM Transmitter |USB 2.0 TX Single DVI-D SFP

The Vertiv Avocent HMX5100T - IP KVM Transmitter (HMX5100T-001) is a high performance KVM extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. It is ideal for demanding applications such as pre- and post-production editing, control rooms and collaborative environments. The KVM has hotkey capability and allows fast switching. It provides access to DVI-D video resolution of up to 1920 x 1200 @60Hz.

Key Benefits
NO DISTANCE LIMITATION: This KVM system allows access to any target computer from any access point with IP network.
SECURE SETUP: It supports devices in remote locations for more secure and temperature-controlled environment.
FAST SWITCHING: Quickly access critical devices with less than a second switching.
IP-BASED KVM: This allows you to have desktop experience remotely with no compromise on video quality or control.
PERIPHERAL SUPPORT: This enables peripherals such as DVI-D video, digital audio, USB mass storage, keyboard and mouse and other USB devices.
Best Suited For:
  • Banking, Financial and Insurance
  • Broadcast and Entertainment
  • Chemical/Petrochemical (excl. Oil & Gas)
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Military, Defense, Aerospace and Missile
  • Nuclear Power
  • Oil and Gas
  • Transportation
Warranty: 2 Years

Benefits

Features

Eliminates Distance Limitations within the LAN - Allows computers and users to be located anywhere on the network
High-Quality DVI Video and Digital Audio - For intensive graphic and audio applications
Centralized Management - Via a single console, including access, desktop pooling and reporting
Centralized, User-Rights Management - HMX system allows user administration and authentication through AD, LDAP.
Greater Security - TLS certificate based encryption for secure access
No Dedicated Cabling - Removes the need for dedicated cabling between user and computer
Digital DVI Video - Up to 2560 x 1600or dual sessions at 1920x1200 each
USB Support - USB media and most other USB devices including USB keyboard/mouse

The Vertiv Avocent HMX IP KVM System (5000-6000 series) is a high performance KVM extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. It is ideal for demanding applications that require high resolution and zero latency such as in broadcasting, sports venues, pre- and post-production editing, control rooms and collaborative environments. An IP-based KVM (keyboard, video, mouse) extender, it allows critical computing hardware to be housed remotely from the user workstation in a secure, temperature-controlled environment. It is designed to improve productivity, reduce IT costs and produce better business results. This KVM system provides powerful administrative tools and connection-management control for the network resources without compromising quality.

Vertiv Avocent HMX5100T - IP KVM Transmitter |USB 2.0 TX Single DVI-D SFP
Product Overview
Type
HPKVM
Input Ports
USB-B x 1
Output Ports
Speaker & Mic
Video Connection
1 x DVI-D
Video Resolution
1920x1200
Graphic Mode
Internal Modem
No
Service Processor support
No
Power Description
Power Supply(s)
Yes
Input Power (Maximum)
5VDC 20W output from power adapter
Interfaces/Ports
Network Interface(s)
2 x RJ45
USB ports
4 x USB type A
USB Hub Support
USB 2.0 with Class Control
Operational Conditions
Operating Temperature
0 to 40ºC / 32 to 104ºF
Humidity
10% to 90% non-condensing
Storage Temperature
-31° to 158°F (-35° to 70°C)
Physical Characteristics
Weight
2.7
Weight
1.1
Height
1.76
Height
44
Width
7.92
Width
198
Depth
6
Miscellaneous
Agency Approvals
CE, FCC
