Product Model

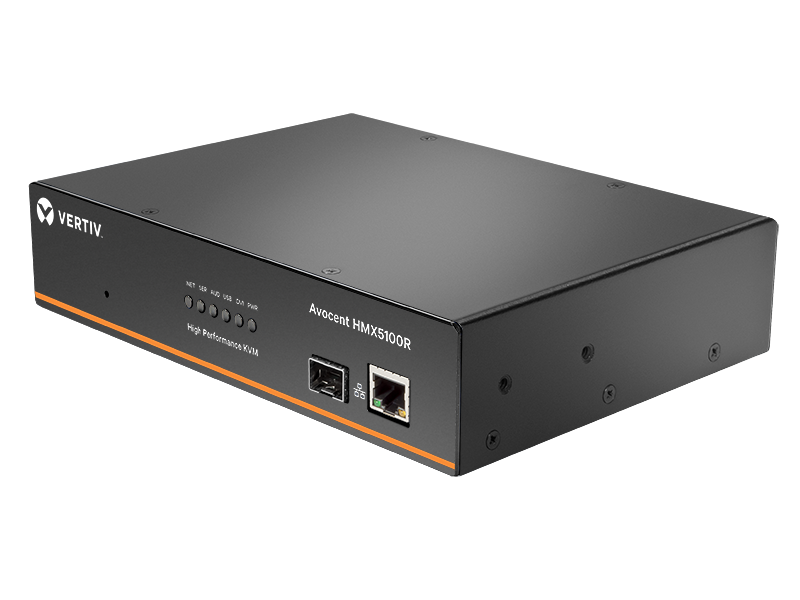

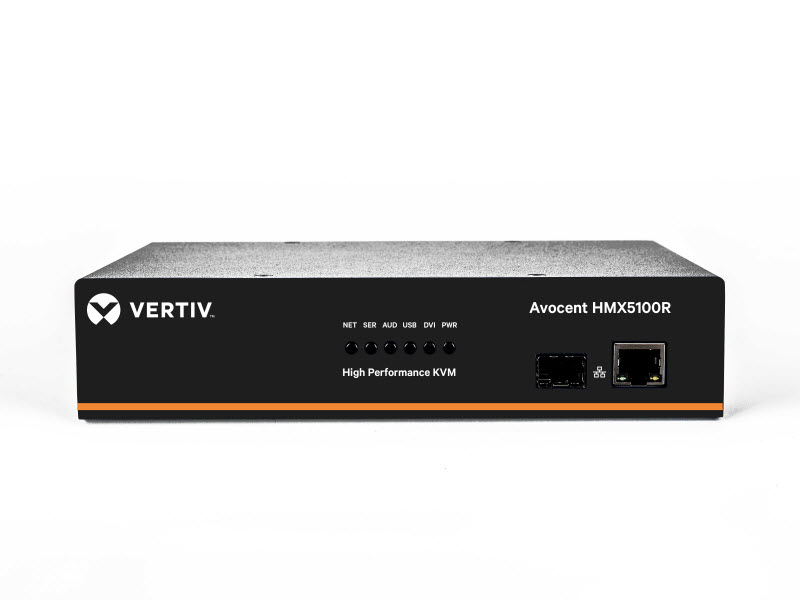

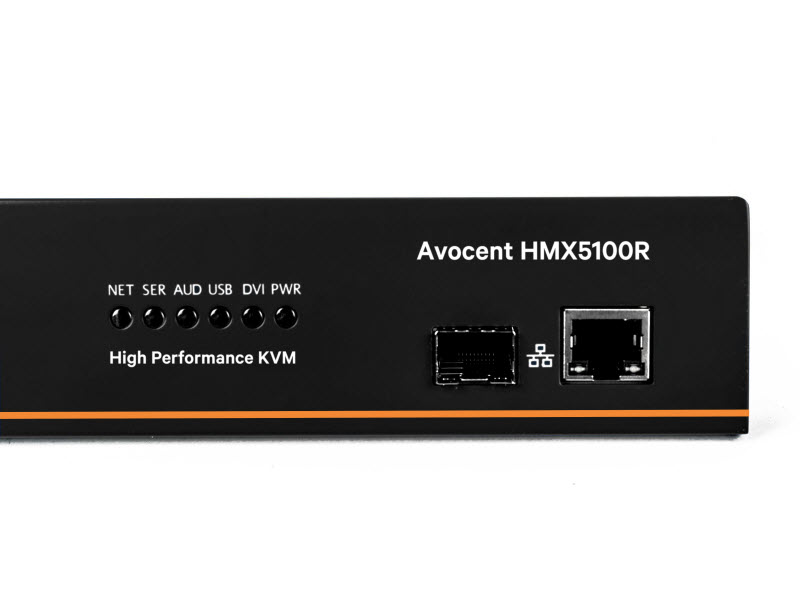

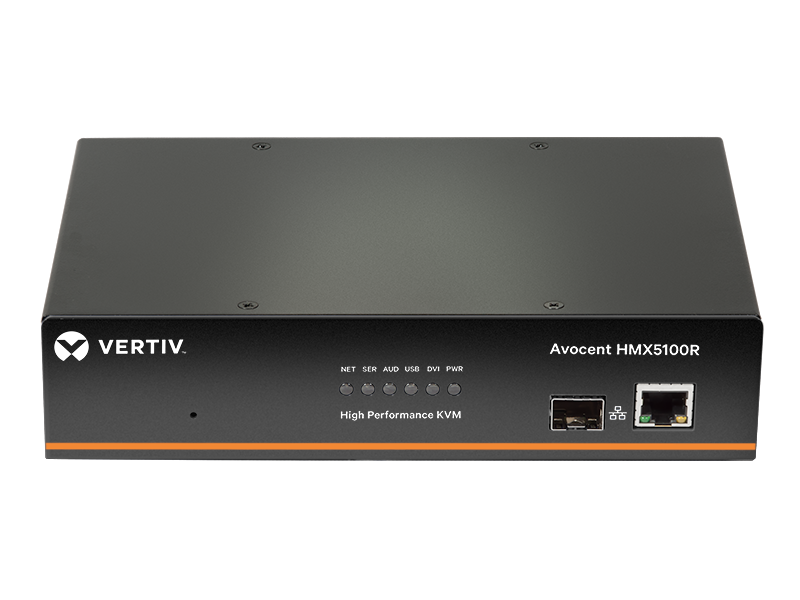

Vertiv Avocent HMX5100R - IP KVM Receiver|USB 2.0 RX Single DVI-D Audio SFP
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking
- Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Military
- Defense
- Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Transportation
Product Model
Vertiv Avocent HMX5100R - IP KVM Receiver|USB 2.0 RX Single DVI-D Audio SFP
Best Suited For:
- Banking
- Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Military
- Defense
- Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Transportation

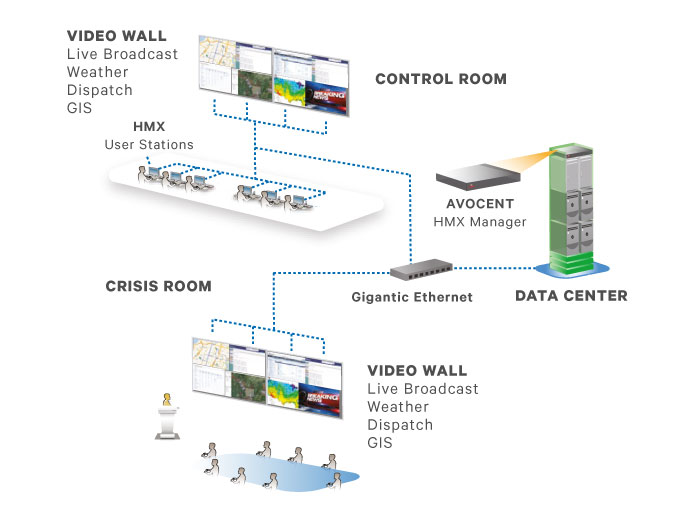

Benefits
- Eliminates Distance Limitations within the LAN - Allows computers and users to be located anywhere on the network
- High-Quality DVI Video and Digital Audio - For intensive graphic and audio applications
- Centralized Management - Via a single console, including access, desktop pooling and reporting
- Centralized, User-Rights Management - HMX system allows user administration and authentication through AD, LDAP.
- Greater Security - TLS certificate based encryption for secure access
- No Dedicated Cabling - Removes the need for dedicated cabling between user and computer
- Digital DVI Video - Up to 2560 x 1600or dual sessions at 1920x1200 each
- USB Support - USB media and most other USB devices including USB keyboard/mouse

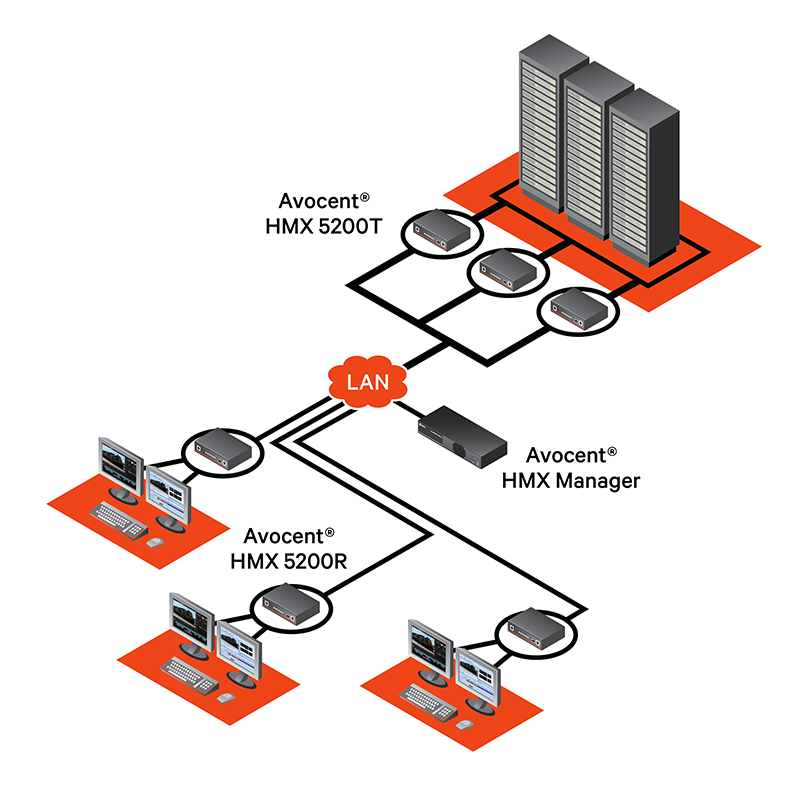

Features
- On screen display (OSD) at each user station: Users log in and choose channel connections from an intuitive OSD similar to that of a Digital TV. Users can also use Presets to change channels for multiple screens across multiple receivers.
- Remote OSD: : The remote OSD allows the user to “push” video and control to another station or to a video wall or projector.
- Connection modes: : Administrators can choose to give users the ability to connect in three modes: View only, Shared or Exclusive. Each permitted mode is then made available within the OSD.
- System backups: : Backups of the database can be saved internally, externally or emailed automatically. Automatic updates can be scheduled on an hourly, daily or weekly basis.
- Fast video and USB switching: : The HMX Manager provides extremely fast switching time to ensure a quality user experience.
Specifications

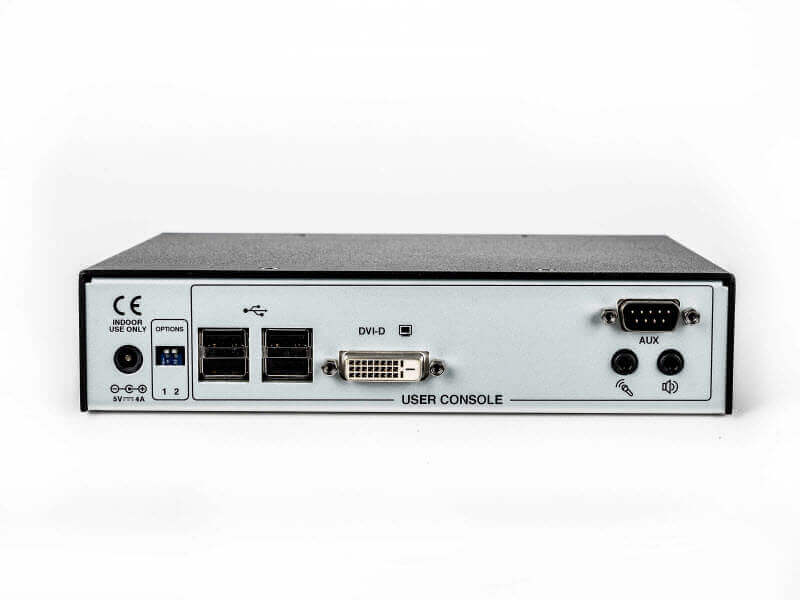

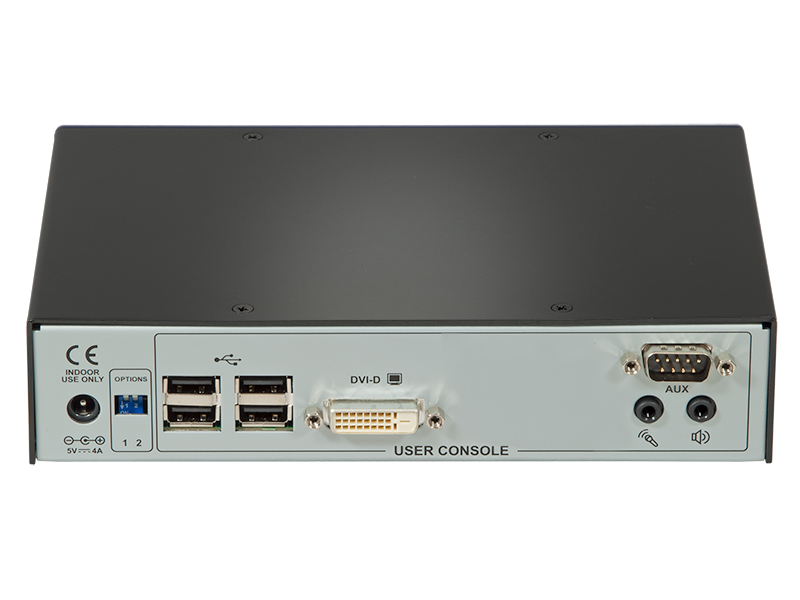

Vertiv Avocent HMX5100R - IP KVM Receiver|USB 2.0 RX Single DVI-D Audio SFP
- Product Overview
- Type
- HPKVM
- Input Ports
- USB x 4
- Output Ports
- Speaker & Mic
- Video Connection
- 1 x DVI-D
- Video Resolution
- 1920x1200
- Graphic Mode
- Internal Modem
- No
- Service Processor support
- No
- Power Description
- Power Supply(s)
- Yes
- Input Power (Maximum)
- 5VDC 20W output from power adapter
- Interfaces/Ports
- Network Interface(s)
- 2 x RJ45
- USB ports
- 4 x USB type A
- USB Hub Support
- USB 2.0 with Class Control
- Operational Conditions
- Operating Temperature
- 0 to 40ºC / 32 to 104ºF
- Humidity
- 10% to 90% non-condensing
- Storage Temperature
- -31° to 158°F (-35° to 70°C)
- Miscellaneous
- Agency Approvals
- CE, FCC
Manuals
- Vertiv™ Avocent® HMX High Performance KVM Extender System Installer User Guide
- Vertiv™ Avocent® HMX High Performance KVM Extender System Quick Installation Guide
- Vertiv™ Avocent® HMX Advanced Manager Installer User Guide
- Vertiv™ Avocent® HMX Advanced Manager Server Quick Installation Guide
- Vertiv™ Avocent® HMX DVI-D and LongView™ 5020 Rack Mount Installation Guide
