Product Model

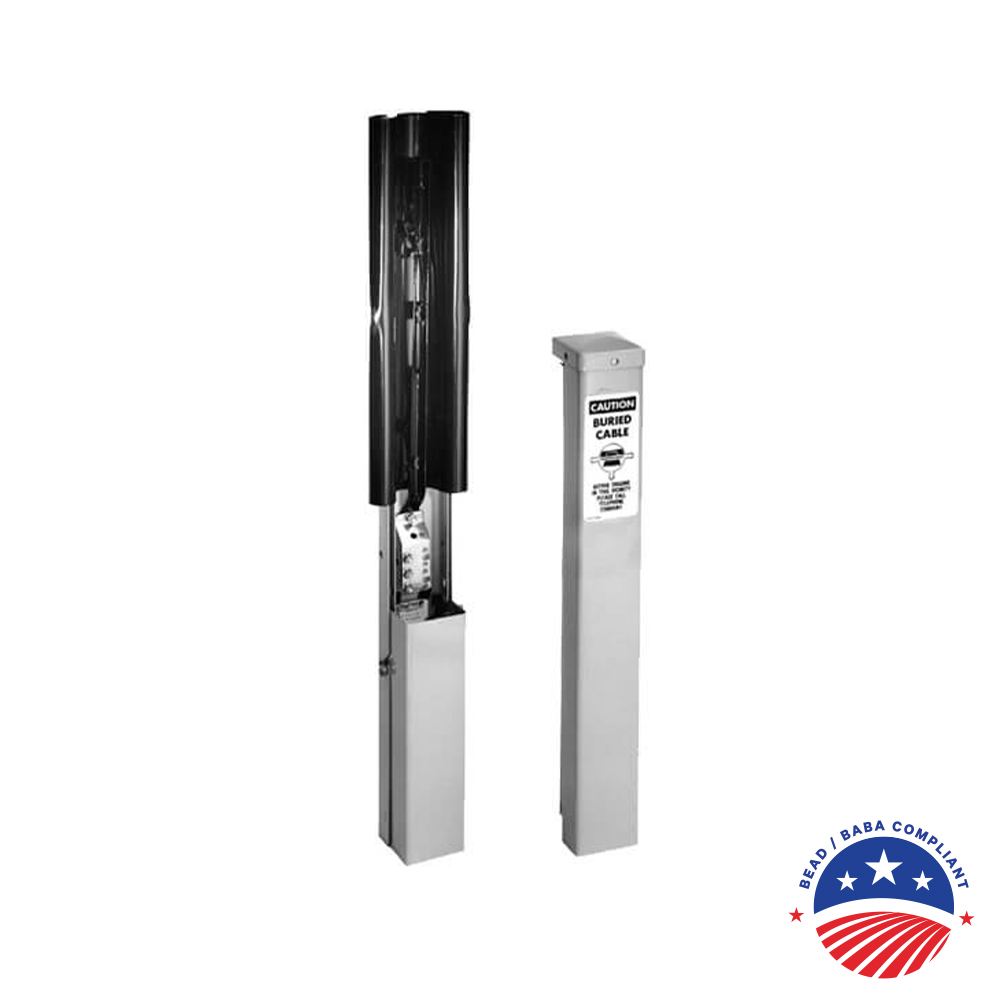

Vertiv BBD BD, UPCBD2
Vertiv BBE BD Series UPCBDs are round-cornered, square-design telephone closures suitable for copper or fiber* distribution. These closures are USDA accepted for use by the Rural Development Utilities Program (RDUP). The UPCBD3, UPCBD4, and UPCBD5 include a dielectric shield, cable ties, and a shield isolation bonding/grounding bracket assembly. Specific uses include termination of buried service wires and all types of splicing arrangements.
Quick Access
Specifications
Technical Specifications
Vertiv BBD BD, UPCBD2
- Ordering Information
- Part Number
- F604840
- Part type
- Enclosure
- Color
- Green
- Description
- 4-in.copper/fiber pedestal
- Physical Characteristics
- Height
- 36.5 in
- Width
- 4 in
- Depth
- 4 in
Manuals
Brochures and Data Sheets
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Vertiv BBD BD, UPCBD2
Warranty : One-Year Limited Warranty Against Defects in Material and Workmanship
Benefits
Easily adapdable for copper to fiber applications.
Rugged mill-galvanized steel housing for durability and low maintenance costs
Tongue-in-groove fit of upper cover for better protection against environmental conditions
User-friendly, factory-installed dielectric shield with Velcro fasteners for ultraviolet protection of cable conductors
Features
BDSeries UPCBD3, UPCBD4, and UPCBD5 include a dielectric shield, cable ties, and a shield isolation bonding/grounding bracket assembly
These accommodate buried wires, cables, terminal blocks, Fiber optics, and load coil assemblies
Specific uses include termination of buried service wires and all types of splicing arrangements, grounding capability and shield isolation bonding/grounding bracket assembly
Unique multi-stage paint process meets or exceeds EPA standards and provides a tough corrosion-resistant finish for longer life
Three convenient sizes with four versions for easy access to cable conductors and flexible installations
*For fiber optic deployment, use of BDFOKIT (part no. F1007373) accessory is recommended.
For more information see the BDFOKIT the Accessories section
*For fiber optic deployment, use of BDFOKIT (part no. F1007373) accessory is recommended.
For more information see the BDFOKIT the Accessories section
