Vertiv BBE BD Series
Vertiv BBE BD Series UPCBDs are round-cornered, square-design telephone closures suitable for copper or fiber* distribution. These closures are USDA accepted for use by the Rural Development Utilities Program (RDUP). The UPCBD3, UPCBD4, and UPCBD5 include a dielectric shield, cable ties, and a shield isolation bonding/grounding bracket assembly. Specific uses include termination of buried service wires and all types of splicing arrangements.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
Vertiv BBE BD Series
Vertiv BBE BD Series UPCBDs are round-cornered, square-design telephone closures suitable for copper or fiber* distribution. These closures are USDA accepted for use by the Rural Development Utilities Program (RDUP). The UPCBD3, UPCBD4, and UPCBD5 include a dielectric shield, cable ties, and a shield isolation bonding/grounding bracket assembly. Specific uses include termination of buried service wires and all types of splicing arrangements.
- Telecom
Specifications
Vertiv BBE BD, BDFOKIT
|
||||||
---|---|---|---|---|---|---|
F1007373 | Accessory | Green | UPCBD4/5 fiber splice plate | |||
See more product information | ||||||

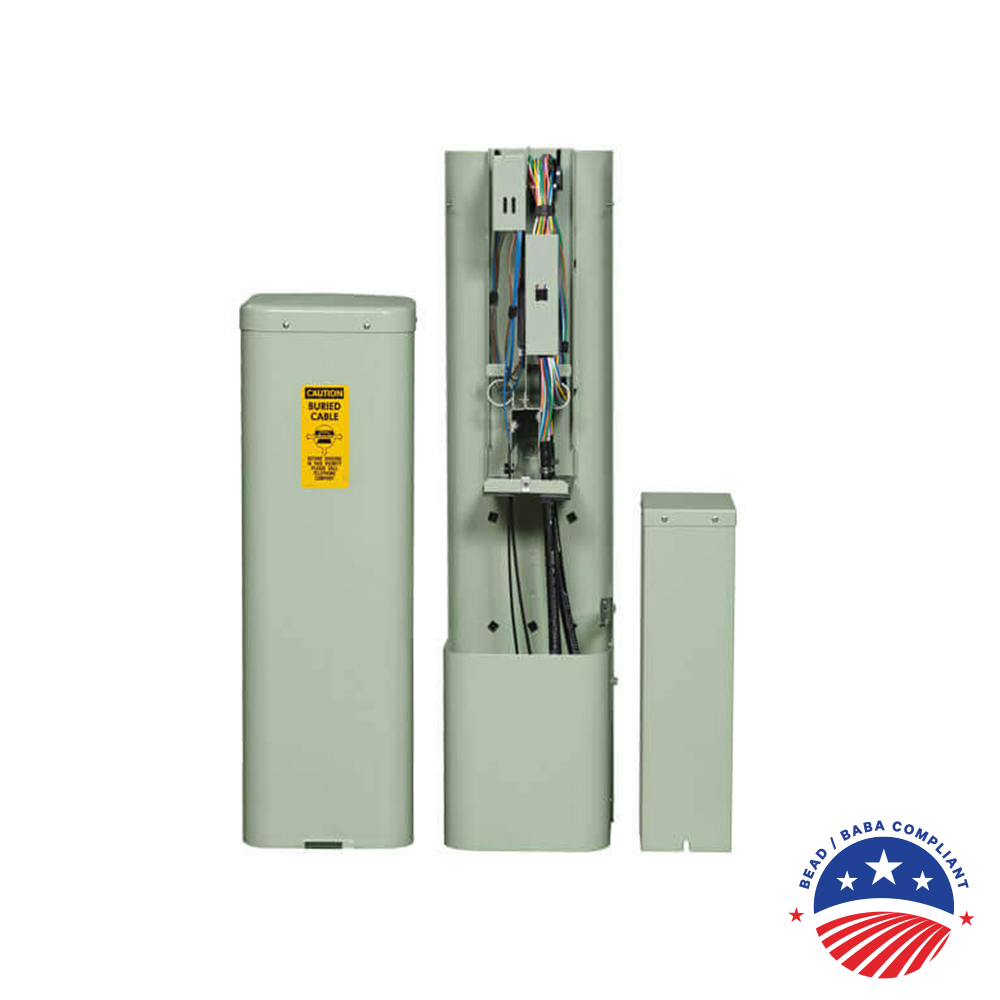

Vertiv BBE BD, NSFBDSCSCX
|
||||||
NSFBDSCSCX | Accessory | Green | UPCBD4/5 2-sided closed fiber distributi enclosure | |||
See more product information | ||||||
Vertiv BBD BD, UPCBD2
|
||||||
F604840 | Enclosure | Green | 4-in.copper/fiber pedestal | 36.5 in | 4 in | 4 in |
See more product information | ||||||

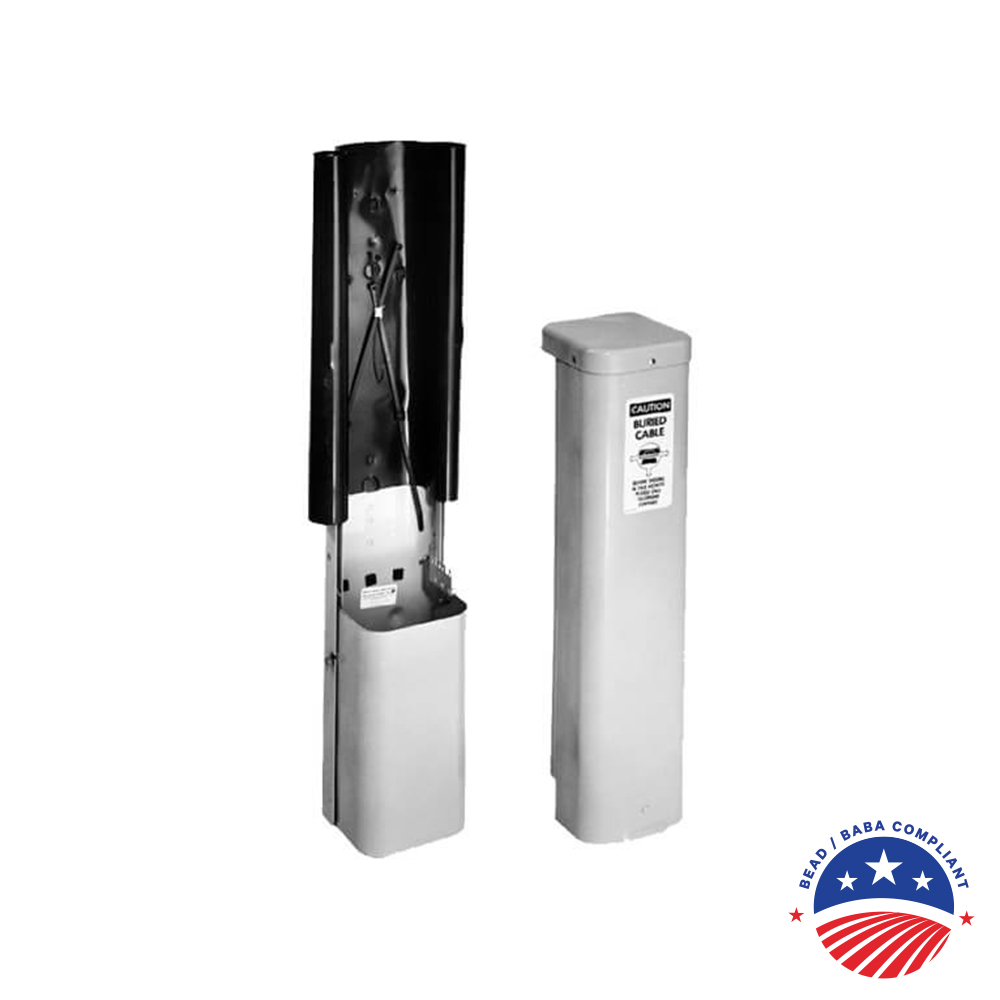

Vertiv BBE BD Series, UPCBD3
|
||||||
F604860 | Enclosure | Green | 6-in. copper/fiber pedestal | 37.25 in | 6.75 in | 6.75 in |
See more product information | ||||||
Vertiv BBE BD, UPCBD4
|
||||||
F604880 | Enclosure | Green | 8-inch copper/fiber Pedestal | 37.25 in | 8.5 in | 8.5 in |
See more product information | ||||||
Vertiv BBE BD, UPCBD5
|
||||||
F604900 | Enclosure | Green | 10-inch RUS pedestal | 43.25 in | 10.5 in | 10.5 in |
See more product information | ||||||
Vertiv BBE BD, UPCBD7
|
||||||
F604310 | Enclosure | Green | UPCBD7 copper/fiber pedestal | 48 in | 23 in | 11.4 in |
See more product information | ||||||

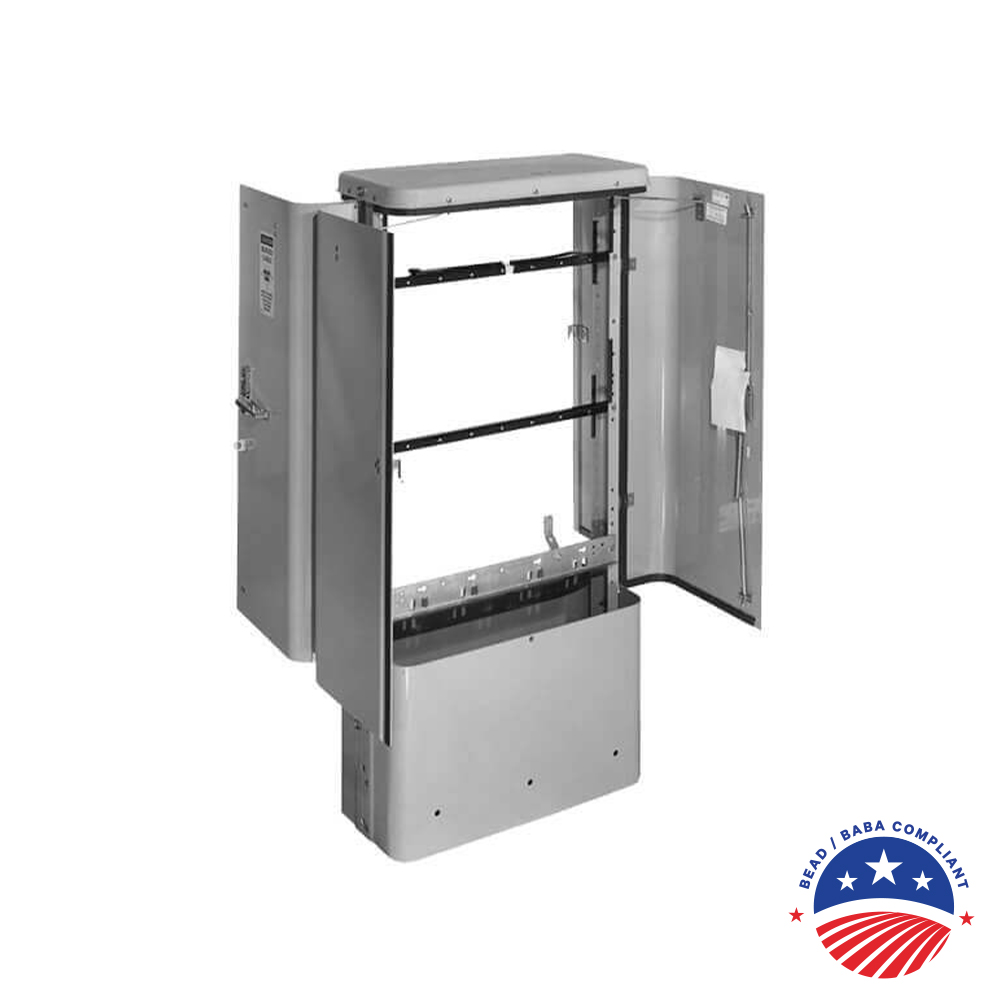

Vertiv BBE BD, UPCBD8000
|
||||||
F604058 | Enclosure | Green | Large pair count splice enclosure | 50 in | 32 in | 18 in |
See more product information |
Benefits
Features
*For fiber optic deployment, use of BDFOKIT (part no. F1007373) accessory is recommended.
For more information see the BDFOKIT the Accessories section
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
