ECM 3 Series

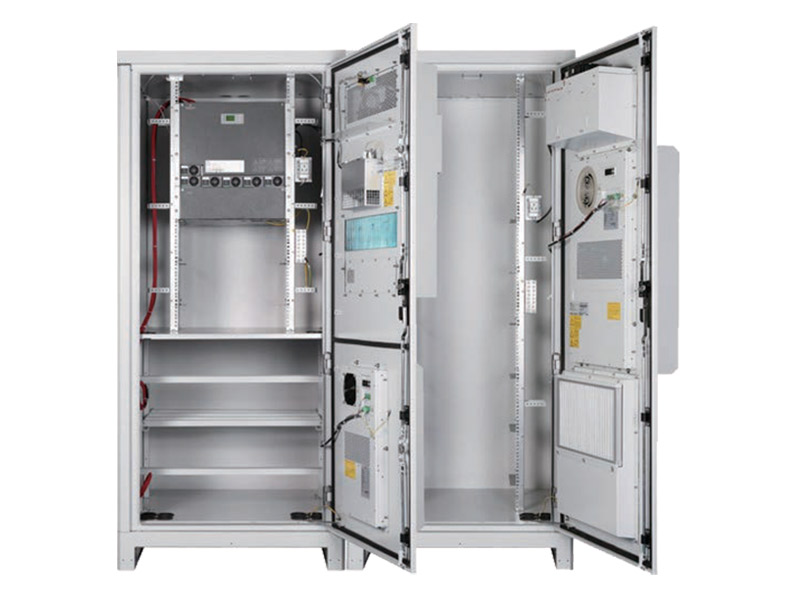

The ECM3 series is a modular and highly reliable outdoor cabinet system. It is designed to house DC power, network electronics, battery backup, and supportive cooling infrastructure in a single or multiple cabinet solution packages - well suited for today’s base station needs. Its modular assembly design enables the customer to deploy their telecom sites more rapidly and efficiently.

Get Brochure Get Manual
Best Suited For:
  • Telecom

Features

The Most Reliable & Robust
High degree of ingress protection, i.e. IP55 / IP44
Tolerates a wide input voltage range of 80 - 300 Vac
Sustains a wide operating temperature range - 40 °C ~ 65 °C
Fault-tolerant design with built-in protection from lightning surges / spikes
The Most Energy Efficient
Delivers an efficiency > 96% - saves significant amount of OPEX
Patented Dormancy mode further optimizes efficiency
Variable fan speed control function
The Most Intelligent
Built-in networking ports for remote monitoring & control
Intelligent battery management function
Intelligent cooling system - adjusts according to the external temperature
The Most Flexible
Modular design supports one, two, & three cabinet solutions
Multiple cooling options are available to meet the equipment cooling needs
Powering up to 300A active equipment loads
Brings solar power to the site as an option
The Most Secure
Steel-built material enhances the antitheft ability
Three-point lock design ensures complete locking of the door
Configurable battery cabinets based on the user requirements with utilities such as a vault door, etc.
Multiple alerts can be set to safeguard the batteries against theft
The Most Easiest & Fastest deployment
Delivers in flat pack mode and supports field assembly/disassembly for different application
Requires only frontal access for maintenance
Makes less noise
Supports floor & rooftop installations

ECM 3 Series
Ordering Information
Model (Catalog Number)
EPC48200 / 3000-HA41 / HB41
Part Type
Grey
Physical Characteristics
Material
Steel
Mounting
Floor mount
Total Footprint (W x D)
600 mm X 610 mm
Weight
≤ 209.439 lbs
Weight
≤ 95 kgs
Height
71.14 in
Height
1807 mm
Width
23.62 in
Width
600 mm
Depth
24.02 in
Depth
610 mm
Production Information
Capacity (Equipped)
27 kW
Capacity (Maximum)
36 kW
Security/Locking
5 point locking
Cable Ports / Entry
Bottom Cabling
Power System
Netsure 731
Battery Compartment
4 layers
Thermal System
Heat exchanger for Equipment compartment, direct ventilation for battery compartment
Grounding
Yes
Termination
Yes
Panel Type
Steel
Regulatory Compliance
IP55
