Product Family
Warranty:
Standard 5-year warranty including both electronics and batteries.

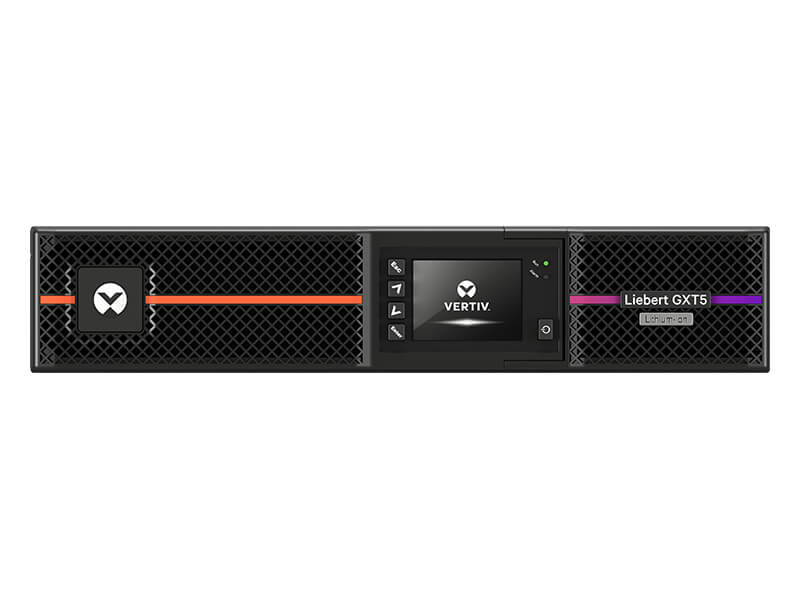

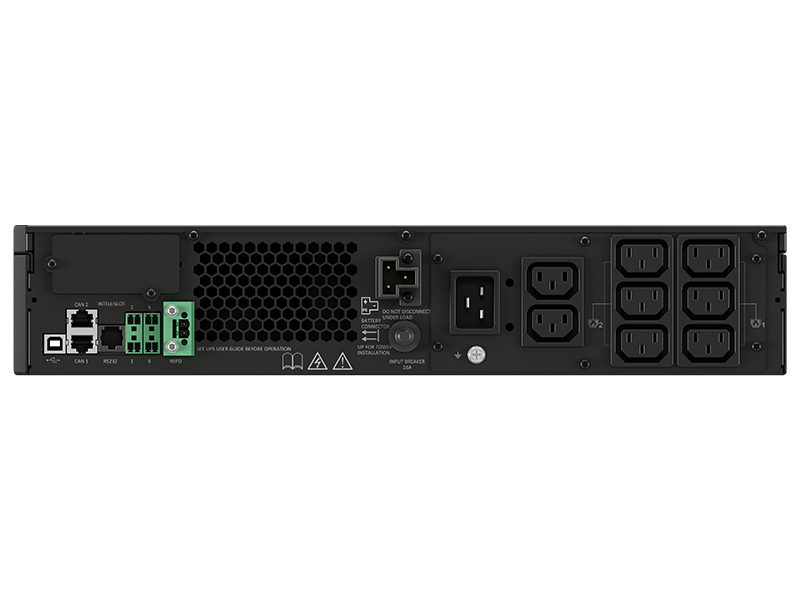

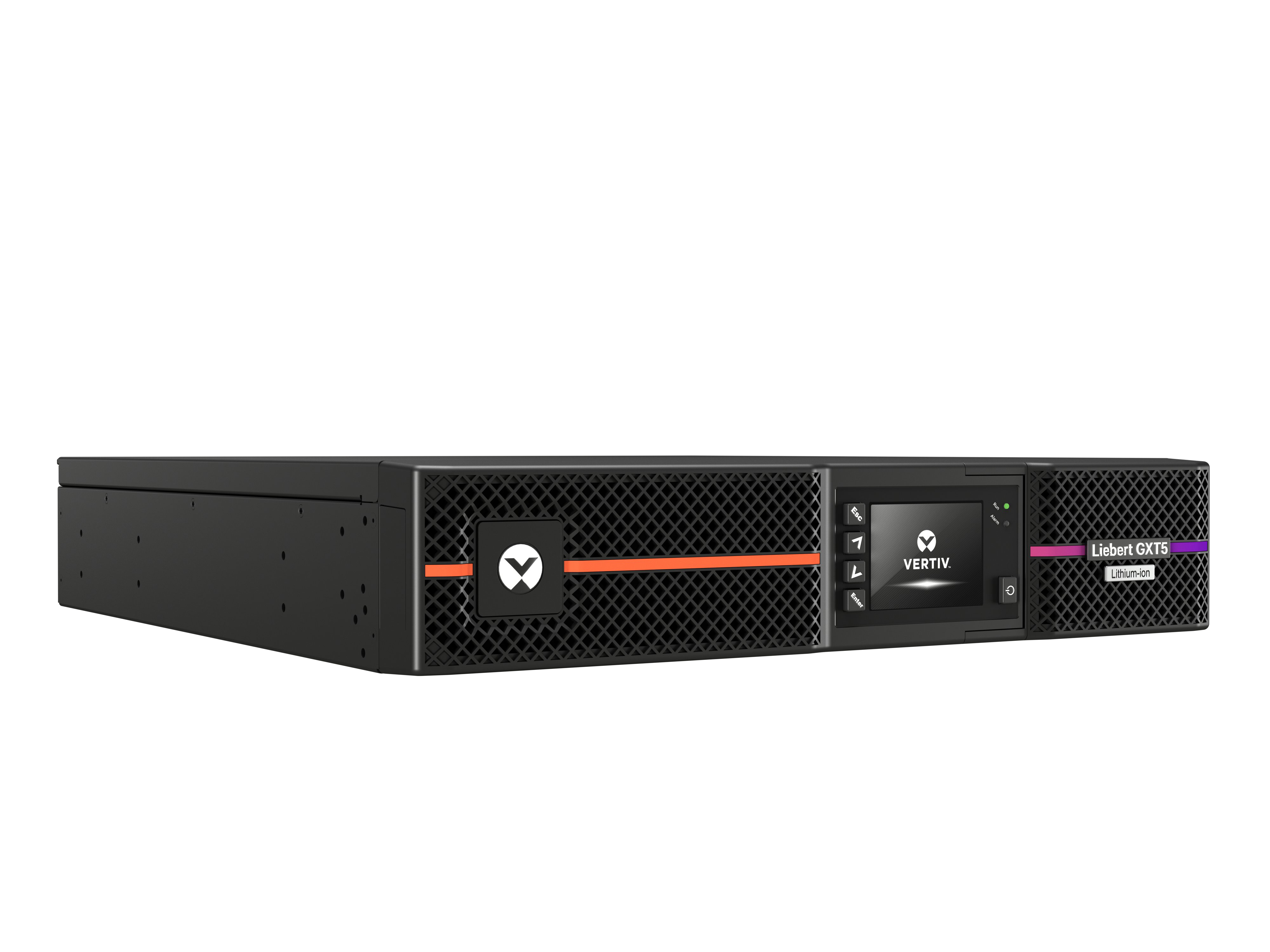

Vertiv™ Liebert® GXT5 Lithium-Ion UPS 1000 - 3000 VA, 120V
The Vertiv™ Liebert® GXT5 Lithium-Ion online double conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Education
- Healthcare
- Retail and Wholesale
- Government
- Banking Financial and Insurance
- Manufacturing
Product Family
Warranty:
Standard 5-year warranty including both electronics and batteries.
Vertiv™ Liebert® GXT5 Lithium-Ion UPS 1000 - 3000 VA, 120V
The Vertiv™ Liebert® GXT5 Lithium-Ion online double conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.
Best Suited For:
- Education
- Healthcare
- Retail and Wholesale
- Government
- Banking Financial and Insurance
- Manufacturing
Tools & Selectors
Select, compare, or configure UPS systems and models
UPS Selector
Interactive product selector for single-phase UPS
UPS/Battery Upgrade Services
Explore options to maintain Liebert® GXT & Liebert® PSI UPS
Liebert® EXL S1 360 Interactive Experience
Visualize and explore key features and benefits of the Liebert® EXL S1 UPS
Specifications
Vertiv™ Liebert® GXT5 Lithium-Ion online UPS protects critical IT applications against outages and power disturbances. It offers highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as VRLA batteries reducing maintenance, labor, and replacement costs (lower TCO). Hot-swappable, user-replaceable batteries increase the useable life of the UPS.
|
GXT5LI-1000LVRT2UXL
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 1000VA / 1000W | Nominal (Full Load): 102-150 VAC; Max: 60-150 VAC | 120V; 100/110/115/120V/125VAC (User-Configurable) | Up to 92% in online mode; 98% in Active ECO Mode | Input: NEMA 5-15P; Output: (6) NEMA 5-15R | 3.4 in | 16.9 in | 17.3 in | 37.5 lbs |
| See more product information | ||||||||
|
GXT5LI-1000LVRT2UXLN
|
||||||||
| 1000VA / 1000W | Nominal (Full Load): 102-150 VAC; Max: 60-150 VAC | 120V; 100/110/115/120V/125VAC (User-Configurable) | Up to 92% in online mode; 98% in Active ECO Mode | Input: NEMA 5-15P; Output: (6) NEMA 5-15R | 3.4 in | 16.9 in | 17.3 in | 37.5 lbs |
| See more product information | ||||||||
|
GXT5LI-1500LVRT2UXL
|
||||||||
| 1500VA / 1350W | Nominal (Full Load): 102-150 VAC; Max: 60-150 VAC | 120V; 100/110/115/120V/125VAC (User-Configurable) | Up to 92% in online mode; 98% in Active ECO Mode | Input: NEMA 5-15P; Output: (6) NEMA 5-15R | 3.4 in | 16.9 in | 18.7 in | 39.7 lbs |
| See more product information | ||||||||
|
GXT5LI-1500LVRT2UXLN
|
||||||||
| 1500VA / 1350W | Nominal (Full Load): 102-150 VAC; Max: 60-150 VAC | 120V; 100/110/115/120V/125VAC (User-Configurable) | Up to 92% in online mode; 98% in Active ECO Mode | Input: NEMA 5-15P; Output: (6) NEMA 5-15R | 3.4 in | 16.9 in | 18.7 in | 39.7 lbs |
| See more product information | ||||||||
|

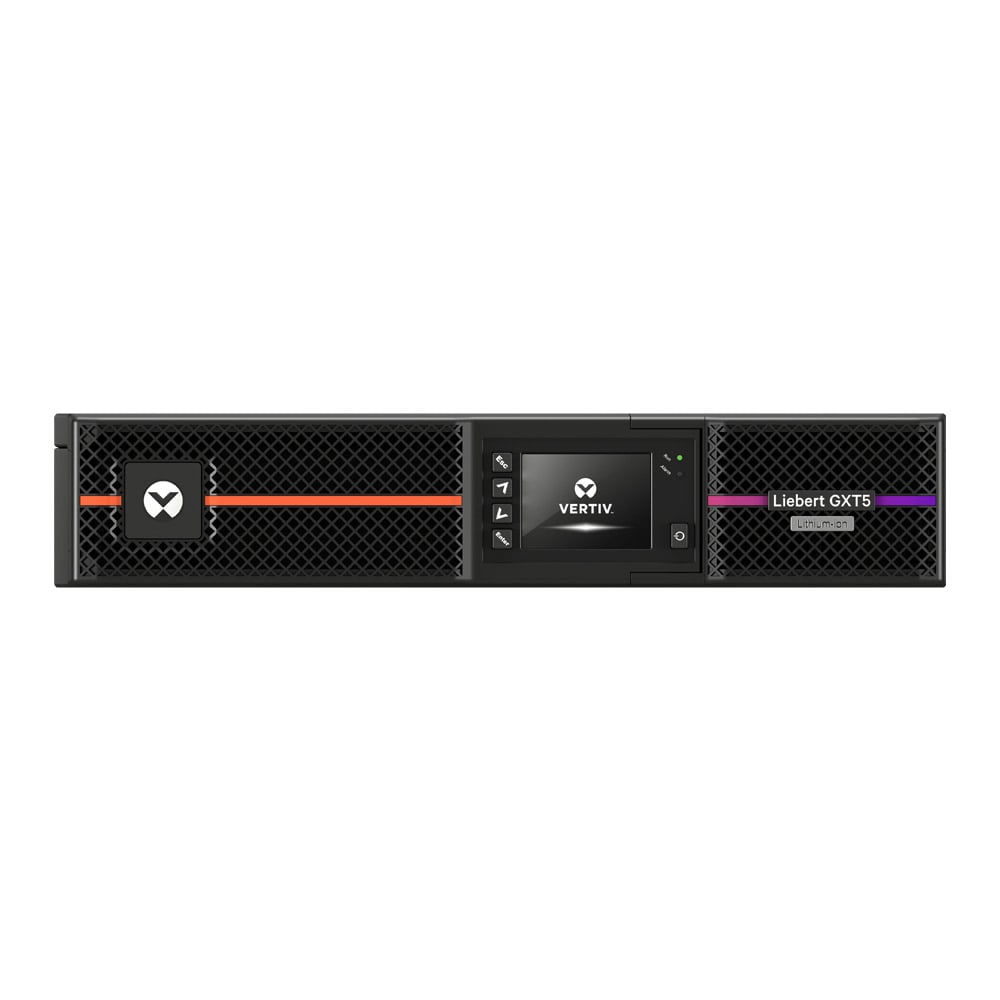

GXT5LI-2000LVRT2UXL
|
||||||||
| 2000VA / 1800W | Nominal (Full Load): 102-150 VAC; Max: 60-150 VAC | 120V; 100/110/115/120V/125VAC (User-Configurable) | Up to 92% in online mode; 98% in Active ECO Mode | Input: L5-20P; Output: (6) 5-15/20R & (1) L5-20R | 3.4 in | 16.9 in | 18.7 in | 39.7 lbs |
| See more product information | ||||||||
|
GXT5LI-2000LVRT2UXLN
|
||||||||
| 2000VA / 1800W | Nominal (Full Load): 102-150 VAC; Max: 60-150 VAC | 120V; 100/110/115/120V/125VAC (User-Configurable) | Up to 92% in online mode; 98% in Active ECO Mode | Input: L5-20P; Output: (6) 5-15/20R & (1) L5-20R | 3.4 in | 16.9 in | 18.7 in | 39.7 lbs |
| See more product information | ||||||||
|

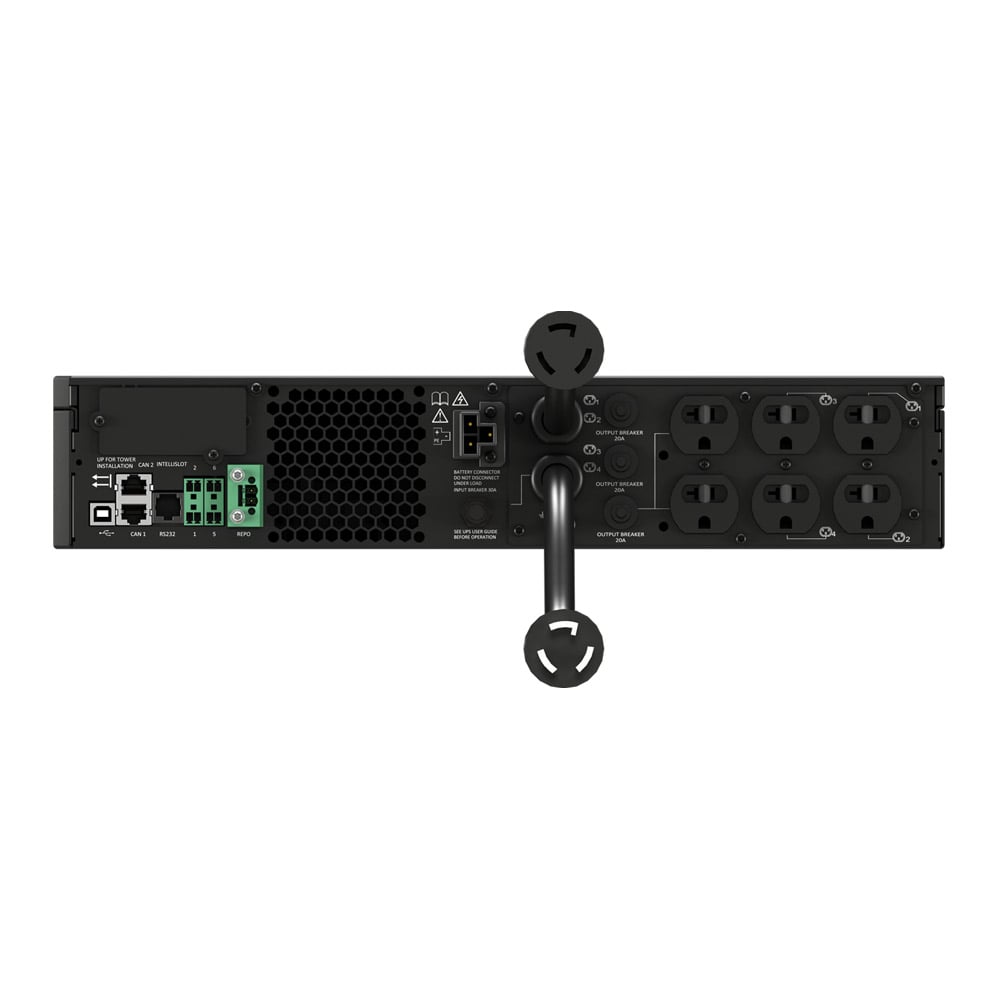

GXT5LI-3000LVRT2UXL
|
||||||||
| 3000VA / 2700W | Nominal (Full Load): 102-150 VAC; Max: 60-150 VAC | 120V; 100/110/115/120V/125VAC (User-Configurable) | Up to 92% in online mode; 98% in Active ECO Mode | Input: L5-30P; Output: (6) 5-15/20R & (1) L5-30R | 3.4 in | 16.9 in | 21.5 in | 48.5 lbs |
| See more product information | ||||||||
|
GXT5LI-3000LVRT2UXLN
|
||||||||
| 3000VA / 2700W | Nominal (Full Load): 102-150 VAC; Max: 60-150 VAC | 120V; 100/110/115/120V/125VAC (User-Configurable) | Up to 92% in online mode; 98% in Active ECO Mode | Input: L5-30P; Output: (6) 5-15/20R & (1) L5-30R | 3.4 in | 16.9 in | 21.5 in | 48.5 lbs |
| See more product information |
Benefits
Superior Battery Technology: Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss.
High Performance: Lithium-Ion battery technology offers better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries.
Easy Installation: Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
Scalable Runtime: The UPS has an external battery connector, which is a scalable runtime solution for extended outage protection (Up to (8) VEBCLI-48VRT1U External Battery Cabinets).
Features
Lowest total cost of ownership; lithium-ion batteries last up to 3 times as long as VRLA batteries, resulting in fewer battery replacements saving time and money
5-years standard warranty on the UPS and batteries
Longer battery runtime and quicker battery recharge times to ensure availability of your critical applications
0.9 (or better) Output Power Factor delivers more usable power, saving space and cost
High efficiency, up to 92% in double-conversion online mode to deliver energy savings
Advanced User-Friendly Color Graphic LCD with gravity sensing orientation for simple local UPS configuration and management
Flexible 2U rack/tower convertible form factor
Up to seven battery-backed outlets ensuring you critical equipment is protected
(4) Individually Programmable outlets to optimize battery runtime for critical loads
Hot-swappable, user-replaceable internal batteries enable battery replacement without disrupting power to connected equipment
Input circuit breaker for additional protection of the equipment in the event of a worst-case failure
Remote Emergency Power Off (EPO) to turn off the UPS in the event of an emergency
USB communications for local UPS monitoring and management using free Power Assist software

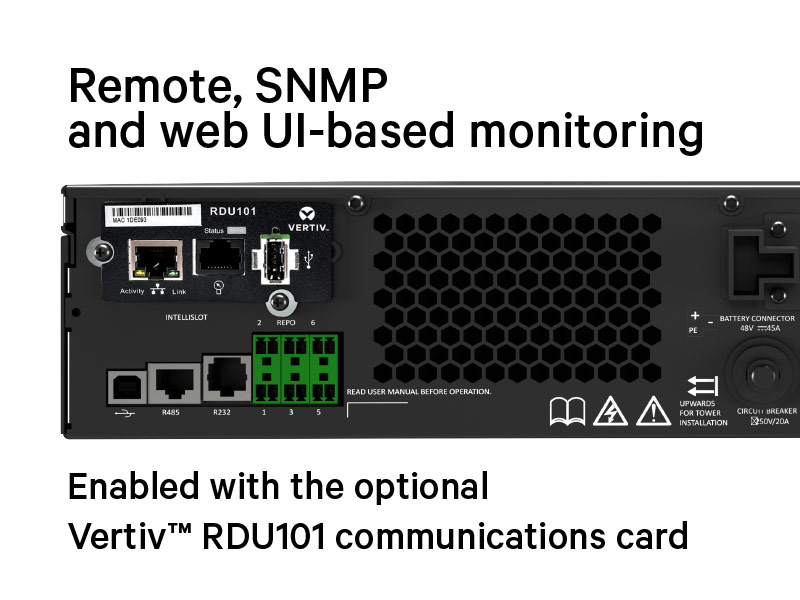

Optional Liebert® IntelliSlot RDU101 network communications card for remote monitoring, control and management of the UPS
Environmentally Friendly; RoHS and REACH compliant
Manuals
Brochures and Data Sheets
Drawings
- GXT5-DISPLAY Outline Drawing Liebert® GXT5 Display
- GXT5-LI_1000_120 Outline Drawing Liebert® GXT5 Lithium-Ion 1000VA 100-120VAC Rack/Tower UPS
- GXT5_LI_1500_120 Outline Drawing Liebert® GXT5 Lithium-Ion 1500VA 100-120VAC Rack/Tower UPS
- GXT5-LI_2000_120 Outline Drawing Liebert® GXT5 Lithium-Ion 2000VA 100-120VAC Rack/Tower UPS
- GXT5-LI_3000_120 Outline Drawing Liebert® GXT5 Lithium-IOn 3000VA 100-120VAC Rack/Tower UPS
- VEBCLI-48VRT1U Outline Drawing Liebert® GXT5 1-3kVA 48V External Battery Cabinet
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
