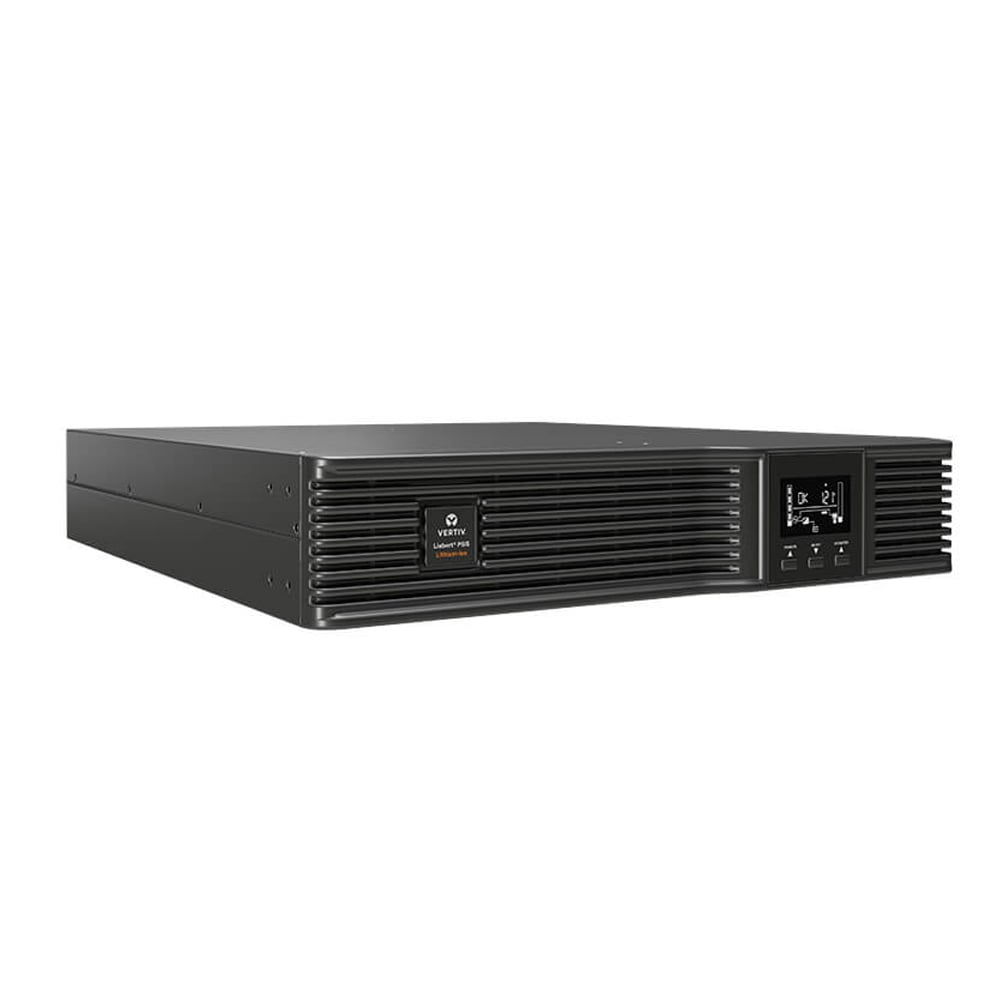

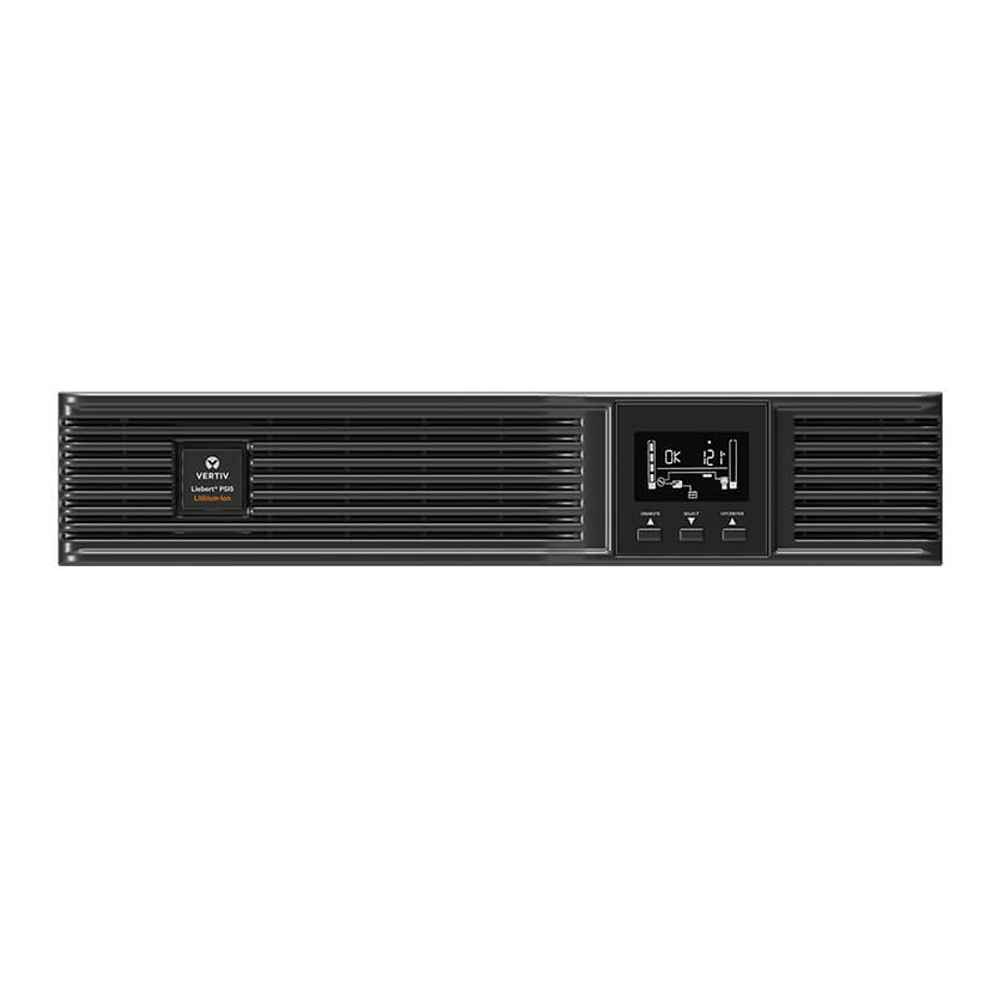

PSI5-2200RT120LI
The Vertiv™ Liebert® PSI5 Lithium-Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in edge and distributed IT applications. This 1920VA rack/tower UPS offers more than double the battery life of a traditional VLRA UPS, and comes with a five-year advanced replacement warranty. This Lithium-Ion battery backup also includes automatic voltage regulation (AVR) technology to further extend battery life and provides premium protection from power disturbances.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Education
- Banking, Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
PSI5-2200RT120LI
The Vertiv™ Liebert® PSI5 Lithium-Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in edge and distributed IT applications. This 1920VA rack/tower UPS offers more than double the battery life of a traditional VLRA UPS, and comes with a five-year advanced replacement warranty. This Lithium-Ion battery backup also includes automatic voltage regulation (AVR) technology to further extend battery life and provides premium protection from power disturbances.
- Education
- Banking, Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
Benefits
Features
Specifications

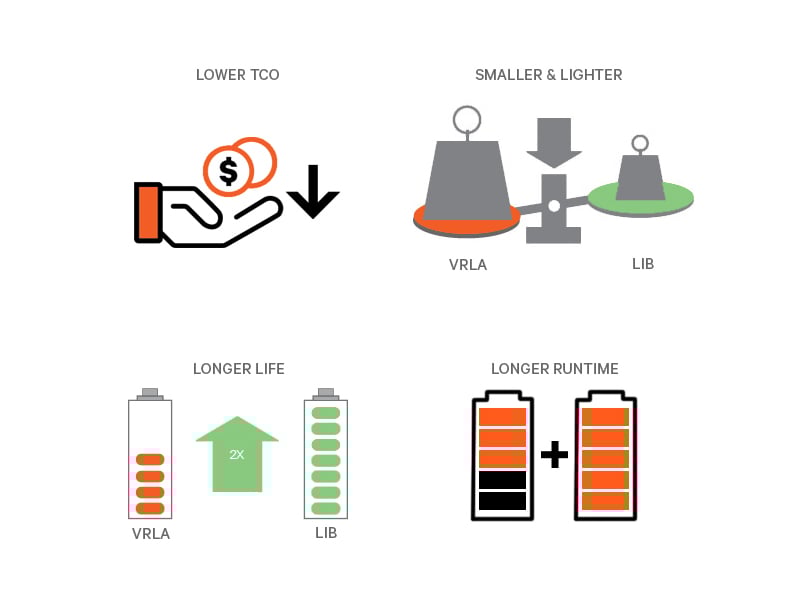

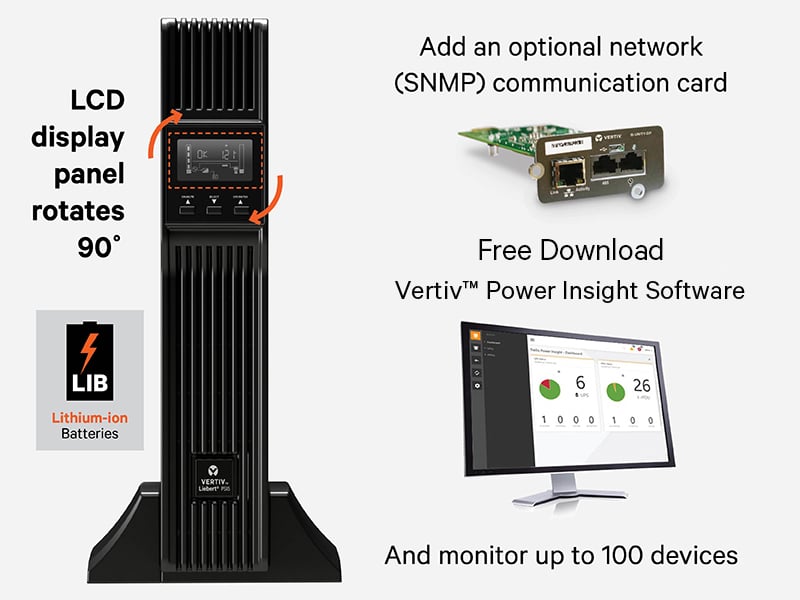

The Vertiv™ Liebert® PSI5 Lithium-Ion UPS provides power protection for critical equipment in edge and distributed IT applications. Lithium-ion batteries provide more than double the useful life of traditional VLRA batteries, resulting in up to 60% TCO savings or more. The UPS uses AVR technology to further extend battery life and offers 2-4 times the runtime of comparable UPS systems at full load. It also comes with a rotating LCD display to allow both rack and tower configurations.
- Product Overview
- Power Rating
- 1920VA / 1920W
- Input Voltage
- Nominal: 120VAC / Range: 75-146VAC
- Output Voltage
- 120VAC Default; 100/110/115/125VAC User Selectable
- Efficiency
- Up to 97.1% (Normal Mode)
- Wiring

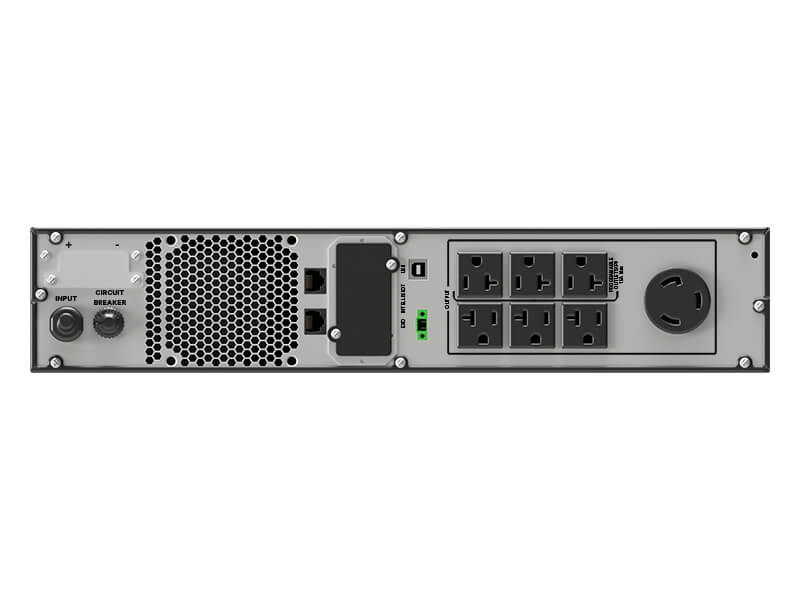

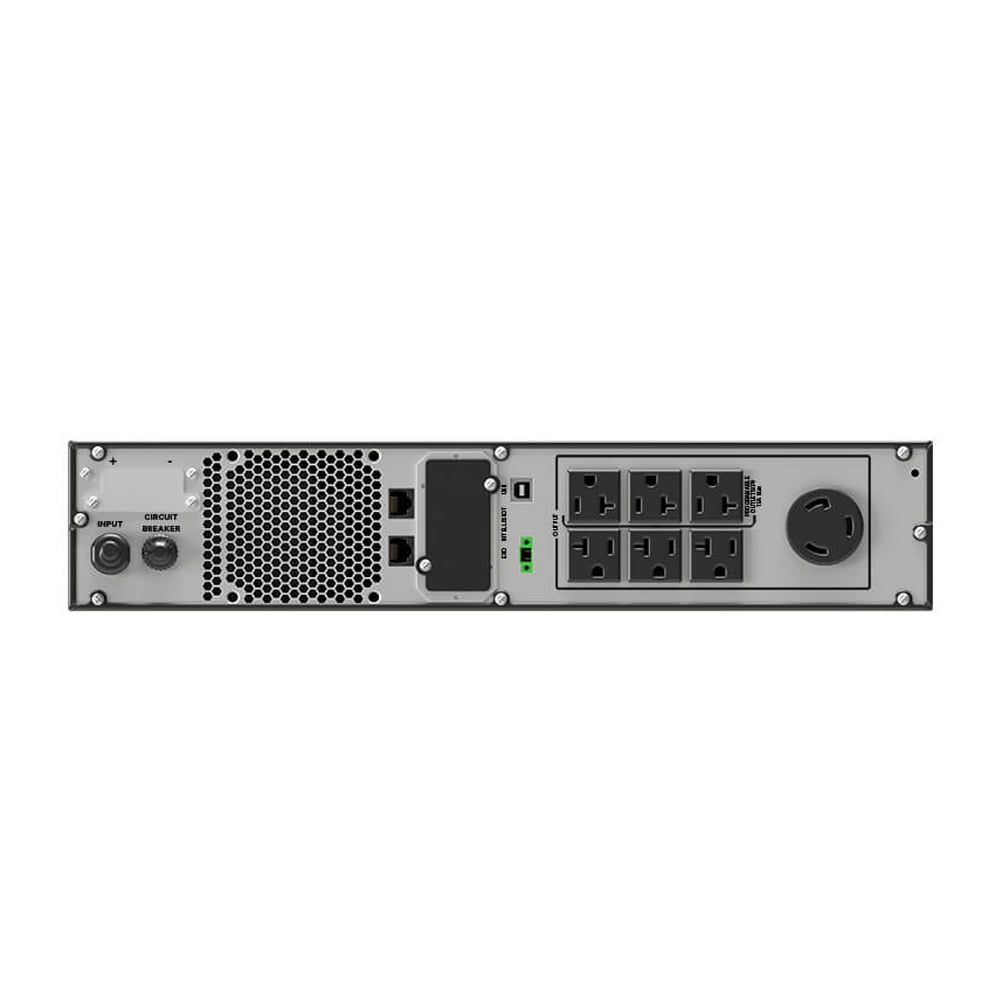

- Input: 5-20P or L5-20P; Output: 6x5-20R, 1x L5-20R
- Interfaces/Ports
- Interface Options
- Optional communications card (Liebert® IntelliSlot™ UNITY), USB, EPO connector
- Protocols
- SNMP and web management enabled with optional Liebert® IntelliSlot™ UNITY communications card
- Control Panel

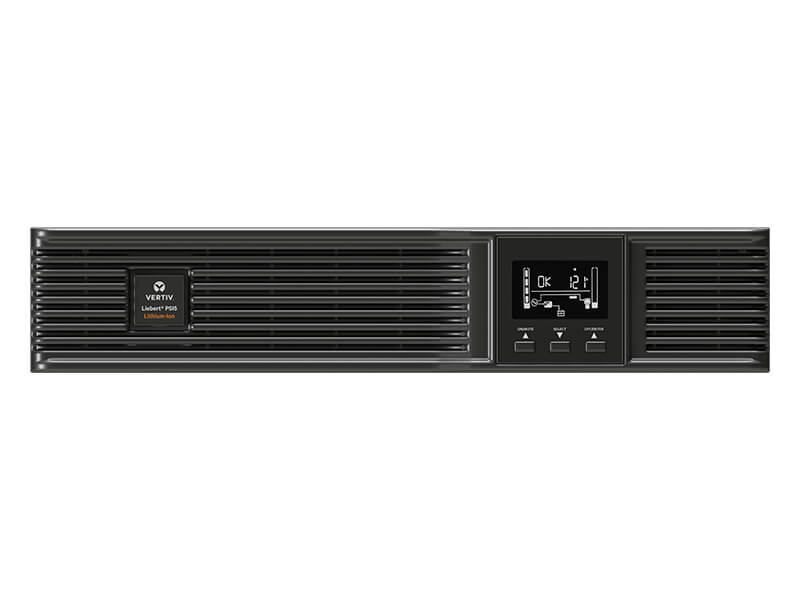

- Rotatable LCD display provides flexible installation options (rack/tower)
- Service Access
- Front Access (hot-swappable battery kits)
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Miscellaneous
- General
- Pure sinewave output on battery
- Listings
- UN38.3, UL 1778, c-UL-us Listed, NOM, FCC Part 15, Class B
- Topology
- Line-interactive (automatic voltage regulation)
- Vertiv™ Liebert® PSI5 Installer User Guide SL-23314
- Liebert® PSI5 Lithium-ion UPS Quick Installation Guide
- Vertiv Liebert PSI5 3kVA Short Depth Lithium Ion User Guide
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA, 120 V Installer User Guide (SL-70806) - FR-CA
- Vertiv Liebert PSI5 3kVA Short Depth Lithium Ion Quick Installation Guide
- Runtime Tool: Vertiv™ Liebert® PSI5 Lithium-Ion UPS
- Liebert® PSI5 Lithium-Ion UPS Brochure (SL-70585)
- Vertiv Liebert PSI5 Lithium Ion Data Sheet
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407
- Vertiv™ E-Rate Eligible Brochure.pdf
- Vertiv-Equipment-Protection-Plan-Information-DS-EN-NA-SL-70771-WEB.pdf
- Vertiv Liebert PSI5 3kVA Short Depth Lithium Ion Data Sheet
- Vertiv-PSI5-Lithium-Ion-FAQ-SS-EN-NA-SL-70768-WEB.pdf
- Vertiv Liebert Lithium-Ion UPS Catalog SL-71049
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
