Vertiv™ Liebert® PSI5 Lithium-Ion UPS
The Vertiv™ Liebert® PSI5 Lithium-Ion Line Interactive UPS family provides network grade uninterruptible power protection with pure sinewave output power and automatic voltage regulation ensuring availability of critical systems and information. PSI5 Lithium-Ion batteries provide a greater return on investment with 3 times greater battery life, recharge faster, perform better in higher temperatures, are lighter and have greater power density. Reliable and efficient power protection for servers, network equipment, medical devices, point-of-sale (POS) devices and security systems.
- Education
- Banking Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
Specifications
The Liebert® PSI5 Lithium-Ion UPS is ideally suited to protect critical infrastructure in edge or distributed IT applications. Lithium-ion batteries have a life expectancy of 8-10years, which is up to 3 times longer than VRLA batteries. That translates to fewer (if any) battery replacements over the lifespan of the UPS, which means savings on batteries as well as the labor to install them – an especially important issue at remote locations with few or no IT personnel on site. It adds up to more than 50% lower total cost of ownership vs. VLRA batteries. The Liebert PSI5 Lithium-Ion line interactive UPS includes automatic voltage regulation (AVR) technology, which protects against utility voltage fluctuation to extend battery life by maximizing time on utility power, and provides premium protection from power disturbances. In battery mode, the Liebert PSI5 UPS delivers pure sine wave output to protect sensitive servers and networking equipment. With up to 20 min. of runtime at half load and 9 min. at full load – more than comparable competing models – the Liebert PSI5 Lithium-Ion UPS provides plenty of runtime during an outage for an orderly shutdown. It comes with a rotating LCD display to allow both rack and tower configurations, provides real time information regarding UPS status and operating conditions, and supports remote monitoring. It's also highly energy efficient, delivering up to 97% efficiency at full load in normal operating mode. You can rest assured your business is protected with this Vertiv solution, which includes a 5-year full factory warranty. The Liebert PSI5 Lithium-Ion UPS is a true low-maintenance, set-it-and-forget-it solution.
|

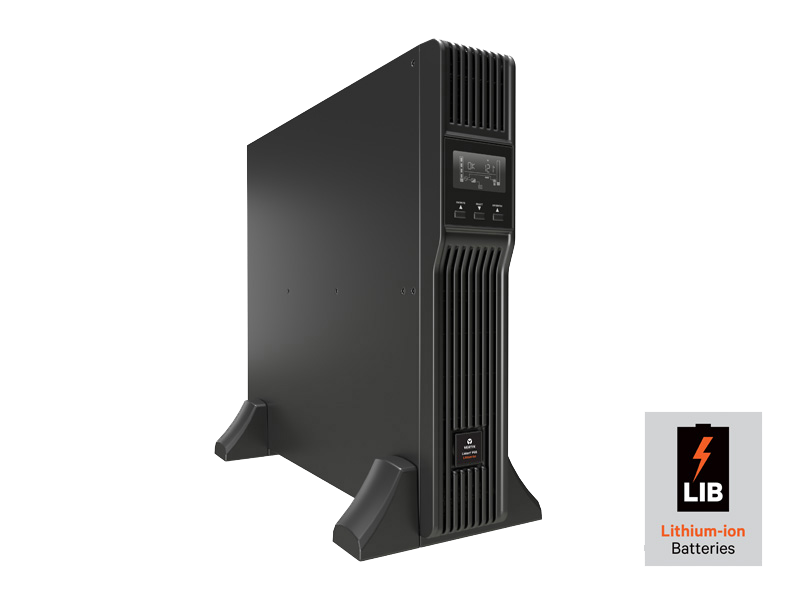

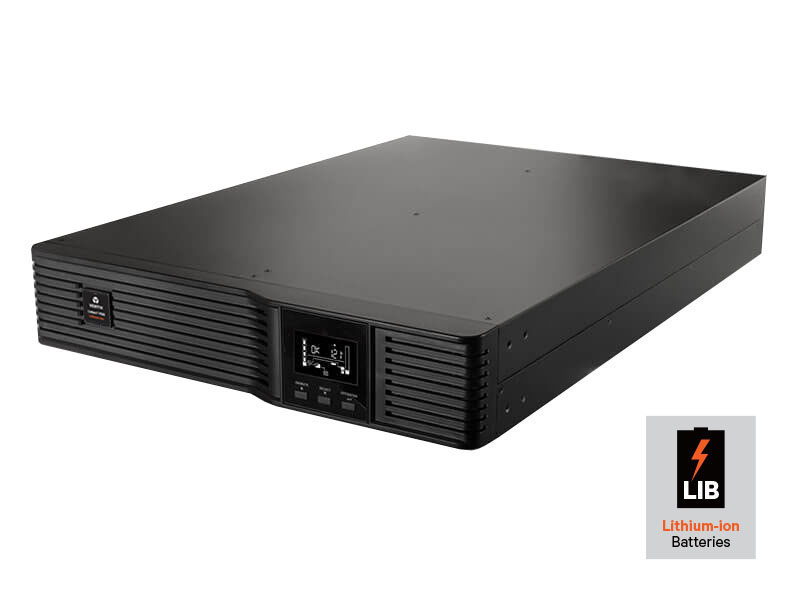

PSI5-1500RT120LI
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 1500VA / 1350W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.1% (Normal Mode) | Input: 5-15P; Ouput: 6 x 5-15R | 3.4 in | 17.2 in | 16.2 in | 28.3 lbs |
| See more product information | ||||||||
|
PSI5-2200RT120LI
|
||||||||
| 1920VA / 1920W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.1% (Normal Mode) | Input: 5-20P or L5-20P; Output: 6x5-20R, 1x L5-20R | 3.4 in | 17.2 in | 20.1 in | 39.5 lbs |
| See more product information | ||||||||
|

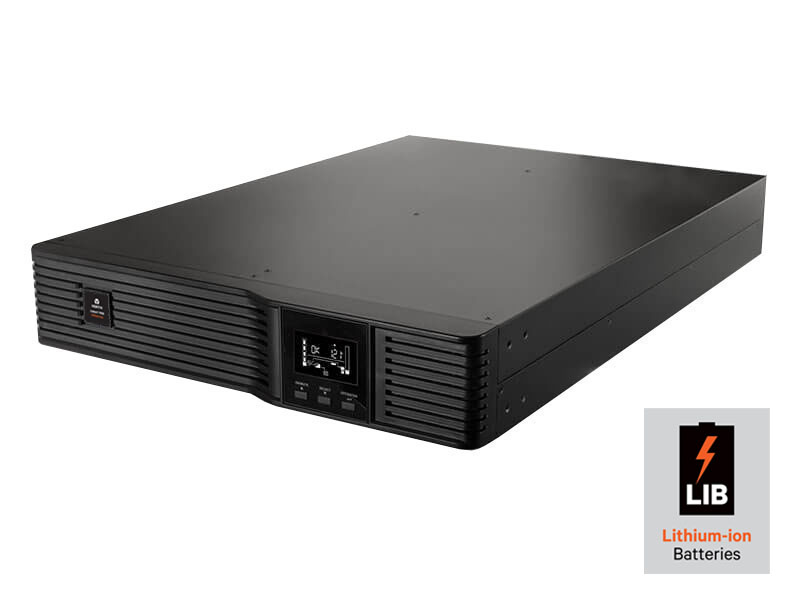

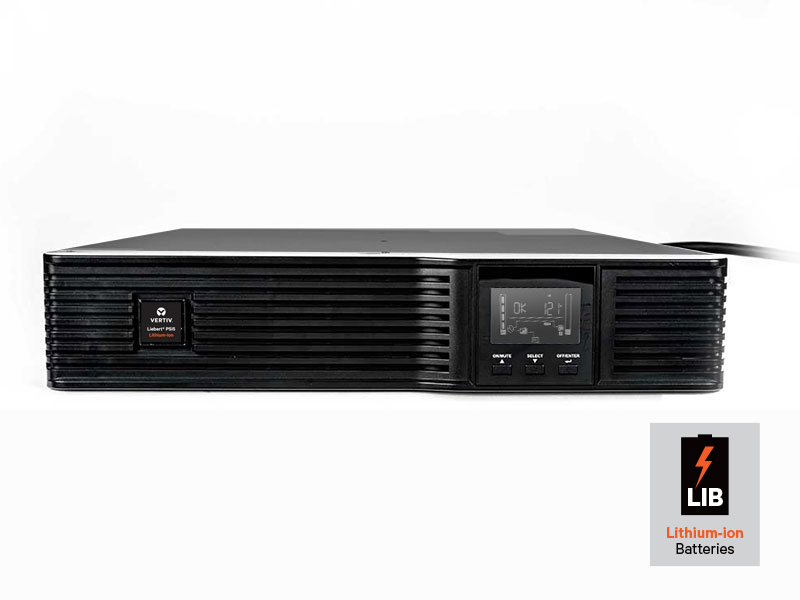

PSI5-3000RT120LI
|
||||||||
| 3000VA / 2700W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.3% (Normal Mode) | Input: L5-30P; Ouput: 6 x 5-20R, 1 x L5-30R | 3.4 in | 17.2 in | 24.8 in | 53.5 lbs |
| See more product information | ||||||||
|
PSI5-1500MT120LI
|
||||||||
| 1500VA / 1350W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.1% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 8.7 in | 6.3 in | 15.6 in | 27.9 lbs |
| See more product information | ||||||||
|

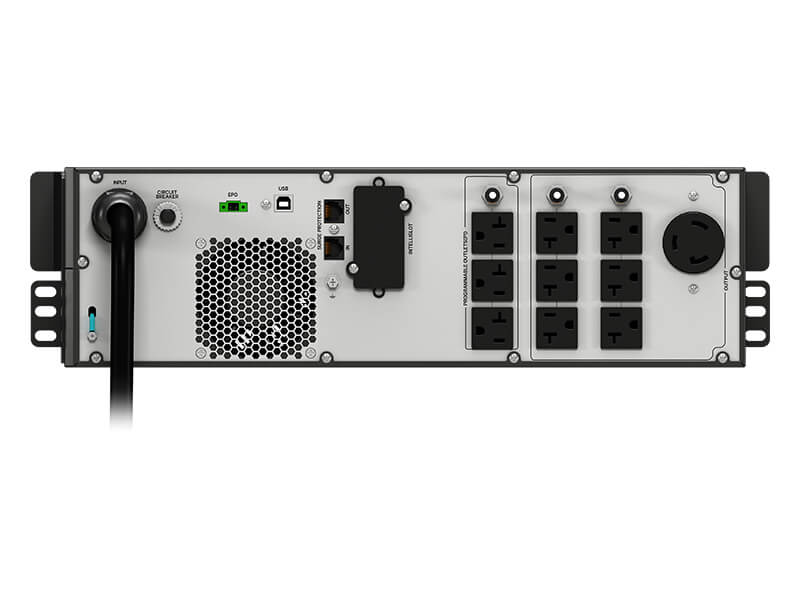

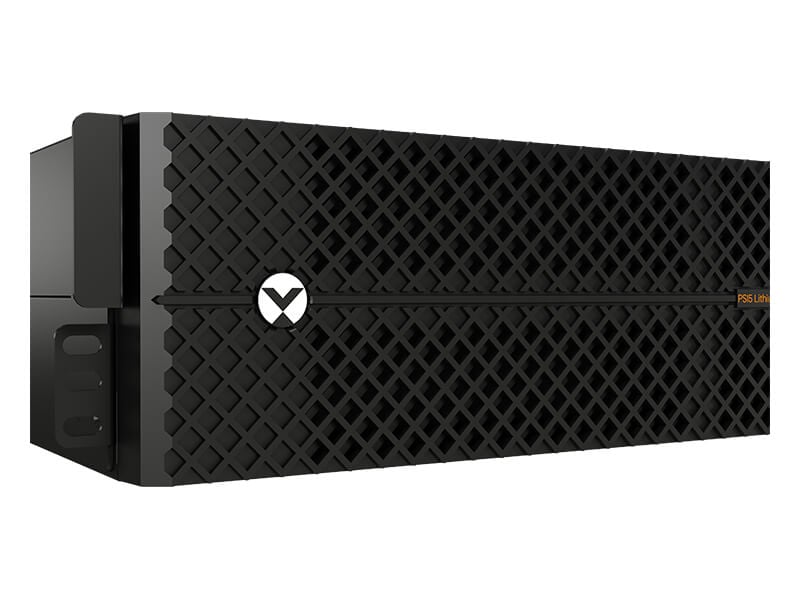

PSI5-3000SRT120LI
|
||||||||
| 3000VA / 2700W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.3% (Normal Mode) | Input: L5-30P; Output: 9 x 5-20R, 1 x L5-30R | 5.4 in | 17.3 in | 16.9 in | 56 lbs |
| See more product information |
-
1500VA – 3000VA
Wide range of available sizes to allow you to select the capacity and runtime that best meet your needs.
-

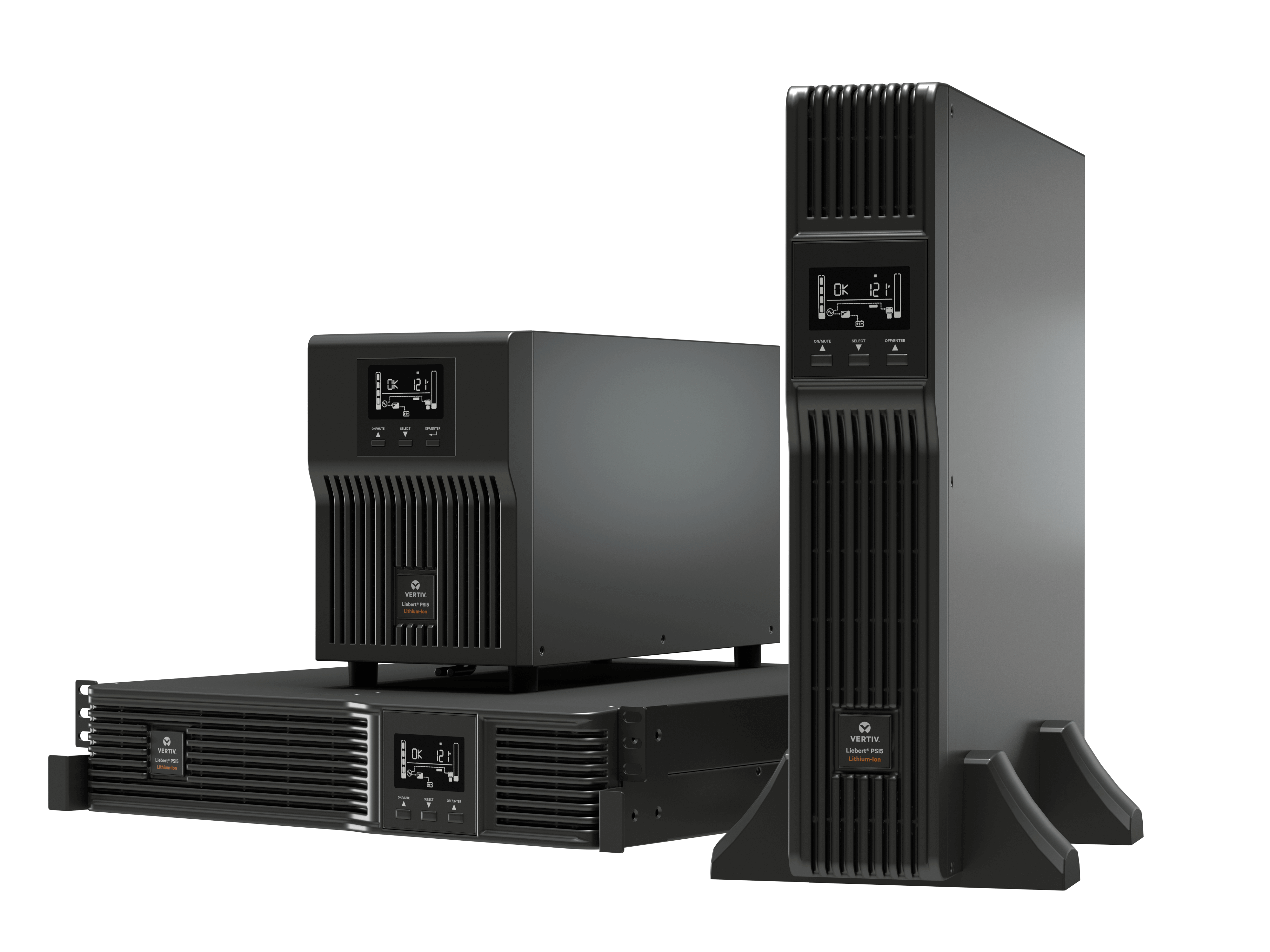

Optimized form factors

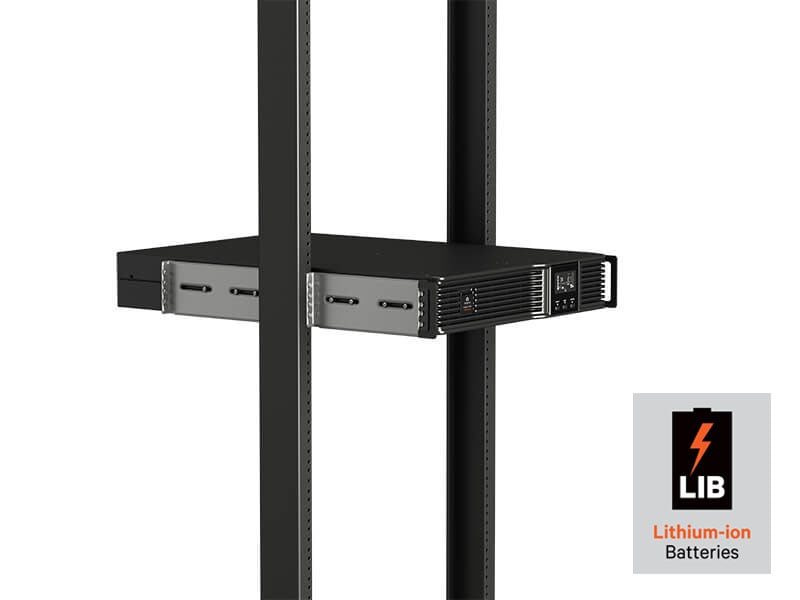

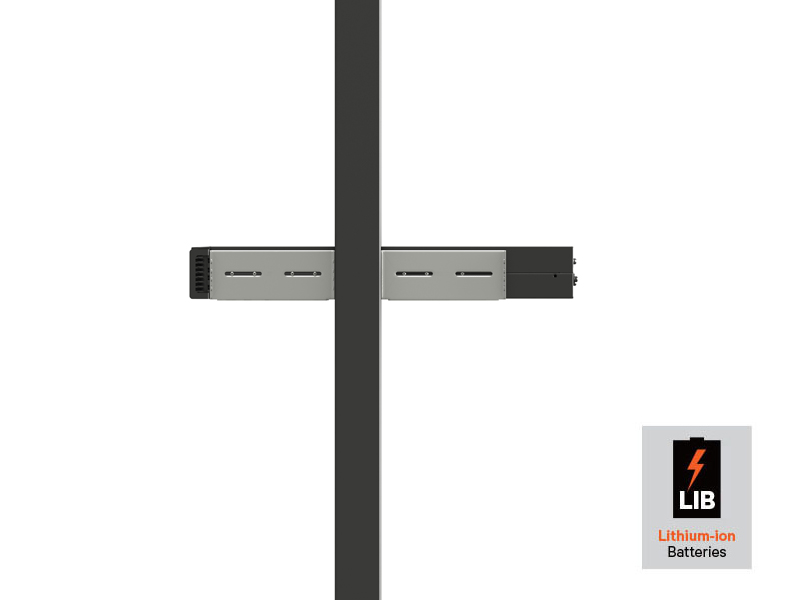

Multiple form factors to suit all site requirements, including tower, 2U and 3U Rack/Tower convertible form factors to provide flexibility at sites with variable installation needs.
-
Lithium-ion batteries
Vertiv lithium-Ion batteries provide longer runtime, up to 3 times longer life expectancy than Valve-Regulated-Lead-Acid (VRLA), batteries, recharge more quickly, endure up to 10X more discharge cycles and perform better in higher temperatures.
-
Lowest Total Cost of Ownership (TCO)
The longer life expectancy of lithium-ion batteries reduces maintenance, labor, and replacement costs, making it the lowest TCO UPS solution.
-
Sustainable
Lithium-ion batteries use less material for equal output and up to 99% of the battery elements are recyclable. The longer lifespan of a lithium-ion battery reduces waste and material consumption.
-
Safe and reliable
Safest lithium-ion (LiFePO4) battery chemistry and integrated Battery Management System (BMS) ensure safe and reliable operation.
-
Battery Management System (BMS)
The BMS monitors the lithium-ion battery health at the cell level. It manages the charging, depth of discharge, temperature, and voltage of the battery. The BMS prevents overcharging, ensures safe operation, and preserves the battery throughout its life.
-
Automatic Voltage Regulation (AVR)
When incoming utility power fluctuates, AVR stabilizes the output power without needing to go to battery, which extends the life of your battery and preserves your UPS battery for an outage.
-
Pure sinewave output
Pure sinewave output while on battery to simulate utility power and is compatible with active power factor corrected power supplies.
-
High power factor
0.9 Power Factor provides more actual power to the load increasing power density.
-
Energy Star Certified
A government certification for energy efficiency. This product meets strict energy-efficiency specifications that reduces energy consumption, saving money and helping protect the environment.
-
Gravity sensing LCD display
An intuitive LCD display that provides UPS status, power metrics, configuration options, alarms, and fault codes to manage the UPS.
-
Programmable outlet groups
Configurable outlets for load management. Cycle power to hung devices and load shed connected equipment, prioritizing critical devices to extend availability while on battery backup power.
-
User-replaceable, hot-swappable batteries
User-replaceable batteries may be swapped out quickly and safely without disruption and without having to turn off connected equipment.
-
Input circuit breaker
Re-settable breaker protects against equipment damage from a short circuit or overload.
-
Network grade surge protection
Network grade surge protection protects connected equipment from power surge damage.
-
Emergency Power Off (EPO)
Remote UPS shutoff in the event of a fire or other onsite emergency
-
USB management port
USB port to support monitoring and management requirements of the UPS.
-
Optional management and communication cards
Intellislot™ enables network integration connectivity and allows remote monitoring, start-up or restart of the connected equipment. SNMP, Modbus, BACnet and environmental sensor options are available.
-
Free management software
Power Assist software for local management via USB. Easy to install and allows for simple configuring, monitoring, alarm notifications and management of the UPS. Automatic shutdown options protect connected equipment during an extended power loss and ensure against data loss.
Power Insight software for on-premise and remote UPS monitoring and management with notifications and control of network connected devices. Configurable, automatic shutdown for physical and virtual servers. Includes integrations with VMWare vCenter, Dell VXRail Manager, and Nutanix Prism Central. Provides a single dashboard view of the UPS status, alarms, notifications, and summary data.
-
Equipment Protection Plan (EPP)
$400,000 Equipment Protection Plan provides reimbursement or replacement of any connected equipment that is damaged by a power surge while connected to your Vertiv UPS.
-
Trade-In Program
Allows you to trade in an aging Vertiv or competitor's UPS for a new Vertiv equivalent UPS at a discount. Vertiv will manage the collection and disposal of your old UPS at no cost.
Do not Display
- Vertiv™ Liebert® PSI5 UPS Brochure SL-23321
- Vertiv™ Liebert® PSI5 Lithium-Ion UPS Brochure (SL-70585)
- Vertiv Liebert Lithium-Ion UPS Catalog SL-71049
- Vertiv™ E-Rate Eligible Brochure
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407
- Vertiv™ Equipment Protection Plan
- Vertiv™ Liebert® PSI5 Lithium-Ion UPS Data Sheet SL-70581
- Vertiv™ Liebert® PSI5 Lithium-Ion Frequently Asked Questions (SL-70768)
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
News & Insights

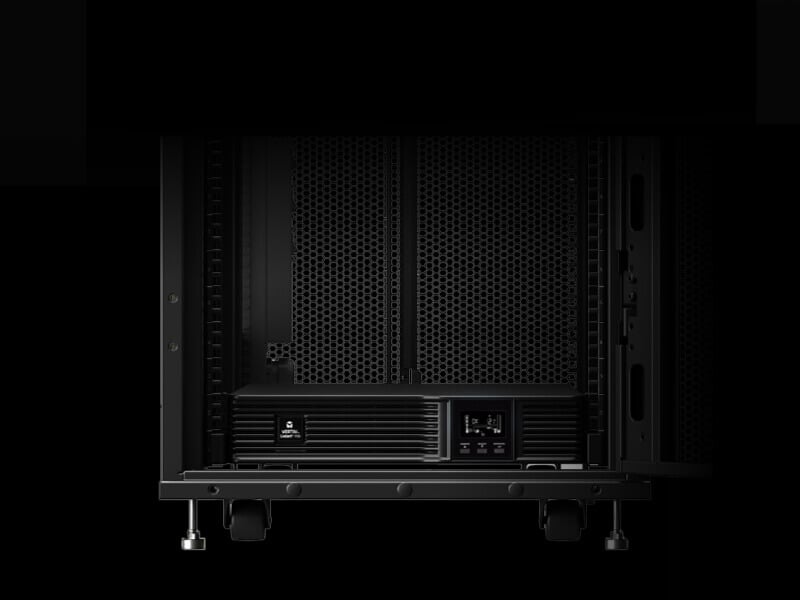

Video: Vertiv™ Liebert® PSI5 Lithium-Ion UPS
