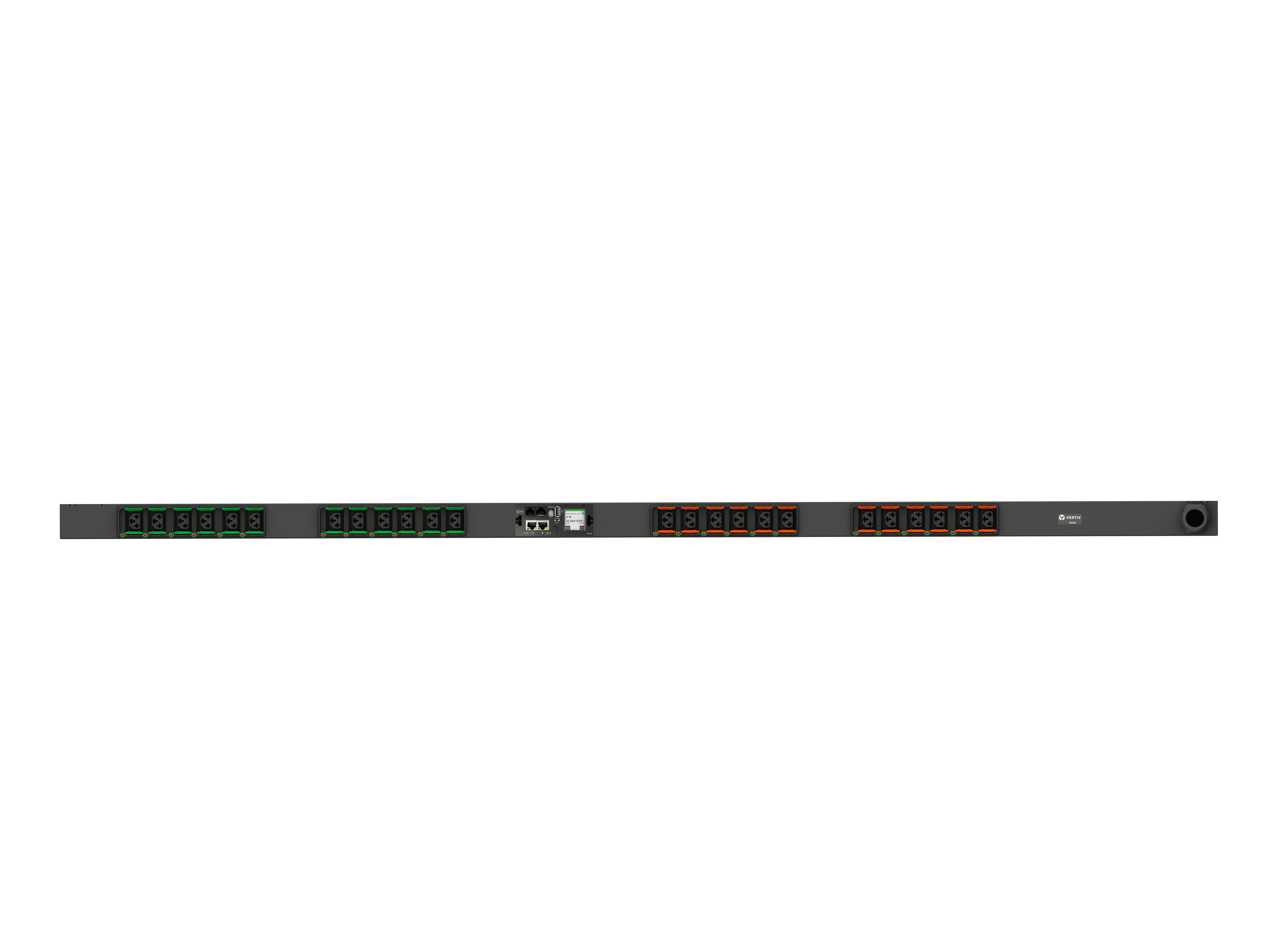

Vertiv™ PowerIT Switched Rack PDU
Vertiv Switched rack PDUs (rPDU) provide a comprehensive view of critical IT equipment power usage, both at the rack and via remote access with the added ability to remotely turn on, turn off, or reboot power at each outlet. Switched rPDUs are available in a variety of electrical and receptacle configurations.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Construction and Engineering
- Data Center/Colocation/Hosting
- Education
- Government
- Manufacturing
- Military, Defense, Aerospace and Missile
- Power Generation
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
- Telecom
Vertiv™ PowerIT Switched Rack PDU
Vertiv Switched rack PDUs (rPDU) provide a comprehensive view of critical IT equipment power usage, both at the rack and via remote access with the added ability to remotely turn on, turn off, or reboot power at each outlet. Switched rPDUs are available in a variety of electrical and receptacle configurations.
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Construction and Engineering
- Data Center/Colocation/Hosting
- Education
- Government
- Manufacturing
- Military, Defense, Aerospace and Missile
- Power Generation
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
- Telecom
Specifications
The Switched PDU offers real-time power consumption metrics and Email & SNMP alarming for voltage, real power, apparent power, power factor, amperage and kilowatt hours at the rack and via secure web interface along with remote outlet control. The PDU offers important insights enabling the user to balance loads, evaluate energy usage trends, and ensure maximum uptime.
|
VP5U60A0
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 63A | 2P + E (IP44) | 240V | (36) Combination Outlet C13/C19 | Vertical | 3.5 | 2.6 | 19 | |
| See more product information | ||||||||
|
VP5U60A1
|
||||||||
| 63A | 3P + N + E (IP44) | 240/415V WYE | (48) Combination Outlet C13/C20 | Vertical | 3.8 | 3 | 25 | |
| See more product information | ||||||||
|
VP5U60A2
|
||||||||
| 63A | 3P + N + E (IP44) | 240/415V WYE | (36) Combination Outlet C13/C21 | Vertical | 3.8 | 3 | 22 | |
| See more product information | ||||||||
|
VP5U60A3
|
||||||||
| 63A | 3P + N + E (IP44) | 240/415V WYE | (24) Combination Outlet C13/C21 | Vertical | 2 | 2.6 | 22 | |
| See more product information | ||||||||
|
VP5U62A0
|
||||||||
| 63A | 2P + E (IP44) | 240V | (24) Combination Outlet C13/C19 | Horizontal | 3.48 | 17.12 | 12 | 20 |
| See more product information | ||||||||
|
VP5U62A2
|
||||||||
| 63A | 3P + E (IP44) | 240V | (24) Combination Outlet C13/C20 | Horizontal | 3.48 | 17.12 | 12 | 22 |
| See more product information | ||||||||
|
VP5UA0A0
|
||||||||
| 80A | Hardwired Input | 240/415V WYE | (36) Combination Outlet C13/C19 | Vertical | 3.8 | 3 | 22 | |
| See more product information | ||||||||
|
VP7U60A0
|
||||||||
| 63A | 2P + E (IP44) | 240V | (36) Combination Outlet C13/C19 | Vertical | 3.5 | 19 | ||
| See more product information | ||||||||
|
VP7U60A2
|
||||||||
| 63A | 3P + N + E (IP44) | 240/415V WYE | (36) Combination Outlet C13/C21 | Vertical | 3.8 | 3 | 22 | |
| See more product information | ||||||||
|
VP7U60A3
|
||||||||
| 63A | 3P + N + E (IP44) | 240/415V WYE | (24) Combination Outlet C13/C21 | Vertical | 3.48 | 17.12 | 12 | 22 |
| See more product information | ||||||||
|
VP7U62A0
|
||||||||
| 63A | 2P + E (IP44) | 240V | (24) Combination Outlet C13/C19 | Horizontal | 3.48 | 17.12 | 12 | 20 |
| See more product information | ||||||||
|
VP7U62A2
|
||||||||
| 63A | 3P + E (IP44) | 240V | (24) Combination Outlet C13/C20 | Horizontal | 3.48 | 17.12 | 22 | |
| See more product information | ||||||||
|
VP7UA0A0
|
||||||||
| 80A | Hardwired Input | 240/415V WYE | (36) Combination Outlet C13/C19 | Vertical | 3.8 | 3 | 22 | |
| See more product information |
Benefits
Features
- Device Director Software Installer User Guide (End of Life)
- Vertiv Geist rPDU - Switched User Manual
- Vertiv™ PowerIT HM-Series rPDUs Safety and Quick Installation Guide EN SL-80307
- Vertiv PowerIT Quick Installation Guide PDU VM1246 SL-70646
- Vertiv PowerIT PDU IMD Modules - Replacement Guide - English - SL-70545.pdf
- Vertiv PowerIT Upgradeable PDU and Universal PDU - Quick Installation Guide - English - SL-70646.pdf
- Manage Inrush Current with GU2 Smart Relays - Application Brief - English - R0425
- Network Design & Switch Configuration for Vertiv™ PowerIT Upgradeable rPDU - Application Brief - English - R0425
- Limit Inrush Current and Manage Device Power-On Dependencies on GU2 Switched rPDUs - Application Brief - English - R0425
- Providing Network Connectivity to Intelligent rPDUs Without Requiring Expensive Switch Ports for Each - Application Brief - NA - EN - R0126
- Vertiv™ Device Director Data Sheet SL-28095 (End of Life).pdf
- Vertiv™ PowerIT Rack PDU for high density applications - Brochure - NA - EN - R1125
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
