Product Model
Warranty:
Vertiv™ Rack PDU Accessories come with a standard five-year limited warranty.
Warranty: 5-Year limited warranty
Upgradeable Interchangeable Monitoring Device (IMD-5)
The Vertiv™ PowerIT IMD is a hot-swappable and field upgradeable network card enabling local and remote monitoring.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Military, Defense, Aerospace and Missile
- Oil and Gas
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
Product Model
Warranty:
Vertiv™ Rack PDU Accessories come with a standard five-year limited warranty.
Warranty: 5-Year limited warranty
Upgradeable Interchangeable Monitoring Device (IMD-5)
The Vertiv™ PowerIT IMD is a hot-swappable and field upgradeable network card enabling local and remote monitoring.
Best Suited For:
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Military, Defense, Aerospace and Missile
- Oil and Gas
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
Benefits
- Upgrade intelligence on Upgradeable Rack PDUs with enhanced features to meet changing business needs with the Interchangeable Monitoring Device (IMD).
- Easily update rPDUs with the latest technology.
- Hot-swappable IMDs provide the ability to upgrade monitoring features and functionality without taking down critical IT Equipment.
- Reduce cost of ownership and optimize ROI by updating the IMD rather than the entire rPDU.
Features
- IMD models available for local metering, remote monitoring, environmental monitoring, and additional enhanced features and functionality.

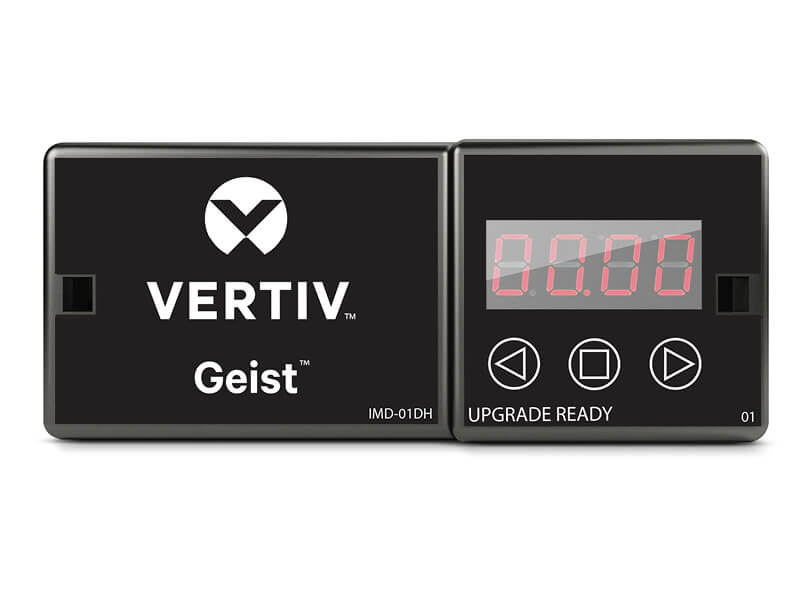

- The IMD-01D enables input current monitoring. Local high visibility LED display. Input power monitoring available via VLC feature using theVertiv™ rPDU Scanner app.

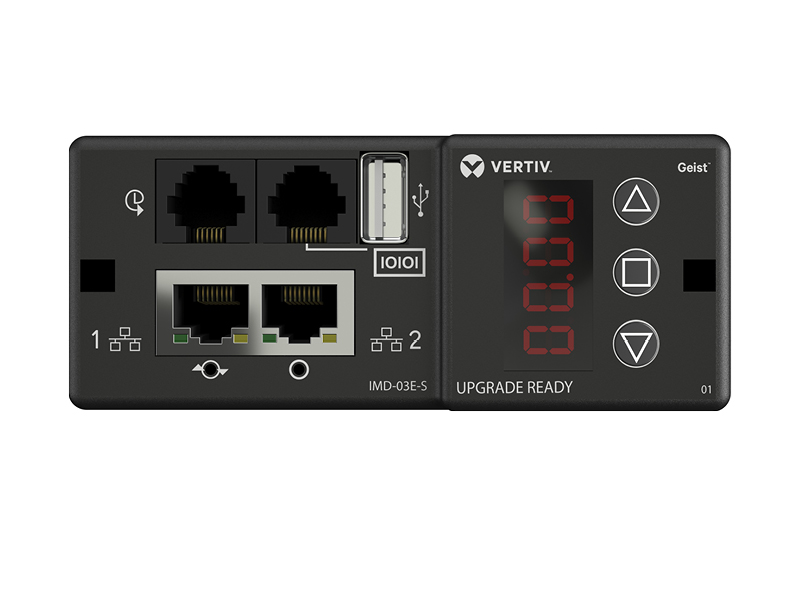

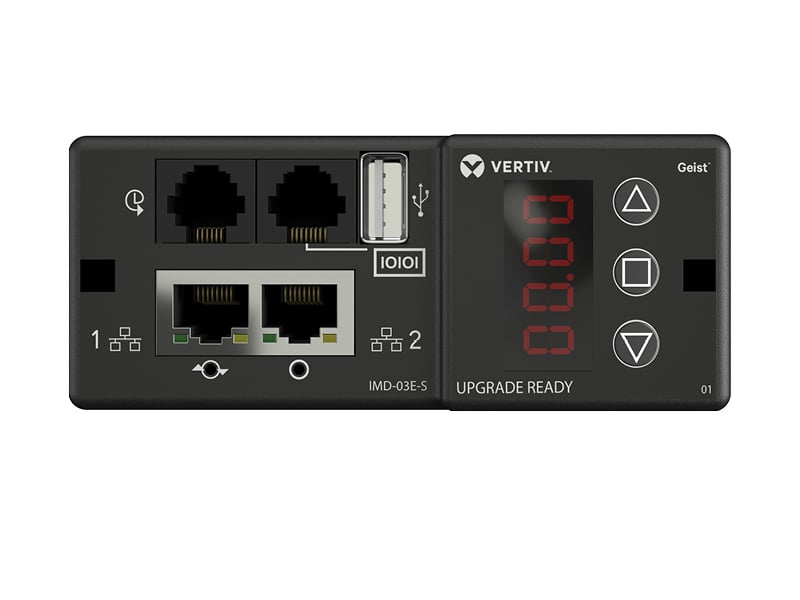

- The IMD-03E-G enables Input power monitoring and Circuit/Breaker current monitoring on Basic, Metered, and Monitored Upgradeable models. Environmental monitoring via optional remote sensors. Daisy chain Ethernet connectivity. Local high visibility LED display.
- The IMD-3E-G network card enables serial communication via RS232 port on outlet level monitored and switched rPDU models. Includes environmental monitoring via optional remote sensors, daisy chain Ethernet connectivity, and a local high visibility LED display.

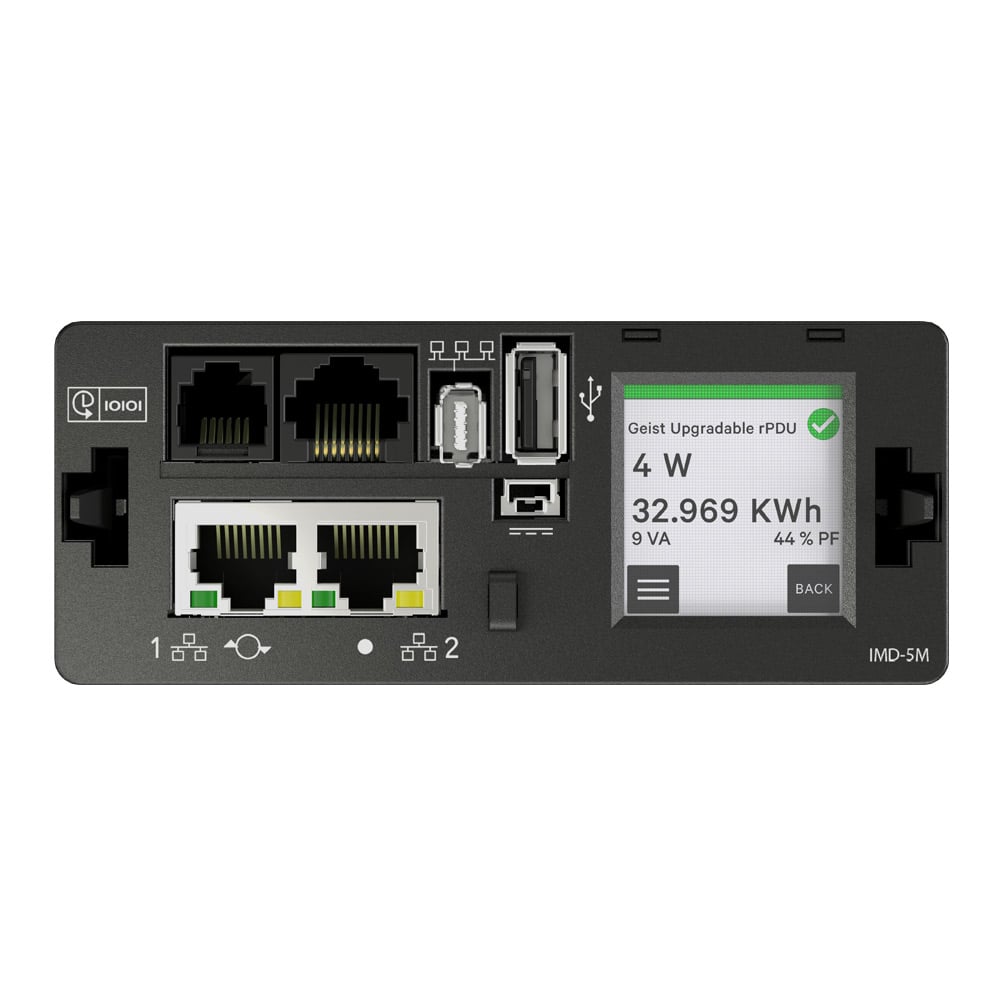

- The IMD-5M Next Generation Intelligence card supports Input and Output level power monitoring, Outlet switching, and Circuit / Breaker current monitoring where applicable as determined by base rPDU model. Enables serial communication via RS232 port. Features Secure Boot utilizing a hardware trust anchor. Redundant IMD Power Sharing via onboard port. Environmental monitoring via optional remote sensors. Daisy chain Ethernet connectivity. Local touchscreen equipped LCD display with ability to locally provision the rPDU.
Brochures and Data Sheets
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
