Product Family

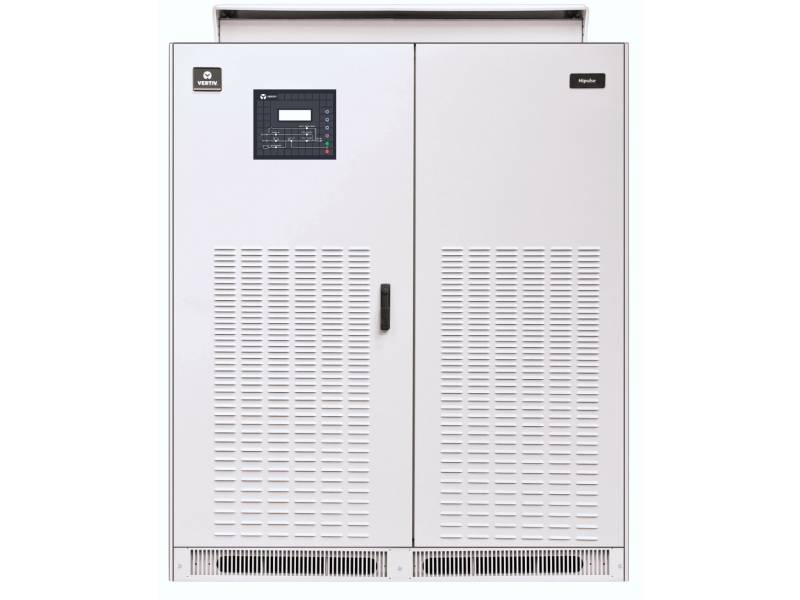

Liebert Hipulse AC UPS System, 20-800kVA
From reliability to availability, from scalability to redundancy, from user-friendliness to maintainability, from parallelibility to connectivity, from investment protection to lower cost of ownership, whichever value you need, HIPULSE address them efficiently and effectively.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Family
Liebert Hipulse AC UPS System, 20-800kVA
From reliability to availability, from scalability to redundancy, from user-friendliness to maintainability, from parallelibility to connectivity, from investment protection to lower cost of ownership, whichever value you need, HIPULSE address them efficiently and effectively.
Features
• Rated at 0.8 output power factor
• On-Line double conversion with IGBT based PWM Inverter
• Wide input voltage tolerance (+/-15%)
• Wide input frequency tolerance (+/-6%)
• Automatic battery testing
• High overload capability of static bypass (14 times for 10 milliseconds and 10 times for 100 milliseconds)
• Ingress protection IP 31/ IP32/ IP 41 /IP 42
• Capability to handle:
- High crest factor loads at 100% non-linear loads
• Built-in maintenance bypass (Single and 1+N Models)
• Front access for spares replacement and preventive Maintenance
• Provision to use any type of battery: Wet cells (Tubular Plante), Valve Regulated Lead Acid (VRLA) / Maintenance Free and Nickel Cadmium.
• Adjustable Frequency Synchronization with Static Bypass
• Provision of automatic battery circuit breaker instead of using conventional isolator in the DC path
• Advance Battery Management
• Selectable Timer for boost charging
• Overload capability of the UPS:
- 110% full-load for 60 minutes
- 125% full-load for 10 minutes
- 135%-150% full-load for 60 Sec • Field Protocols ModBus • Compact footprint • Fan Redundancy • Parallelbility: Up to 6 module can be parallel for capacity enhancement / redundancy
- 135%-150% full-load for 60 Sec • Field Protocols ModBus • Compact footprint • Fan Redundancy • Parallelbility: Up to 6 module can be parallel for capacity enhancement / redundancy
