Product Model

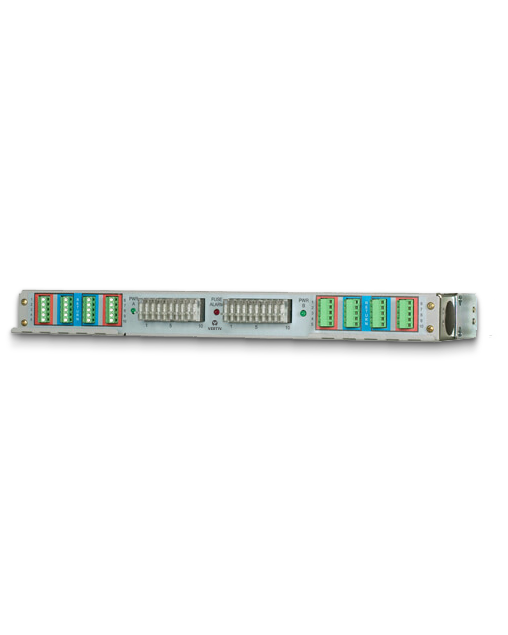

545277

Accepts up to (20) bullet nose-type circuit breakers or TPS/TLS type fuses in bullet nose fuse holders. Designed for mounting on a wall or in a 23" relay rack. Maximum current rating is 600 amperes. Panel is UL Listed for use in DC power distribution centers for communications equipment.

Get Brochure Get Manual
Best Suited For:
  • Telecom

Benefits

Ease of installation - Front or rear accessible terminals for attaching load conductors
Ideal for stand-alone applications or adding supplemental DC distribution to existing NetSure solutions

Features

High current output - 80A up to 600A
Flexible output options - Single load or A & B output options
Compact panels - 19"W or 23"W with adapters
Isolated Form-C alarm outpu

545277
Product Overview
System Type
(20) Fuse or Breaker Distribution Panel
Input
Input Voltage, Nominal
+24VDC or -48VDC
Environmetal & Standard Compliance
Operating Temperature
-40°C to +70°C (-40°F to +158°F)

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
