Product Model

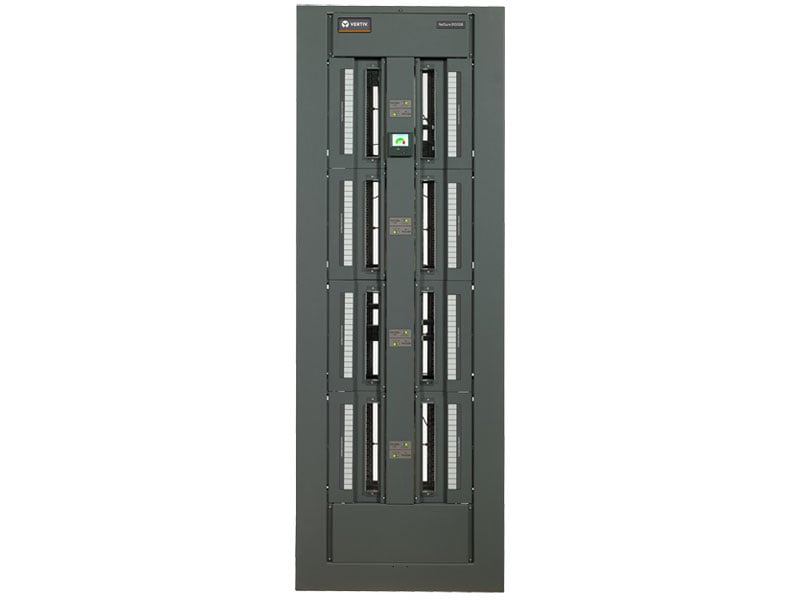

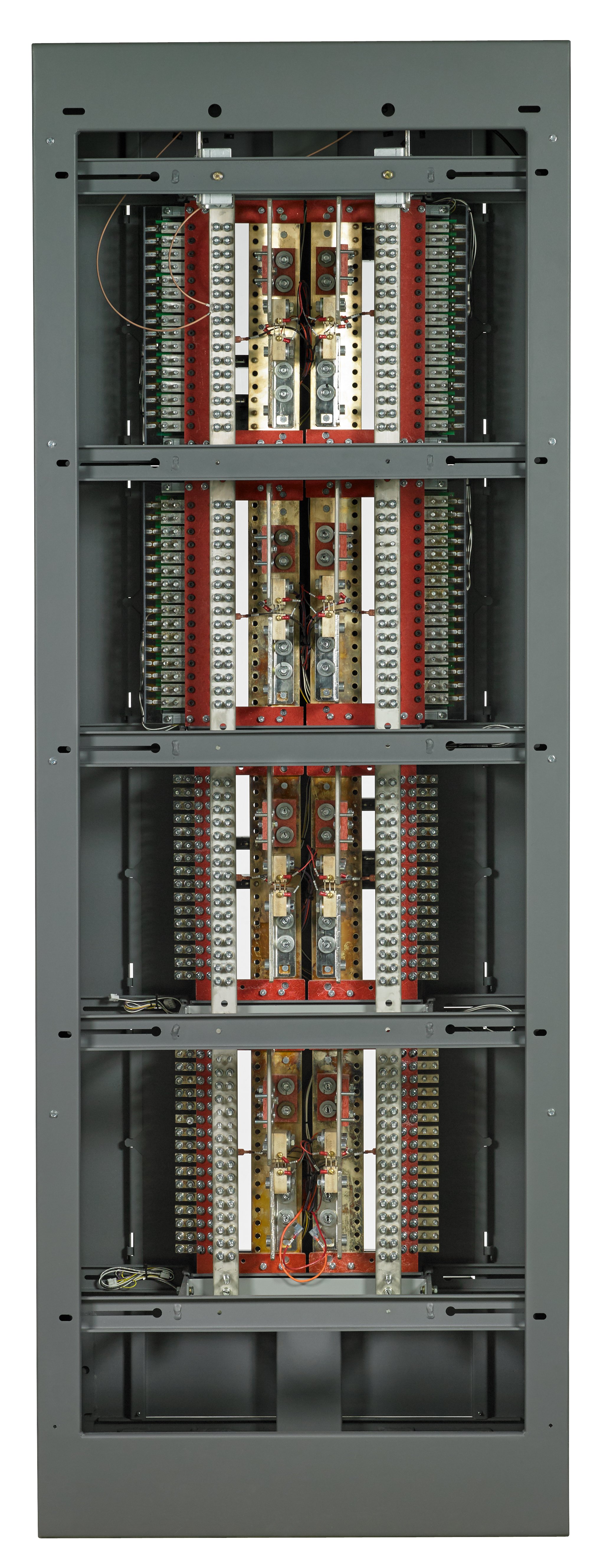

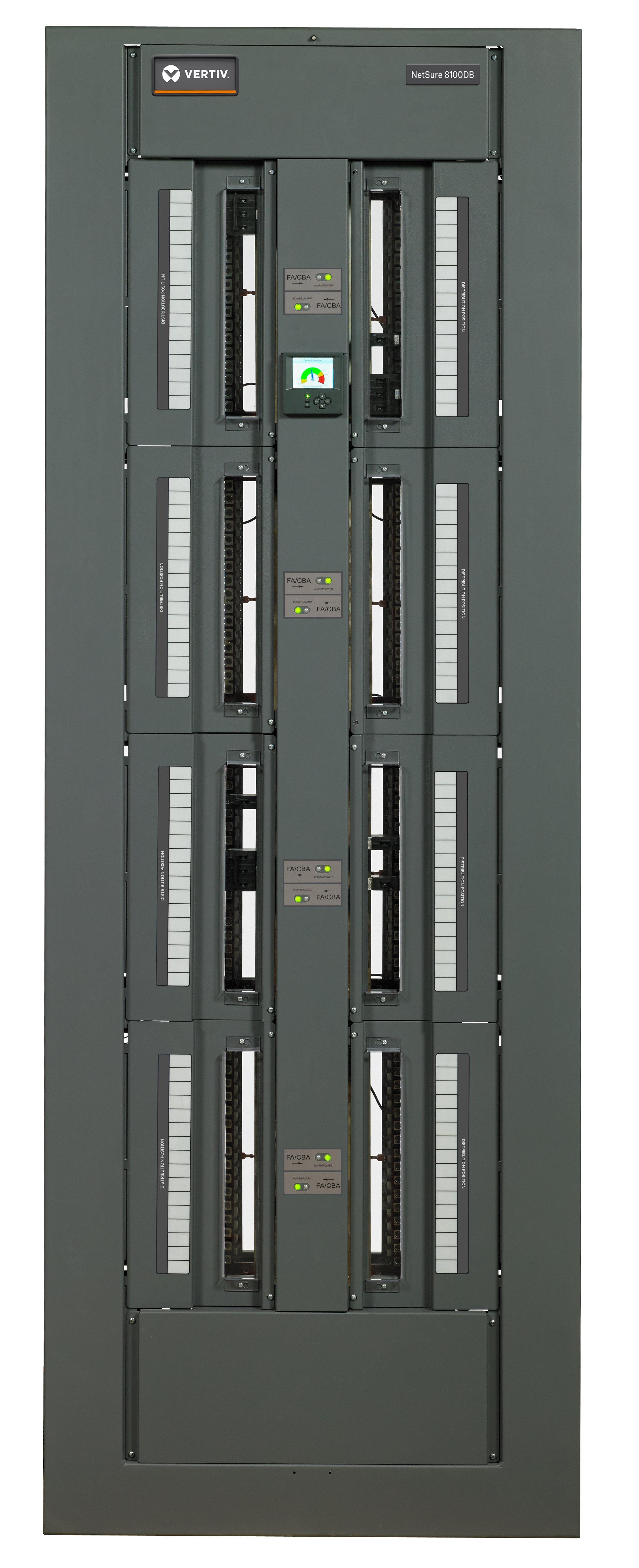

NetSure 8100DB Distribution Bay

The NetSure 8100DB distribution bay features high capacity, modularity, and simplified installation.​

Get Brochure Get Manual
Best Suited For:
  • Data Center/Colocation/Hosting
  • Government
  • Military, Defense, Aerospace and Missile
  • Telecom

Benefits

Efficiently address power demand today and tomorrow with scalable power systems that can be safely adjusted during live operation
Reduce unnecessary travel to site with remote services that enable you to identify issues and take corrective actions
Safely and easily adapt to new load requirements with live distribution and circuit breaker changes

Features

Power supply and load distribution optimization
Safe system expansion with live distribution and circuit breaker changes
NEBS Level 3 certified

NetSure 8100DB Distribution Bay
Product Overview
Power Capacity
240 kW (8 load) or 180 kW (6 load)
Current Capacity
4800 A (8 load) or 3600 A (6 load)
System Type
Distribution Bay
Input
Input Voltage, Nominal
48 VDC
Input Voltage, Operational
42.0 VDC to 58.0 VDC
Access
Top and bottom
Output
Output Voltage, Nominal
48 VDC
Output Voltage, Operational
42.0 VDC to 58.0 VDC
Load Circuit Breakers / Fuses
TPS/TLS, TPL, GMT Fuses or Bullet Circuit Breakers
Physical Characteristics
Weight
160 - 425
Weight
73 - 193
Height
84"
Height
2134
Width
26" or 30"
Width
660 - 762
Depth
16" or 24"
Depth
406 -609
Environmetal & Standard Compliance
Control and Monitoring

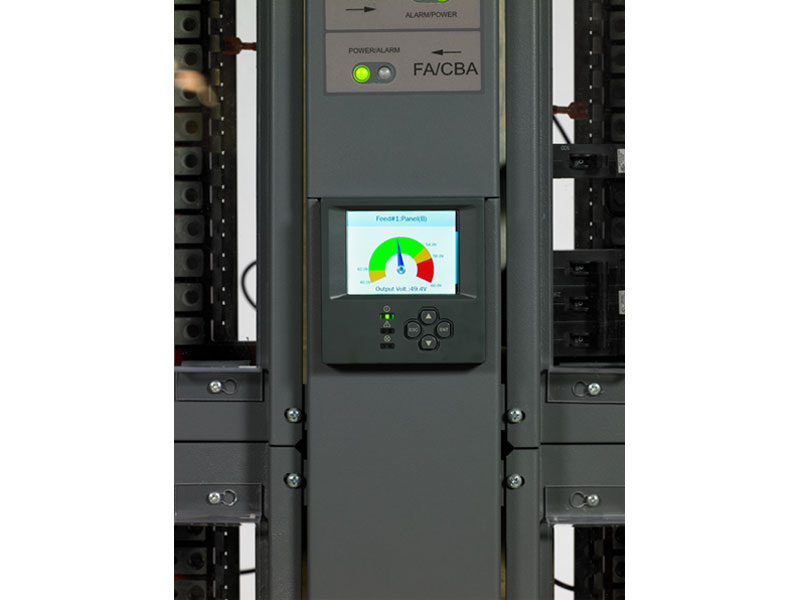

Digital metering with remote control over Modbus or SNMP
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Safety Compliance
NEBS level 3 compliance, meets or exceeds all relevant GR1089, GR63, UL, cUL specifications
