Product Family

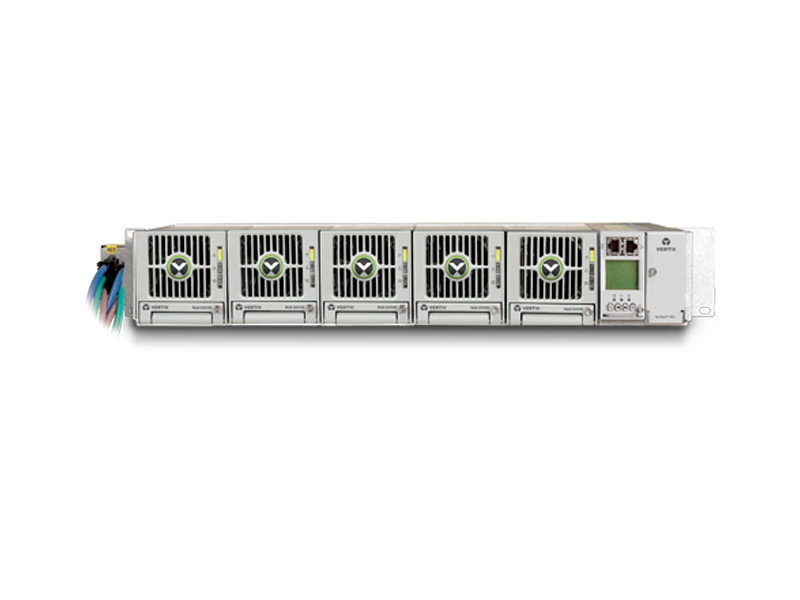

NetSure 500 Series
Flexible DC power systems available in integrated, bulk output shelves or externally mounted distribution panel systems.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Family
NetSure 500 Series
Flexible DC power systems available in integrated, bulk output shelves or externally mounted distribution panel systems.
Specifications
|
NetSure 502 Full DC Power System
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 18 - 28.8 kW | 40 - 600 A | -48V DC | Single phase: 120 VAC, 208 VAC to 240 VAC | System | 3.5 up to 8 in. | 19 or 23 in. | 23.04 in. (with batteries) | up to 600 lbs. |
| See more product information | ||||||||
|
NetSure 502 Integrated DC Power System
|
||||||||
| 2 - 6 kW | 40 - 120 A | -48V DC | Single phase: 120 VAC, 208 VAC to 240 VAC | System | 3.5 in. | 19 or 23 in. | 12.4 in. | up to 33.9 lbs. |
| See more product information |
Benefits
Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with rectifier high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system Minimize installation time and drive planned network conformity with customer configuration files
Features
High efficiency – 96.5% efficient eSure rectifiers
NetSure™ rectifiers are designed to operate from -40 °C to +80 °C, providing a minimum 1750 W output at 65 °C
Selectable AC Input - 120 VAC, 208 to 240 VAC
Supports Ethernet, RDU120, ModBus and RS485 communication interfaces
Battery Management Capability
ECO Energy Savings Mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
