Product Model

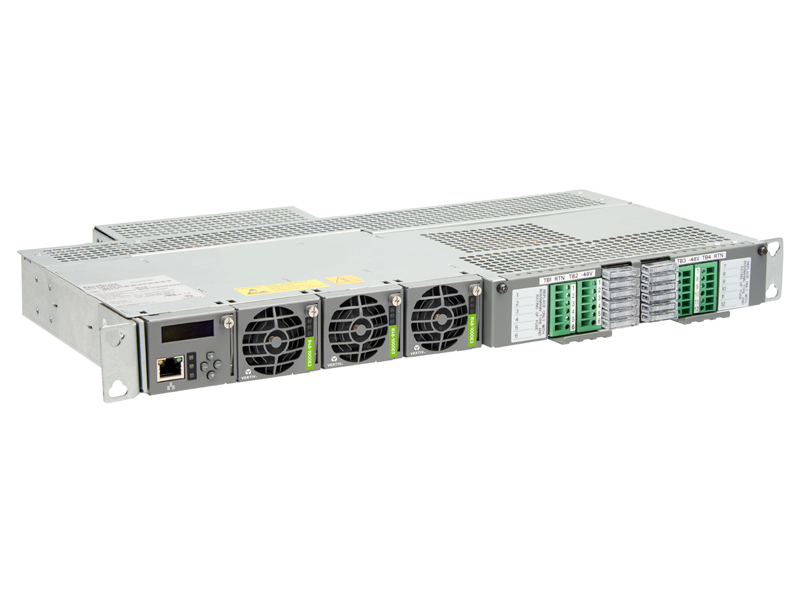

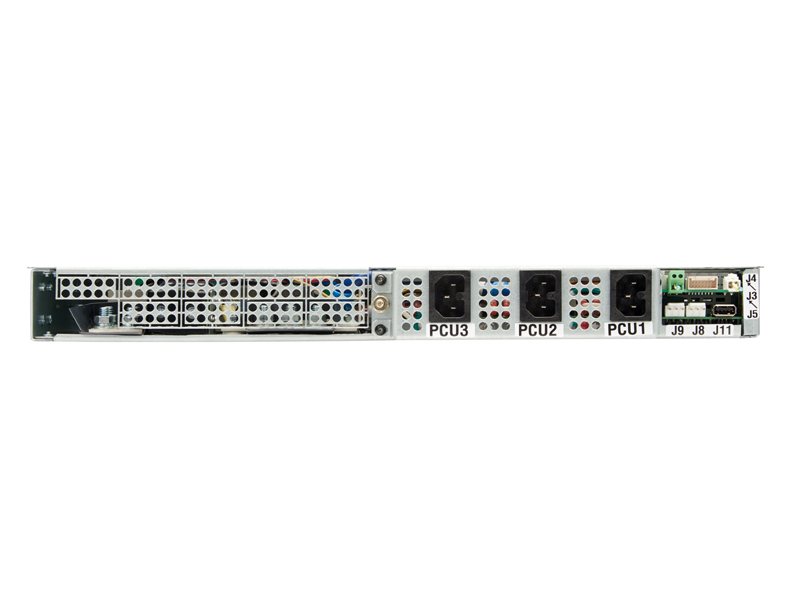

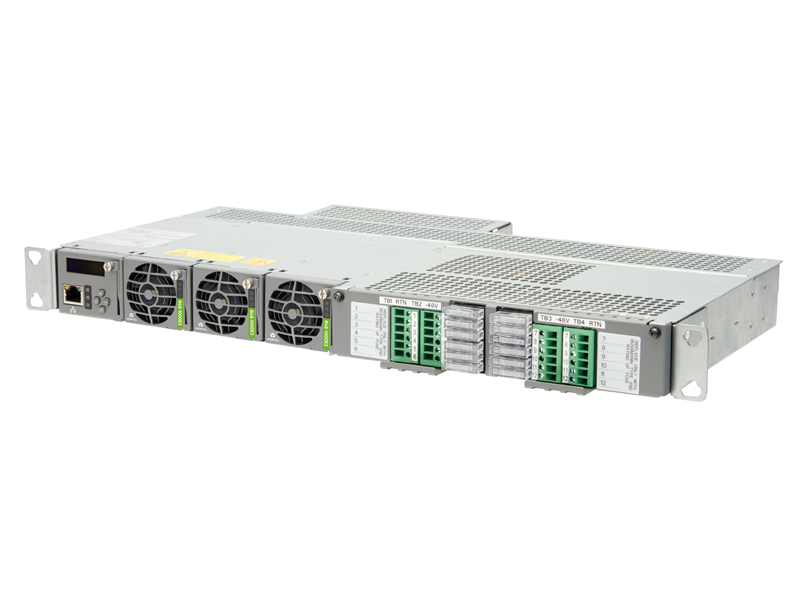

NetSure 2100 Series

The NetSure 2100 Series is designed for wireless access and customer premise applications offering unmatched temperature performance and high power density.

Get Brochure Get Manual
Best Suited For:
  • Telecom

Benefits

Easy to deploy in small spaces with a compact-sized 19" wide shelf, less than 11" deep
Optimize total cost of ownership with >95% high-efficiency eSure™ rectifiers
Save CapEx and OpEx on climate systems in outdoor applications with rectifiers that operate from -40°C to +70°C
Reduce the need for costly site visits with intelligent remote access and monitoring over standard protocols

Features

High density subrack delivers up to 3kW in 1U rack space
Wide operating voltage range, 85-300VAC
All breakers are accessible from the front side
Integrated distribution
Advanced intelligent battery management system

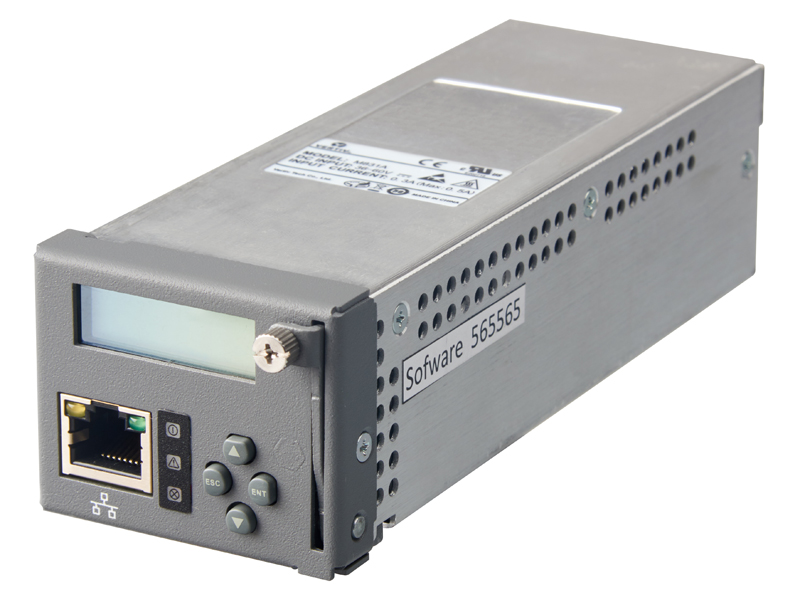

Built-in communication & dry contact ports that enable remote monitoring

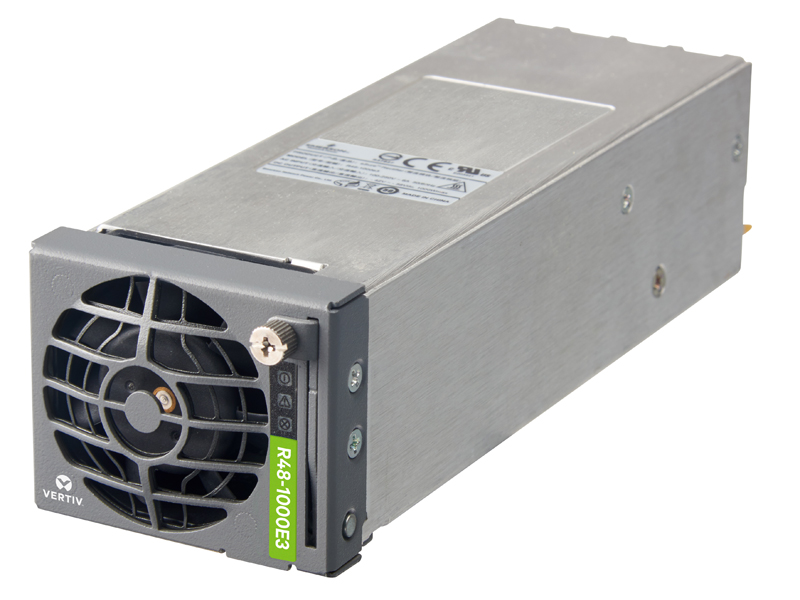

NetSure DC Power systems from Vertiv offer extremely low failure rates, as well as low total cost of ownership, and are designed to work with a wide range of applications. The 1000 W eSure rectifier delivers peak system efficiency above 95%. Maximum value is achieved by an advanced energy optimization function known as ECO mode, enabling significant energy savings even at low loads.

NetSure 2100 Series
Product Overview
Power Capacity
3 kW
Current Capacity
48 A
System Type
Subrack
Input
Input Voltage, Nominal
120, 208, 240 VAC
Operating Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Safety Compliance
UL 1801 Recognized
EMC Compliance
Conforms to FCC rules Part 15, Subpart B, Class B and EN55022 Class B, radiated and conducted
Output
Output Voltage, Nominal
-48 VDC
Physical Characteristics
Weight
5
Height
43.6
Width
482
Depth
279
Environmetal & Standard Compliance
Operating Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Safety Compliance
UL 1801 Recognized
EMC Compliance
Conforms to FCC rules Part 15, Subpart B, Class B and EN55022 Class B, radiated and conducted
