Ürün Ailesi

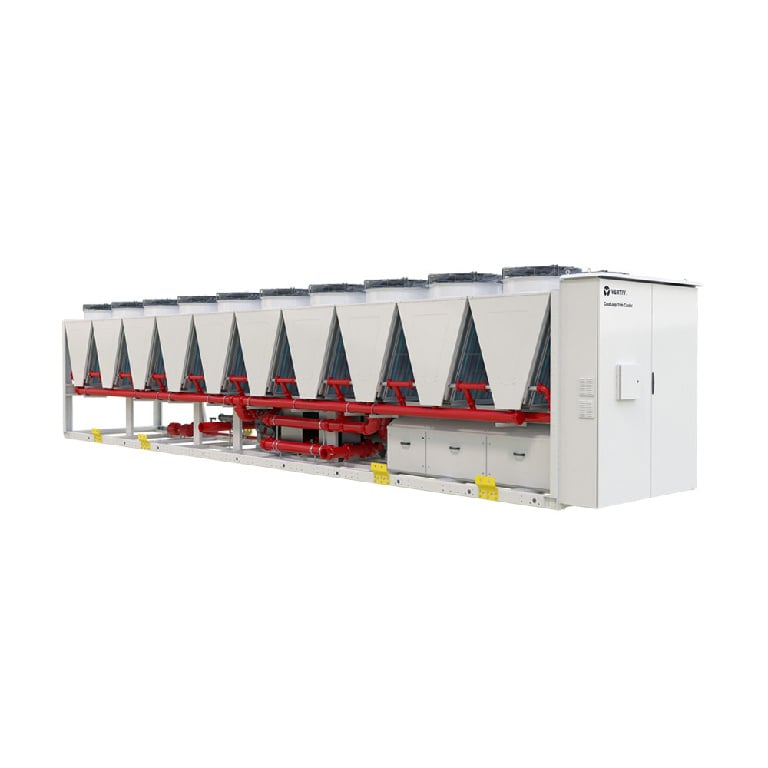

Vertiv™ CoolLoop Trim Cooler - The free cooling AI-ready cooler from 850 to 2600 kW

The Vertiv™ CoolLoop Trim Cooler is the free cooling AI-ready, densification-ready, environmentally responsible solution specifically designed to prepare data centers for growing densification driven by AI advancements.

Broşürü Al

Temel Avantajlar

AI & Densification-ready with an efficiency increase of nearly 70%.

Up to 2.6 MW of cooling capacity, reaching 3 MW in the air-cooled configurations.

Compact design with a net gain of over 40% cooling capacity.

Liquid cooling-ready supporting both air- and hybrid- cooled configurations.

Free cooling optimization minimizing power consumption to handle operational peaks.

Compliant with major current and future bans and EU F-Gas regulations for years to come.

R1234ze inverter driven technology to maximise efficiency.

Global solution, suitable for data centers in various climates around the world.

En Uygun Çalışma Alanı:

Banking
Financial and Insurance
Data Center/Colocation/Hosting
Government
Manufacturing

Ürün Ailesi

Vertiv™ CoolLoop Trim Cooler - The free cooling AI-ready cooler from 850 to 2600 kW

Broşürü Al

Temel Avantajlar

AI & Densification-ready with an efficiency increase of nearly 70%.

Up to 2.6 MW of cooling capacity, reaching 3 MW in the air-cooled configurations.

Compact design with a net gain of over 40% cooling capacity.

Liquid cooling-ready supporting both air- and hybrid- cooled configurations.

Free cooling optimization minimizing power consumption to handle operational peaks.

Compliant with major current and future bans and EU F-Gas regulations for years to come.

R1234ze inverter driven technology to maximise efficiency.

Global solution, suitable for data centers in various climates around the world.

En Uygun Çalışma Alanı:

Banking
Financial and Insurance
Data Center/Colocation/Hosting
Government
Manufacturing

Avantajlar

AI & Densification-ready with a future-oriented mindset: Supports AI-driven densification advancements. Achieve up to 1.087 pPUE, with an efficiency increase of nearly 70%*.

Compact and efficient design: Net gain of over 40% cooling capacity without increasing the overall footprint.

Liquid cooling-ready: Supporting both air- and hybrid-cooled configurations combining both air and liquid cooling capacity.

Eco-conscious cooling: Compliant with major current and future bans and EU F-Gas regulations for years to come, lowering CO2e emissions and granting maximum seasonal efficiency, especially at partial load.

Free cooling optimization: Handle operational peaks while minimizing power consumption, providing increased flexibility.

Improved efficiency: The inverter-driven technology used for compressors, EC fans, and user pumps.

Space efficiency: No additional roof space occupancy is required.

Global flexibility for data centers worldwide: Suitable for data centers in various climates around the world.

*Air-cooled IT load of 10 MW running at 80% capacity with water temperatures at 20°C achieving a pPUE of 1.15 with standard chillers. At a higher temperature of 35°C with Vertiv™ CoolLoop Trim Cooler achieving a higher pPUE estimated at 1.087 and an efficiency increase of nearly 70%.

Özellikleri

Up to 40°C supply water temperature.

Up to almost 3 MW** of cooling capacity in a single, compact frame.

Easy coupling with Vertiv™ CoolChip CDU and Vertiv™ CoolCenter Immersion systems.

Very low-GWP R1234ze refrigerant (GWP = 7 as per IPCC AR4).

Free cooling coils optimized for high ambient temperatures incorporating microchannel heat exchangers for superior heat transfer.

Inverter-driven technology.

Active harmonic filters in the electrical panel.

Wide range of external temperatures from -20°C to over 52°C.

**In the air-cooled configuration

Vertiv™ CoolLoop Trim Cooler - The free cooling AI-ready cooler from 850 to 2600 kW

Broşürler ve Veri Sayfaları

Vertiv CoolLoop Trim Cooler OnePager Rev.02.25

*Modele özgü indirilebilir içerikleri görmek için yukarıdaki teknik özellikler grafiğinde model adını seçerek modele özgü ürün sayfasına gitmeniz gerekir.

Bölgenizdeki İlgili Kişiyi Bulun

Ürün Destek İlgili Kişileri

Ürün Destek İlgili Kişileri Şunun için ilgili kişiler gösteriliyor: California, 91733, USA Değiştir

Vertiv (Liebert Services)

+1 800 543 2378

610 Executive Campus Drive Westerville Ohio 43082 USA

Odaklanılan ürün alanları: Kesintisiz Güç Kaynakları (KGK), Güç Dağıtımı, Isı Yönetimi, Entegre Çözümler, Kabinler ve Kapama

Vertiv Academy – Thermal Management Training

+1 844 841 2665

530 Westar Blvd Westerville Ohio 43082 USA

Odaklanılan ürün alanları: Isı Yönetimi

Müşteri Hikayeleri

A roadmap for the future chip coolant temperature

Learn why manufacturers and data center operators prefer 30°C as the optimal temperature for cooling AI silicon in data centers. Read the technical factors affecting this temperature and identify the paths for future technological improvement to increase and optimize performance.

Devamını Oku

High temperature fluid coolers

In today’s rapidly evolving tech landscape, the pressure is on to stay ahead of the curve—especially in terms of cooling hyperscale and colocation data centers. As technology continues to advance and chip power density increases, managing temperature within data centers has become, and will remain, an ongoing and critical challenge.

Devamını Oku

Isı Yönetimi Müşteri Deneyim Merkezimize Hoş Geldiniz!

Teknoloji İnovasyon Laboratuvarlarımızı ziyaret ederek sanal ortamda Isı Yönetimi üniteleri için mevcut testleri keşfedebilirsiniz.

Devamını Oku

Model	Total Nominal Capacity (kW)	Version	Height (mm)	Width (mm)	Depth (mm)	Height (in)	Width (in)	Depth (in)
LVZ090	1540 kW*	Freecooling	2882	2350	9796	113.50	92.52	385.79
LVZ140	2110 kW*	Freecooling	2882	2350	11066	113.50	92.52	435.58
LVZ170	2700 kW*	Freecooling	2882	2350	13606	113.50	92.52	535.69
LVZ230	3100 kW*	Freecooling	2882	2350	16146	113.50	92.52	635.81

*Return Water Temp 50°-40°C, Air Temp. 42°C, Ethylen Glycol 30%
